NCP91-AHXNK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 1NZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501-0512)

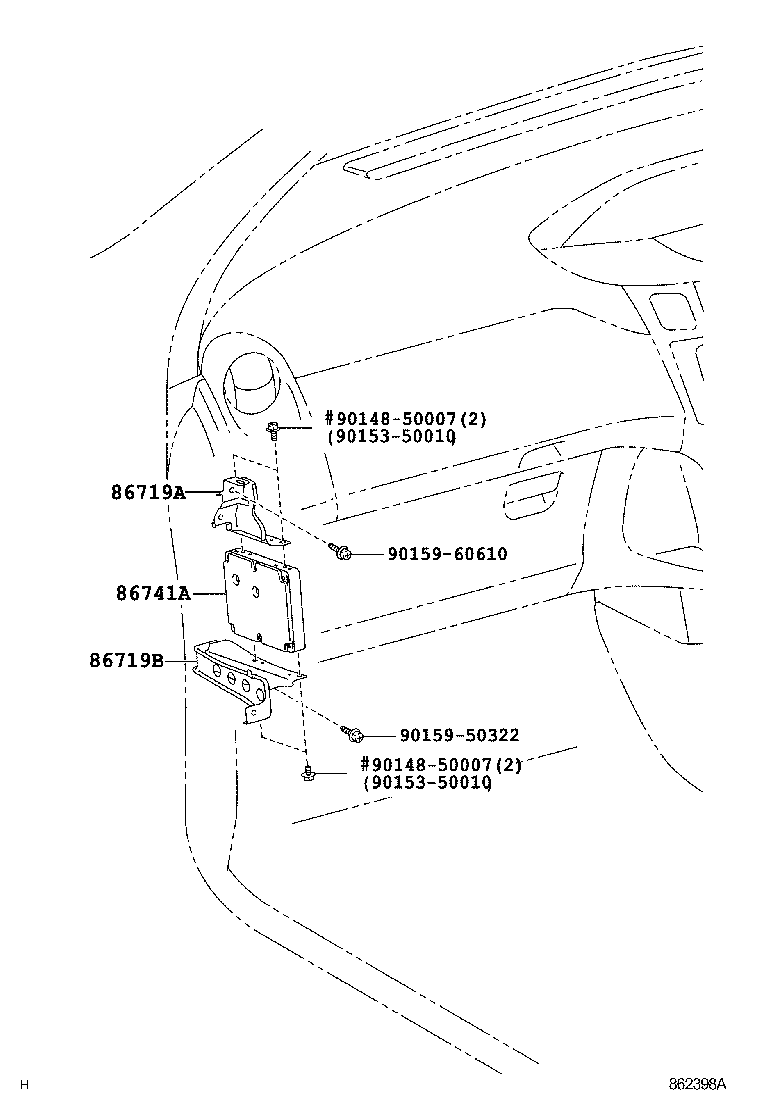

Click highlighted areas on diagram

diagram 86719A 86719B 86741A 9014850007 9014850007 9015350010 9015350010 9015950322 9015960610
Part # Description Qty Price
86719A - BRACKET, TELEPHONE NO.1
86719-52060

SCP90..F;KSP90,NCP9#..F,RS,X

ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ

 1
86719B - BRACKET, TELEPHONE NO.2
86719-52070

SCP90..F;KSP90,NCP9#..F,RS,X

ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ

 1
86741A - TRANSCEIVER, TELEMATICS
86741-52020

SCP90..F;KSP90,NCP9#..F,RS,X

ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ

 1
Common parts
90148-50007
90153-50010
90159-50322
90159-60610
