NCP91-AHXNK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 1NZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )

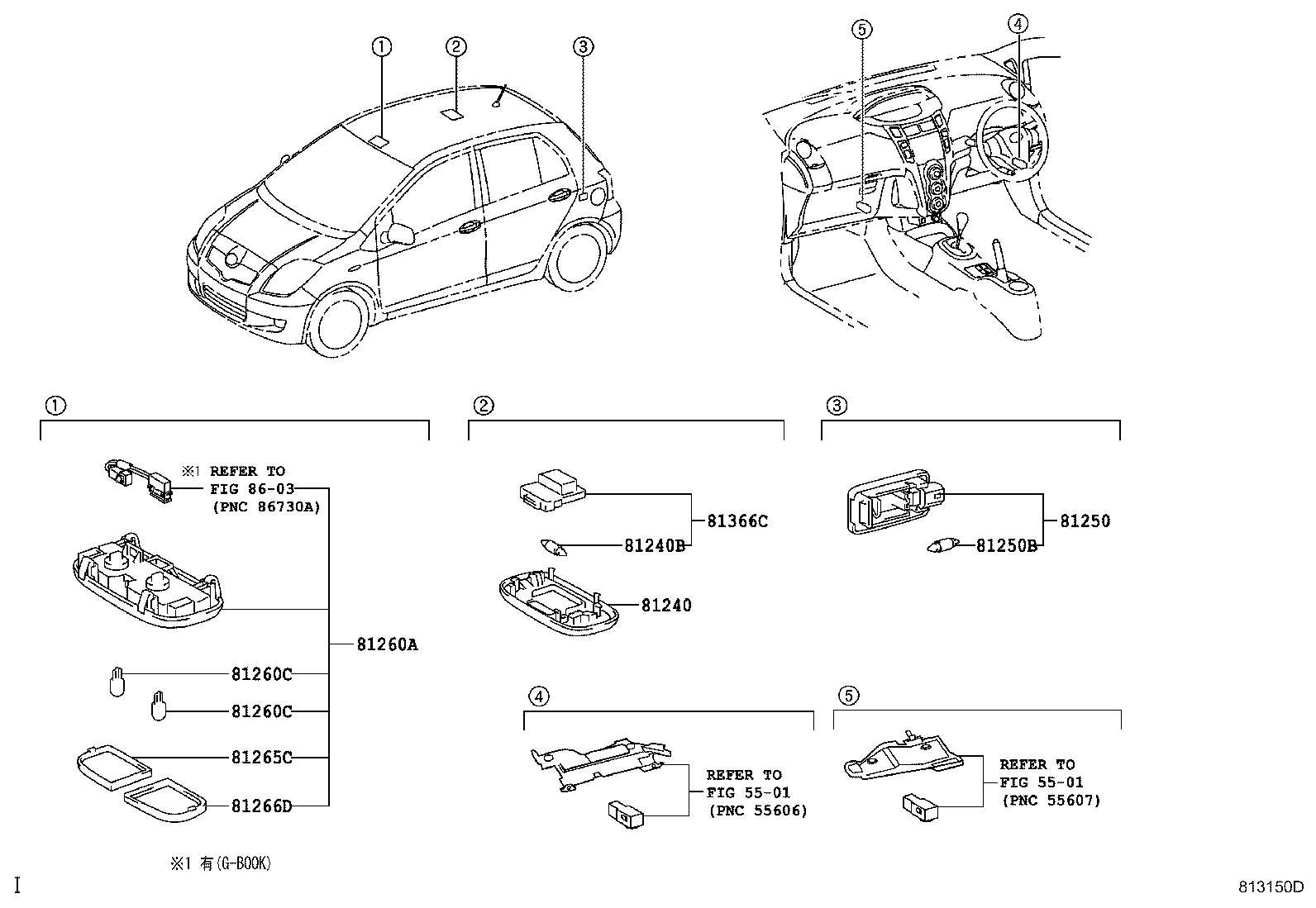

Click highlighted areas on diagram

diagram 5501 5501 81240 81240B 81250 81250B 81260A 81260C 81260C 81265C 81266D 81366C 8603
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-52040E0

KSP90,NCP9#,SCP90..B,F,ILL,U,X

GREGE,TRIM4#

 1
81240-52040B0

KSP90,NCP9#,SCP90..B,F,U,X

GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

KSP90,NCP9#,SCP90

12V 8W

 1
81250 - LAMP ASSY, ROOM, NO.2
81330-05021

KSP90,NCP9#,SCP90..F,ILL,RS,U,X

 1
81250B - BULB, ROOM LAMP, NO.2
90981-WE002

KSP90,NCP9#,SCP90..F,ILL,RS,U,X

12V 5W

 1
81260A - LAMP ASSY, MAP
81260-52040B0

NCP91..X

ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｵ/BT/2ｽﾋﾟｰｶ/異型 2DIN,GRAY,TRIM1#

 1
81260-52040E0

NCP91..X

ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｵ/BT/2ｽﾋﾟｰｶ/異型 2DIN,GREGE,TRIM4#

 1
81260-52030E0

KSP90,NCP9#,SCP90..B,F,ILL,U,X

GREGE,TRIM4#

 1
81260-52040B0

KSP90,NCP9#,SCP90..F,X

ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ,GRAY,TRIM1#

 1
81260-52040E0

KSP90,NCP9#,SCP90..F,X

ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ,GREGE,TRIM4#

 1
81260-52030B0

KSP90,NCP9#,SCP90..B,F,U,X

GRAY,TRIM1#

 1
81260-52040B0

NCP91..X

ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｵ/BT/4ｽﾋﾟｰｶ/異型 2DIN,GRAY,TRIM1#

 1
81260-52040B0

NCP9#,SCP90..U,X

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ(G−BOOK),GRAY,TRIM1#

 1
81260-52040E0

NCP91..X

ｵｰﾃﾞｨｵ−CD/ﾗｼﾞｵ/BT/4ｽﾋﾟｰｶ/異型 2DIN,GREGE,TRIM4#

 1
81260-52040E0

NCP9#,SCP90..U,X

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ(G−BOOK),GREGE,TRIM4#

 1
81260C - BULB(FOR MAP LAMP)
90981-11062

KSP90,NCP9#,SCP90

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

KSP90,NCP9#,SCP90

12V 8W

 2
81265C - LENS, MAP LAMP, NO.1
81265-52020

KSP90,NCP9#,SCP90

 1
81266D - LENS, MAP LAMP, NO.2
81266-52020

KSP90,NCP9#,SCP90

 1
81366C - BASE, ROOM LAMP SWITCH
81366-68010

KSP90,NCP9#,SCP90

 1
Linked diagrams
5501
8603
