NCP91-AHXNK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 1NZFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501-0708)B,F,ILL,U,X

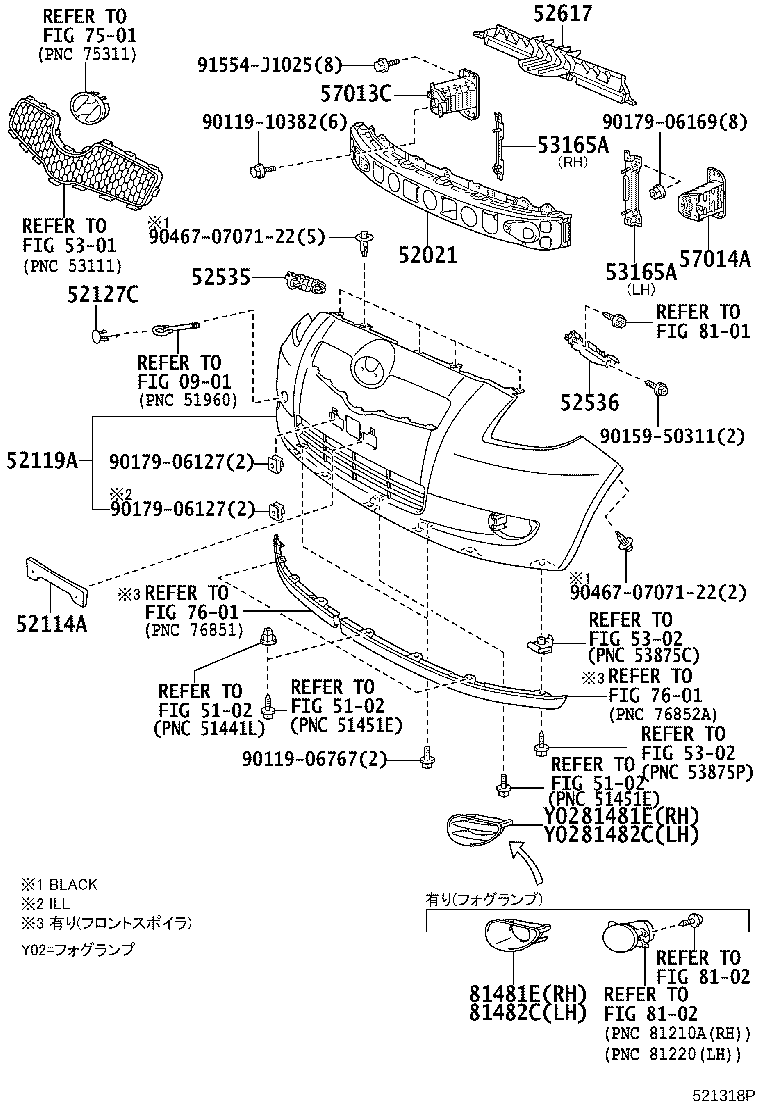

Click highlighted areas on diagram

diagram 0901 5102 5102 5102 52021 52114A 52119A 52127C 52535 52536 52617 5301 5302 5302 53165A 53165A 57013C 57014A 7501 7601 7601 8101 8102 8102 81481E 81481E 81482C 81482C 9011906767 9011910382 9015950311 9017906127 9017906127 9017906169 904670707122 904670707122 91554J1025
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-52050

KSP90,NCP9#,SCP90

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-52020

KSP90,NCP9#,SCP90

 1
52119A - COVER, FRONT BUMPER
52119-52410B0

KSP90,NCP9#,SCP90..B,F,U,X

SILVER M.M.,1E7

 1
52119-52410C0

KSP90,NCP9#,SCP90..B,F,U,X

BLACK MC.,209

 1
52119-52410E1

KSP90,NCP9#,SCP90..B,F,ILL,U,X

BEIGE PM.,4S8

 1
52119-52410G1

KSP90,NCP9#,SCP90..B,F,U,X

GREEN M.M.,6U1

 1
52119-52410E0

KSP90,NCP9#,SCP90..B,F,U,X

PALE ORANGE MICA METALLIC,4S3

 1
52119-52410K0

KSP90,NCP9#,SCP90..B,F,ILL,U,X

REDDISH PURPLE M.M.,9AC

 1
52119-52410A0

KSP90,NCP9#,SCP90..B,F,U,X

WHITE,068

 1
52119-52410J1

KSP90,NCP9#,SCP90..B,F,U,X

LT. BLUE M.M.,8S9

 1
52119-52410B1

KSP90,NCP9#,SCP90..B,F,ILL,U,X

MEDIUM SILVER ME.,1F8

 1
52119-52410G2

KSP90,NCP9#,SCP90..B,F,U,X

LT.GREEN ME.,6U0

 1
52119-52410J2

KSP90,NCP9#,SCP90..F,U,X

BLUE M.M.,8T0

 1
52119-52410J0

KSP90,NCP9#,SCP90..B,F,U,X

DK.BLUE M.M.,8P4

 1
52119-52410D2

KSP90,NCP9#,SCP90..B,F,U,X

ROSE ME.OP.,3P3

 1
52119-52410D0

KSP90,NCP9#,SCP90..B,F,U,X

SUPER RED 5,3P0

 1
52127C - COVER, FRONT BUMPER HOLE
52127-52290K0

KSP90,NCP9#,SCP90..B,F,ILL,U,X

REDDISH PURPLE M.M.,9AC

 1
52127-52290E0

KSP90,NCP9#,SCP90..B,F,U,X

PALE ORANGE MICA METALLIC,4S3

 1
52127-52290B0

KSP90,NCP9#,SCP90..B,F,U,X

SILVER M.M.,1E7

 1
52127-52290C0

KSP90,NCP9#,SCP90..B,F,U,X

BLACK MC.,209

 1
52127-52290J0

KSP90,NCP9#,SCP90..B,F,U,X

DK.BLUE M.M.,8P4

 1
52127-52290J1

KSP90,NCP9#,SCP90..B,F,U,X

LT. BLUE M.M.,8S9

 1
52127-52290D0

KSP90,NCP9#,SCP90..B,F,U,X

SUPER RED 5,3P0

 1
52127-52290B1

KSP90,NCP9#,SCP90..B,F,ILL,U,X

MEDIUM SILVER ME.,1F8

 1
52127-52290A0

KSP90,NCP9#,SCP90..B,F,U,X

WHITE,068

 1
52127-52290D2

KSP90,NCP9#,SCP90..B,F,U,X

ROSE ME.OP.,3P3

 1
52127-52290G1

KSP90,NCP9#,SCP90..B,F,U,X

GREEN M.M.,6U1

 1
52127-52290E1

KSP90,NCP9#,SCP90..B,F,ILL,U,X

BEIGE PM.,4S8

 1
52127-52290G2

KSP90,NCP9#,SCP90..B,F,U,X

LT.GREEN ME.,6U0

 1
52127-52290J2

KSP90,NCP9#,SCP90..F,U,X

BLUE M.M.,8T0

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-52060

KSP90,NCP9#,SCP90

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-52050

KSP90,NCP9#,SCP90

 1
52617 - ABSORBER, RADIATOR SUPPORT, UPPER
52617-52020

KSP90,NCP9#,SCP90

 1
52617-52010

KSP90,NCP9#,SCP90

 1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53165-52020

KSP90,NCP9#,SCP90

左側

 1
53164-52010

KSP90,NCP9#,SCP90

右側

 1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53165-52020

KSP90,NCP9#,SCP90

左側

 1
53164-52010

KSP90,NCP9#,SCP90

右側

 1
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-52010

KSP90,NCP9#,SCP90

 1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-52010

KSP90,NCP9#,SCP90

 1
81481E - COVER, FOG LAMP, RH
81481-52110

KSP90,NCP9#,SCP90..B,F,U,X

 1
81481E - COVER, FOG LAMP, RH
81481-52110

KSP90,NCP9#,SCP90..B,F,U,X

 1
81482C - COVER, FOG LAMP, LH
81482-52100

KSP90,NCP9#,SCP90..B,F,U,X

 1
81482C - COVER, FOG LAMP, LH
81482-52100

KSP90,NCP9#,SCP90..B,F,U,X

 1
Common parts
90119-06767
90119-10382
90159-50311
90179-06127
90179-06169
90467-0707122
91554-J1025
Linked diagrams
0901
5102
5301
5302
7501
7601
8101
8102
