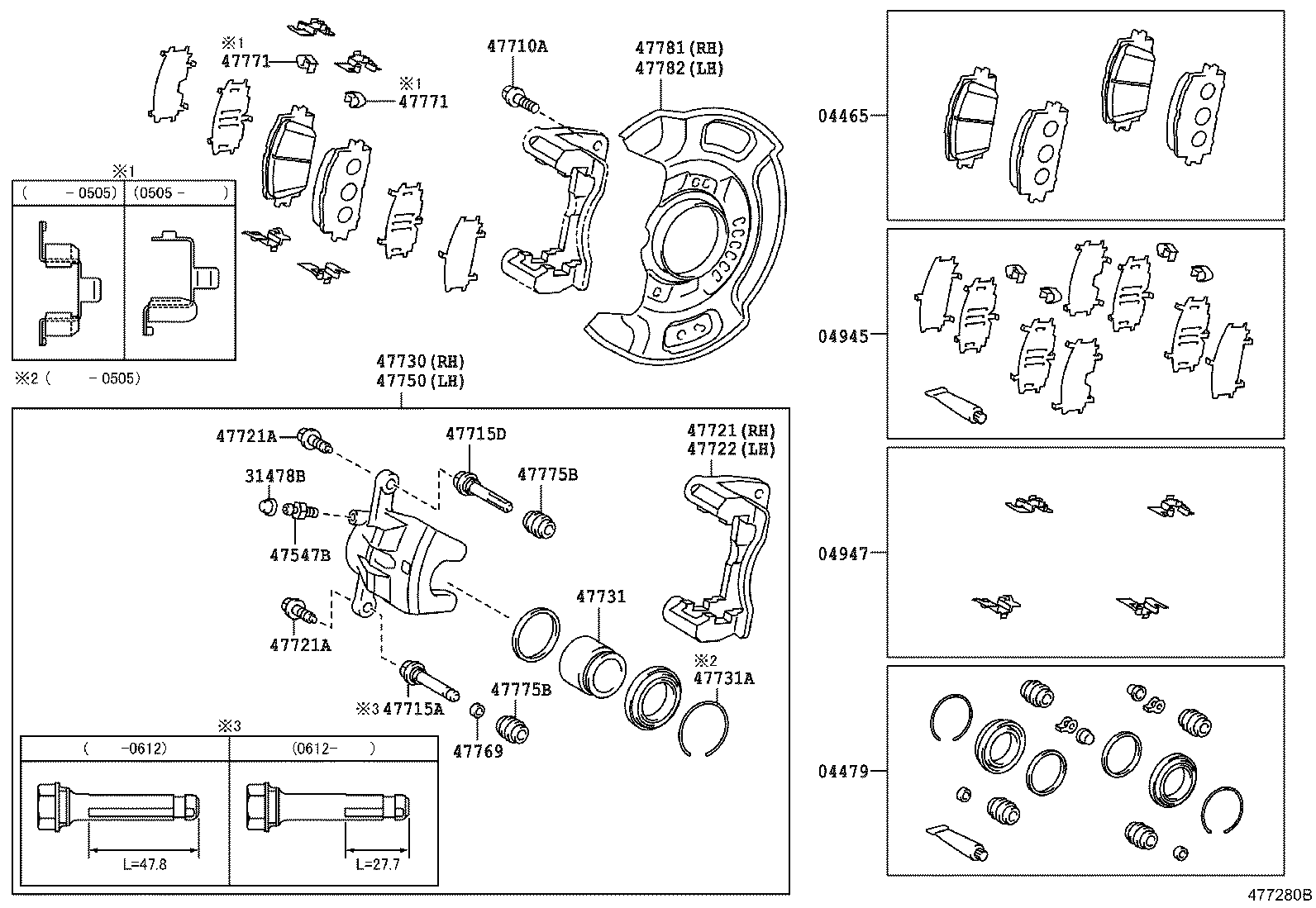

NCP91-AHXNK (2005)
Toyota Vitz
(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-52180 |
KSP90,NCP9#,SCP90..B,F,U,X ﾏｰｸ AK PA563H |
1 | ||
| 04465-52260 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X ﾏｰｸ AK PA563H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-52070 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-52030 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 04945-52130 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-42050 |
KSP90,NCP9#,SCP90 |
1 | ||
| 04947-52050 |
KSP90,NCP9#,SCP90 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
KSP90,NCP9#,SCP90 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
KSP90,NCP9#,SCP90 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 |
KSP90,NCP9#,SCP90 *12−1.25PX29.5−23 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-22070 |
KSP90,NCP9#,SCP90 |
2 | ||
| 47715-12A10 |
KSP90,NCP9#,SCP90 |
2 | ||
| 47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2 | ||||
| 47715-52190 |
KSP90,NCP9#,SCP90 |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-52190 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 47721-52191 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
KSP90,NCP9#,SCP90 *8−1.00PX23−15 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
KSP90,NCP9#,SCP90 *8−1.00PX23−15 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-52190 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 47722-52191 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-52191 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 47730-52190 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-52190 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-66001 |
KSP90,NCP9#,SCP90..B,F,U,X |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-52191 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X |
1 | ||
| 47750-52190 |
KSP90,NCP9#,SCP90..B,F,U,X |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-50010 |
KSP90,NCP9#,SCP90 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-52190 |
KSP90,NCP9#,SCP90 |
4 | ||
| 47771-52191 |
KSP90,NCP9#,SCP90 |
4 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-52190 |
KSP90,NCP9#,SCP90 |
4 | ||
| 47771-52191 |
KSP90,NCP9#,SCP90 |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-52190 |
KSP90,NCP9#,SCP90 |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-52190 |
KSP90,NCP9#,SCP90 |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-52030 |
KSP90,NCP9#,SCP90 |
1 | ||
