NCP91-AHMVK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )

Click highlighted areas on diagram

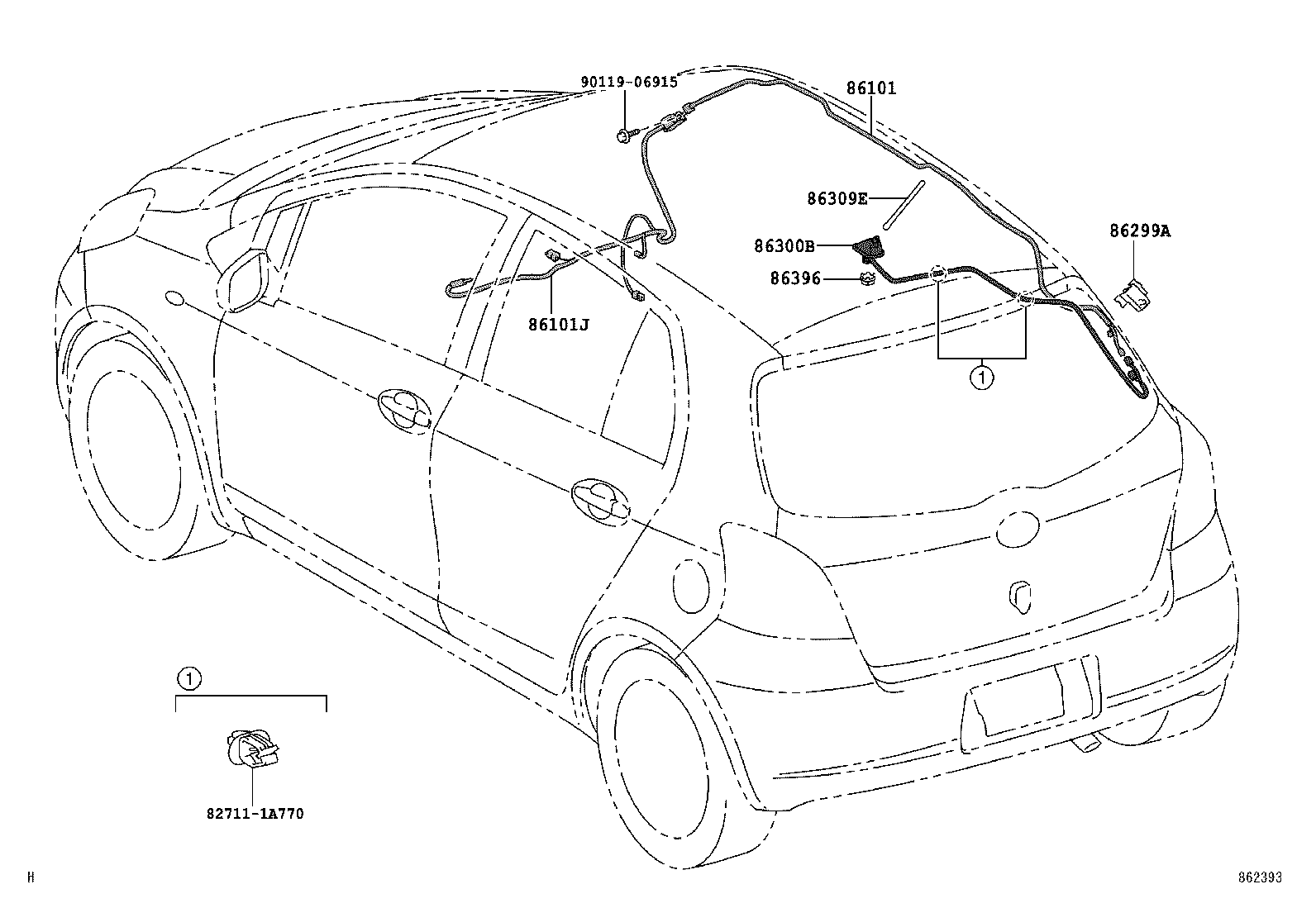

diagram 827111A770 86101 86101J 86299A 86300B 86309E 86396 9011906915
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-52340

KSP90,NCP9#,SCP90

 1
86101-52390

KSP90,NCP9#,SCP90..F,RS,X

ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-52430

KSP90,NCP9#,SCP90..F,RS,X

ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ&ETC−有り

 1
86101-52440

KSP90,NCP9#,SCP90

ETC−有り

 1
86101-52420

KSP90,NCP9#,SCP90..F,RS,X

ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ

 1
86101-52400

KSP90,NCP9#,SCP90

 1
86299A - CLIP, RADIO TO ANTENNA WIRE
86299-52010

KSP90,NCP9#,SCP90

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-52310

KSP90,NCP9#,SCP90..F,RS,X

ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ

 1
86300-52280

KSP90,NCP9#,SCP90

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-52070

KSP90,NCP9#,SCP90..F,RS,X

ｵｰﾃﾞｨｵ−G−BOOK,2ｽﾋﾟｰｶ

 1
86309-52030

KSP90,NCP9#,SCP90

 1
86396 - NUT, ANTENNA
86396-20040

KSP90,NCP9#,SCP90

 1
Common parts
82711-1A770
90119-06915
