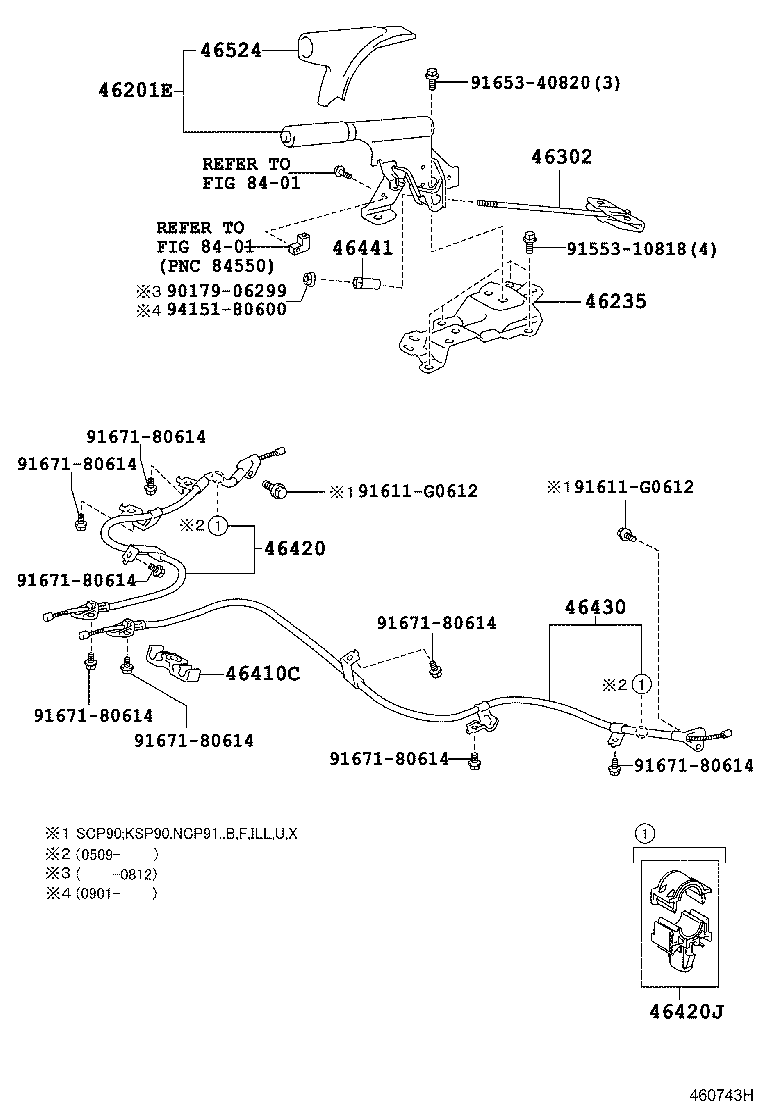

Toyota Vitz NCP91 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-52070B0	KSP90,NCP9#,SCP90..B,F,U,X DK.GRAY,TRIM1#,4#	01/2005 - 08/2007	1
46201-52090B0	NCP91..RS DK.GRAY,TRIM1#	01/2005 - 08/2007	1
46235 - BRACKET, PARKING BRAKE LEVER SUPPORT
46235-52020	KSP90,NCP91,SCP90	01/2005 - 08/2007	1
46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1
46302-52030	KSP90,NCP9#,SCP90	01/2005 - 08/2007	1
46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE)
46411-52030	KSP90,NCP91,SCP90	01/2005 - 08/2007	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-52151	KSP90,NCP91,SCP90..B,F,ILL,U,X	09/2005 - 08/2007	1
46420-52161	NCP91..RS	09/2005 - 08/2007	1
46420-52150	KSP90,NCP91,SCP90..B,F,U,X	01/2005 - 08/2005	1
46420-52160	NCP91..RS	01/2005 - 08/2005	1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46402-52030	KSP90,NCP9#,SCP90	07/2007 - 08/2007	2
46402-52010	KSP90,NCP9#,SCP90	09/2005 - 06/2007	2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-52160	NCP91..RS	01/2005 - 08/2005	1
46430-52150	KSP90,NCP91,SCP90..B,F,U,X	01/2005 - 08/2005	1
46430-52161	NCP91..RS	09/2005 - 08/2007	1
46430-52151	KSP90,NCP91,SCP90..B,F,ILL,U,X	09/2005 - 08/2007	1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-52010	KSP90,NCP9#,SCP90	01/2005 - 08/2007	1
46524 - COVER, PARKING BRAKE DUST
46524-52020	KSP90,NCP9#,SCP90	01/2005 - 08/2007	1
Common parts
90179-06299
91553-10818
91611-G0612
91653-40820
91671-80614
94151-80600
Linked diagrams
8401

NCP91-AHMVK (2005)
