NCP91-AHMVK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )1NZFE..5F

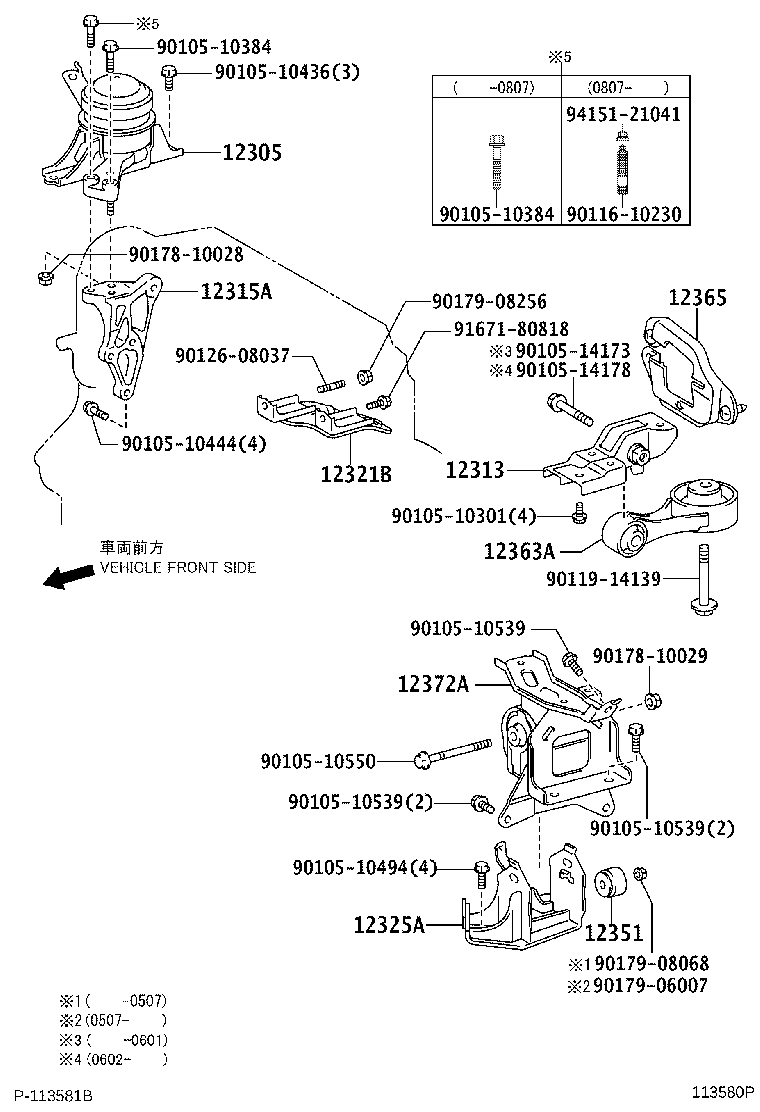

Click highlighted areas on diagram

diagram 12305 12313 12315A 12321B 12325A 12351 12363A 12365 12372A 9010510301 9010510384 9010510384 9010510436 9010510444 9010510494 9010510539 9010510539 9010510539 9010510550 9010514173 9010514178 9011610230 9011914139 9012608037 9017810028 9017810029 9017906007 9017908068 9017908256 9167180818 9415121041
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-21200

1NZFE,2NZFE..NCP9#..4FC,5F

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-21040

1NZFE..NCP91..5F

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-21040

1NZFE..NCP91

 1
12315-21041

1NZFE..NCP91

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-52020

1NZFE..NCP91

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-21230

1NZFE..NCP91..5F

 1
12325-21160

1NZFE..NCP91..5F

 1
12351 - DAMPER, ENGINE MOUNTING
12351-21090

1NZFE..NCP91..5F

 1
12351-21070

1NZFE..NCP91..5F

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-21040

1NZFE..NCP91..5F

 1
12365 - COVER, ENGINE MOVING CONTROL ROD
12365-40010

1NZFE,2NZFE..NCP9#

寒冷地仕様

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-21130

1NZFE..NCP91..5F

 1
Common parts
90105-10301
90105-10384
90105-10436
90105-10444
90105-10494
90105-10539
90105-10550
90105-14173
90105-14178
90116-10230
90119-14139
90126-08037
90178-10028
90178-10029
90179-06007
90179-08068
90179-08256
91671-80818
94151-21041
