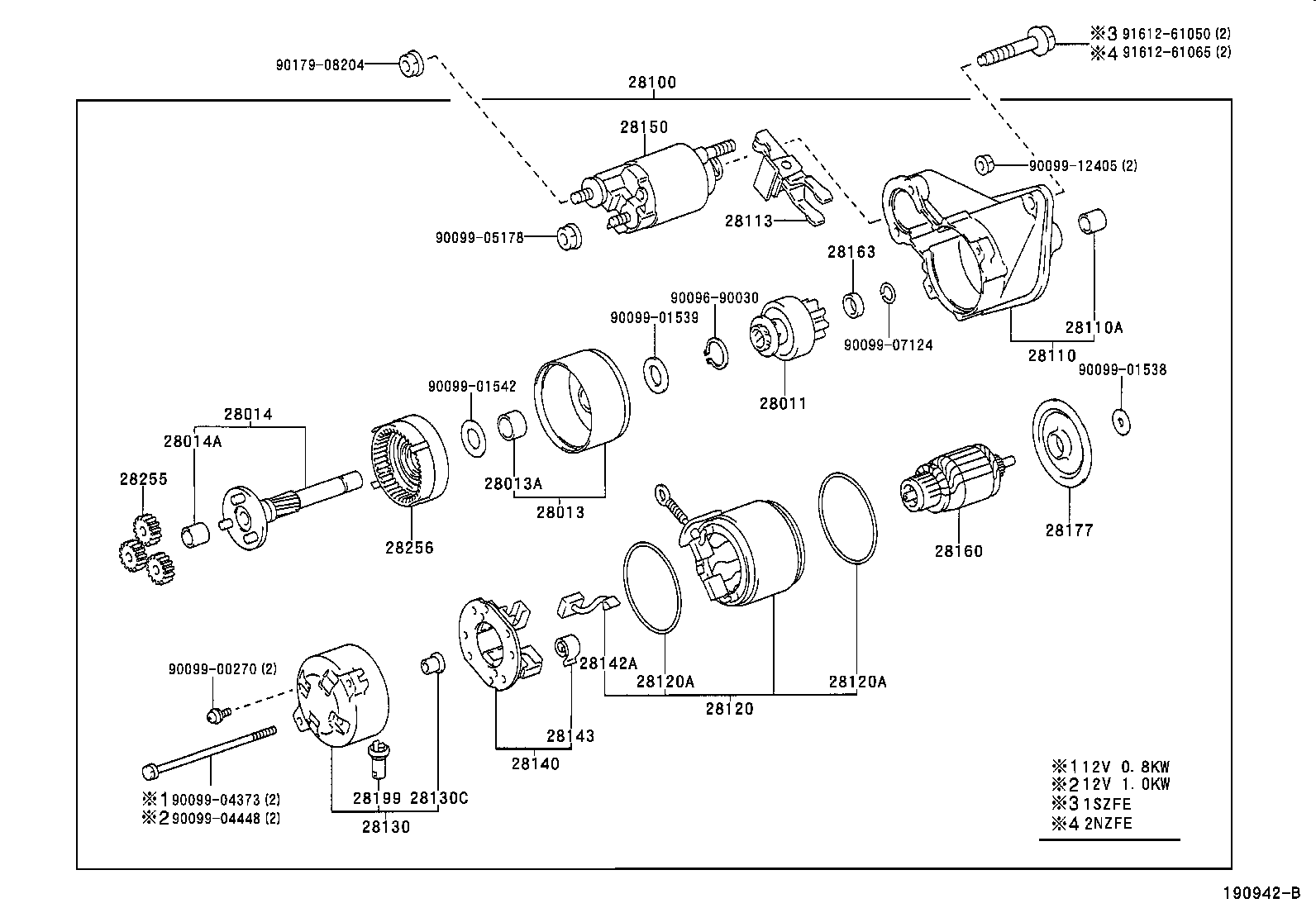

NCP15-AHPGK (1999)
Toyota Vitz
(9901-0112)
12V 0.8KW, 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-70020 |
1NZFE,2NZFE..NCP1# 12V 0.8KW,1.0KW |
1 | ||
| 28011-70020 |
1NZFE,2NZFE..NCP1# 12V 0.8KW,1.0KW |
1 | ||
| 28013 - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1 | ||||
| 28013-70020 |
2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 28013-70030 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2 | ||||
| 90099-10181 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 28014 - SHAFT SUB-ASSY, PLANET CARRIER | ||||
| 28014-70020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 28014A - BUSH OR BEARING, PLANET CARRIER SHAFT | ||||
| 90099-10180 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-21020 |
1NZFE,2NZFE..NCP1# 12V 0.8KW |
1 | ||
| 28100-21020 |
1NZFE,2NZFE..NCP1# 12V 0.8KW |
1 | ||
| 28100-21030 |
1NZFE,2NZFE..NCP1# 12V 1.0KW |
1 | ||
| 28100-21030 |
1NZFE,2NZFE..NCP1# 12V 1.0KW |
1 | ||
| 28110A - BEARING(FOR STARTER HOUSING) | ||||
| 90099-10171 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-70050 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 12V 1.0KW |
1 | ||
| 28120-70020 |
1NZFE,2NZFE..NCP1# 12V 0.8KW |
1 | ||
| 28120-70020 |
1NZFE,2NZFE..NCP1# 12V 0.8KW |
1 | ||
| 28120-70050 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 12V 1.0KW |
1 | ||
| 28120-70050 |
2NZFE..NCP15..F;2NZFE..NCP15..5D..(CLA,U);1NZFE,2NZFE,1SZFE,2SZFE..NCP10,13,SCP1# 12V 1.0KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14092 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14092 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
2 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-70020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 28140-70020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 28140-70020 |
2NZFE..NCP15..F;2NZFE..NCP15..5D..(CLA,U);1NZFE,2NZFE,1SZFE,2SZFE..NCP10,13,SCP1# |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-16160 |
2NZFE..NCP15..F;2NZFE..NCP15..5D..(CLA,U);1NZFE,2NZFE,1SZFE,2SZFE..NCP10,13,SCP1# |
1 | ||
| 28150-16160 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 28150-16160 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-70021 |
1NZFE,2NZFE..NCP1# 12V 0.8KW |
1 | ||
| 28160-70050 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 12V 1.0KW |
1 | ||
| 28160-70050 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 12V 1.0KW |
1 | ||
| 28160-70050 |
2NZFE..NCP15..F;2NZFE..NCP15..5D..(CLA,U);1NZFE,2NZFE,1SZFE,2SZFE..NCP10,13,SCP1# 12V 1.0KW |
1 | ||
| 28160-70021 |
1NZFE,2NZFE..NCP1# 12V 0.8KW |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-70020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-46080 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-70020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
3 | ||
| 28256 - GEAR, STARTER INTERNAL | ||||
| 28256-70020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| Common parts | ||||
| 90096-90030 | ||||
| 90099-00270 | ||||
| 90099-01538 | ||||
| 90099-01539 | ||||
| 90099-01542 | ||||
| 90099-04373 | ||||
| 90099-04448 | ||||
| 90099-05178 | ||||
| 90099-07124 | ||||
| 90099-12405 | ||||
| 90179-08204 | ||||
| 91612-61050 | ||||
| 91612-61065 | ||||

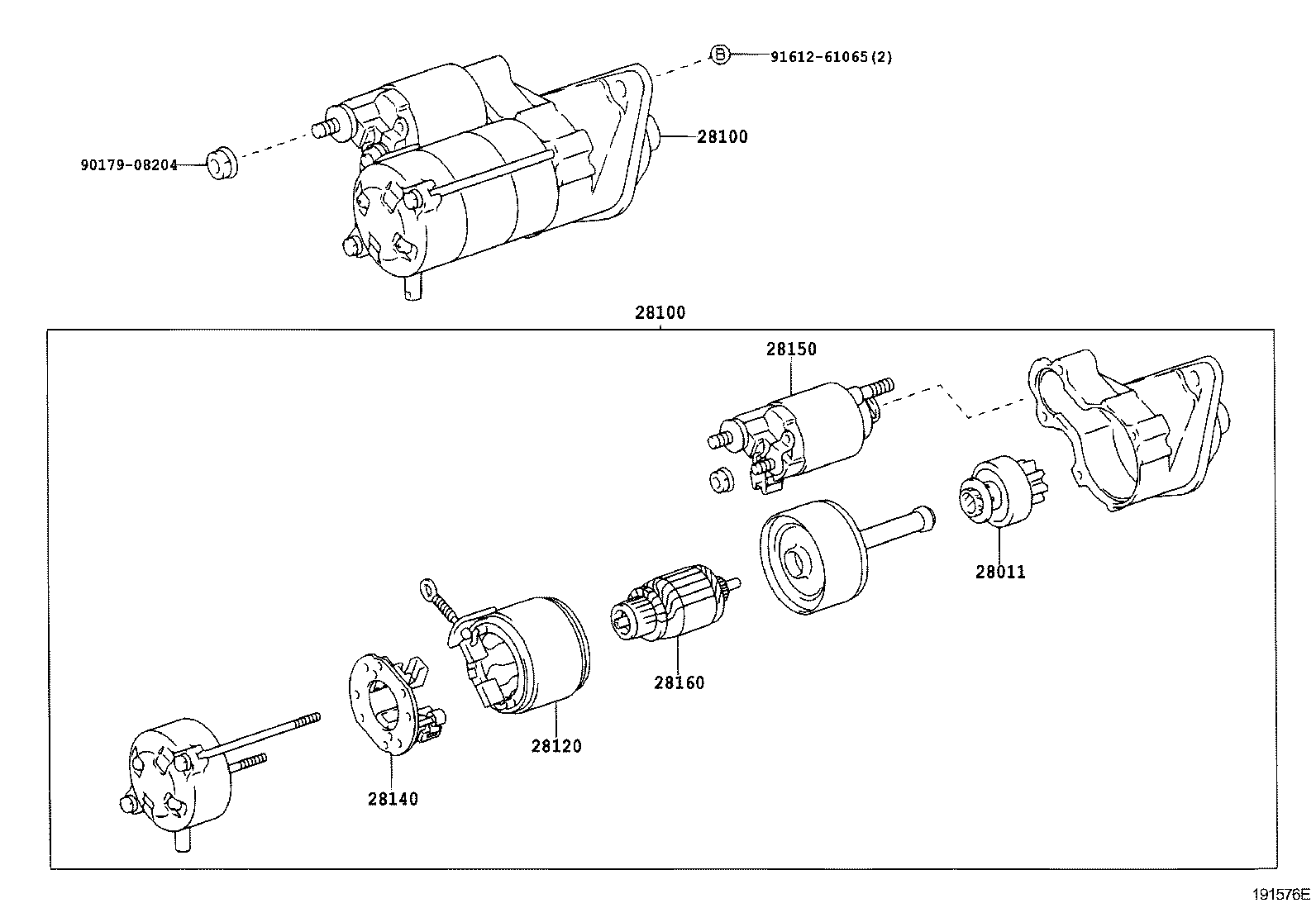

(0112- )
12V 0.8KW,1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-70020 |
1NZFE,2NZFE..NCP1# 12V 0.8KW,1.0KW |
1 | ||
| 28011-70020 |
1NZFE,2NZFE..NCP1# 12V 0.8KW,1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-21020 |
1NZFE,2NZFE..NCP1# 12V 0.8KW |
1 | ||
| 28100-21020 |
1NZFE,2NZFE..NCP1# 12V 0.8KW |
1 | ||
| 28100-21030 |
1NZFE,2NZFE..NCP1# 12V 1.0KW |
1 | ||
| 28100-21030 |
1NZFE,2NZFE..NCP1# 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-21020 |
1NZFE,2NZFE..NCP1# 12V 0.8KW |
1 | ||
| 28100-21020 |
1NZFE,2NZFE..NCP1# 12V 0.8KW |
1 | ||
| 28100-21030 |
1NZFE,2NZFE..NCP1# 12V 1.0KW |
1 | ||
| 28100-21030 |
1NZFE,2NZFE..NCP1# 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-70050 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 12V 1.0KW |
1 | ||
| 28120-70020 |
1NZFE,2NZFE..NCP1# 12V 0.8KW |
1 | ||
| 28120-70020 |
1NZFE,2NZFE..NCP1# 12V 0.8KW |
1 | ||
| 28120-70050 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 12V 1.0KW |
1 | ||
| 28120-70050 |
2NZFE..NCP15..F;2NZFE..NCP15..5D..(CLA,U);1NZFE,2NZFE,1SZFE,2SZFE..NCP10,13,SCP1# 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-70020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 28140-70020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 28140-70020 |
2NZFE..NCP15..F;2NZFE..NCP15..5D..(CLA,U);1NZFE,2NZFE,1SZFE,2SZFE..NCP10,13,SCP1# |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-16160 |
2NZFE..NCP15..F;2NZFE..NCP15..5D..(CLA,U);1NZFE,2NZFE,1SZFE,2SZFE..NCP10,13,SCP1# |
1 | ||
| 28150-16160 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 28150-16160 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-70021 |
1NZFE,2NZFE..NCP1# 12V 0.8KW |
1 | ||
| 28160-70050 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 12V 1.0KW |
1 | ||
| 28160-70050 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 12V 1.0KW |
1 | ||
| 28160-70050 |
2NZFE..NCP15..F;2NZFE..NCP15..5D..(CLA,U);1NZFE,2NZFE,1SZFE,2SZFE..NCP10,13,SCP1# 12V 1.0KW |
1 | ||
| 28160-70021 |
1NZFE,2NZFE..NCP1# 12V 0.8KW |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91612-61065 | ||||
