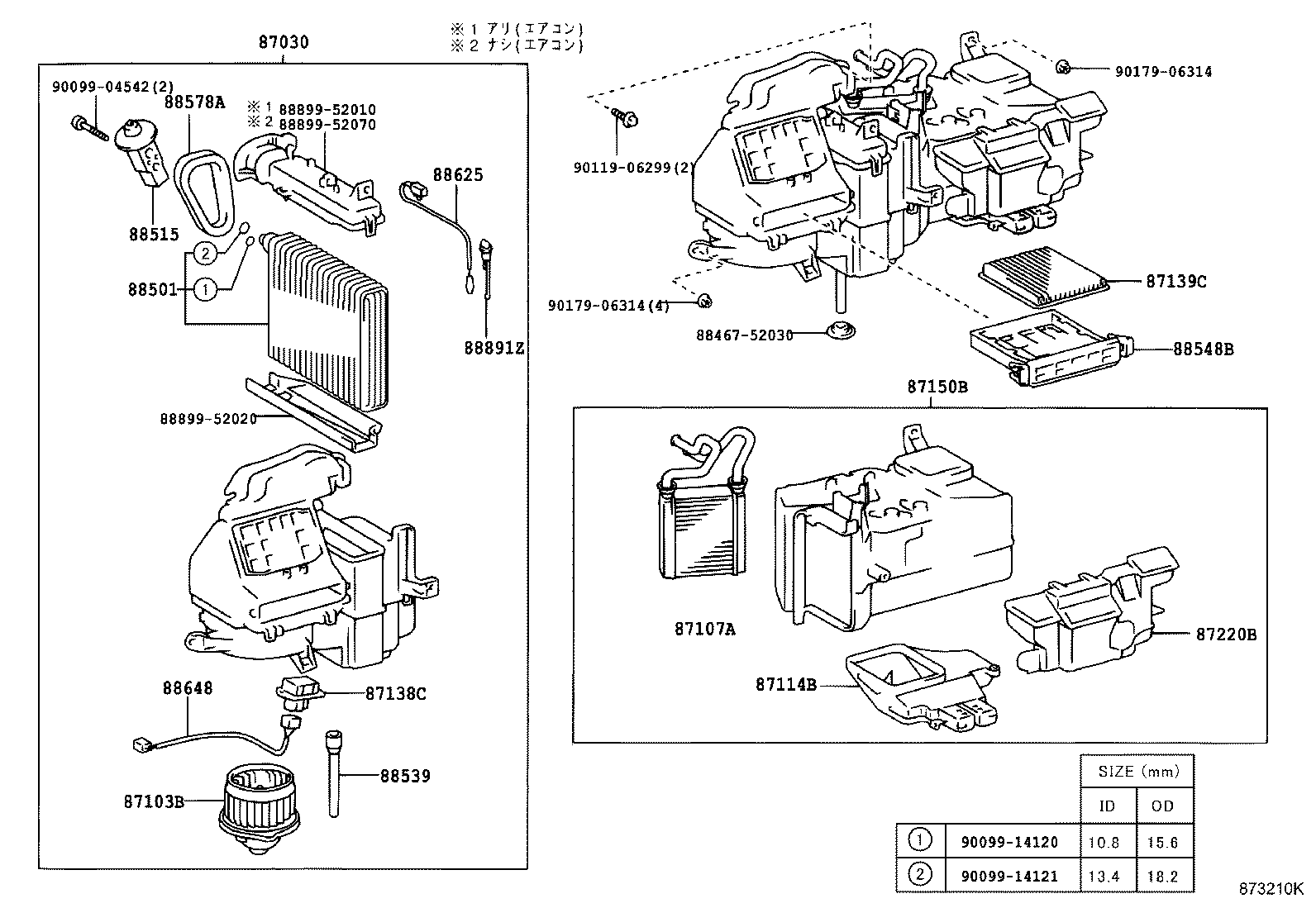

NCP15-AHMGK (1999)
Toyota Vitz
(9901-0212)
ﾏﾆﾕｱﾙ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-52040 |
NCP13;NCP10,15,SCP10..CLA,U ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87030-52020 |
NCP1#..CLA,RS,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87030-52010 |
NCP10,15,SCP10..CLA,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87030-52040 |
NCP13;NCP10,15,SCP10..CLA,U ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87030-52040 |
NCP10,15..F,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87030-52050 |
NCP10..CLA,U;NCP13,15..CLA,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87030-52010 |
NCP10,15,SCP10..CLA,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87030-52050 |
NCP10..CLA,U;NCP13,15..CLA,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87030-52010 |
NCP1#..F,RS |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52010 |
NCP1#,SCP10 |
1 | ||
| 87103-52030 |
NCP1#,SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87103-52010 |
NCP1#,SCP10 |
1 | ||
| 87103-52030 |
NCP1#,SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52010 |
NCP1#,SCP10 |
1 | ||
| 87107-52010 |
NCP1#,SCP10 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-52010 |
NCP1#,SCP10 |
1 | ||
| 87114-52020 |
NCP1#,SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87114-52020 |
NCP1#,SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87114-52010 |
NCP1#,SCP10 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
NCP15,SCP10..B,F |
1 | ||
| 87138-52010 |
NCP1#,SCP10 |
1 | ||
| 87138-52010 |
NCP1#,SCP10 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-44010 |
NCP1#,SCP10 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-12010 |
NCP1#,SCP10 |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-52010 |
NCP15,SCP10..B,F |
1 | ||
| 87150-52040 |
NCP10..CLA,U;NCP13,15..CLA,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-52010 |
NCP1#,SCP10..CLA,RS,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87150-52020 |
NCP15,SCP10..F,U ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 87150-52040 |
NCP10..CLA,U;NCP13,15..CLA,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-52030 |
NCP1# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87150-52020 |
NCP10..CLA,U;NCP13,15..CLA,RS |
1 | ||
| 87150-52010 |
NCP1#,SCP10..CLA,RS,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87150-52010 |
NCP15,SCP10..B,F |
1 | ||
| 87150-52030 |
NCP1# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87150-52250 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 87150-52240 |
NCP1#..CLA,RS,U ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-52010 |
NCP1#,SCP10 |
1 | ||
| 87220-52010 |
NCP1#,SCP10 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52010 |
NCP1#,SCP10 |
1 | ||
| 88501-52010 |
NCP1#,SCP10 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
NCP1#,SCP10 |
1 | ||
| 88515-52010 |
NCP1#,SCP10 |
1 | ||
| 88515-52010 |
NCP1#,SCP10 ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-52010 |
NCP1#,SCP10 |
1 | ||
| 88539-52010 |
NCP1#,SCP10 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
NCP1#,SCP10 |
1 | ||
| 88548-52010 |
NCP1#,SCP10 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52020 |
NCP1#,SCP10..B,CLA,RS,U |
1 | ||
| 88625-52020 |
NCP15,SCP10..F |
1 | ||
| 88625-52070 |
NCP1#,SCP10 ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-52020 |
NCP15,SCP10..B,F |
1 | ||
| 88648-52050 |
NCP1#,SCP10..CLA,RS,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88648-52020 |
NCP1#,SCP10 |
1 | ||
| 88648-52050 |
NCP10,15,SCP10..CLA,F,RS,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88648-52020 |
NCP1#,SCP10 |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88899-52010 | ||||
| 88899-52020 | ||||
| 88899-52070 | ||||
| 90099-04542 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06299 | ||||
| 90179-06314 | ||||

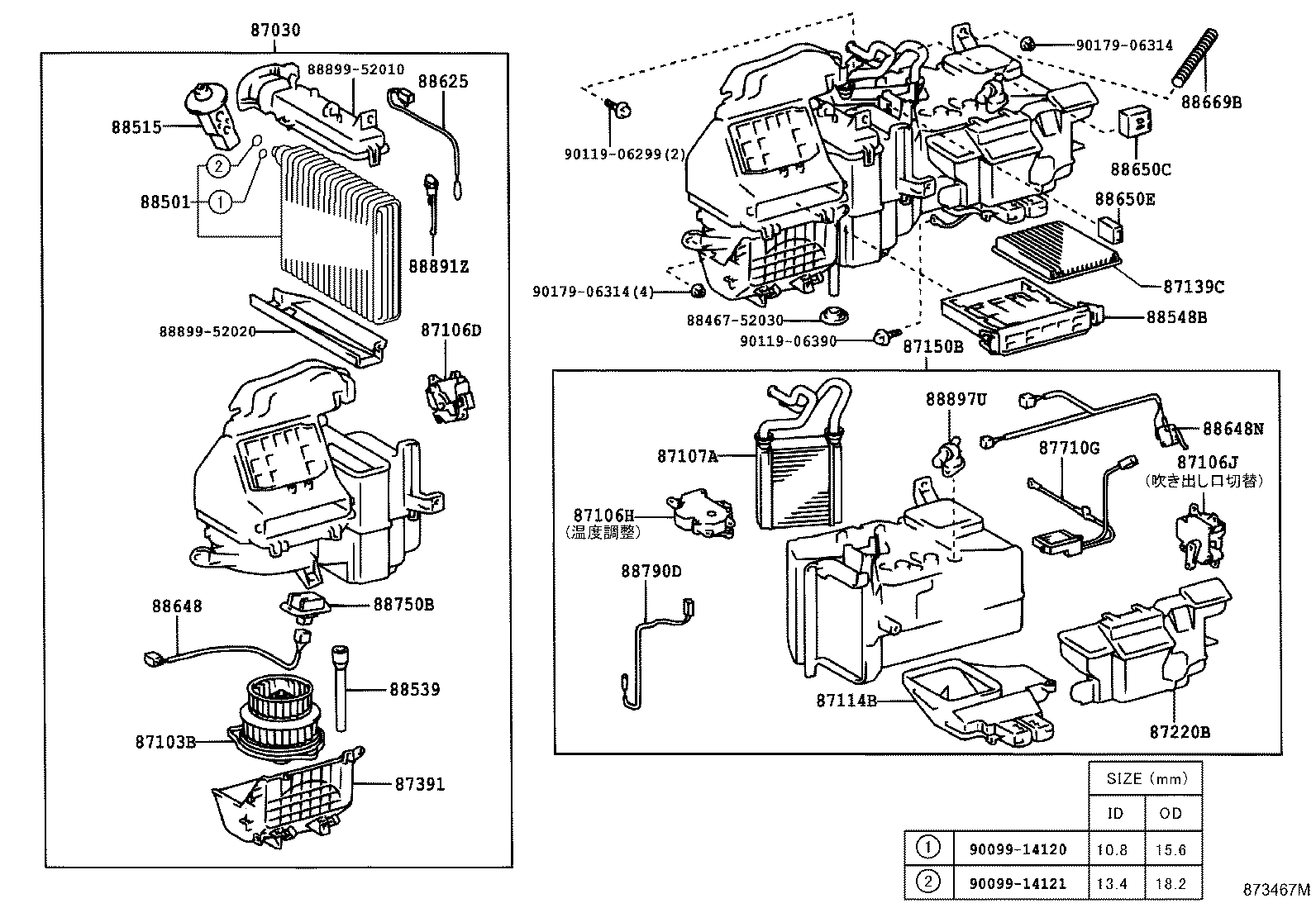

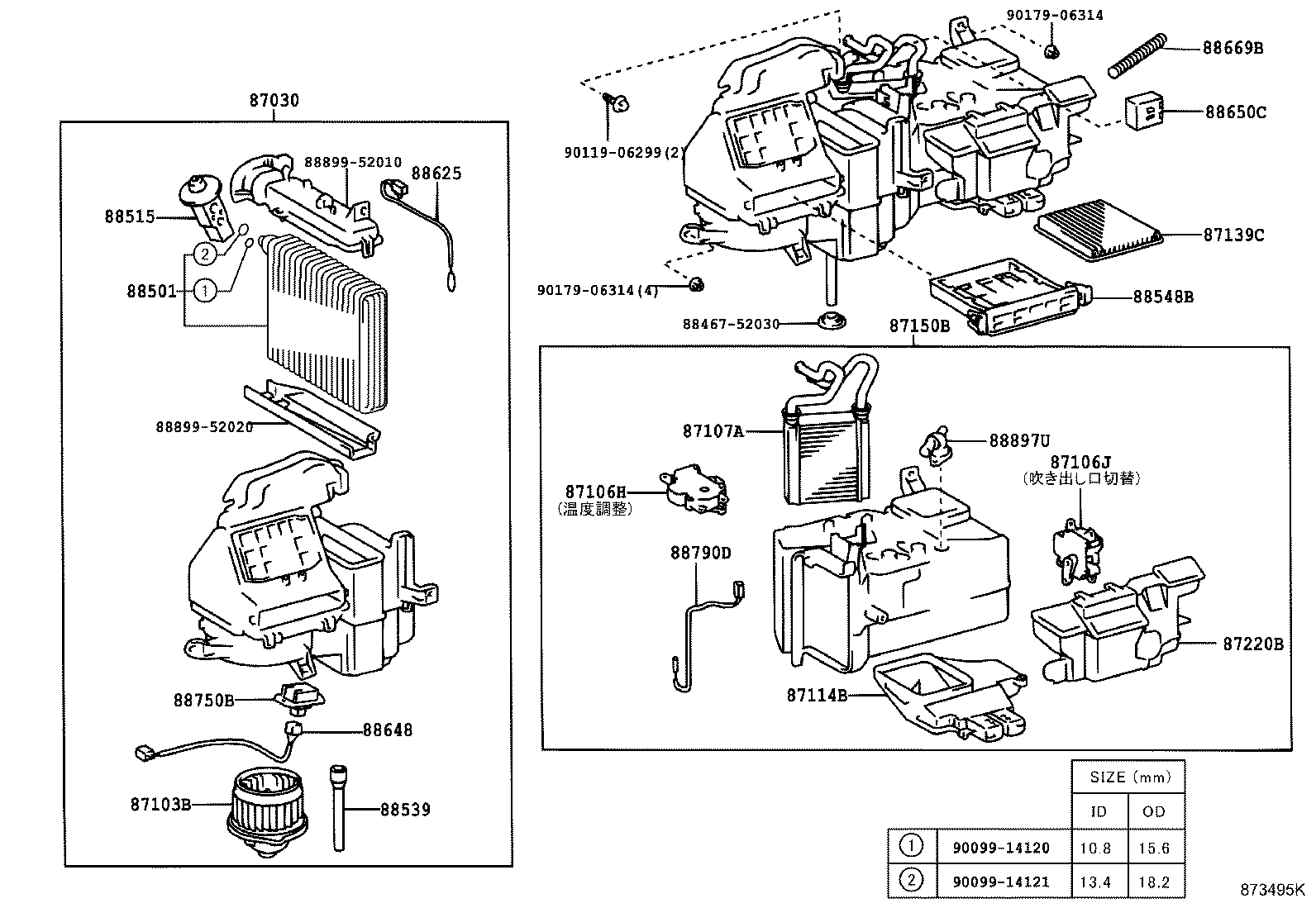

(9901-0212)
ｵ-ﾄ ｴｱｺﾝ---ｶﾝﾚｲﾁ ｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-52040 |
NCP13;NCP10,15,SCP10..CLA,U ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87030-52020 |
NCP1#..CLA,RS,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87030-52010 |
NCP10,15,SCP10..CLA,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87030-52040 |
NCP13;NCP10,15,SCP10..CLA,U ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87030-52040 |
NCP10,15..F,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87030-52050 |
NCP10..CLA,U;NCP13,15..CLA,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87030-52010 |
NCP10,15,SCP10..CLA,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87030-52050 |
NCP10..CLA,U;NCP13,15..CLA,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87030-52010 |
NCP1#..F,RS |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52010 |
NCP1#,SCP10 |
1 | ||
| 87103-52030 |
NCP1#,SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87103-52010 |
NCP1#,SCP10 |
1 | ||
| 87103-52030 |
NCP1#,SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-52030 |
NCP1#,SCP10 |
1 | ||
| 87106-52030 |
NCP1#,SCP10 |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 87106-52010 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-52020 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 87106-52020 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 87106-52070 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52010 |
NCP1#,SCP10 |
1 | ||
| 87107-52010 |
NCP1#,SCP10 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-52010 |
NCP1#,SCP10 |
1 | ||
| 87114-52020 |
NCP1#,SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87114-52020 |
NCP1#,SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87114-52010 |
NCP1#,SCP10 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-12010 |
NCP1#,SCP10 |
1 | ||
| 87139-44010 |
NCP1#,SCP10 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-52010 |
NCP15,SCP10..B,F |
1 | ||
| 87150-52040 |
NCP10..CLA,U;NCP13,15..CLA,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-52010 |
NCP1#,SCP10..CLA,RS,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87150-52020 |
NCP15,SCP10..F,U ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 87150-52040 |
NCP10..CLA,U;NCP13,15..CLA,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-52030 |
NCP1# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87150-52020 |
NCP10..CLA,U;NCP13,15..CLA,RS |
1 | ||
| 87150-52010 |
NCP1#,SCP10..CLA,RS,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87150-52010 |
NCP15,SCP10..B,F |
1 | ||
| 87150-52030 |
NCP1# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87150-52250 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 87150-52240 |
NCP1#..CLA,RS,U ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-52010 |
NCP1#,SCP10 |
1 | ||
| 87220-52010 |
NCP1#,SCP10 |
1 | ||
| 87391 - COVER, BLOWER MOTOR | ||||
| 87391-52010 |
NCP1#,SCP10 |
1 | ||
| 87391-52010 |
NCP1#,SCP10 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52010 |
NCP1#,SCP10 |
1 | ||
| 88501-52010 |
NCP1#,SCP10 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
NCP1#,SCP10 |
1 | ||
| 88515-52010 |
NCP1#,SCP10 |
1 | ||
| 88515-52010 |
NCP1#,SCP10 ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-52010 |
NCP1#,SCP10 |
1 | ||
| 88539-52010 |
NCP1#,SCP10 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
NCP1#,SCP10 |
1 | ||
| 88548-52010 |
NCP1#,SCP10 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52020 |
NCP1#,SCP10..B,CLA,RS,U |
1 | ||
| 88625-52020 |
NCP15,SCP10..F |
1 | ||
| 88625-52070 |
NCP1#,SCP10 ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-52020 |
NCP15,SCP10..B,F |
1 | ||
| 88648-52050 |
NCP1#,SCP10..CLA,RS,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88648-52020 |
NCP1#,SCP10 |
1 | ||
| 88648-52050 |
NCP10,15,SCP10..CLA,F,RS,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88648-52020 |
NCP1#,SCP10 |
1 | ||
| 88648N - WIRING, COOLER, NO.2 | ||||
| 88648-52010 |
NCP1#,SCP10 |
1 | ||
| 88648-52010 |
NCP1#,SCP10 |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-52170 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 88650-52020 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-52150 |
NCP1# |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 88669-52010 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 88750B - TRANSISTOR ASSY, BLOWER RESISTOR | ||||
| 88750-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 88750-52010 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 88790D - THERMISTOR ASSY | ||||
| 88790-52010 |
SCP10;NCP1#..CLA,RS,U |
1 | ||
| 88790-52010 |
NCP1#,SCP10 |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-12210 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 88897-12210 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88899-52010 | ||||
| 88899-52020 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06299 | ||||
| 90119-06390 | ||||
| 90179-06314 | ||||

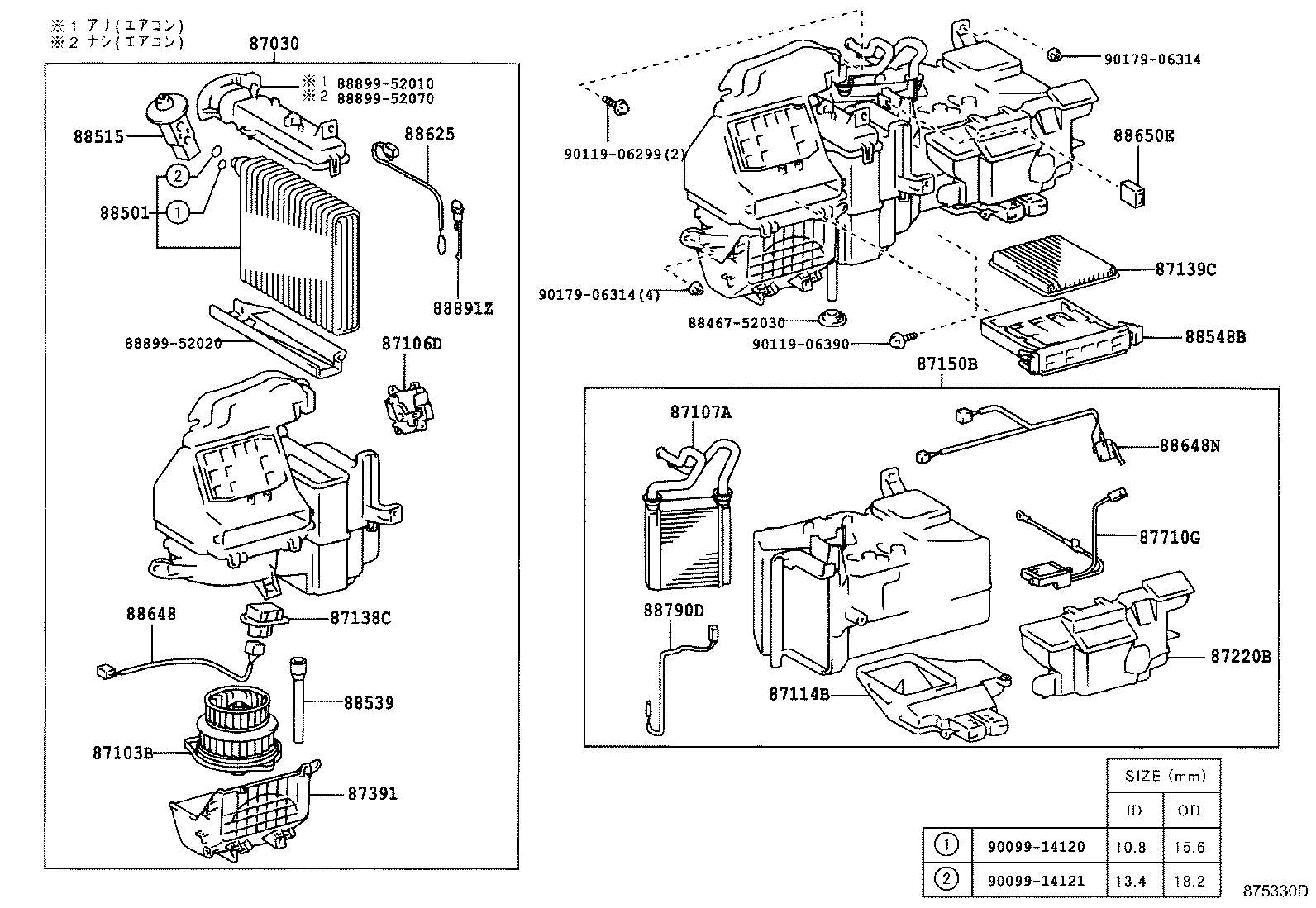

(9901-0212)
ｵ-ﾄ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-52040 |
NCP13;NCP10,15,SCP10..CLA,U ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87030-52020 |
NCP1#..CLA,RS,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87030-52010 |
NCP10,15,SCP10..CLA,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87030-52040 |
NCP13;NCP10,15,SCP10..CLA,U ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87030-52040 |
NCP10,15..F,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87030-52050 |
NCP10..CLA,U;NCP13,15..CLA,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87030-52010 |
NCP10,15,SCP10..CLA,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87030-52050 |
NCP10..CLA,U;NCP13,15..CLA,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87030-52010 |
NCP1#..F,RS |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52010 |
NCP1#,SCP10 |
1 | ||
| 87103-52030 |
NCP1#,SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87103-52010 |
NCP1#,SCP10 |
1 | ||
| 87103-52030 |
NCP1#,SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 87106-52010 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-52020 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 87106-52020 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 87106-52070 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52010 |
NCP1#,SCP10 |
1 | ||
| 87107-52010 |
NCP1#,SCP10 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-52010 |
NCP1#,SCP10 |
1 | ||
| 87114-52020 |
NCP1#,SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87114-52020 |
NCP1#,SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87114-52010 |
NCP1#,SCP10 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-12010 |
NCP1#,SCP10 |
1 | ||
| 87139-44010 |
NCP1#,SCP10 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-52010 |
NCP15,SCP10..B,F |
1 | ||
| 87150-52040 |
NCP10..CLA,U;NCP13,15..CLA,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-52010 |
NCP1#,SCP10..CLA,RS,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87150-52020 |
NCP15,SCP10..F,U ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 87150-52040 |
NCP10..CLA,U;NCP13,15..CLA,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-52030 |
NCP1# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87150-52020 |
NCP10..CLA,U;NCP13,15..CLA,RS |
1 | ||
| 87150-52010 |
NCP1#,SCP10..CLA,RS,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87150-52010 |
NCP15,SCP10..B,F |
1 | ||
| 87150-52030 |
NCP1# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87150-52250 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 87150-52240 |
NCP1#..CLA,RS,U ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-52010 |
NCP1#,SCP10 |
1 | ||
| 87220-52010 |
NCP1#,SCP10 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52010 |
NCP1#,SCP10 |
1 | ||
| 88501-52010 |
NCP1#,SCP10 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
NCP1#,SCP10 |
1 | ||
| 88515-52010 |
NCP1#,SCP10 |
1 | ||
| 88515-52010 |
NCP1#,SCP10 ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-52010 |
NCP1#,SCP10 |
1 | ||
| 88539-52010 |
NCP1#,SCP10 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
NCP1#,SCP10 |
1 | ||
| 88548-52010 |
NCP1#,SCP10 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52020 |
NCP1#,SCP10..B,CLA,RS,U |
1 | ||
| 88625-52020 |
NCP15,SCP10..F |
1 | ||
| 88625-52070 |
NCP1#,SCP10 ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-52020 |
NCP15,SCP10..B,F |
1 | ||
| 88648-52050 |
NCP1#,SCP10..CLA,RS,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88648-52020 |
NCP1#,SCP10 |
1 | ||
| 88648-52050 |
NCP10,15,SCP10..CLA,F,RS,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88648-52020 |
NCP1#,SCP10 |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-52170 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 88650-52020 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 88669-52010 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 88750B - TRANSISTOR ASSY, BLOWER RESISTOR | ||||
| 88750-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 88750-52010 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 88790D - THERMISTOR ASSY | ||||
| 88790-52010 |
SCP10;NCP1#..CLA,RS,U |
1 | ||
| 88790-52010 |
NCP1#,SCP10 |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-12210 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 88897-12210 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88899-52010 | ||||
| 88899-52020 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06299 | ||||
| 90179-06314 | ||||
(9901-0212)
ﾏﾆﾕｱﾙ ｴｱｺﾝ---ｶﾝﾚｲﾁ ｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030 - BLOWER ASSY, AIR CONDITIONER | ||||
| 87030-52040 |
NCP13;NCP10,15,SCP10..CLA,U ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87030-52020 |
NCP1#..CLA,RS,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87030-52010 |
NCP10,15,SCP10..CLA,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87030-52040 |
NCP13;NCP10,15,SCP10..CLA,U ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87030-52040 |
NCP10,15..F,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87030-52050 |
NCP10..CLA,U;NCP13,15..CLA,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87030-52010 |
NCP10,15,SCP10..CLA,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87030-52050 |
NCP10..CLA,U;NCP13,15..CLA,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87030-52010 |
NCP1#..F,RS |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-52010 |
NCP1#,SCP10 |
1 | ||
| 87103-52030 |
NCP1#,SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87103-52010 |
NCP1#,SCP10 |
1 | ||
| 87103-52030 |
NCP1#,SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-52030 |
NCP1#,SCP10 |
1 | ||
| 87106-52030 |
NCP1#,SCP10 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-52010 |
NCP1#,SCP10 |
1 | ||
| 87107-52010 |
NCP1#,SCP10 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-52010 |
NCP1#,SCP10 |
1 | ||
| 87114-52020 |
NCP1#,SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87114-52020 |
NCP1#,SCP10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87114-52010 |
NCP1#,SCP10 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-52010 |
NCP15,SCP10..B,F |
1 | ||
| 87138-52010 |
NCP1#,SCP10 |
1 | ||
| 87138-52010 |
NCP1#,SCP10 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-12010 |
NCP1#,SCP10 |
1 | ||
| 87139-44010 |
NCP1#,SCP10 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-52010 |
NCP15,SCP10..B,F |
1 | ||
| 87150-52040 |
NCP10..CLA,U;NCP13,15..CLA,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-52010 |
NCP1#,SCP10..CLA,RS,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87150-52020 |
NCP15,SCP10..F,U ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 87150-52040 |
NCP10..CLA,U;NCP13,15..CLA,RS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-52030 |
NCP1# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87150-52020 |
NCP10..CLA,U;NCP13,15..CLA,RS |
1 | ||
| 87150-52010 |
NCP1#,SCP10..CLA,RS,U ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87150-52010 |
NCP15,SCP10..B,F |
1 | ||
| 87150-52030 |
NCP1# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 87150-52250 |
NCP1#,SCP10..CLA,RS,U |
1 | ||
| 87150-52240 |
NCP1#..CLA,RS,U ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-52010 |
NCP1#,SCP10 |
1 | ||
| 87220-52010 |
NCP1#,SCP10 |
1 | ||
| 87391 - COVER, BLOWER MOTOR | ||||
| 87391-52010 |
NCP1#,SCP10 |
1 | ||
| 87391-52010 |
NCP1#,SCP10 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-52010 |
NCP1#,SCP10 |
1 | ||
| 88501-52010 |
NCP1#,SCP10 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-52010 |
NCP1#,SCP10 |
1 | ||
| 88515-52010 |
NCP1#,SCP10 |
1 | ||
| 88515-52010 |
NCP1#,SCP10 ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-52010 |
NCP1#,SCP10 |
1 | ||
| 88539-52010 |
NCP1#,SCP10 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-52010 |
NCP1#,SCP10 |
1 | ||
| 88548-52010 |
NCP1#,SCP10 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-52020 |
NCP1#,SCP10..B,CLA,RS,U |
1 | ||
| 88625-52020 |
NCP15,SCP10..F |
1 | ||
| 88625-52070 |
NCP1#,SCP10 ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-52020 |
NCP15,SCP10..B,F |
1 | ||
| 88648-52050 |
NCP1#,SCP10..CLA,RS,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88648-52020 |
NCP1#,SCP10 |
1 | ||
| 88648-52050 |
NCP10,15,SCP10..CLA,F,RS,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88648-52020 |
NCP1#,SCP10 |
1 | ||
| 88648N - WIRING, COOLER, NO.2 | ||||
| 88648-52010 |
NCP1#,SCP10 |
1 | ||
| 88648-52010 |
NCP1#,SCP10 |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-52150 |
NCP1# |
1 | ||
| 88790D - THERMISTOR ASSY | ||||
| 88790-52010 |
SCP10;NCP1#..CLA,RS,U |
1 | ||
| 88790-52010 |
NCP1#,SCP10 |
1 | ||
| Common parts | ||||
| 88467-52030 | ||||
| 88899-52010 | ||||
| 88899-52020 | ||||
| 88899-52070 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06299 | ||||
| 90119-06390 | ||||
| 90179-06314 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
