NCP15-AGPNK (1999)
Toyota Vitz
Production
Aug 1999
-
Jan 2005
Engine
2NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )NCP1#

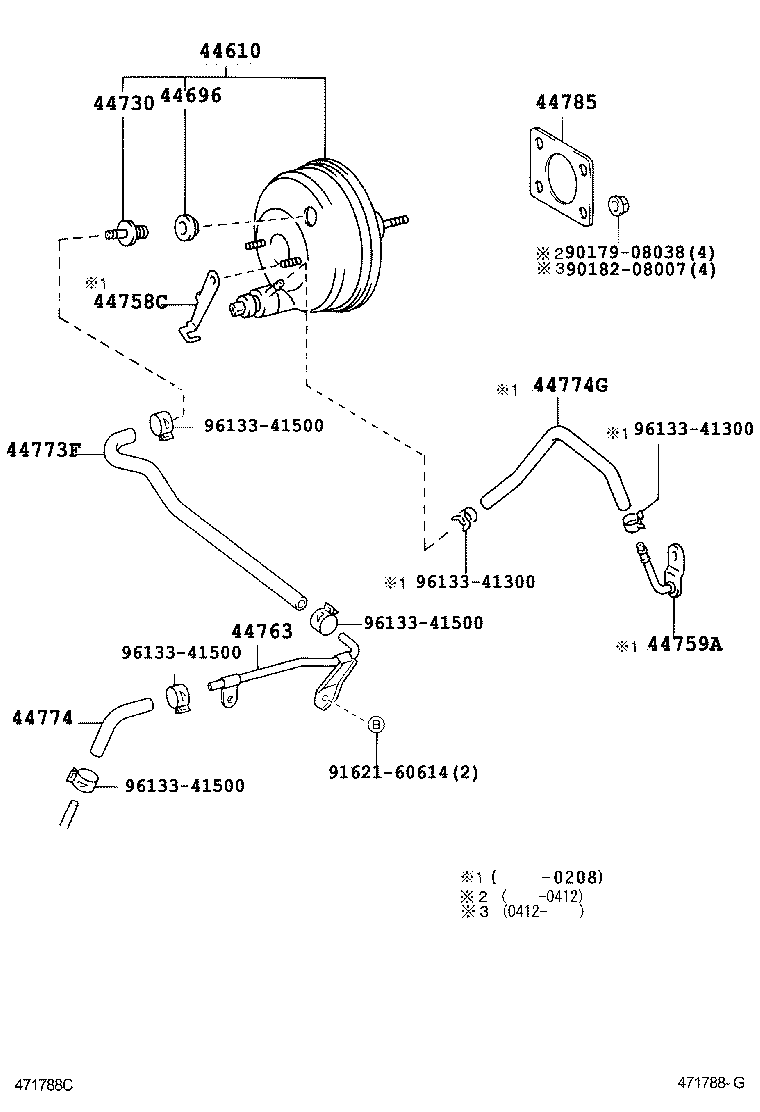

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-52010 |
NCP1# |
1 | ||
| 44610-52011 |
NCP1#,SCP10 |
1 | ||
| 44610-52011 |
NCP1#,SCP10 |
1 | ||
| 44610-52241 |
NCP1#,SCP1# |
1 | ||
| 44610-52240 |
NCP1#,SCP1# |
1 | ||
| 44610-52240 |
NCP1#,SCP10 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
NCP1#,SCP1# |
1 | ||
| 90480-24439 |
NCP1#,SCP10 |
1 | ||
| 90480-24439 |
NCP1#,SCP10 |
1 | ||
| 90480-24439 |
NCP1#,SCP1# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20080 |
NCP1#,SCP10 |
1 | ||
| 44730-20080 |
NCP1#,SCP1# |
1 | ||
| 44730-20080 |
NCP1#,SCP10 |
1 | ||
| 44730-20080 |
NCP1#,SCP1# |
1 | ||
| 44758C - BRACKET, SOLENOID VALVE COVER | ||||
| 44758-52010 |
NCP1#,SCP10 |
1 | ||
| 44758-52010 |
NCP1#,SCP10 |
1 | ||
| 44759A - UNION, BRAKE BOOSTER AIR HOSE | ||||
| 44759-52010 |
NCP1#,SCP10 |
1 | ||
| 44759-52010 |
NCP1#,SCP10 |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| 44763-52010 |
NCP1# |
1 | ||
| 44763-52010 |
NCP1# |
1 | ||
| 44763-52010 |
NCP1# |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-52020 |
NCP1# |
1 | ||
| 44773-52020 |
NCP1# |
1 | ||
| 44773-52020 |
NCP1# |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 95446-09130 |
NCP1# |
1 | ||
| 95446-09130 |
NCP1# |
1 | ||
| 95446-09130 |
NCP1# |
1 | ||
| 44774G - HOSE, UNION TO SOLENOID | ||||
| 44774-52010 |
NCP1#,SCP10 |
1 | ||
| 44774-52010 |
NCP1#,SCP10 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
NCP1#,SCP10 |
1 | ||
| 44785-16020 |
NCP1#,SCP10 |
1 | ||
| 44785-16020 |
NCP1#,SCP1# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90182-08007 | ||||
| 91621-60614 | ||||
| 96133-41300 | ||||
| 96133-41500 | ||||
