NCP15-AGPGK (1999)
Toyota Vitz

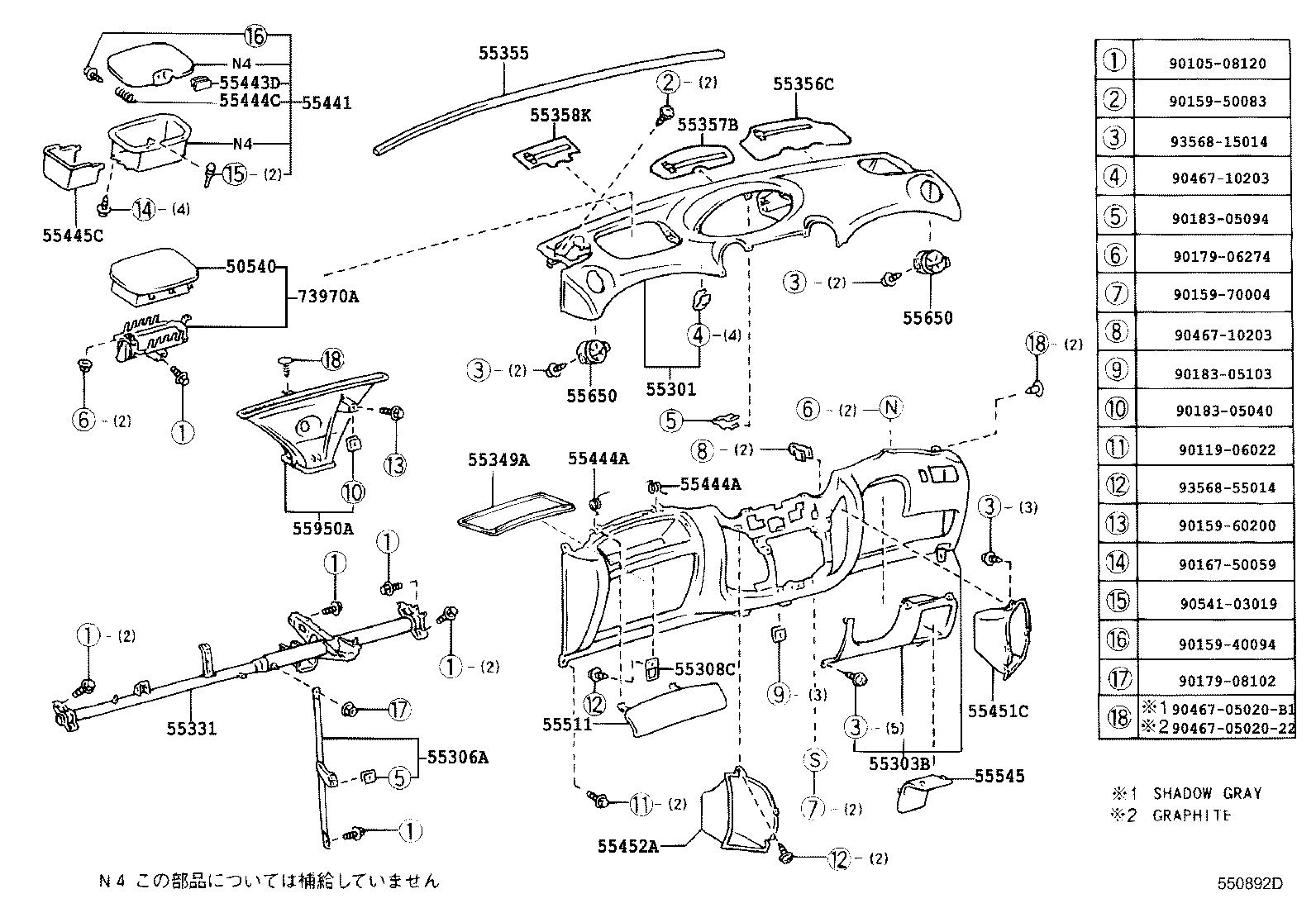

ILLUST NO. 1 OF 2(9901-0212)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 50540 - DO0R ASSY, AIR BAG PASSENGER | ||||
| 50540-52020B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 50540-52020H0 |
NCP10,15,SCP10..B,F,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-52020B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55301-52020B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55301-52020H0 |
NCP10,15,SCP10..B,F,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-52901B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55303-52901H0 |
NCP10,15,SCP10..B,F,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55303-52901B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-52021 |
NCP1#,SCP10 |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-52010 |
NCP1#,SCP10 |
1 | ||
| 55308-52010 |
NCP1#,SCP10 |
1 | ||
| 55308-52080 |
NCP1#,SCP10 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-52041 |
NCP1#,SCP10 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-52010 |
NCP1#,SCP10 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52012 |
NCP1#,SCP10 |
1 | ||
| 55355-52012 |
NCP1#,SCP10 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-52040 |
NCP10,15..CLA,U |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-52060 |
NCP10,15..CLA,U |
1 | ||
| 55357-52030 |
NCP10,15..CLA,U |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-52030 |
NCP10,15..CLA,U |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52040 |
NCP1#,SCP10 |
2 | ||
| 55444-52040 |
NCP1#,SCP10 |
2 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52040 |
NCP1#,SCP10 |
2 | ||
| 55444-52040 |
NCP1#,SCP10 |
2 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-52020B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55451-52020H0 |
NCP10,15,SCP10..B,F,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55451-52050B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55452A - BOX, INSTRUMENT PANEL, NO.2 | ||||
| 55452-52060B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55452-52020B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55452-52020H0 |
NCP10,15,SCP10..B,F,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55501-52020B0 |
NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
1 | ||
| 55501-52050B1 |
NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
1 | ||
| 55501-52020G0 |
NCP10,15,SCP10..B,F,U MIST GREEN,TRIM7# |
1 | ||
| 55501-52020B0 |
NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-52010G0 |
NCP10,15,SCP10..B,F,U MIST GREEN,TRIM7# |
1 | ||
| 55545-52010B0 |
NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
1 | ||
| 55545-52010B0 |
NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52010B0 |
NCP10,15,SCP10..B,F,U SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52030B0 |
NCP10,15..CLA SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52010B0 |
NCP10,15,SCP10..B,F,U SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52030B0 |
NCP10,15..CLA SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52010H0 |
NCP10,15,SCP10..B,F,U FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52010B0 |
NCP10,15,SCP10..B,F,U SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52030B0 |
NCP10,15..CLA SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52010B0 |
NCP10,15,SCP10..B,F,U SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52030B0 |
NCP10,15..CLA SHADOW GRAY,TRIM1# |
2 | ||
| 55650-52010H0 |
NCP10,15,SCP10..B,F,U FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-52020 |
NCP1#,SCP10 |
1 | ||
| 55950-52020 |
NCP1#,SCP10 |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-52020B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 73970-52020H0 |
NCP10,15,SCP10..B,F,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 73970-52080B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06022 | ||||
| 90159-40094 | ||||
| 90159-50083 | ||||
| 90159-60200 | ||||
| 90159-70004 | ||||
| 90167-50059 | ||||
| 90179-06274 | ||||
| 90179-08102 | ||||
| 90183-05040 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-0502022 | ||||
| 90467-05020B1 | ||||
| 90467-10203 | ||||
| 90541-03019 | ||||
| 93568-15014 | ||||
| 93568-55014 | ||||

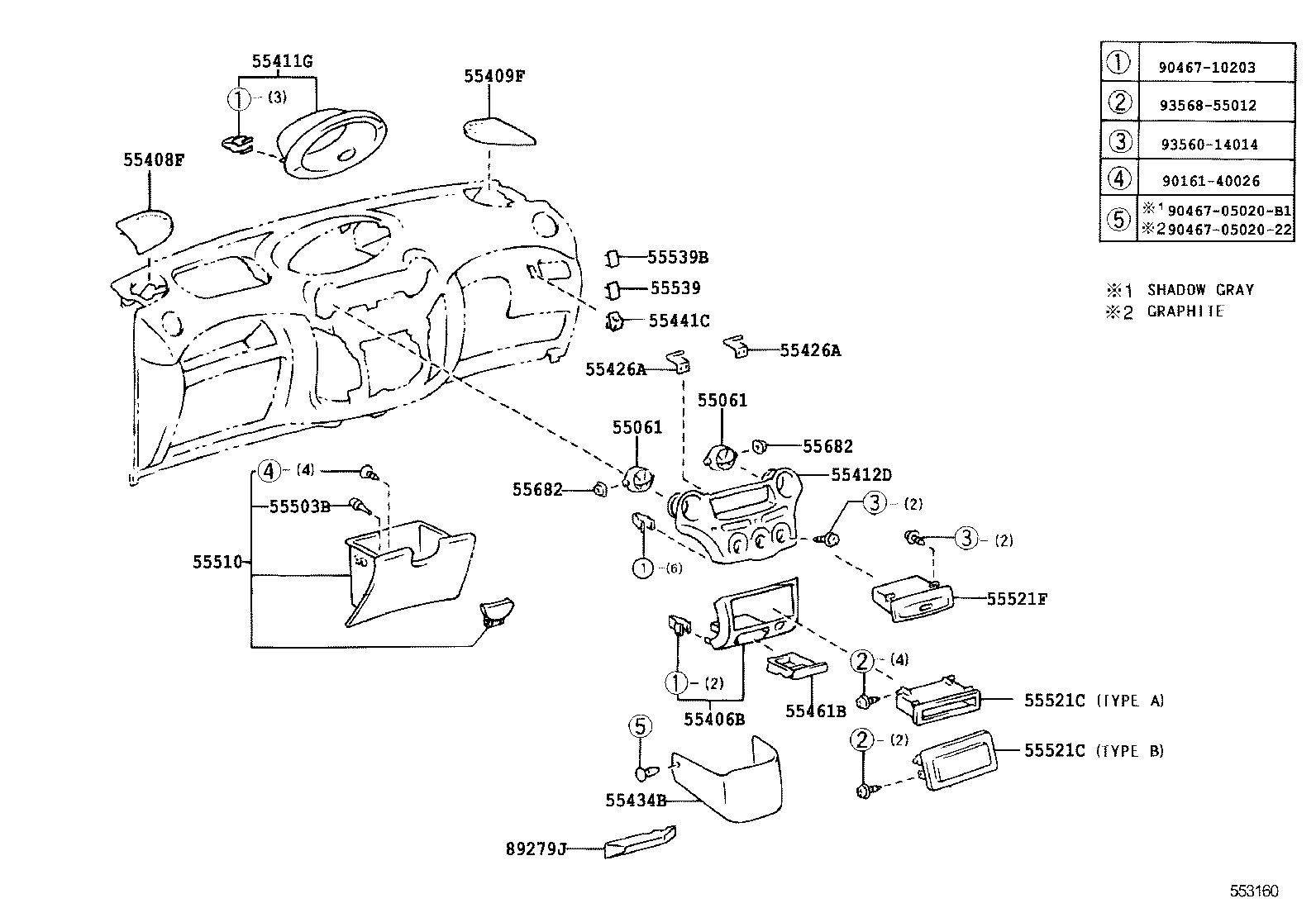

ILLUST NO. 2 OF 2(9901-0212)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-52010H0 |
NCP10,15,SCP10..B,F,U FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55061-52020B0 |
NCP10,15..CLA SHADOW GRAY,TRIM1# |
2 | ||
| 55061-52010B0 |
NCP10,15,SCP10..B,F,U SHADOW GRAY,TRIM1# |
2 | ||
| 55061-52020B0 |
NCP10,15..CLA SHADOW GRAY,TRIM1# |
2 | ||
| 55061-52010B0 |
NCP10,15,SCP10..B,F,U SHADOW GRAY,TRIM1# |
2 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-52010H0 |
NCP10,15,SCP10..B,F,U FRENCH TURQUOISE,TRIM7# |
2 | ||
| 55061-52020B0 |
NCP10,15..CLA SHADOW GRAY,TRIM1# |
2 | ||
| 55061-52010B0 |
NCP10,15,SCP10..B,F,U SHADOW GRAY,TRIM1# |
2 | ||
| 55061-52020B0 |
NCP10,15..CLA SHADOW GRAY,TRIM1# |
2 | ||
| 55061-52010B0 |
NCP10,15,SCP10..B,F,U SHADOW GRAY,TRIM1# |
2 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-52010B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55406-52010H0 |
NCP10,15,SCP10..B,F,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55406-52010B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-52010B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55472-52010B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55472-52010H0 |
NCP10,15,SCP10..B,F,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-52010H0 |
NCP10,15,SCP10..B,F,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55473-52010B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55473-52010B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-52020B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55411-52020B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55411-52020H0 |
NCP10,15,SCP10..B,F,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-52020H0 |
NCP1#,SCP10..F,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55412-52010H0 |
NCP15,SCP10..B,F FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55412-52011H0 |
NCP15,SCP10..B,F FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55412-52020B0 |
NCP1#,SCP10..CLA,F,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 55412-52010B0 |
NCP15,SCP10..B,F SHADOW GRAY,TRIM1# |
1 | ||
| 55412-52011B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55412-52021B0 |
NCP10,15,SCP10..CLA,F,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 55412-52021H0 |
NCP10,15,SCP10..F,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55412-52021B0 |
NCP10,15,SCP10..CLA,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 55412-52011B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55412-52011B0 |
NCP15,SCP10..B,F SHADOW GRAY,TRIM1# |
1 | ||
| 55412-52011H0 |
NCP10,15,SCP10..B,F,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55426A - BRACKET, CLUSTER FINISH PANEL, NO.1 | ||||
| 55426-52010 |
NCP1#,SCP10 |
2 | ||
| 55426-52010 |
NCP1#,SCP10 |
2 | ||
| 55426A - BRACKET, CLUSTER FINISH PANEL, NO.1 | ||||
| 55426-52010 |
NCP1#,SCP10 |
2 | ||
| 55426-52010 |
NCP1#,SCP10 |
2 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-52090B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55434-52020B0 |
NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
1 | ||
| 55434-52020G0 |
NCP10,15,SCP10..B,F,U MIST GREEN,TRIM7# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-20140B4 |
NCP10,15,SCP10..CLA,F,U MD.GRAY,TRIM1# |
1 | ||
| 55441-20140B4 |
NCP10,15,SCP10..CLA,F,U MD.GRAY,TRIM1# |
1 | ||
| 55441-20140G2 |
NCP10,15,SCP10..F,U MIST GREEN,TRIM7# |
1 | ||
| 55461B - BOX, INSTRUMENT PANEL, CENTER | ||||
| 55461-52010B0 |
NCP10,15,SCP10..CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55461-52010B0 |
NCP10,15,SCP10..CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55461-52010H0 |
NCP10,15,SCP10..F,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-05020 |
NCP1#,SCP10 |
2 | ||
| 90541-05080 |
NCP1#,SCP10 |
2 | ||
| 90541-05080 |
NCP1#,SCP10 |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-52010B0 |
NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
1 | ||
| 55550-52010B0 |
NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
1 | ||
| 55550-52010G0 |
NCP10,15,SCP10..B,F,U MIST GREEN,TRIM7# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-52020 |
NCP15,SCP10..B,F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55521-52020 |
NCP15,SCP10..B,F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55522-52020 |
NCP1#,SCP10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55522-52020 |
NCP1#,SCP10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-52020 |
NCP15,SCP10..B,F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55521-52020 |
NCP15,SCP10..B,F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55522-52020 |
NCP1#,SCP10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55522-52020 |
NCP1#,SCP10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55520-52030B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55520-52010B0 |
NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
1 | ||
| 55520-52010H0 |
NCP10,15,SCP10..B,F,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52010G0 |
NCP10,15,SCP10..B,F,U MIST GREEN,TRIM7# |
1 | ||
| 55539-52010B0 |
NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
1 | ||
| 55539-52010B0 |
NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
1 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-52010 |
NCP1#,SCP10 |
2 | ||
| 55682-52010 |
NCP1#,SCP10 |
2 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-52010 |
NCP1#,SCP10 |
2 | ||
| 55682-52010 |
NCP1#,SCP10 |
2 | ||
| 89279J - COVER | ||||
| 89279-52020 |
NCP1#,SCP10 |
1 | ||
| 89279-52020 |
NCP1#,SCP10 |
1 | ||
| Common parts | ||||
| 90161-40026 | ||||
| 90467-0502022 | ||||
| 90467-05020B1 | ||||
| 90467-10203 | ||||
| 93560-14014 | ||||
| 93568-55012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
