NCP15-AGPGK (1999)
Toyota Vitz

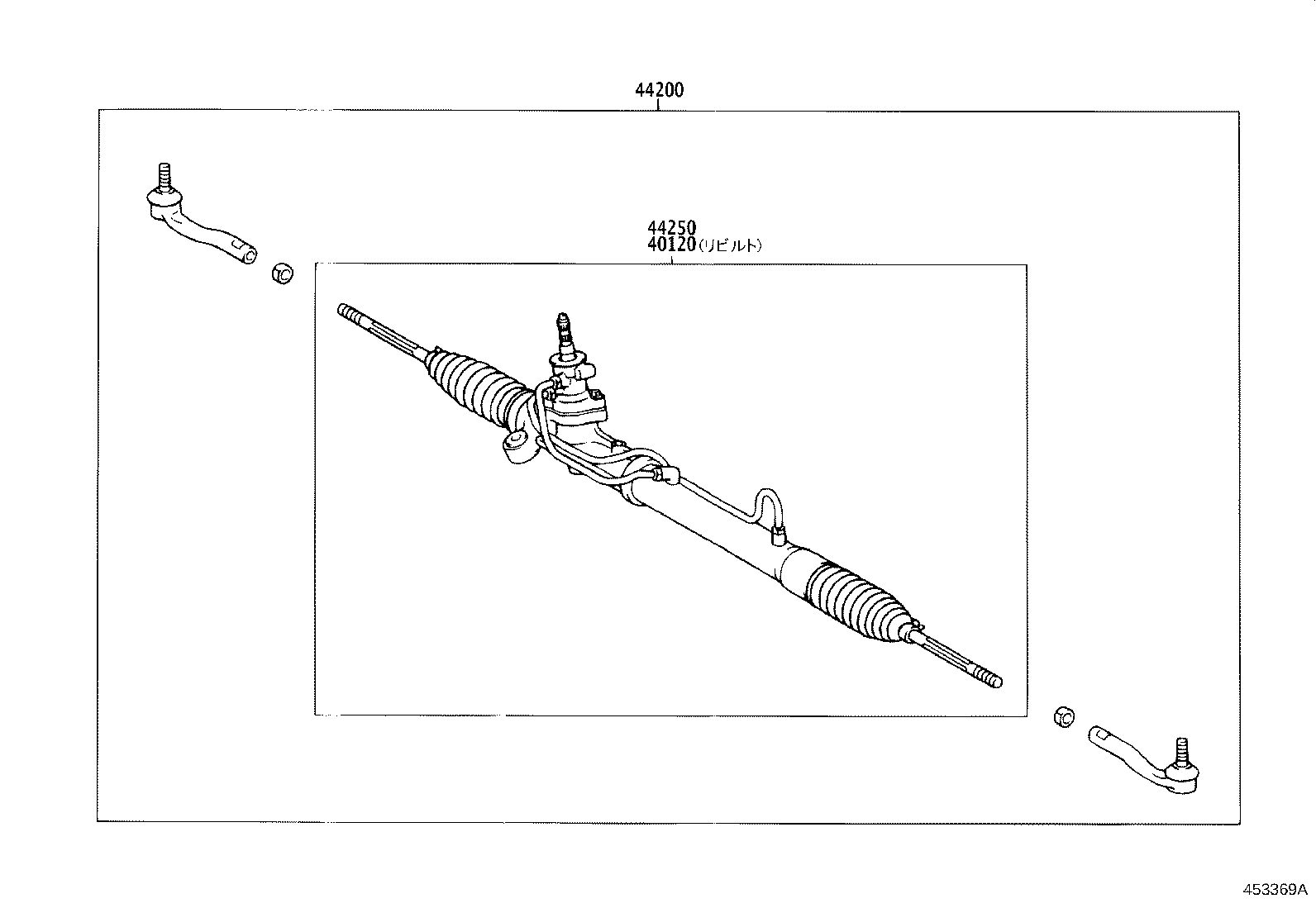

ILLUST NO. 1 OF 3(9901-0112)
ｱﾘ(ﾕｱﾂｼｷ ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-52020 |
NCP15 |
1 | ||
| 40120-52030 |
NCP15 ｱﾘ(175/65R14) |
1 | ||
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-52020 |
NCP15 |
1 | ||
| 44200-52030 |
NCP15 ｱﾘ(175/65R14) |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-52020 |
NCP15 |
1 | ||
| 44250-52030 |
NCP15 ｱﾘ(175/65R14) |
1 | ||
(0112- )NCP15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-52010 |
NCP15 |
1 | ||
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-52020 |
NCP15 |
1 | ||
| 40120-52030 |
NCP15 ｱﾘ(175/65R14) |
1 | ||
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-52020 |
NCP15 |
1 | ||
| 44200-52030 |
NCP15 ｱﾘ(175/65R14) |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-52020 |
NCP15 |
1 | ||
| 44250-52030 |
NCP15 ｱﾘ(175/65R14) |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45047-59026 |
NCP15 |
1 | ||
| 45047-59026 |
NCP15 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 90171-12028 |
NCP1#,SCP10 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-59026 |
NCP15 |
1 | ||
| 45046-59026 |
NCP15 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-59045 |
NCP1#,SCP10 ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ),L=256:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 45503-59045 |
NCP15..F,U;NCP10,SCP10 ｲﾗｽﾄ ｻﾝｼﾖｳ,長さ=256 |
2 | ||
| 45503-52020 |
NCP15 ｲﾗｽﾄ ｻﾝｼﾖｳ,長さ=242 |
2 | ||
| 45503-52020 |
NCP15 ｲﾗｽﾄ ｻﾝｼﾖｳ,長さ=242 |
2 | ||
| 45503-59045 |
NCP10,15,SCP10 ｲﾗｽﾄ ｻﾝｼﾖｳ,長さ=256 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-59045 |
NCP1#,SCP10 ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ),L=256:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 45503-59045 |
NCP15..F,U;NCP10,SCP10 ｲﾗｽﾄ ｻﾝｼﾖｳ,長さ=256 |
2 | ||
| 45503-52020 |
NCP15 ｲﾗｽﾄ ｻﾝｼﾖｳ,長さ=242 |
2 | ||
| 45503-52020 |
NCP15 ｲﾗｽﾄ ｻﾝｼﾖｳ,長さ=242 |
2 | ||
| 45503-59045 |
NCP10,15,SCP10 ｲﾗｽﾄ ｻﾝｼﾖｳ,長さ=256 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-59045 |
NCP1#,SCP10 ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ),L=256:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 45503-59045 |
NCP15..F,U;NCP10,SCP10 ｲﾗｽﾄ ｻﾝｼﾖｳ,長さ=256 |
2 | ||
| 45503-52020 |
NCP15 ｲﾗｽﾄ ｻﾝｼﾖｳ,長さ=242 |
2 | ||
| 45503-52020 |
NCP15 ｲﾗｽﾄ ｻﾝｼﾖｳ,長さ=242 |
2 | ||
| 45503-59045 |
NCP10,15,SCP10 ｲﾗｽﾄ ｻﾝｼﾖｳ,長さ=256 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-52010 |
NCP15 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-17021 |
NCP15 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-17021 |
NCP15 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-58008 |
NCP15 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-52010 |
NCP15 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-58008 |
NCP15 |
1 | ||
| Common parts | ||||
| 90105-12266 | ||||
| 90170-12018 | ||||
| 95381-03020 | ||||
