NCP15-AGMGK (1999)

Toyota Vitz

Production Sep 1999 - Dec 2002
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0112- )1NZFE,2NZFE

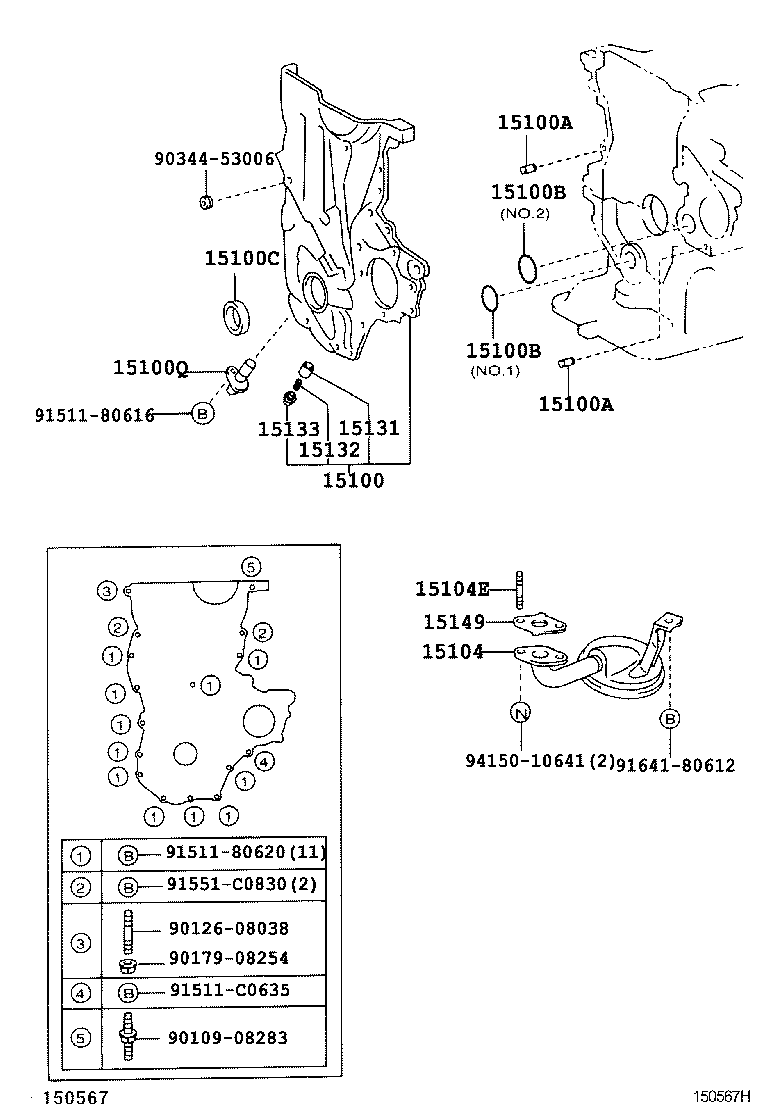

Click highlighted areas on diagram

diagram 15100 15100A 15100A 15100B 15100B 15100C 15100Q 15104 15104E 15131 15132 15133 15149 9010908283 9012608038 9017908254 9034453006 9151180616 9151180620 91511C0635 91551C0830 9164180612 9415010641
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-21030

2NZFE..NCP10,15

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-08003

1NZFE,2NZFE..NCP1#

 2
15100A - PIN, RING(FOR OIL PUMP SET)
90253-08003

1NZFE,2NZFE..NCP1#

 2
15100B - RING, O(FOR OIL PUMP)
90301-31012

1NZFE,2NZFE..NCP1#

NO.1

 1
90301-42006

1NZFE,2NZFE..NCP1#

NO.2

 1
15100B - RING, O(FOR OIL PUMP)
90301-31012

1NZFE,2NZFE..NCP1#

NO.1

 1
90301-42006

1NZFE,2NZFE..NCP1#

NO.2

 1
15100C - SEAL(FOR OIL PUMP)
90311-25021

1NZFE,2NZFE..NCP1#

 1
15100Q - SENSOR, CRANK POSITION
90919-05045

1NZFE,2NZFE..NCP1#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-21021

1NZFE,2NZFE..NCP1#

 1
15104-21021

1NZFE,2NZFE..NCP1#

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
90126-06021

1NZFE,2NZFE..NCP1#

 2
15131 - VALVE, OIL PUMP RELIEF
15131-21020

1NZFE,2NZFE..NCP1#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-21020

1NZFE,2NZFE..NCP1#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-21020

1NZFE,2NZFE..NCP1#

 1
15149 - GASKET, OIL STRAINER FLANGE
16258-21010

1NZFE,2NZFE..NCP1#

 1
Common parts
90109-08283
90126-08038
90179-08254
90344-53006
91511-80616
91511-80620
91511-C0635
91551-C0830
91641-80612
94150-10641
