NCP15-AGMEK (1999)

Toyota Vitz

Production Sep 1999 - Dec 2002
Engine 2NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )2NZFE..NCP15

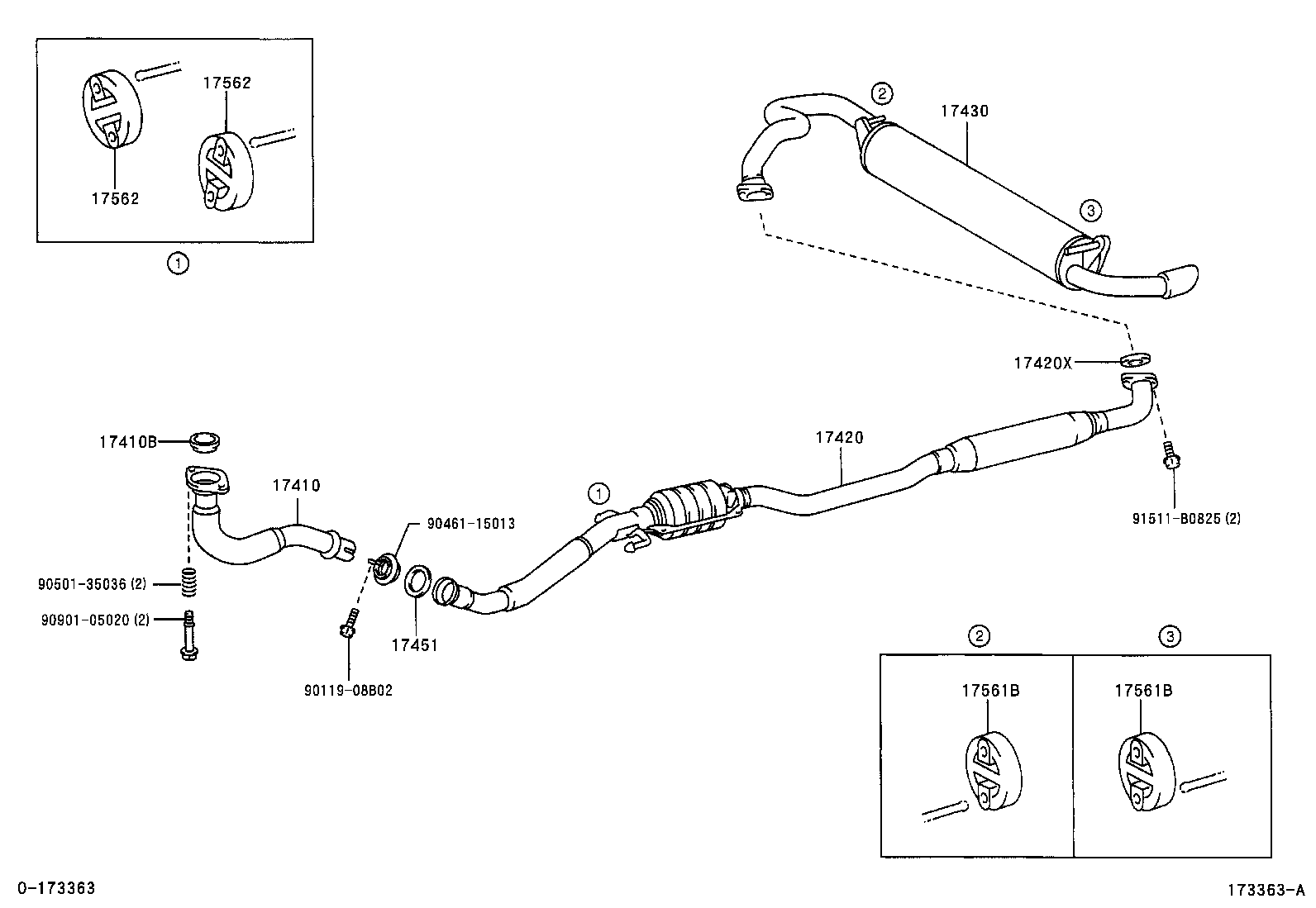

Click highlighted areas on diagram

diagram 17410 17410B 17420 17420X 17430 17451 17561B 17561B 17562 17562 9011908B02 9046115013 9050135036 9090105020 91511B0825
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-21450

2NZFE..NCP15

 1
17410-21040

2NZFE..NCP15

 1
17410B - GASKET, EXHAUST PIPE
17451-21030

1NZFE,2NZFE..NCP1#

 1
17451-21030

1NZFE,2NZFE..NCP1#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-21051

2NZFE..NCP15

 1
17420-21051

2NZFE..NCP15

 1
17420-21110

2NZFE..NCP15

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06039

2NZFE..NCP15

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-21520

2NZFE..NCP15

 1
17430-21020

2NZFE..NCP15

 1
17451 - GASKET, EXHAUST PIPE
90917-06082

1NZFE,2NZFE..NCP1#

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-55050

2NZFE..NCP15

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-55050

2NZFE..NCP15

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-11160

2NZFE..NCP15

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-11160

2NZFE..NCP15

 2
Common parts
90119-08B02
90461-15013
90501-35036
90901-05020
91511-B0825
