NCP131-AHXVK (2010)
Toyota Vitz
Production
Dec 2010
-
Apr 2014
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1012-1404)

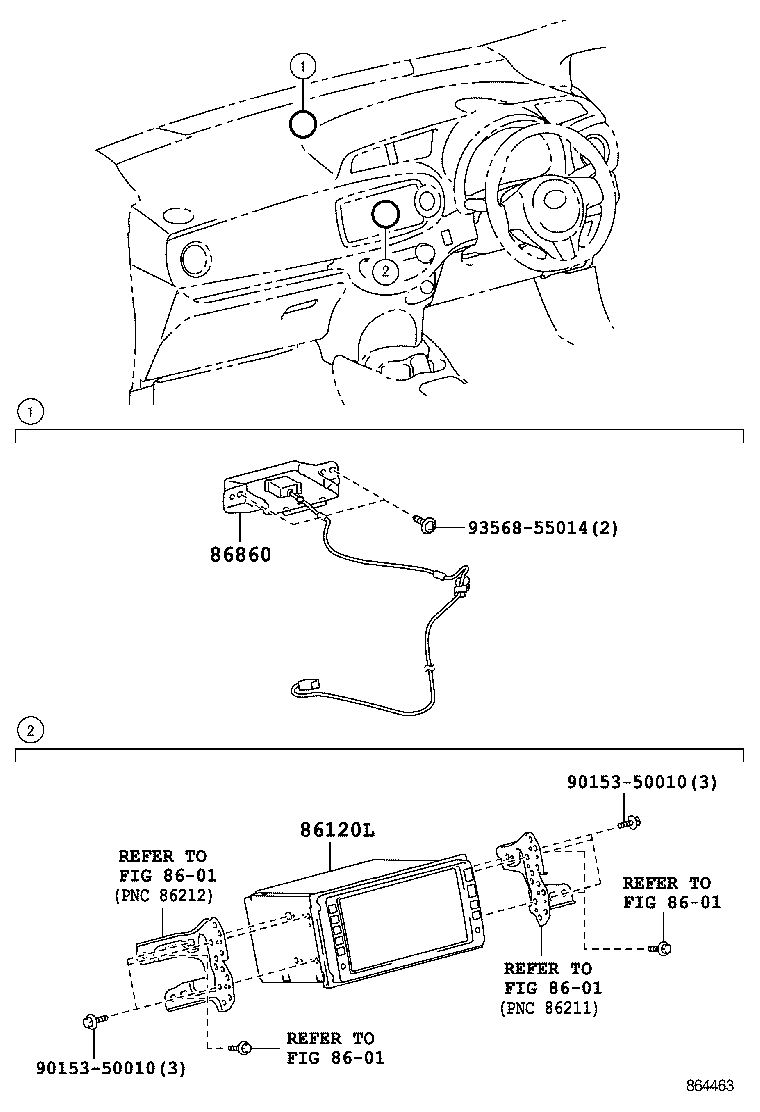

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120L - RECEIVER ASSY, NAVIGATION | ||||
| 86100-52190 |
KSP130,NCP131,NSP13#..CBU FUJITSU TEN,ID=26054,ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮ刀@4ｽﾋﾟｰｶ |
1 | ||
| 86100-52191 |
KSP130,NCP131,NSP13#..CBU FUJITSU TEN,ID=26054,ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮ刀@4ｽﾋﾟｰｶ |
1 | ||
| 86100-52193 |
KSP130,NCP131,NSP13#..CBU FUJITSU TEN,ID=26054,ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮ刀@4ｽﾋﾟｰｶ |
1 | ||
| 86100-52270 |
KSP130,NCP131,NSP13#..CBU FUJITSU TEN,ID=26054,ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮ刀@4ｽﾋﾟｰｶ |
1 | ||
| 86100-52192 |
KSP130,NCP131,NSP13#..CBU FUJITSU TEN,ID=26054,ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮ刀@4ｽﾋﾟｰｶ |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-52190 |
KSP130,NCP131,NSP13#..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8601 | ||||
