NCP131-AHXVK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

Click highlighted areas on diagram

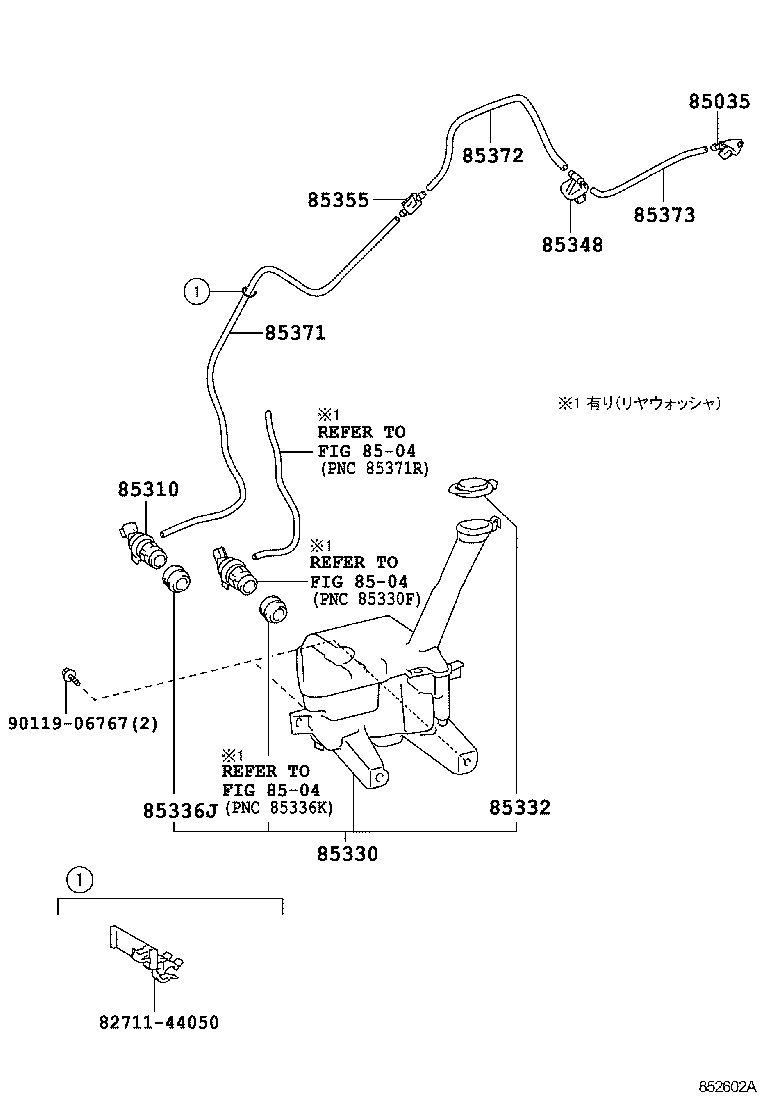

diagram 8271144050 85035 8504 8504 8504 85310 85330 85332 85336J 85348 85355 85371 85372 85373 9011906767
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-52361

KSP130,NCP131,NSP13#..CBU

 1
85381-52360

KSP130,NCP131,NSP13#..CBU

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-21010

KSP130,NCP131,NSP13#..CBU

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-52300

KSP130,NCP131,NSP13#..CBU

寒冷地仕様

 1
85315-52280

KSP130,NCP131,NSP13#..CBU

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-10270

KSP130,NCP131,NSP13#..CBU

 1
85336J - PROTECTOR, WASHER JAR
85336-60300

KSP130,NCP131,NSP13#..CBU

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-52190

KSP130,NCP131,NSP13#..CBU

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-26020

KSP130,NCP131,NSP13#..CBU

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

KSP130,NCP131,NSP13#..CBU

*H,L=740

 1
90099-33080

KSP130,NCP131,NSP13#..CBU

*H,L=740,寒冷地仕様

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

KSP130,NCP131,NSP13#..CBU

*H,L=355

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

KSP130,NCP131,NSP13#..CBU

*H,L=170

 1
90099-33080

KSP130,NCP131,NSP13#..CBU

*H,L=150

 1
Common parts
82711-44050
90119-06767
Linked diagrams
8504
