Toyota Vitz NCP131 WIRING & CLAMP

NCP131-AHXVK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014

Engine 1NZFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 8 OF11(1012- )NCP131

Click highlighted areas on diagram

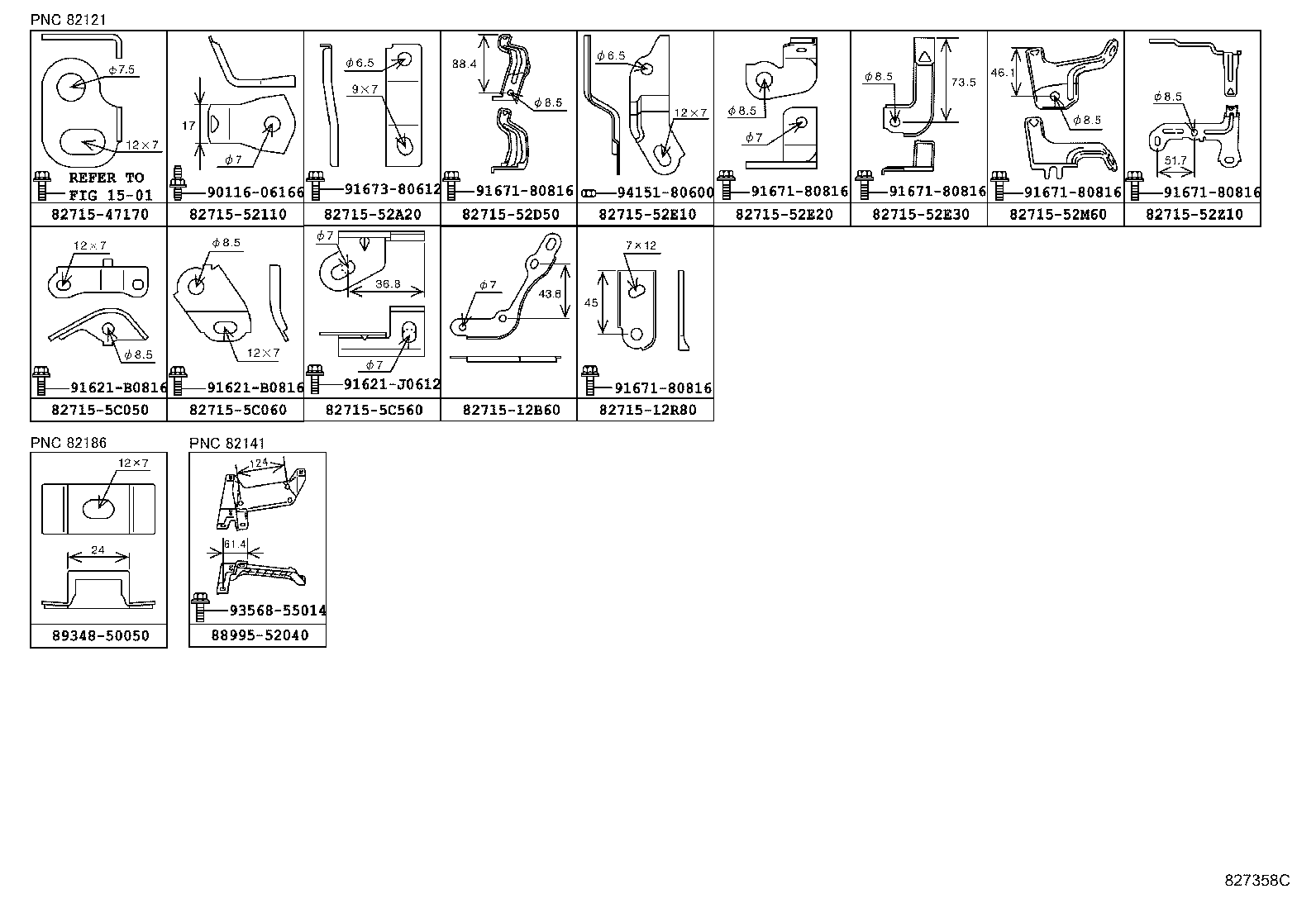

ｸﾗﾝﾌﾟ&ﾌﾞﾗｹｯﾄ

Part #	Description	Period	Qty	Price
Common parts
82715-12B60
82715-12R80
82715-47170
82715-52110
82715-52A20
82715-52D50
82715-52E10
82715-52E20
82715-52E30
82715-52M60
82715-52Z10
82715-5C050
82715-5C060
82715-5C560
88995-52040
89348-50050
90116-06166
91621-B0816
91621-J0612
91671-80816
91673-80612
93568-55014
94151-80600
Linked diagrams
1501

ILLUST NO. 1 OF11(1012- )KSP130,NCP131,NSP13#

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-5CF00	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯ﾊﾛｹﾞﾝｽﾎﾟｰﾂ	12/2010 - 04/2014	1
82111-5CF00	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯ﾊﾛｹﾞﾝｽﾎﾟｰﾂ	12/2010 - 04/2014	1
82111-5CF10	NCP131,NSP13#..U..CBU	12/2010 - 04/2014	1
82111-5CF20	NCP131..RS	12/2010 - 04/2014	1
82111-5CF30	NCP131..RS 寒冷地仕様	12/2010 - 04/2014	1
82111-5CF30	NCP131,NSP13#..(F,U)..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	12/2010 - 04/2014	1
82111-5CF20	NCP131,NSP13#..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	12/2010 - 04/2014	1
82111-5CF40	NCP131..CVT..RS VSC−有り	12/2010 - 04/2014	1
82111-5CF40	NCP131..CVT..RS 寒冷地仕様&VSC−有り	12/2010 - 04/2014	1
82111-5CT80	NCP131..RS G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ G’S(専用塗装)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ	10/2011 - 04/2014	1
82111-5CT80	NCP131..RS G’s&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ G’S(専用塗装)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ	10/2011 - 04/2014	1
82113 - WIRE, ENGINE ROOM, NO.3
82113-52010	NCP131..RS G’s&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ G’S(専用塗装)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ	10/2011 - 04/2014	2
82113-52010	NCP131..RS G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ G’S(専用塗装)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ	10/2011 - 04/2014	2
82113 - WIRE, ENGINE ROOM, NO.3
82113-52010	NCP131..RS G’s&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ G’S(専用塗装)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ	10/2011 - 04/2014	2
82113-52010	NCP131..RS G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ G’S(専用塗装)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ	10/2011 - 04/2014	2
82113 - WIRE, ENGINE ROOM, NO.3
82113-52010	NCP131..RS G’s&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ G’S(専用塗装)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ	10/2011 - 04/2014	2
82113-52010	NCP131..RS G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ G’S(専用塗装)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ	10/2011 - 04/2014	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-52A20	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-52C00	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
Common parts
90119-06915
91671-80614
Linked diagrams
8401
8417

ILLUST NO. 2 OF11(1012- )NCP131

Click highlighted areas on diagram

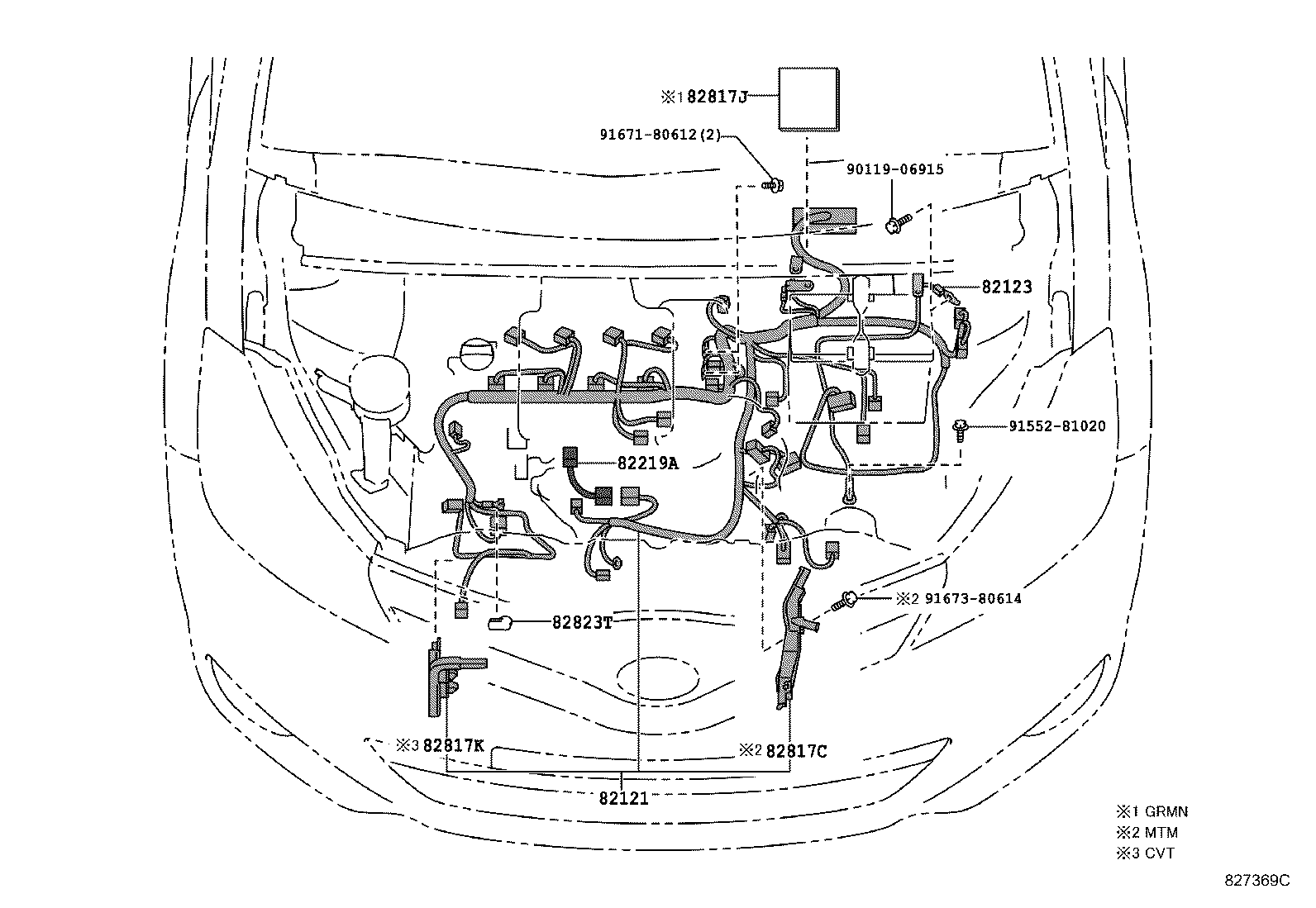

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-52K30	NCP131..CVT	12/2010 - 06/2012	1
82121-52K31	NCP131..CVT	07/2012 - 04/2014	1
82123 - WIRE, ENGINE, NO.3
82123-52350	KSP130,NCP131..CVT..CBU	12/2010 - 04/2014	1
82219A - WIRE, SENSOR
82219-52040	NCP131	12/2010 - 04/2014	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
Common parts
90119-06915
91552-81020
91671-80612
91673-80614

ILLUST NO. 4 OF11(1012- )

Click highlighted areas on diagram

ﾄﾞｱ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-52S31	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個)	04/2012 - 04/2014	1
82151-52S30	NCP131..CVT..RS G’s&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個)	10/2011 - 04/2012	1
82151-52S40	NCP131,NSP13#..CVT..(RS,U)..CBU	12/2010 - 04/2014	1
82151-52S30	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個)	12/2010 - 04/2012	1
82151-52S31	NCP131..CVT..RS G’s&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個)	04/2012 - 04/2014	1
82152 - WIRE, FRONT DOOR, LH
82152-52P60	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個),品番ﾗﾍﾞﾙ≠W2152−52P60	12/2010 - 04/2012	1
82152-52P70	NCP131,NSP13#..CVT..(RS,U)..CBU	12/2010 - 04/2014	1
82152-52P61	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個),品番ﾗﾍﾞﾙ≠W2152−52P61	04/2012 - 04/2014	1
82152-52P61	NCP131..CVT..RS G’s&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個),品番ﾗﾍﾞﾙ=82152−T2P61	04/2012 - 04/2014	1
82152-52P60	NCP131..CVT..RS G’s&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個),品番ﾗﾍﾞﾙ=82152−T2P60	10/2011 - 04/2012	1
82153 - WIRE, REAR DOOR, NO.1
82153-52690	KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU	12/2010 - 04/2014	1
82154 - WIRE, REAR DOOR, NO.2
82154-52360	KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU	12/2010 - 04/2014	1
82184 - WIRE, BACK DOOR, NO.1
82184-52530	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)	12/2010 - 04/2014	1
82184-52550	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ	12/2010 - 04/2014	1
82184-52530	NCP131..CVT..RS G’s&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ	10/2011 - 04/2014	1
82184-52570	NCP131,NSP13#..CVT..(RS,U)..CBU	12/2010 - 04/2014	1
82185 - WIRE, BACK DOOR, NO.2
82185-52690	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ	12/2010 - 06/2011	1
82185-52740	NCP131,NSP13#..CVT..(RS,U)..CBU	12/2010 - 04/2014	1
82185-52680	NCP131..CVT..RS G’s&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ	10/2011 - 04/2014	1
82185-52691	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ	06/2011 - 04/2014	1
82185-52751	NCP131,NSP13#..CVT..(RS,U)..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ	06/2011 - 04/2014	1
82185-52680	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個)	12/2010 - 04/2014	1
82185-52750	NCP131,NSP13#..CVT..(RS,U)..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ	12/2010 - 06/2011	1
82186 - WIRE, REAR WINDOW, NO.1
82186-52180	KSP130,NCP131,NSP13#..CBU	08/2011 - 04/2014	1
82186-52090	KSP130,NCP131,NSP13#..CBU	12/2010 - 08/2011	1
Common parts
90119-06915

ILLUST NO. 5 OF11(1012- )

Click highlighted areas on diagram

ﾌﾛｱ&ﾙｰﾌ

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-5CC50	NCP131..CVT..RS VSC−有り&SRSｴｱﾊﾞｯｸﾞ−有り(DRS & PAS & ｻｲﾄﾞ & *CUSA)	12/2010 - 05/2011	1
82161-5CC40	NCP131..CVT..RS VSC−有り	12/2010 - 05/2011	1
82161-5CB80	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯ﾊﾛｹﾞﾝｽﾎﾟｰﾂ	12/2010 - 10/2011	1
82161-5CB90	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ(C)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯ﾊﾛｹﾞﾝｽﾎﾟｰﾂ&SRSｴｱﾊﾞｯｸﾞ−有り(DRS & PAS & ｻｲﾄﾞ & CUSA)	12/2010 - 10/2011	1
82161-5CC00	NCP131,NSP130..CVT..(RS,U)..CBU	12/2010 - 10/2011	1
82161-5CC10	NCP131,NSP130..CVT..(RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(DRS & PAS & ｻｲﾄﾞ & *CUSA)	12/2010 - 10/2011	1
82161-5CC41	NCP131..CVT..RS VSC−有り	06/2011 - 10/2011	1
82161-5CC51	NCP131..CVT..RS VSC−有り&SRSｴｱﾊﾞｯｸﾞ−有り(DRS & PAS & ｻｲﾄﾞ & *CUSA)	06/2011 - 10/2011	1
82161-5CB81	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯ﾊﾛｹﾞﾝｽﾎﾟｰﾂ	10/2011 - 04/2014	1
82161-5CB81	NCP131..CVT..RS G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ G’S(専用塗装)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ	10/2011 - 04/2014	1
82161-5CB91	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ(C)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯ﾊﾛｹﾞﾝｽﾎﾟｰﾂ&SRSｴｱﾊﾞｯｸﾞ−有り(DRS & PAS & ｻｲﾄﾞ & CUSA)	10/2011 - 04/2014	1
82161-5CB91	NCP131..CVT..RS G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ G’S(専用塗装)&SRSｴｱﾊﾞｯｸﾞ−有り(DRS & PAS & ｻｲﾄﾞ & *CUSA)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ	10/2011 - 04/2014	1
82161-5CC01	NCP131,NSP130..CVT..(RS,U)..CBU	10/2011 - 04/2014	1
82161-5CC11	NCP131,NSP130..CVT..(RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(DRS & PAS & ｻｲﾄﾞ & *CUSA)	10/2011 - 04/2014	1
82161-5CC42	NCP131..CVT..RS VSC−有り	10/2011 - 04/2014	1
82161-5CC52	NCP131..CVT..RS VSC−有り&SRSｴｱﾊﾞｯｸﾞ−有り(DRS & PAS & ｻｲﾄﾞ & *CUSA)	10/2011 - 04/2014	1
82171 - WIRE, ROOF, NO.1
82171-52541	KSP130,NCP131,NSP13#..(F,RS,U)..CBU	02/2011 - 04/2014	1
82171-52540	KSP130,NCP131,NSP13#..(F,RS,U)..CBU	12/2010 - 01/2011	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-52280	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け)	12/2010 - 04/2014	1
82182-52260	NCP131..RS 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾊﾞﾝﾊﾟ付け)	12/2010 - 04/2014	1
82182-52140	NCP131..RS G’s	10/2011 - 04/2014	1
82183 - WIRE, LUGGAGE ROOM, NO.3
82183-52060	KSP130,NCP131,NSP130..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	12/2010 - 04/2014	1
82183-52060	NCP131..RS	12/2010 - 04/2014	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-52710	KSP130,NCP131,NSP130..CBU	12/2010 - 04/2014	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-52710	KSP130,NCP131,NSP130..CBU	12/2010 - 04/2014	1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-52710	KSP130,NCP131,NSP130..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	12/2010 - 04/2014	2
82817-52710	NCP131..RS;NSP135..CBU	12/2010 - 04/2014	2
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-52710	KSP130,NCP131,NSP130..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	12/2010 - 04/2014	2
82817-52710	NCP131..RS;NSP135..CBU	12/2010 - 04/2014	2
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-52A60	NCP131..RS;NSP135..CBU	12/2010 - 04/2014	1
82817-52A60	KSP130,NCP131,NSP130..(F,U)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	12/2010 - 04/2014	1
Common parts
45818-D1090
71522-D1010
90119-06915
C6565-18020
Linked diagrams
8121
8417
8601

ILLUST NO. 3 OF11(1012- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-5DR40	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯ﾊﾛｹﾞﾝｽﾎﾟｰﾂ	12/2010 - 07/2011	1
82141-5DR80	NCP131,NSP13#..U..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	12/2010 - 07/2011	1
82141-5DR90	NCP131..CVT..RS VSC−有り	12/2010 - 07/2011	1
82141-5DR80	NCP131..CVT..RS	12/2010 - 07/2011	1
82145-52A10	NCP131,NSP13#..U..CBU	12/2010 - 07/2011	1
82141-5DR41	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯ﾊﾛｹﾞﾝｽﾎﾟｰﾂ	08/2011 - 05/2012	1
82141-5DR81	NCP131,NSP13#..U..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	08/2011 - 05/2012	1
82141-5DR81	NCP131..CVT..RS	08/2011 - 05/2012	1
82141-5DR91	NCP131..CVT..RS VSC−有り	08/2011 - 05/2012	1
82145-52A11	NCP131,NSP13#..U..CBU	08/2011 - 05/2012	1
82145-52K70	NCP131..CVT..RS G’s&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ G’S(専用塗装)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ	10/2011 - 05/2012	1
82141-5DR43	NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個)&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯ﾊﾛｹﾞﾝｽﾎﾟｰﾂ	05/2012 - 04/2014	1
82141-5DR83	NCP131..CVT..RS	05/2012 - 04/2014	1
82141-5DR83	NCP131,NSP13#..U..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	05/2012 - 04/2014	1
82141-5DR93	NCP131..CVT..RS VSC−有り	05/2012 - 04/2014	1
82145-52A13	NCP131,NSP13#..U..CBU	05/2012 - 04/2014	1
82145-52K72	NCP131..CVT..RS G’s&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ G’S(専用塗装)&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ	05/2012 - 04/2014	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-52090	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
82666A - HOLDER, CONNECTOR NO.2
82666-52150	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
82666B - HOLDER, CONNECTOR NO.3
82666-52160	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
82666C - HOLDER, CONNECTOR NO.4
82666-52170	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
82669A - COVER, CONNECTOR HOLDER BLOCK, LOWER
82669-52010	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
Common parts
90119-06915
90159-60613
90159-70004
Linked diagrams
8401

ILLUST NO. 9 OF11(1012- )

Click highlighted areas on diagram

ｺﾈｸﾀ 1/3

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10825
90980-10869
90980-10897
90980-10908
90980-10988
90980-11016
90980-11019
90980-11148
90980-11156
90980-11162
90980-11194
90980-11255
90980-11314
90980-11349
90980-11660
90980-WA052

ILLUST NO.10 OF11(1012- )

Click highlighted areas on diagram

ｺﾈｸﾀ 2/3

Part #	Description	Period	Qty	Price
Common parts
82824-52430
82824-78020
90980-10619
90980-10795
90980-10797
90980-10825
90980-11003
90980-11019
90980-11070
90980-11162
90980-12416
90980-12490
90980-12658
90980-12699

ILLUST NO.11 OF11(1012- )

Click highlighted areas on diagram

ｺﾈｸﾀ 3/3

Part #	Description	Period	Qty	Price
Common parts
90980-10996
90980-10997
90980-11909
90980-12211
90980-12460
90980-12495
90980-12551
90980-12790
