NCP131-AHXVK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )KSP130,NCP131,NSP13#

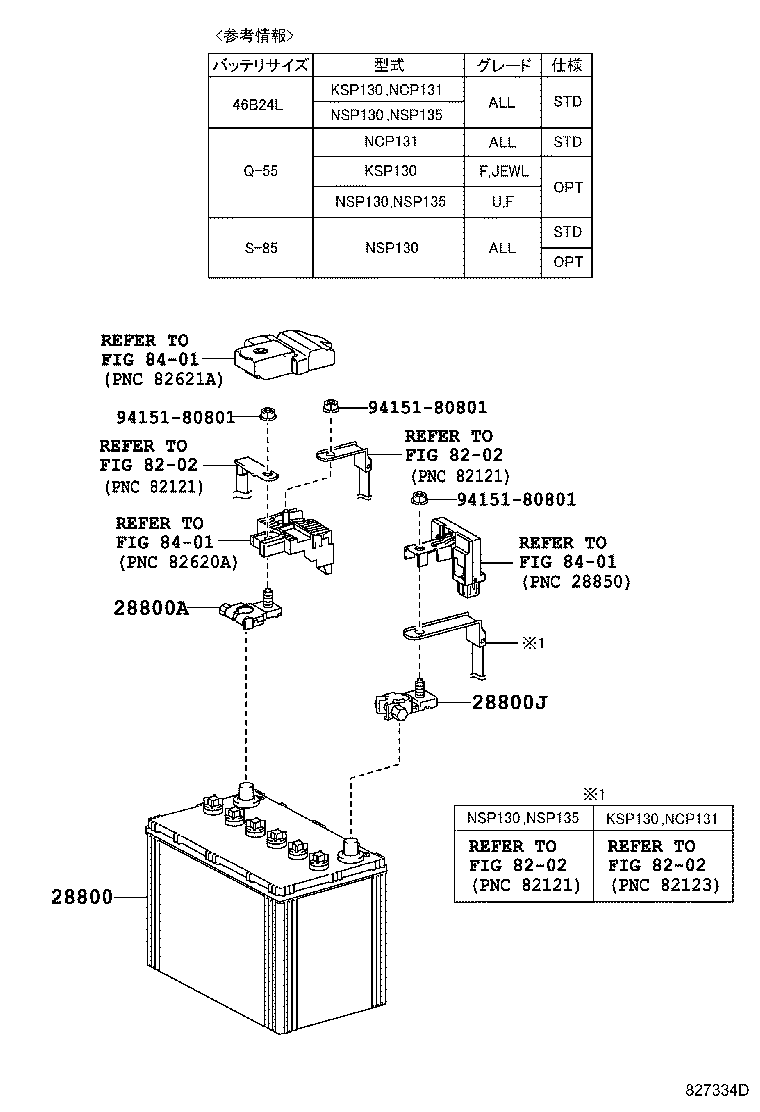

Click highlighted areas on diagram

diagram 28800 28800A 28800J 8202 8202 8202 8202 8401 8401 8401 9415180801 9415180801 9415180801
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05055

1KRFE,1N#..KSP130,NCP131,NSP13#..CBU

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06058

1KRFE,1N#..KSP130,NCP131,NSP13#..CBU

 1
Common parts
94151-80801
Linked diagrams
8202
8401
