NCP131-AHXVK (2010)
Toyota Vitz

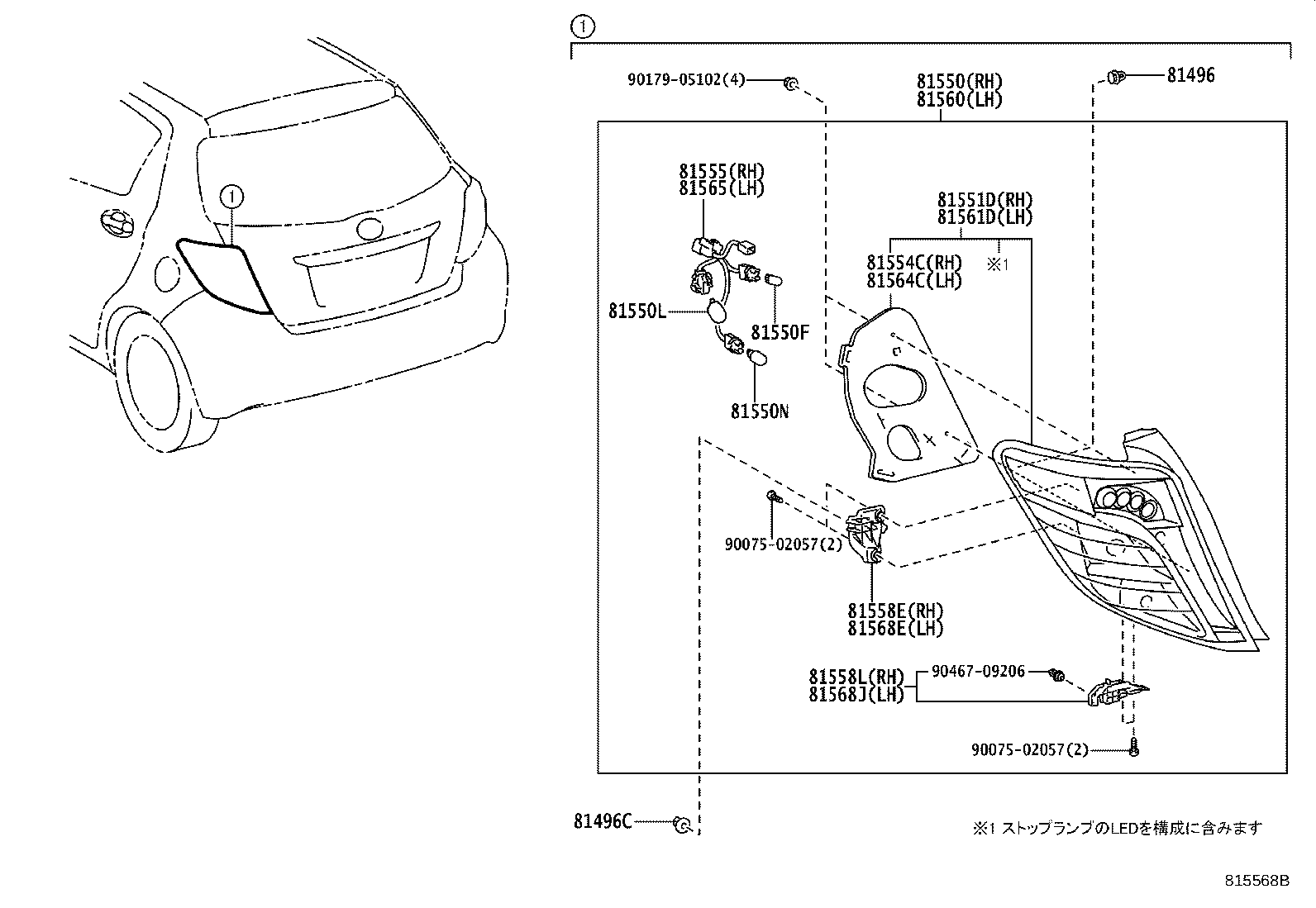

(1012-1404)F,JEWL,U
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-60010 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-52020 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-52B30 |
NCP131..RS G’s |
1 | ||
| 81550-52800 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81550-52801 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81550-52841 |
NCP131..RS |
1 | ||
| 81550-52840 |
NCP131..RS |
1 | ||
| 81550F - BULB, TAIL LAMP | ||||
| 99132-12050 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU 12V 5W |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
KSP130,NCP131,NSP13#..CBU 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
KSP130,NCP131,NSP13#..CBU 12V 16W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-52840 |
NCP131..RS |
1 | ||
| 81551-52841 |
NCP131..RS |
1 | ||
| 81551-52B30 |
NCP131..RS G’s |
1 | ||
| 81551-52800 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81551-52801 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81554C - PACKING, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-52840 |
NCP131..RS |
1 | ||
| 81554-52841 |
NCP131..RS |
1 | ||
| 81554-52800 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81554-52801 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-52800 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81555-52840 |
NCP131..RS |
1 | ||
| 81558E - COVER, REAR COMBINATION LAMP, RH | ||||
| 81558-52801 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81558-52800 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81558-52840 |
NCP131..RS |
1 | ||
| 81558-52841 |
NCP131..RS |
1 | ||
| 81558L - PROTECTOR, REAR COMBINATION LAMP, RH | ||||
| 81558-52810 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-52A60 |
NCP131..RS G’s |
1 | ||
| 81560-52740 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81560-52781 |
NCP131..RS |
1 | ||
| 81560-52780 |
NCP131..RS |
1 | ||
| 81560-52741 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-52A60 |
NCP131..RS G’s |
1 | ||
| 81561-52780 |
NCP131..RS |
1 | ||
| 81561-52740 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81561-52741 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81561-52781 |
NCP131..RS |
1 | ||
| 81564C - PACKING, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-52741 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81564-52800 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81564-52781 |
NCP131..RS |
1 | ||
| 81564-52840 |
NCP131..RS |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-52840 |
NCP131..RS |
1 | ||
| 81555-52800 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81568E - COVER, REAR COMBINATION LAMP, LH | ||||
| 81568-52781 |
NCP131..RS |
1 | ||
| 81568-52780 |
NCP131..RS |
1 | ||
| 81568-52740 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81568-52741 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81568J - PROTECTOR, REAR COMBINATION LAMP, LH | ||||
| 81568-52750 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 90075-02057 | ||||
| 90179-05102 | ||||
| 90467-09206 | ||||

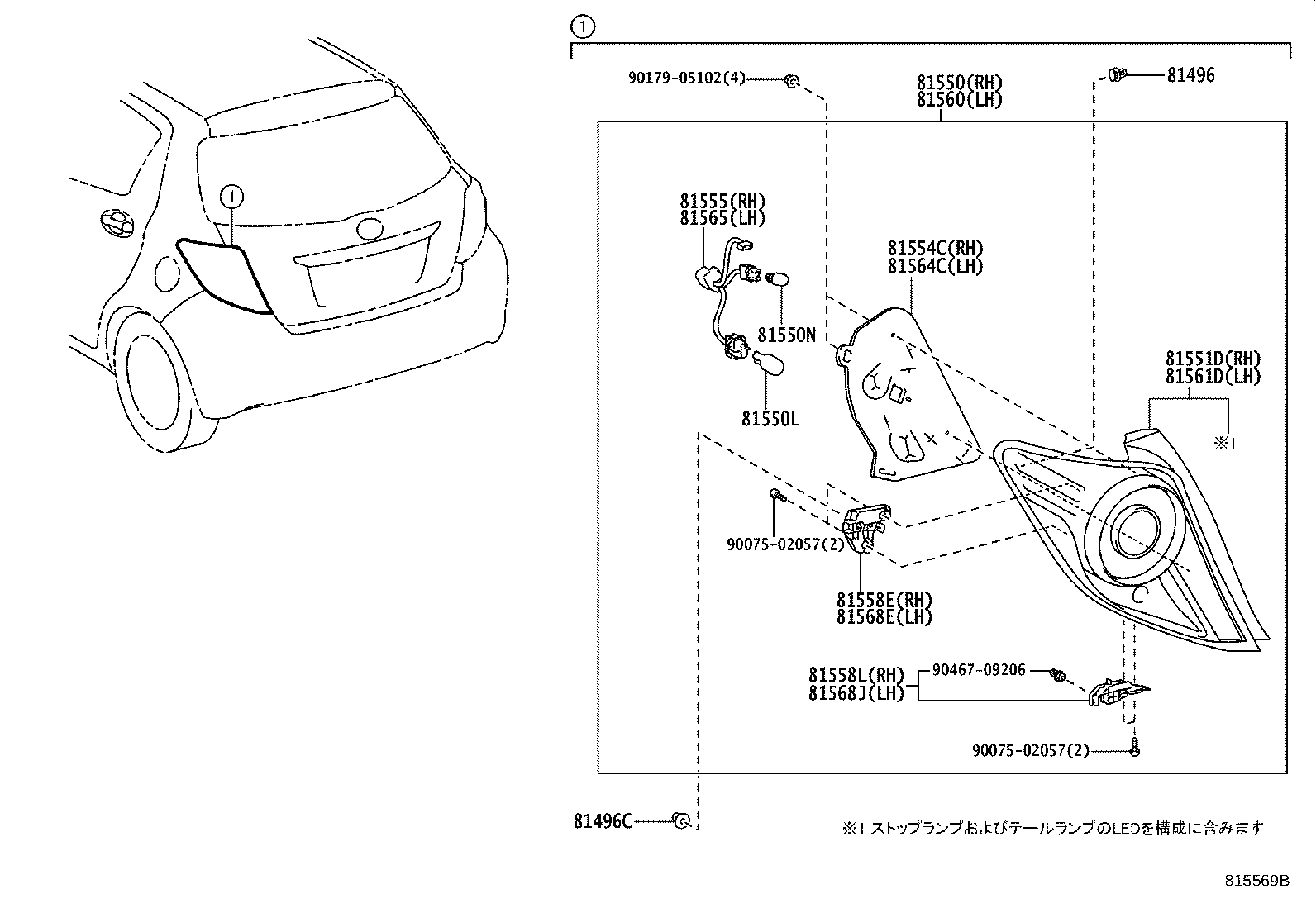

(1012-1701)RS ; (1709- )GRS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-60010 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-52020 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-52B30 |
NCP131..RS G’s |
1 | ||
| 81550-52800 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81550-52801 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81550-52841 |
NCP131..RS |
1 | ||
| 81550-52840 |
NCP131..RS |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
KSP130,NCP131,NSP13#..CBU 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
KSP130,NCP131,NSP13#..CBU 12V 16W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-52840 |
NCP131..RS |
1 | ||
| 81551-52841 |
NCP131..RS |
1 | ||
| 81551-52B30 |
NCP131..RS G’s |
1 | ||
| 81551-52800 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81551-52801 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81554C - PACKING, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-52840 |
NCP131..RS |
1 | ||
| 81554-52841 |
NCP131..RS |
1 | ||
| 81554-52800 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81554-52801 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-52800 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81555-52840 |
NCP131..RS |
1 | ||
| 81558E - COVER, REAR COMBINATION LAMP, RH | ||||
| 81558-52801 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81558-52800 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81558-52840 |
NCP131..RS |
1 | ||
| 81558-52841 |
NCP131..RS |
1 | ||
| 81558L - PROTECTOR, REAR COMBINATION LAMP, RH | ||||
| 81558-52810 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-52A60 |
NCP131..RS G’s |
1 | ||
| 81560-52740 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81560-52781 |
NCP131..RS |
1 | ||
| 81560-52780 |
NCP131..RS |
1 | ||
| 81560-52741 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-52A60 |
NCP131..RS G’s |
1 | ||
| 81561-52780 |
NCP131..RS |
1 | ||
| 81561-52740 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81561-52741 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81561-52781 |
NCP131..RS |
1 | ||
| 81564C - PACKING, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-52741 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81564-52800 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81564-52781 |
NCP131..RS |
1 | ||
| 81564-52840 |
NCP131..RS |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-52840 |
NCP131..RS |
1 | ||
| 81555-52800 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81568E - COVER, REAR COMBINATION LAMP, LH | ||||
| 81568-52781 |
NCP131..RS |
1 | ||
| 81568-52780 |
NCP131..RS |
1 | ||
| 81568-52740 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81568-52741 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 81568J - PROTECTOR, REAR COMBINATION LAMP, LH | ||||
| 81568-52750 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 90075-02057 | ||||
| 90179-05102 | ||||
| 90467-09206 | ||||
