NCP131-AHXVK (2010)
Toyota Vitz

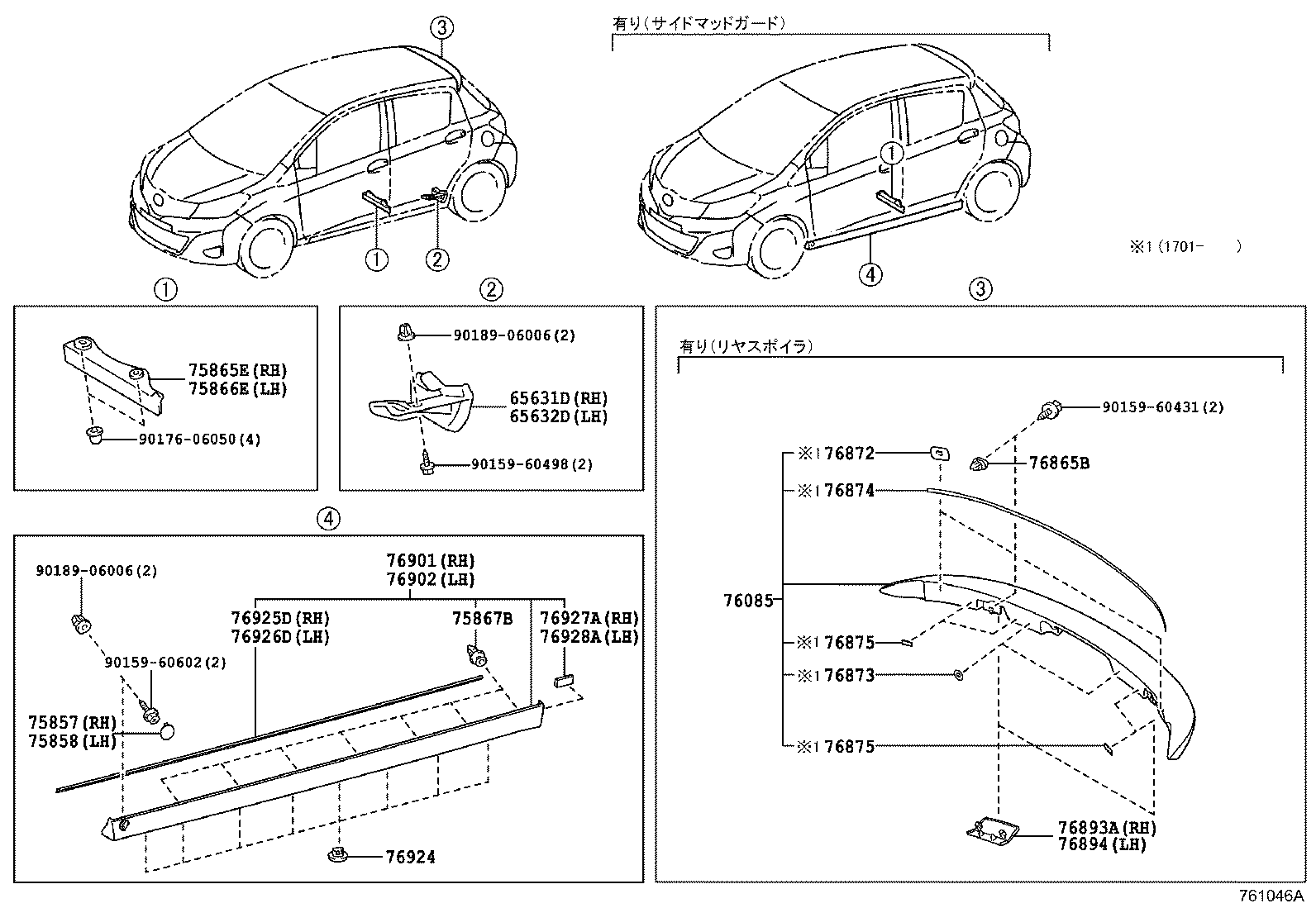

ILLUST NO. 1 OF 2(1012- )RS
ｻｲﾄﾞ & ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75857 - COVER, ROCKER PANEL MOULDING, RH | ||||
| 75857-52070A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 75857-52070C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 75857-52070A1 |
NCP131..RS G’s,WHITE PEARL CS.,070 |
1 | ||
| 75857-52070B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 75857-52070D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 75857-52070A0 |
NCP131..RS G’s,SUPER WHITE 2,040 |
1 | ||
| 75857-52070B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 75857-52070H0 |
NCP131..RS G’s,TURQUOISE M.M.,788 |
1 | ||
| 75857-52070B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 75857-52070B0 |
NCP131..RS G’s,SILVER ME.,1F7 |
1 | ||
| 75857-52070C0 |
NCP131..RS G’s,BLACK MC.,209 |
1 | ||
| 75857-52070D0 |
NCP131..RS G’s,SUPER RED 5,3P0 |
1 | ||
| 75857-52070B1 |
NCP131..RS G’s,GRAY ME.,1G3 |
1 | ||
| 75857-52070H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 75858 - COVER, ROCKER PANEL MOULDING, LH | ||||
| 75857-52070B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 75857-52070A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 75857-52070B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 75857-52070B0 |
NCP131..RS G’s,SILVER ME.,1F7 |
1 | ||
| 75857-52070H0 |
NCP131..RS G’s,TURQUOISE M.M.,788 |
1 | ||
| 75857-52070H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 75857-52070D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 75857-52070B1 |
NCP131..RS G’s,GRAY ME.,1G3 |
1 | ||
| 75857-52070B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 75857-52070A0 |
NCP131..RS G’s,SUPER WHITE 2,040 |
1 | ||
| 75857-52070C0 |
NCP131..RS G’s,BLACK MC.,209 |
1 | ||
| 75857-52070C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 75857-52070D0 |
NCP131..RS G’s,SUPER RED 5,3P0 |
1 | ||
| 75857-52070A1 |
NCP131..RS G’s,WHITE PEARL CS.,070 |
1 | ||
| 75865E - PROTECTOR, ROCKER PANEL MOULDING, RH | ||||
| 75865-52031 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 75866E - PROTECTOR, ROCKER PANEL MOULDING, LH | ||||
| 75866-52031 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 75867B - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-33030 |
NCP131..RS |
14 | ||
| 75867-52020 |
NCP131..RS |
14 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-52190A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 76085-52190B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 76085-52190B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 76085-52190C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 76085-52190B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 76085-52190D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 76085-52220 |
NCP131..RS 塗装不要,G’s |
1 | ||
| 76085-52190H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 76865B - RETAINER, REAR SPOILER | ||||
| 76865-52040 |
NCP131..RS |
2 | ||
| 76893A - COVER, REAR SPOILER, RH | ||||
| 76893-52070A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 76893-52070D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 76893-52070H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 76893-52070B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 76893-52070B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 76893-52070C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 76893-52070B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 76893-52080 |
NCP131..RS G’s |
1 | ||
| 76894 - COVER, REAR SPOILER, LH | ||||
| 76894-52040B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 76894-52040B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 76894-52050 |
NCP131..RS G’s |
1 | ||
| 76894-52040B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 76894-52040A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 76894-52040C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 76894-52040H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 76894-52040D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76901-52120A0 |
NCP131..RS G’s,SUPER WHITE 2,040 |
1 | ||
| 76901-52110B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 76901-52110A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 76901-52120A1 |
NCP131..RS G’s,WHITE PEARL CS.,070 |
1 | ||
| 76901-52110B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 76901-52110C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 76901-52110H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 76901-52110B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 76901-52120B1 |
NCP131..RS G’s,GRAY ME.,1G3 |
1 | ||
| 76901-52120B0 |
NCP131..RS G’s,SILVER ME.,1F7 |
1 | ||
| 76901-52120H0 |
NCP131..RS G’s,TURQUOISE M.M.,788 |
1 | ||
| 76901-52120C0 |
NCP131..RS G’s,BLACK MC.,209 |
1 | ||
| 76901-52120D0 |
NCP131..RS G’s,SUPER RED 5,3P0 |
1 | ||
| 76901-52110D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76902-52120B0 |
NCP131..RS G’s,SILVER ME.,1F7 |
1 | ||
| 76902-52110B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 76902-52110A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 76902-52110D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 76902-52120B1 |
NCP131..RS G’s,GRAY ME.,1G3 |
1 | ||
| 76902-52110B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 76902-52120A0 |
NCP131..RS G’s,SUPER WHITE 2,040 |
1 | ||
| 76902-52110B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 76902-52120A1 |
NCP131..RS G’s,WHITE PEARL CS.,070 |
1 | ||
| 76902-52120D0 |
NCP131..RS G’s,SUPER RED 5,3P0 |
1 | ||
| 76902-52110H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 76902-52110C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 76902-52120C0 |
NCP131..RS G’s,BLACK MC.,209 |
1 | ||
| 76902-52120H0 |
NCP131..RS G’s,TURQUOISE M.M.,788 |
1 | ||
| 76924 - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-12040 |
NCP131..RS |
16 | ||
| 76925D - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76925-52200C0 |
NCP131..RS BLACK,1G3 ,209 ,3P0 ,788 |
1 | ||
| 76925-52200B0 |
NCP131..RS G’s,MEDIUM GRAY,040 ,070 ,1F7 |
1 | ||
| 76925-52200B0 |
NCP131..RS MEDIUM GRAY,040 ,070 ,1F7 ,1J1 |
1 | ||
| 76925-52200C0 |
NCP131..RS G’s,BLACK,1G3 ,209 ,3P0 ,788 |
1 | ||
| 76926D - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76925-52200B0 |
NCP131..RS MEDIUM GRAY,040 ,070 ,1F7 ,1J1 |
1 | ||
| 76925-52200C0 |
NCP131..RS G’s,BLACK,1G3 ,209 ,3P0 ,788 |
1 | ||
| 76925-52200C0 |
NCP131..RS BLACK,1G3 ,209 ,3P0 ,788 |
1 | ||
| 76925-52200B0 |
NCP131..RS G’s,MEDIUM GRAY,040 ,070 ,1F7 |
1 | ||
| 76927A - PROTECTOR, SIDE MUDGUARD, REAR RH | ||||
| 76927-52030 |
NCP131..RS |
1 | ||
| 76928A - PROTECTOR, SIDE MUDGUARD, REAR LH | ||||
| 76927-52030 |
NCP131..RS |
1 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90159-60602 | ||||
| 90176-06050 | ||||
| 90189-06006 | ||||

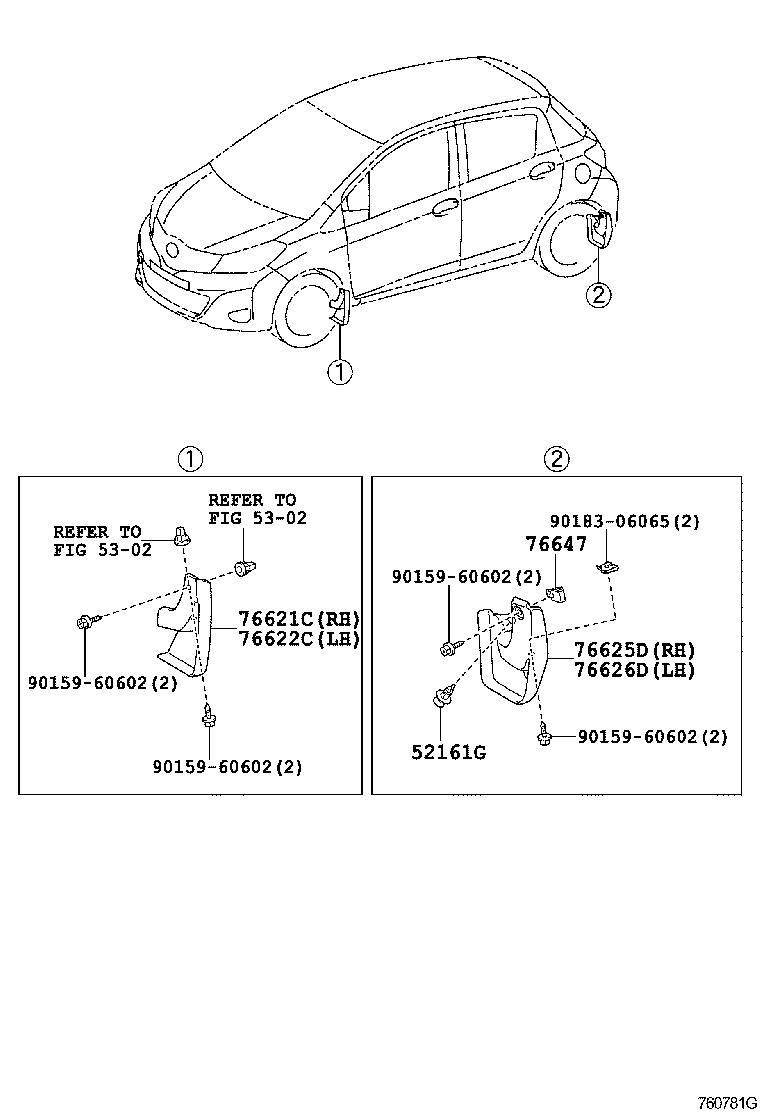

ILLUST NO. 2 OF 2(1012- )NHP130..F,JEWL,U ; (1012- )KSP130,NCP131,NSP13#..F,JEWL,U
ﾏｯﾄﾞｶﾞｰﾄﾞ(DOP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161G - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 52161-16010 |
NCP131..RS ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾘﾔのみ) |
2 | ||
| 76621C - MUDGUAD, FRONT FENDER, RH | ||||
| 76621-52120 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 76622C - MUDGUARD, FRONT FENDER, LH | ||||
| 76622-52120 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 76625D - MUDGUARD, QUARTER PANEL, REAR RH | ||||
| 76625-52210 |
NCP131..RS ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾘﾔのみ) |
1 | ||
| 76625-52200 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 76626D - MUDGUARD, QUARTER PANEL, REAR LH | ||||
| 76626-52200 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 76626-52210 |
NCP131..RS ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾘﾔのみ) |
1 | ||
| 76647 - RETAINER, QUARTER PANEL REAR MUDGUARD | ||||
| 76647-52010 |
NCP131..RS ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾘﾔのみ) |
2 | ||
| 76647-52010 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90183-06065 | ||||
| Linked diagrams | ||||
| 5302 | ||||

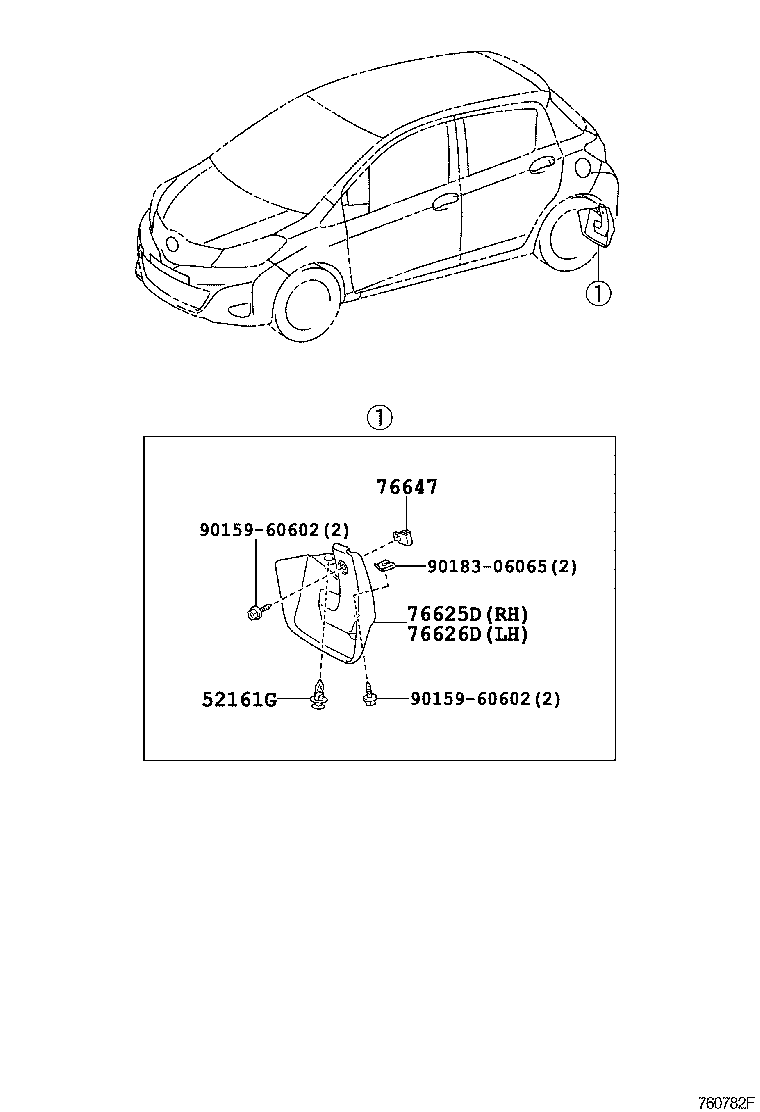

ILLUST NO. 2 OF 2(1012- )RS
ﾏｯﾄﾞｶﾞｰﾄﾞ(DOP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161G - PIECE, REAR BUMPER | ||||
| 52161-16010 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 52161-16010 |
NCP131..RS ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾘﾔのみ) |
2 | ||
| 76625D - MUDGUARD, QUARTER PANEL, REAR RH | ||||
| 76625-52210 |
NCP131..RS ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾘﾔのみ) |
1 | ||
| 76625-52200 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 76626D - MUDGUARD, QUARTER PANEL, REAR LH | ||||
| 76626-52200 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 76626-52210 |
NCP131..RS ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾘﾔのみ) |
1 | ||
| 76647 - RETAINER, QUARTER PANEL REAR MUDGUARD | ||||
| 76647-52010 |
NCP131..RS ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾘﾔのみ) |
2 | ||
| 76647-52010 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾏｯﾄﾞｶﾞｰﾄﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90183-06065 | ||||
ILLUST NO. 1 OF 2(1110-1404)RS
G'S,ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76851 - COVER, FRONT SPOILER | ||||
| 76851-WY010 |
NCP131..RS G’s |
1 | ||
| Common parts | ||||
| 90159-60383 | ||||
| 90189-06013 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5201 | ||||
| 5302 | ||||
ILLUST NO. 2 OF 2(1110- )RS
G'S,ｻｲﾄﾞ & ﾘｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75857 - COVER, ROCKER PANEL MOULDING, RH | ||||
| 75857-52070A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 75857-52070C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 75857-52070A1 |
NCP131..RS G’s,WHITE PEARL CS.,070 |
1 | ||
| 75857-52070B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 75857-52070D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 75857-52070A0 |
NCP131..RS G’s,SUPER WHITE 2,040 |
1 | ||
| 75857-52070B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 75857-52070H0 |
NCP131..RS G’s,TURQUOISE M.M.,788 |
1 | ||
| 75857-52070B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 75857-52070B0 |
NCP131..RS G’s,SILVER ME.,1F7 |
1 | ||
| 75857-52070C0 |
NCP131..RS G’s,BLACK MC.,209 |
1 | ||
| 75857-52070D0 |
NCP131..RS G’s,SUPER RED 5,3P0 |
1 | ||
| 75857-52070B1 |
NCP131..RS G’s,GRAY ME.,1G3 |
1 | ||
| 75857-52070H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 75858 - COVER, ROCKER PANEL MOULDING, LH | ||||
| 75857-52070B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 75857-52070A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 75857-52070B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 75857-52070B0 |
NCP131..RS G’s,SILVER ME.,1F7 |
1 | ||
| 75857-52070H0 |
NCP131..RS G’s,TURQUOISE M.M.,788 |
1 | ||
| 75857-52070H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 75857-52070D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 75857-52070B1 |
NCP131..RS G’s,GRAY ME.,1G3 |
1 | ||
| 75857-52070B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 75857-52070A0 |
NCP131..RS G’s,SUPER WHITE 2,040 |
1 | ||
| 75857-52070C0 |
NCP131..RS G’s,BLACK MC.,209 |
1 | ||
| 75857-52070C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 75857-52070D0 |
NCP131..RS G’s,SUPER RED 5,3P0 |
1 | ||
| 75857-52070A1 |
NCP131..RS G’s,WHITE PEARL CS.,070 |
1 | ||
| 75865E - PROTECTOR, ROCKER PANEL MOULDING, RH | ||||
| 75865-52031 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 75866E - PROTECTOR, ROCKER PANEL MOULDING, LH | ||||
| 75866-52031 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 75867B - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-33030 |
NCP131..RS |
14 | ||
| 75867-52020 |
NCP131..RS |
14 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-52190A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 76085-52190B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 76085-52190B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 76085-52190C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 76085-52190B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 76085-52190D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 76085-52220 |
NCP131..RS 塗装不要,G’s |
1 | ||
| 76085-52190H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 76625A - MUDGUARD, REAR BODY, RH | ||||
| 76625-WY010 |
NCP131..RS G’s |
1 | ||
| 76626A - MUDGUARD, REAR BODY, LH | ||||
| 76626-WY010 |
NCP131..RS G’s |
1 | ||
| 76628A - MUDGUARD, REAR BODY, REAR | ||||
| 76628-WY010 |
NCP131..RS G’s |
1 | ||
| 76629C - MUDGUARD, REAR BODY, REAR LH | ||||
| 76629-WY010 |
NCP131..RS G’s |
1 | ||
| 76865B - RETAINER, REAR SPOILER | ||||
| 76865-52040 |
NCP131..RS |
2 | ||
| 76893A - COVER, REAR SPOILER, RH | ||||
| 76893-52070A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 76893-52070D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 76893-52070H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 76893-52070B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 76893-52070B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 76893-52070C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 76893-52070B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 76893-52080 |
NCP131..RS G’s |
1 | ||
| 76894 - COVER, REAR SPOILER, LH | ||||
| 76894-52040B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 76894-52040B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 76894-52050 |
NCP131..RS G’s |
1 | ||
| 76894-52040B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 76894-52040A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 76894-52040C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 76894-52040H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 76894-52040D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76901-52120A0 |
NCP131..RS G’s,SUPER WHITE 2,040 |
1 | ||
| 76901-52110B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 76901-52110A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 76901-52120A1 |
NCP131..RS G’s,WHITE PEARL CS.,070 |
1 | ||
| 76901-52110B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 76901-52110C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 76901-52110H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 76901-52110B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 76901-52120B1 |
NCP131..RS G’s,GRAY ME.,1G3 |
1 | ||
| 76901-52120B0 |
NCP131..RS G’s,SILVER ME.,1F7 |
1 | ||
| 76901-52120H0 |
NCP131..RS G’s,TURQUOISE M.M.,788 |
1 | ||
| 76901-52120C0 |
NCP131..RS G’s,BLACK MC.,209 |
1 | ||
| 76901-52120D0 |
NCP131..RS G’s,SUPER RED 5,3P0 |
1 | ||
| 76901-52110D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76902-52120B0 |
NCP131..RS G’s,SILVER ME.,1F7 |
1 | ||
| 76902-52110B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 76902-52110A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 76902-52110D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 76902-52120B1 |
NCP131..RS G’s,GRAY ME.,1G3 |
1 | ||
| 76902-52110B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 76902-52120A0 |
NCP131..RS G’s,SUPER WHITE 2,040 |
1 | ||
| 76902-52110B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 76902-52120A1 |
NCP131..RS G’s,WHITE PEARL CS.,070 |
1 | ||
| 76902-52120D0 |
NCP131..RS G’s,SUPER RED 5,3P0 |
1 | ||
| 76902-52110H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 76902-52110C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 76902-52120C0 |
NCP131..RS G’s,BLACK MC.,209 |
1 | ||
| 76902-52120H0 |
NCP131..RS G’s,TURQUOISE M.M.,788 |
1 | ||
| 76924 - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-12040 |
NCP131..RS |
16 | ||
| 76925D - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76925-52200C0 |
NCP131..RS BLACK,1G3 ,209 ,3P0 ,788 |
1 | ||
| 76925-52200B0 |
NCP131..RS G’s,MEDIUM GRAY,040 ,070 ,1F7 |
1 | ||
| 76925-52200B0 |
NCP131..RS MEDIUM GRAY,040 ,070 ,1F7 ,1J1 |
1 | ||
| 76925-52200C0 |
NCP131..RS G’s,BLACK,1G3 ,209 ,3P0 ,788 |
1 | ||
| 76926D - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76925-52200B0 |
NCP131..RS MEDIUM GRAY,040 ,070 ,1F7 ,1J1 |
1 | ||
| 76925-52200C0 |
NCP131..RS G’s,BLACK,1G3 ,209 ,3P0 ,788 |
1 | ||
| 76925-52200C0 |
NCP131..RS BLACK,1G3 ,209 ,3P0 ,788 |
1 | ||
| 76925-52200B0 |
NCP131..RS G’s,MEDIUM GRAY,040 ,070 ,1F7 |
1 | ||
| 76927A - PROTECTOR, SIDE MUDGUARD, REAR RH | ||||
| 76927-52030 |
NCP131..RS |
1 | ||
| 76928A - PROTECTOR, SIDE MUDGUARD, REAR LH | ||||
| 76927-52030 |
NCP131..RS |
1 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90159-60488 | ||||
| 90159-60602 | ||||
| 90176-06050 | ||||
| 90189-06006 | ||||
| 90467-10216 | ||||
| Linked diagrams | ||||
| 6101 | ||||
ILLUST NO. 1 OF 2(1012- )NHP130..F,JEWL,U ; (1012- )KSP130,NCP131,NSP13#..F,JEWL,U
ｻｲﾄﾞ & ﾘｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-52120 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-52120 |
KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
1 | ||
| 75857 - COVER, ROCKER PANEL MOULDING, RH | ||||
| 75857-52070A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 75857-52070C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 75857-52070A1 |
NCP131..RS G’s,WHITE PEARL CS.,070 |
1 | ||
| 75857-52070B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 75857-52070D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 75857-52070A0 |
NCP131..RS G’s,SUPER WHITE 2,040 |
1 | ||
| 75857-52070B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 75857-52070H0 |
NCP131..RS G’s,TURQUOISE M.M.,788 |
1 | ||
| 75857-52070B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 75857-52070B0 |
NCP131..RS G’s,SILVER ME.,1F7 |
1 | ||
| 75857-52070C0 |
NCP131..RS G’s,BLACK MC.,209 |
1 | ||
| 75857-52070D0 |
NCP131..RS G’s,SUPER RED 5,3P0 |
1 | ||
| 75857-52070B1 |
NCP131..RS G’s,GRAY ME.,1G3 |
1 | ||
| 75857-52070H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 75858 - COVER, ROCKER PANEL MOULDING, LH | ||||
| 75857-52070B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 75857-52070A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 75857-52070B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 75857-52070B0 |
NCP131..RS G’s,SILVER ME.,1F7 |
1 | ||
| 75857-52070H0 |
NCP131..RS G’s,TURQUOISE M.M.,788 |
1 | ||
| 75857-52070H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 75857-52070D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 75857-52070B1 |
NCP131..RS G’s,GRAY ME.,1G3 |
1 | ||
| 75857-52070B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 75857-52070A0 |
NCP131..RS G’s,SUPER WHITE 2,040 |
1 | ||
| 75857-52070C0 |
NCP131..RS G’s,BLACK MC.,209 |
1 | ||
| 75857-52070C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 75857-52070D0 |
NCP131..RS G’s,SUPER RED 5,3P0 |
1 | ||
| 75857-52070A1 |
NCP131..RS G’s,WHITE PEARL CS.,070 |
1 | ||
| 75865E - PROTECTOR, ROCKER PANEL MOULDING, RH | ||||
| 75865-52031 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 75866E - PROTECTOR, ROCKER PANEL MOULDING, LH | ||||
| 75866-52031 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 75867B - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-33030 |
NCP131..RS |
14 | ||
| 75867-52020 |
NCP131..RS |
14 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-52190A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 76085-52190B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 76085-52190B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 76085-52190C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 76085-52190B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 76085-52190D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 76085-52220 |
NCP131..RS 塗装不要,G’s |
1 | ||
| 76085-52190H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 76865B - RETAINER, REAR SPOILER | ||||
| 76865-52040 |
NCP131..RS |
2 | ||
| 76893A - COVER, REAR SPOILER, RH | ||||
| 76893-52070A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 76893-52070D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 76893-52070H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 76893-52070B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 76893-52070B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 76893-52070C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 76893-52070B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 76893-52080 |
NCP131..RS G’s |
1 | ||
| 76894 - COVER, REAR SPOILER, LH | ||||
| 76894-52040B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 76894-52040B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 76894-52050 |
NCP131..RS G’s |
1 | ||
| 76894-52040B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 76894-52040A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 76894-52040C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 76894-52040H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 76894-52040D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76901-52120A0 |
NCP131..RS G’s,SUPER WHITE 2,040 |
1 | ||
| 76901-52110B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 76901-52110A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 76901-52120A1 |
NCP131..RS G’s,WHITE PEARL CS.,070 |
1 | ||
| 76901-52110B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 76901-52110C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 76901-52110H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 76901-52110B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 76901-52120B1 |
NCP131..RS G’s,GRAY ME.,1G3 |
1 | ||
| 76901-52120B0 |
NCP131..RS G’s,SILVER ME.,1F7 |
1 | ||
| 76901-52120H0 |
NCP131..RS G’s,TURQUOISE M.M.,788 |
1 | ||
| 76901-52120C0 |
NCP131..RS G’s,BLACK MC.,209 |
1 | ||
| 76901-52120D0 |
NCP131..RS G’s,SUPER RED 5,3P0 |
1 | ||
| 76901-52110D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76902-52120B0 |
NCP131..RS G’s,SILVER ME.,1F7 |
1 | ||
| 76902-52110B2 |
NCP131..RS GIN BUCK ME.,1J1 |
1 | ||
| 76902-52110A0 |
NCP131..RS SUPER WHITE 2,040 |
1 | ||
| 76902-52110D0 |
NCP131..RS SUPER RED 5,3P0 |
1 | ||
| 76902-52120B1 |
NCP131..RS G’s,GRAY ME.,1G3 |
1 | ||
| 76902-52110B0 |
NCP131..RS SILVER ME.,1F7 |
1 | ||
| 76902-52120A0 |
NCP131..RS G’s,SUPER WHITE 2,040 |
1 | ||
| 76902-52110B1 |
NCP131..RS GRAY ME.,1G3 |
1 | ||
| 76902-52120A1 |
NCP131..RS G’s,WHITE PEARL CS.,070 |
1 | ||
| 76902-52120D0 |
NCP131..RS G’s,SUPER RED 5,3P0 |
1 | ||
| 76902-52110H0 |
NCP131..RS TURQUOISE M.M.,788 |
1 | ||
| 76902-52110C0 |
NCP131..RS BLACK MC.,209 |
1 | ||
| 76902-52120C0 |
NCP131..RS G’s,BLACK MC.,209 |
1 | ||
| 76902-52120H0 |
NCP131..RS G’s,TURQUOISE M.M.,788 |
1 | ||
| 76924 - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-12040 |
NCP131..RS |
16 | ||
| 76925D - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76925-52200C0 |
NCP131..RS BLACK,1G3 ,209 ,3P0 ,788 |
1 | ||
| 76925-52200B0 |
NCP131..RS G’s,MEDIUM GRAY,040 ,070 ,1F7 |
1 | ||
| 76925-52200B0 |
NCP131..RS MEDIUM GRAY,040 ,070 ,1F7 ,1J1 |
1 | ||
| 76925-52200C0 |
NCP131..RS G’s,BLACK,1G3 ,209 ,3P0 ,788 |
1 | ||
| 76926D - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76925-52200B0 |
NCP131..RS MEDIUM GRAY,040 ,070 ,1F7 ,1J1 |
1 | ||
| 76925-52200C0 |
NCP131..RS G’s,BLACK,1G3 ,209 ,3P0 ,788 |
1 | ||
| 76925-52200C0 |
NCP131..RS BLACK,1G3 ,209 ,3P0 ,788 |
1 | ||
| 76925-52200B0 |
NCP131..RS G’s,MEDIUM GRAY,040 ,070 ,1F7 |
1 | ||
| 76927A - PROTECTOR, SIDE MUDGUARD, REAR RH | ||||
| 76927-52030 |
NCP131..RS |
1 | ||
| 76928A - PROTECTOR, SIDE MUDGUARD, REAR LH | ||||
| 76927-52030 |
NCP131..RS |
1 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90159-60498 | ||||
| 90159-60602 | ||||
| 90176-06050 | ||||
| 90189-06006 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
