NCP131-AHXVK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

Click highlighted areas on diagram

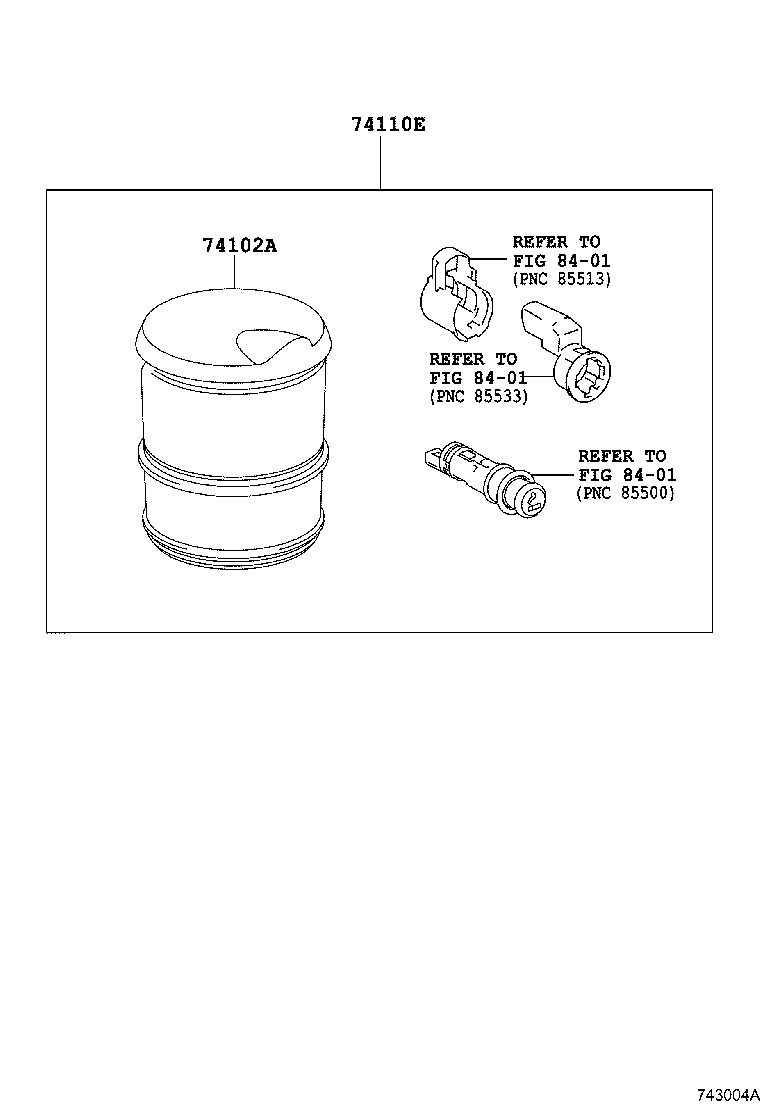

diagram 74102A 74110E 8401 8401 8401
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74130-42010

KSP130,NCP131,NSP13#..CBU

灰皿−有り(分離式)

 1
74110E - RECEPTACLE ASSY, FRONT ASH
74110-52080

KSP130,NCP131,NSP13#..CBU

***,灰皿−有り(分離式)

 1
Linked diagrams
8401
