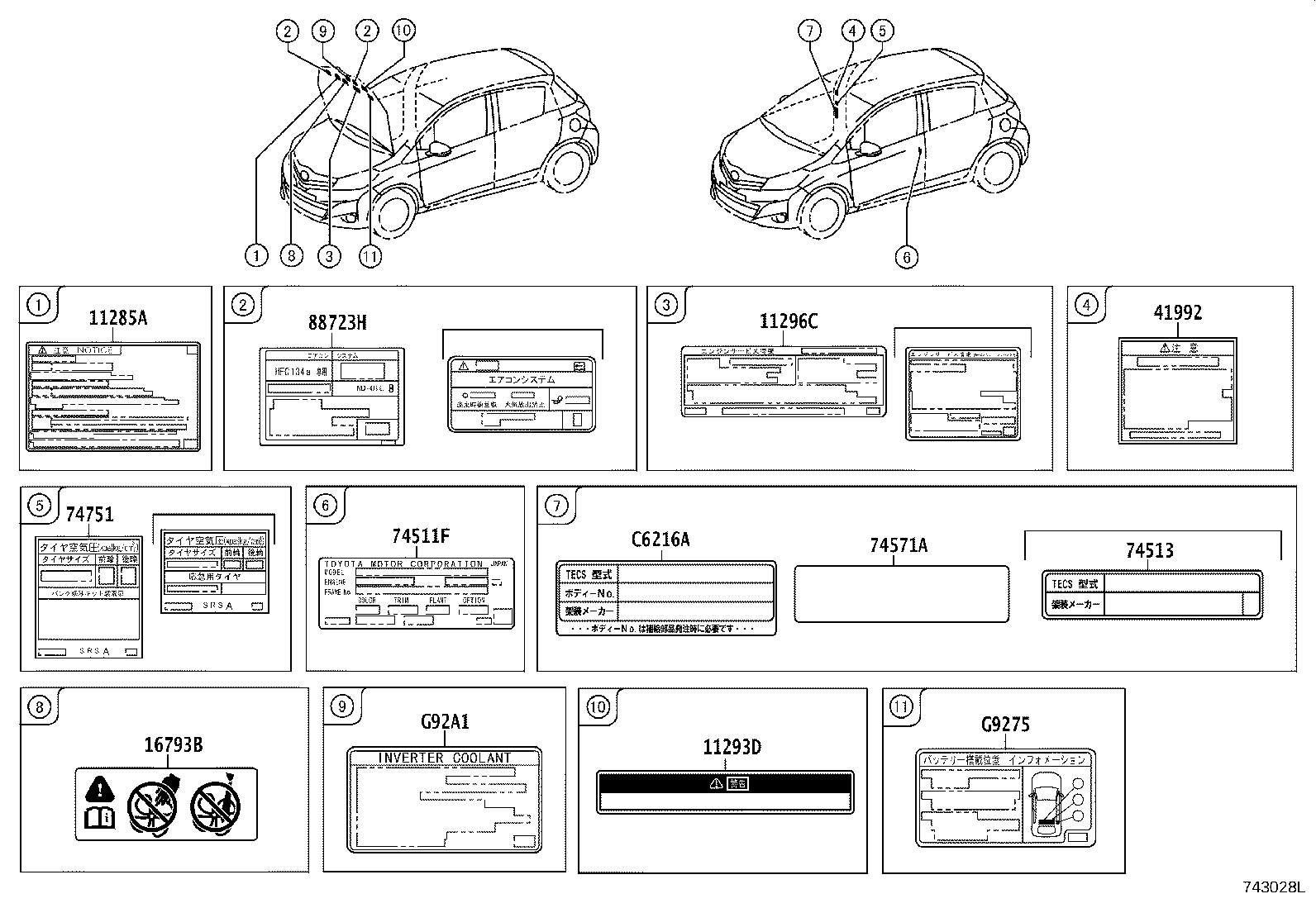

ILLUST NO. 2 OF 4(1012- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ(2/2)&ｶﾞｲｿｳﾊﾟﾈﾙ(1/2)

diagram 11285A 11293D 11296C 16793B 41992 74511F 74513 74571A 74751 88723H C6216A G9275 G92A1
Part # Description Qty Price
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-21031

1NZFE..NCP131..CVT

 1
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-2B300

KSP130,NCP131,NSP13#..CBU

*111

 1
74513 - LABEL, IDENTIFICATION NUMBER INFORMATION
74513-52030

NCP131..CVT..RS

G’s

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-52B70

NCP131,NSP13#..U..CBU

 1
42661-52B80

NCP131..RS

 1
42661-WY010

NCP131..RS

G’s

 1
42661-52D20

NCP131,NSP130..U..CBU

ｽﾍﾟｱﾀｲﾔ−T125/70D15

 1
88723H - LABEL, COOLER SERVICE CAUTION
88733-52030

KSP130,NCP131,NSP13#..CBU

 1

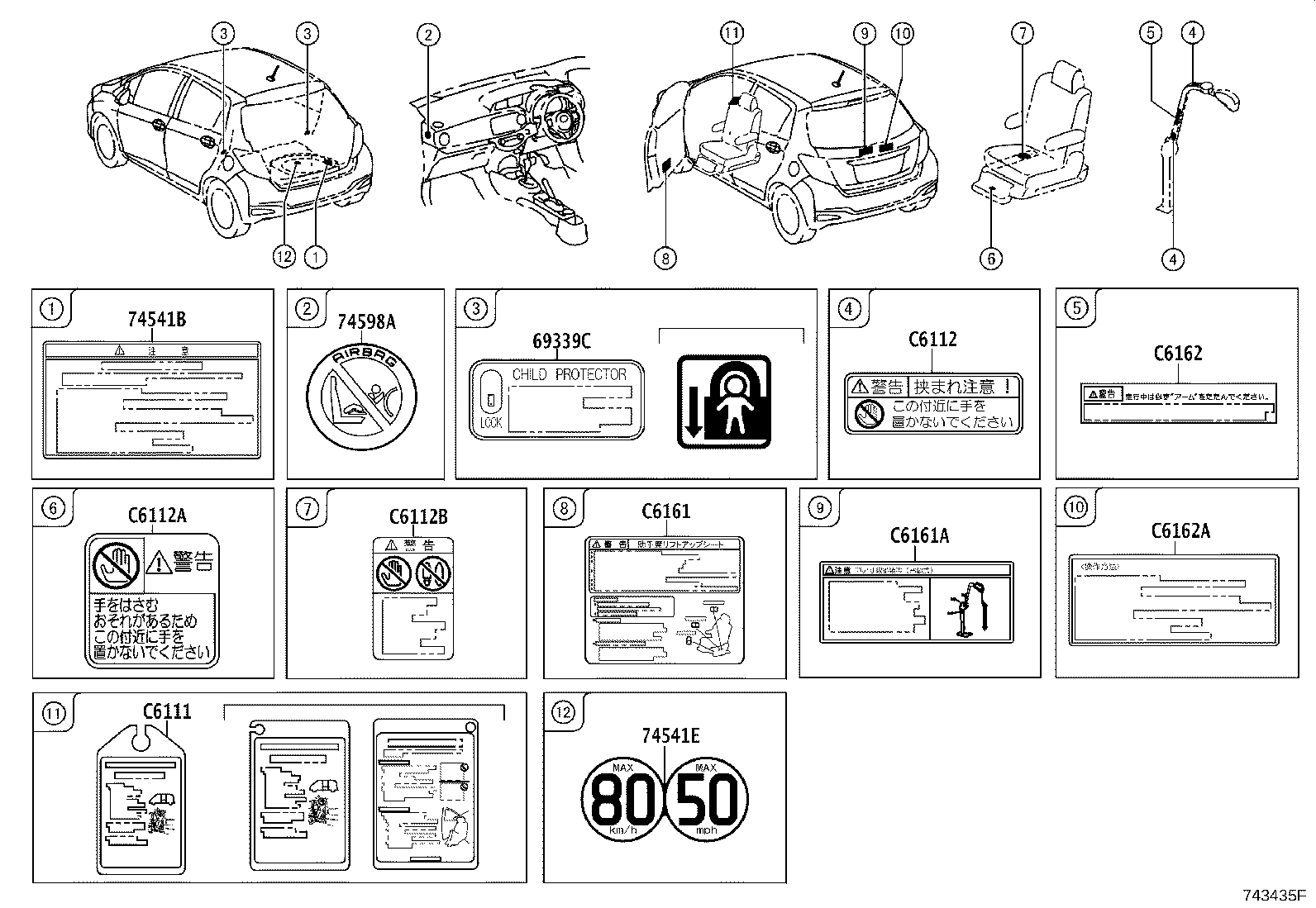

ILLUST NO. 4 OF 4(1012- )

Click highlighted areas on diagram

ﾅｲｿｳ

diagram 69339C 74541B 74541E 74598A C6111 C6112 C6112A C6112B C6161 C6161A C6162 C6162A
Part # Description Qty Price
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-12010

KSP130,NCP131,NSP13#..CBU

 2
69339-33040

KSP130,NCP131,NSP13#..CBU

 2
74541B - PLATE, COMPACT SPARE TIRE CAUTION
42668-28060

NCP131..RS

 1
42668-28060

KSP130,NCP131,NSP130..(F,JEWL,U)..CBU

ｽﾍﾟｱﾀｲﾔ−T125/70D15

 1
74598A - LABEL, PASSENGER AIR BAG CAUTION
74598-20010

KSP130,NCP131,NSP13#..CBU

 1

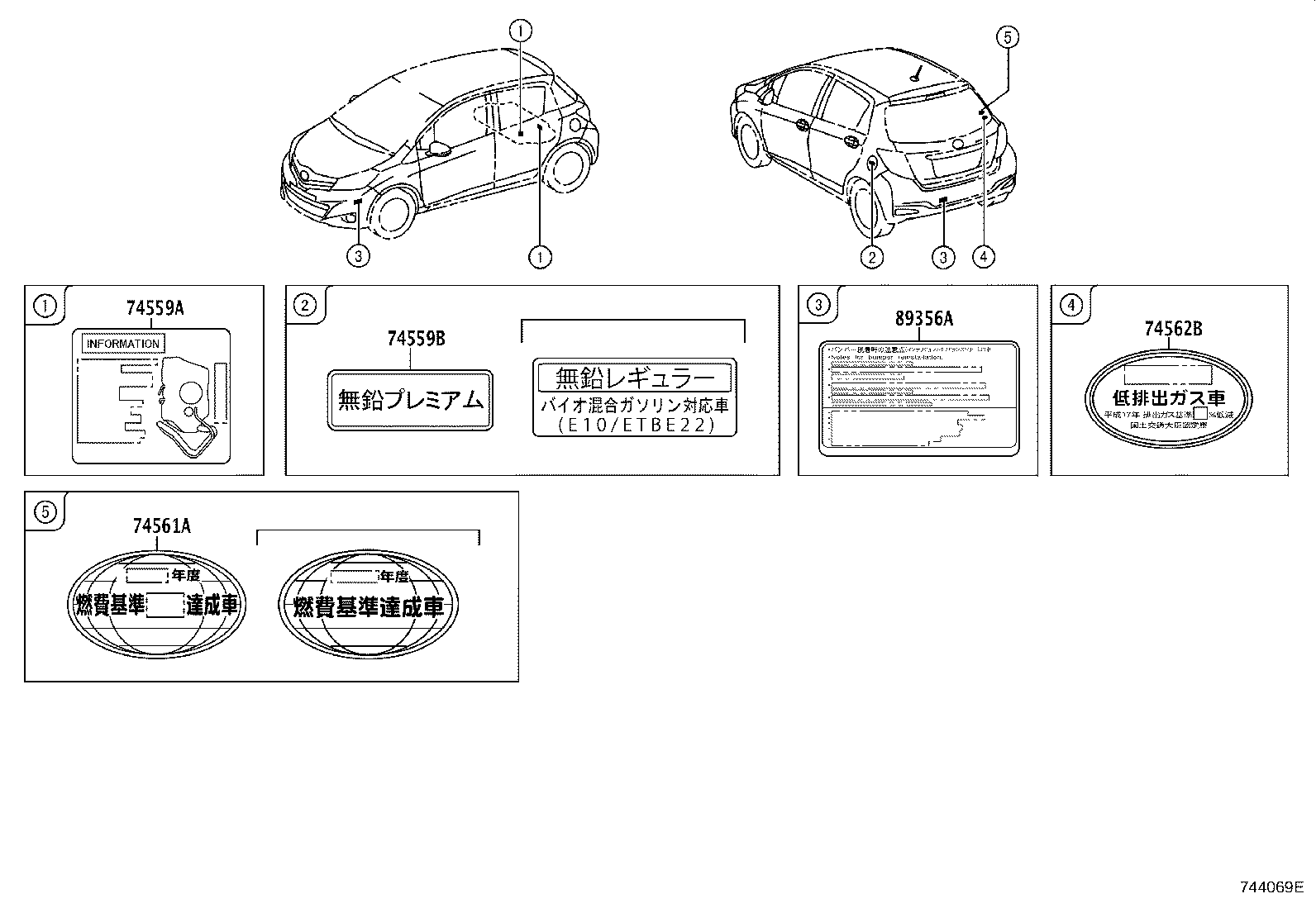

ILLUST NO. 3 OF 4(1012- )

Click highlighted areas on diagram

ｶﾞｲｿｳﾊﾟﾈﾙ(2/2)

diagram 74559A 74559B 74561A 74562B 89356A
Part # Description Qty Price
74559A - PLATE, FUEL CAUTION
74559-52020

KSP130,NCP131,NSP130..CBU

 1
74559-52020

KSP130,NCP131,NSP130..CBU

 2
74561A - LABEL, FUEL CONSUMPTION INFORMATION
74561-28020

NCP131..CVT

平成22年度 燃費基準+25%達成車

 1
74562B - LABEL, EMISSION INFORMATION
74562-47010

KSP130,NCP131,NSP13#..CBU

H17 排出ｶﾞｽ75%低減

 1

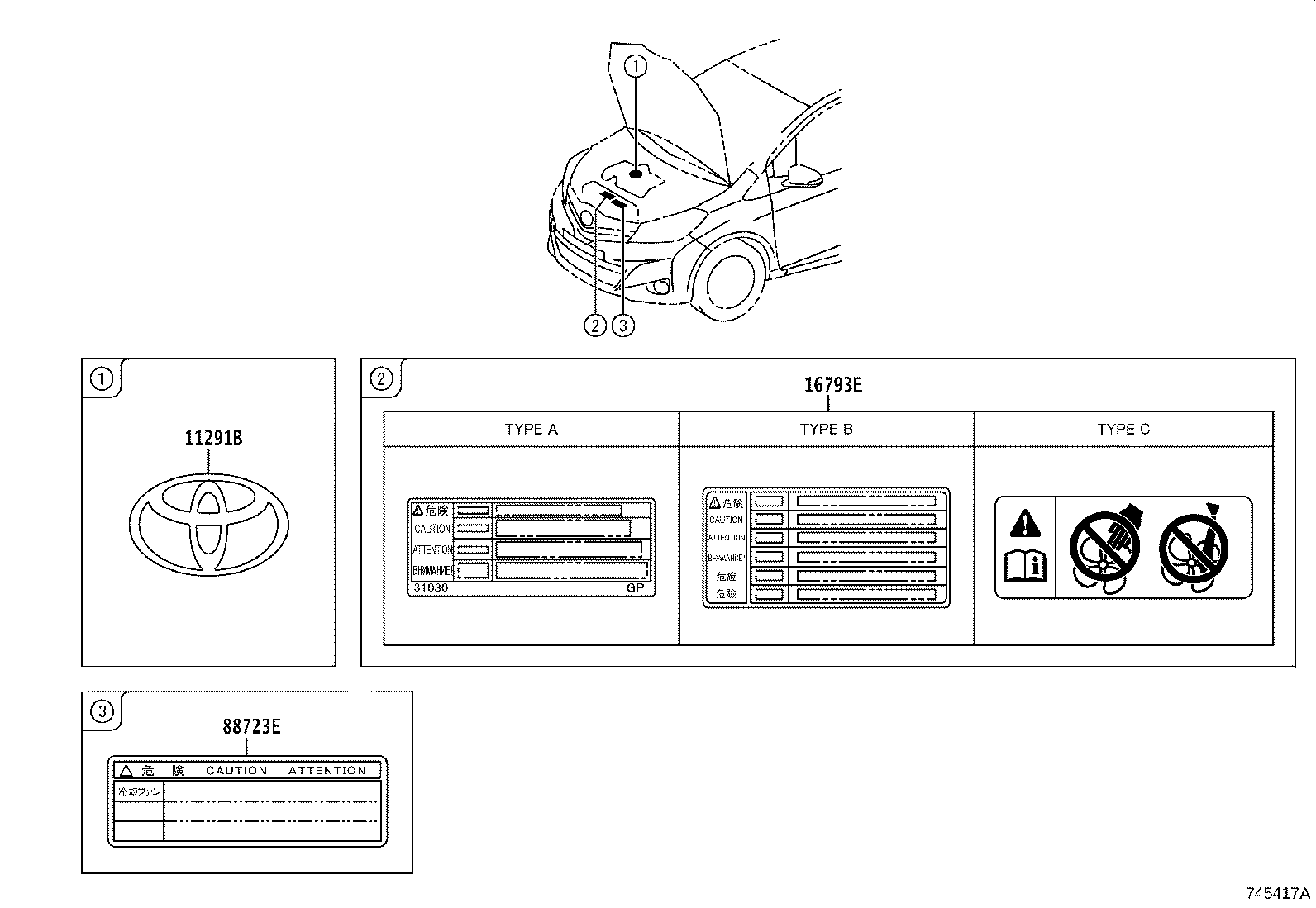

ILLUST NO. 1 OF 4(1012- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ(1/2)

diagram 11291B 16793E 88723E
Part # Description Qty Price
88723E - LABEL, COOLER SERVICE CAUTION
88723-20081

NCP131
