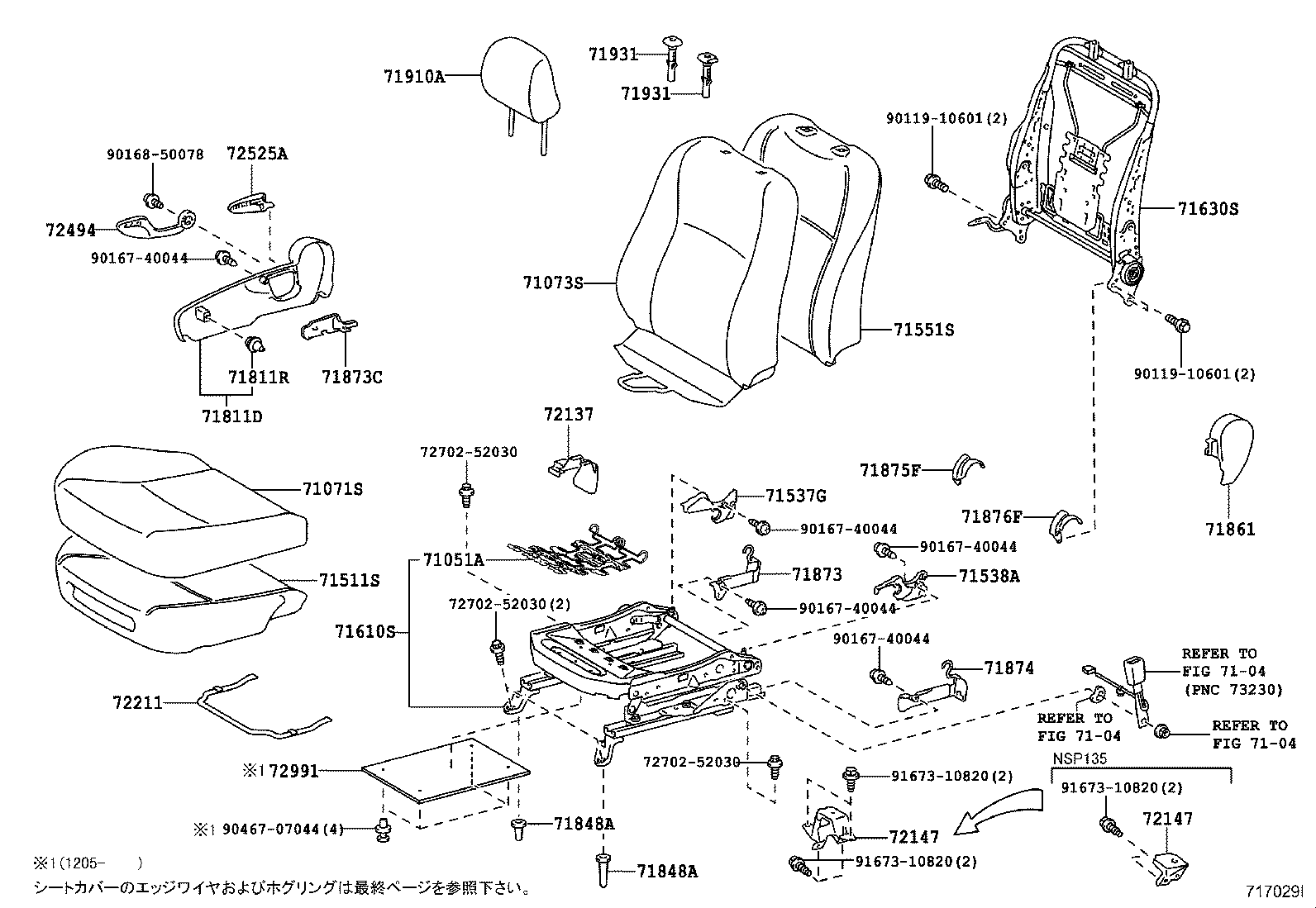

NCP131-AHXVK (2010)
Toyota Vitz
(1012-1404)

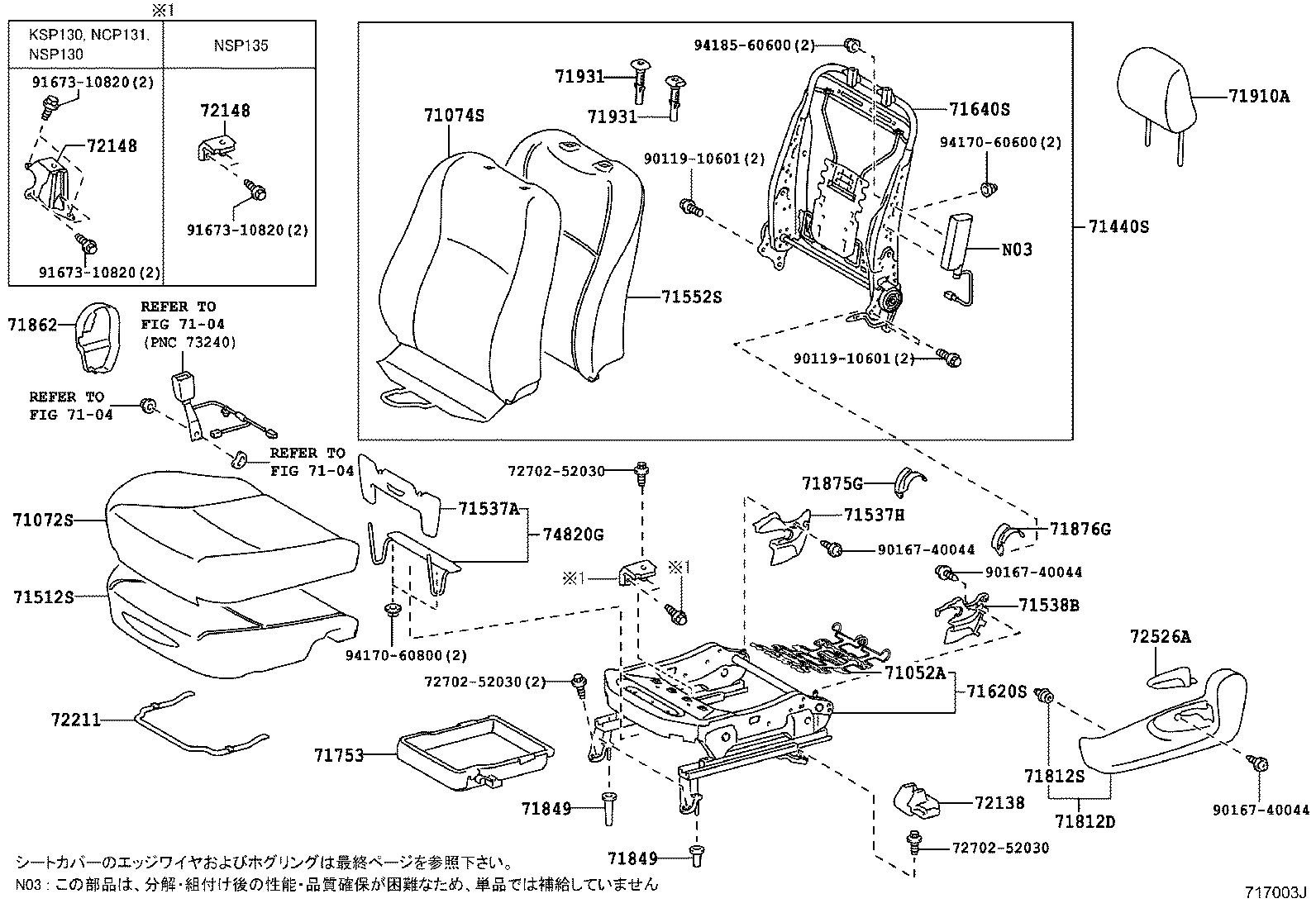

ｳﾝﾃﾝｾｷ-ｽﾀﾝﾀﾞｰﾄﾞ,ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-52F70B1 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71071-52F90C0 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71071-52J50B1 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71071-52R20C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71071-52F71B1 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71071-52R30C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71071-52J51B1 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71071-52L11C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71071-52L10C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71071-52F91C0 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71071-52R21C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71071-52R31C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-52L20B1 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71073-52L30B2 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71073-52L70C1 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71073-52T80C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71073-52L60C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71073-52T70C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-52E80B3 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71430-52F20C4 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71430-52E81B4 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71430-52F21B0 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71430-52R11B0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-52570 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71511-52630 |
NCP131..RS |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-52100C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-52050C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-52790 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71551-52800 |
NCP131..RS |
1 | ||
| 71551-52830 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71551-52810 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71551-52810 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-52050 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71610-52051 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71610-52260 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52380 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71630-52490 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU |
1 | ||
| 71630-52380 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52280C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71811-52330C0 |
NCP131,NSP13#..(RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71811-52330C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 67771-33040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71769-47020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52200C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71873C - SHIELD, REAR SEAT CUSHION, LOWER RH | ||||
| 71873-52230C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-60260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71875-60260C0 |
NCP131..RS G’s,BLACK,TRIM1# |
1 | ||
| 71875-60260C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-60270C0 |
NCP131..RS G’s,BLACK,TRIM1# |
1 | ||
| 71876-60270C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71876-60270C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52D00B2 |
NCP131,NSP130..U..CBU GRAY,TRIM1# |
2 | ||
| 71910-52D20B2 |
NCP131..CVT..RS DARK GRAY,TRIM1# |
2 | ||
| 71910-52D00B3 |
NCP131,NSP130..U..CBU GRAY,TRIM1# |
2 | ||
| 71910-52D20B5 |
NCP131..RS DARK GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71931-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71931-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-52090C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
KSP130,NCP131,NSP13#..CBU 右側 |
1 | ||
| 72211-52130 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52140 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU 左側 |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU 左側 |
1 | ||
| 72211-52190 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52130 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-52040C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 72991-52080 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90467-07044 | ||||
| 91673-10820 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

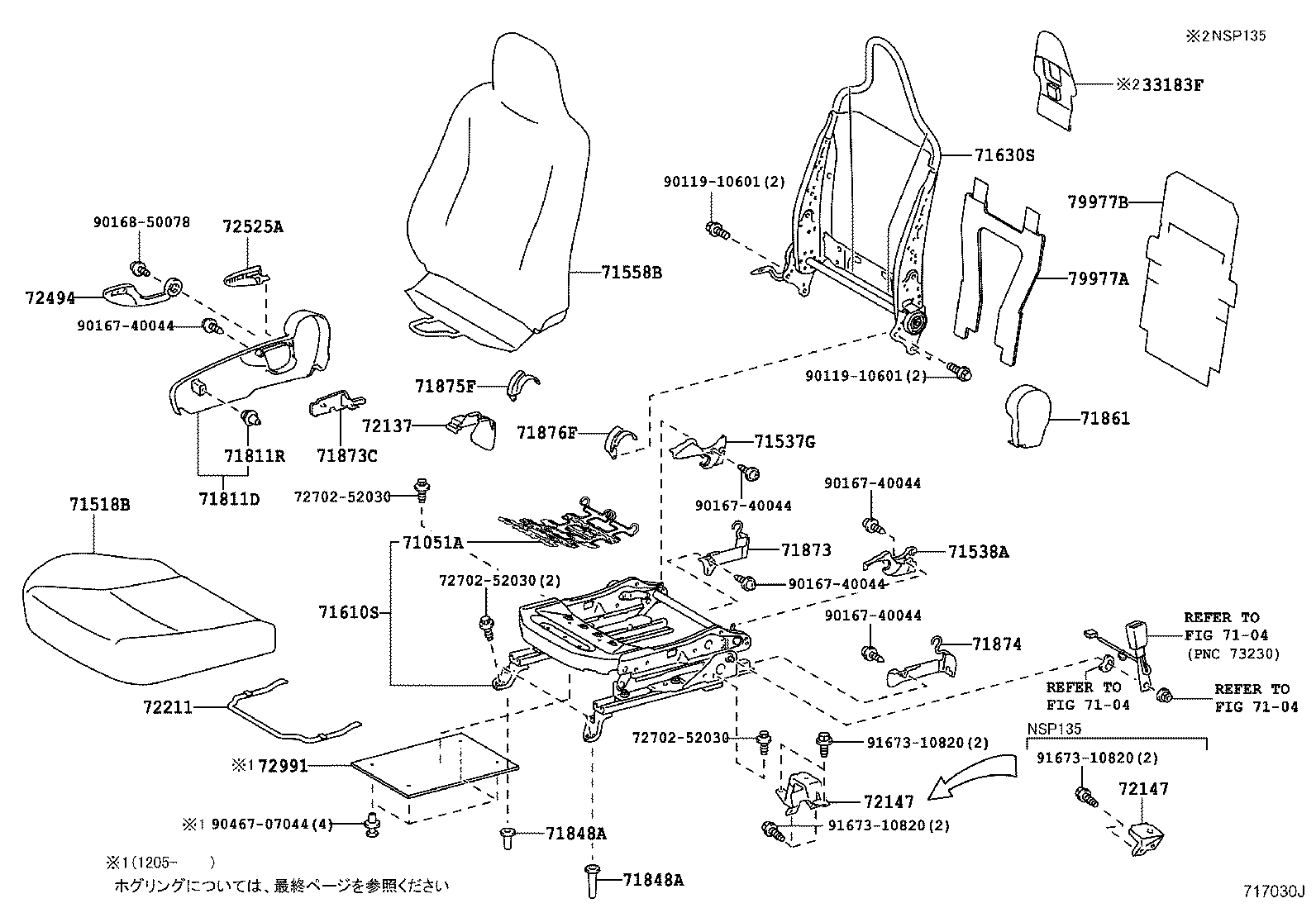

(1012-1404)F

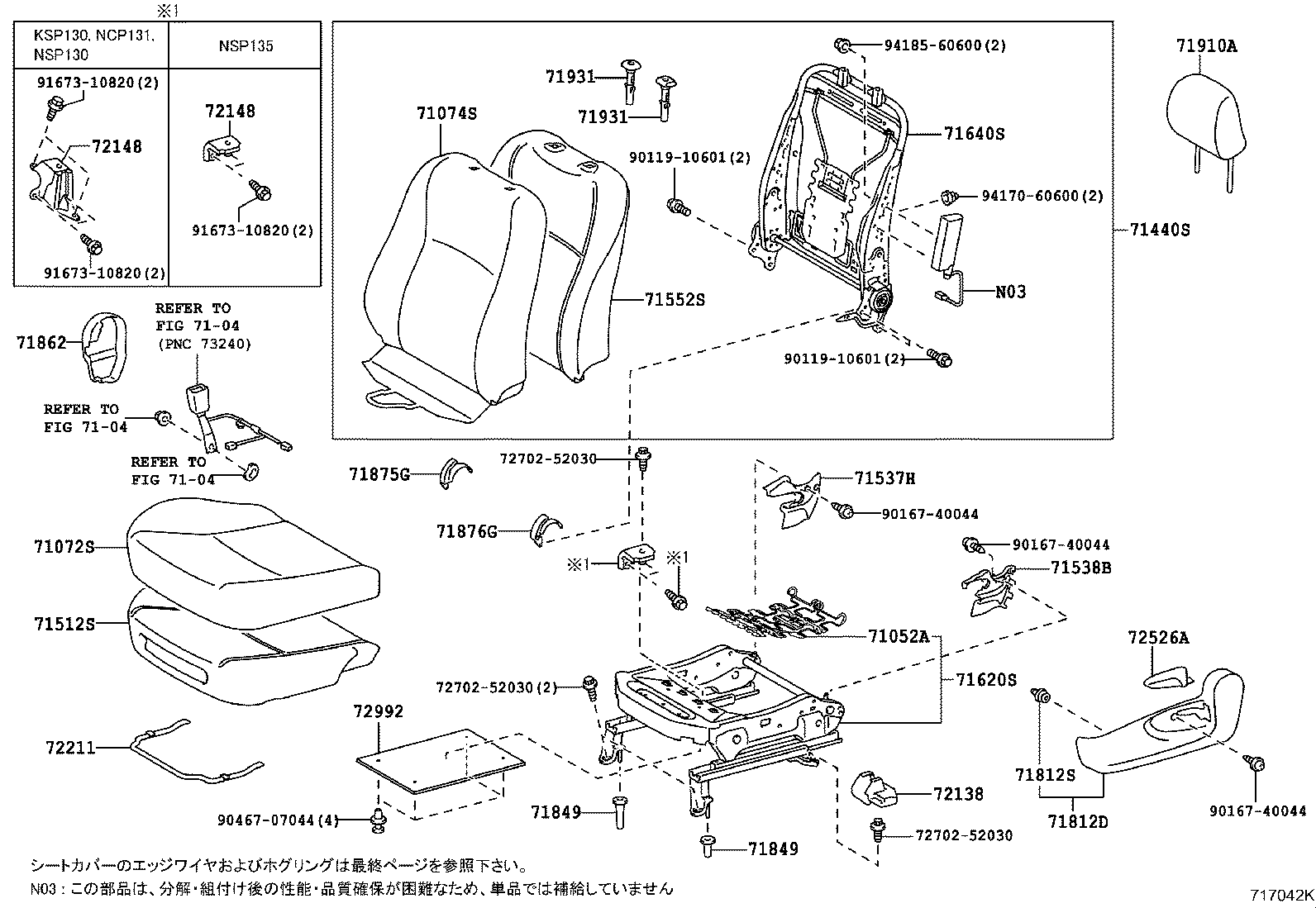

ｳﾝﾃﾝｾｷ-ﾊｲﾊﾞｯｸ,ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-52E80B3 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71430-52F20C4 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71430-52E81B4 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71430-52F21B0 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71430-52R11B0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-52100C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-52050C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-52050 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71610-52051 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71610-52260 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52380 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71630-52490 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU |
1 | ||
| 71630-52380 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52280C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71811-52330C0 |
NCP131,NSP13#..(RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71811-52330C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 67771-33040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71769-47020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52200C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71873C - SHIELD, REAR SEAT CUSHION, LOWER RH | ||||
| 71873-52230C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-60260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71875-60260C0 |
NCP131..RS G’s,BLACK,TRIM1# |
1 | ||
| 71875-60260C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-60270C0 |
NCP131..RS G’s,BLACK,TRIM1# |
1 | ||
| 71876-60270C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71876-60270C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-52090C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
KSP130,NCP131,NSP13#..CBU 右側 |
1 | ||
| 72211-52130 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52140 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU 左側 |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU 左側 |
1 | ||
| 72211-52190 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52130 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-52040C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 72991-52080 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90467-07044 | ||||
| 91673-10820 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

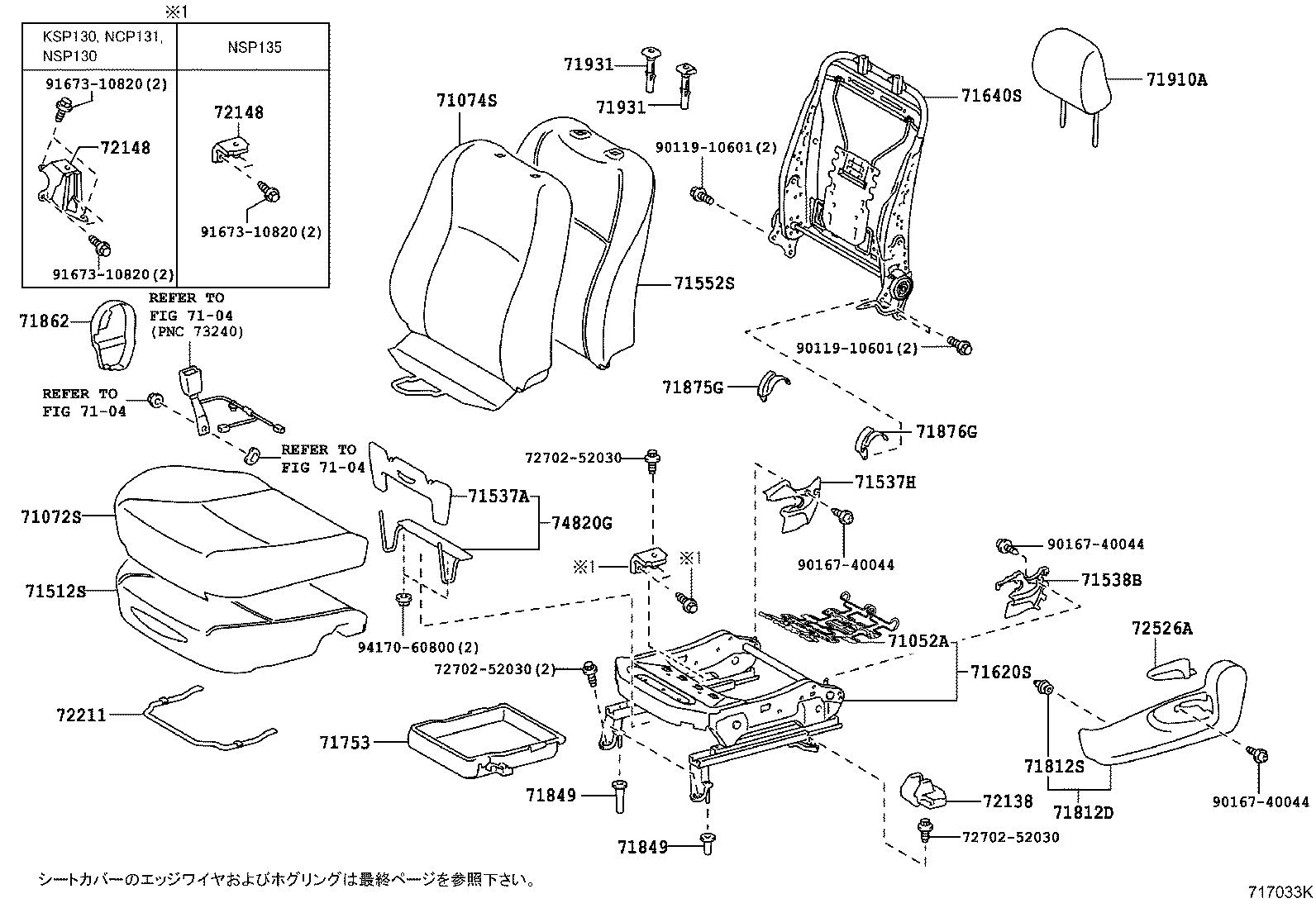

(1012-1404)F,JEWL,U
ｼﾞｮｼｭｾｷ,ｱﾘ(ｻｲﾄﾞｴｱﾊﾞｯｸﾞ&ｶｲﾓﾉｱｼｽﾄｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-52G10B2 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71072-52G30C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71072-52K30C0 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71072-52Q70C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71072-52G11B2 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71072-52K10B1 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71072-52K31C0 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71072-52G31C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71072-52Q80C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71072-52K11B1 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71072-52Q81C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71072-52Q71C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-52D90B2 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71074-52E20C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71074-52N40C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71074-52N30C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71074-52E30C1 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71074-52D80B1 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-52F10C4 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71440-52E71B5 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71440-52E70B4 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71440-52F11B0 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71440-52S11B0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-52400 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71512-52480 |
NCP131..RS |
1 | ||
| 71502-52150 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71502-52160 |
NCP131..RS |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-52110C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-52060C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-52650 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71552-52680 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71552-52670 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71551-52800 |
NCP131..RS |
1 | ||
| 71552-52650 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-52110 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71620-52050 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71620-52040 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52051 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71620-52270 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52041 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52050 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-52160 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71640-52270 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU |
1 | ||
| 71640-52160 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-52060C0 |
NCP131,NSP13#..U..CBU BLACK,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52330C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71812-52330C0 |
NCP131,NSP13#..(RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71812-52260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 67771-33040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71769-47020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52200C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60270C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52D20B5 |
NCP131..RS DARK GRAY,TRIM1# |
2 | ||
| 71910-52D00B2 |
NCP131,NSP130..U..CBU GRAY,TRIM1# |
2 | ||
| 71910-52D20B2 |
NCP131..CVT..RS DARK GRAY,TRIM1# |
2 | ||
| 71910-52D00B3 |
NCP131,NSP130..U..CBU GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71931-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71931-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-52070C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
KSP130,NCP131,NSP13#..CBU 右側 |
1 | ||
| 72211-52130 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52140 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU 左側 |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU 左側 |
1 | ||
| 72211-52190 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52130 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 74820G - PROTECTOR ASSY, FRONT LH | ||||
| 74820-52020C0 |
NCP131,NSP13#..U..CBU BLACK,TRIM1# |
1 | ||
| 74820-52010C0 |
NCP131,NSP13#..U..CBU BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 91673-10820 | ||||
| 94170-60600 | ||||
| 94170-60800 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

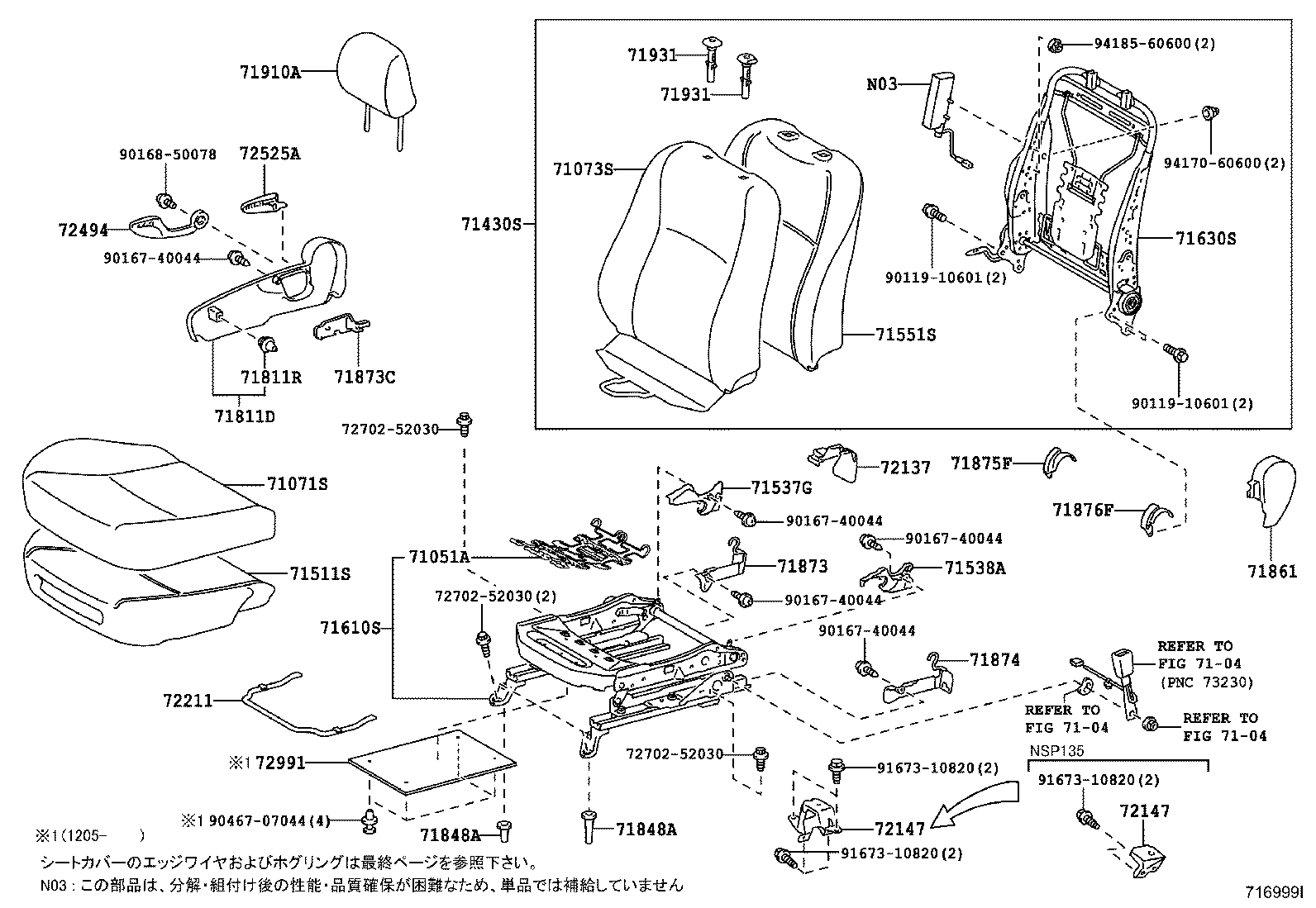

(1012-1404)
ｳﾝﾃﾝｾｷ-ｽﾀﾝﾀﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-52F70B1 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71071-52F90C0 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71071-52J50B1 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71071-52R20C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71071-52F71B1 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71071-52R30C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71071-52J51B1 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71071-52L11C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71071-52L10C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71071-52F91C0 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71071-52R21C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71071-52R31C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-52L20B1 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71073-52L30B2 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71073-52L70C1 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71073-52T80C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71073-52L60C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71073-52T70C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-52570 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71511-52630 |
NCP131..RS |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-52100C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-52050C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-52790 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71551-52800 |
NCP131..RS |
1 | ||
| 71551-52830 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71551-52810 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71551-52810 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-52050 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71610-52051 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71610-52260 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52380 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71630-52490 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU |
1 | ||
| 71630-52380 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52280C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71811-52330C0 |
NCP131,NSP13#..(RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71811-52330C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 67771-33040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71769-47020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52200C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71873C - SHIELD, REAR SEAT CUSHION, LOWER RH | ||||
| 71873-52230C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-60260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71875-60260C0 |
NCP131..RS G’s,BLACK,TRIM1# |
1 | ||
| 71875-60260C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-60270C0 |
NCP131..RS G’s,BLACK,TRIM1# |
1 | ||
| 71876-60270C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71876-60270C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52D00B2 |
NCP131,NSP130..U..CBU GRAY,TRIM1# |
2 | ||
| 71910-52D20B2 |
NCP131..CVT..RS DARK GRAY,TRIM1# |
2 | ||
| 71910-52D00B3 |
NCP131,NSP130..U..CBU GRAY,TRIM1# |
2 | ||
| 71910-52D20B5 |
NCP131..RS DARK GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71931-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71931-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-52090C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
KSP130,NCP131,NSP13#..CBU 右側 |
1 | ||
| 72211-52130 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52140 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU 左側 |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU 左側 |
1 | ||
| 72211-52190 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52130 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-52040C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 72991-52080 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90467-07044 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1012-1404)F
ｳﾝﾃﾝｾｷ-ﾊｲﾊﾞｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-52100C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-52050C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-52050 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71610-52051 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71610-52260 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52380 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71630-52490 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU |
1 | ||
| 71630-52380 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52280C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71811-52330C0 |
NCP131,NSP13#..(RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71811-52330C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 67771-33040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71769-47020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52200C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71873C - SHIELD, REAR SEAT CUSHION, LOWER RH | ||||
| 71873-52230C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-60260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71875-60260C0 |
NCP131..RS G’s,BLACK,TRIM1# |
1 | ||
| 71875-60260C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-60270C0 |
NCP131..RS G’s,BLACK,TRIM1# |
1 | ||
| 71876-60270C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71876-60270C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-52090C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
KSP130,NCP131,NSP13#..CBU 右側 |
1 | ||
| 72211-52130 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52140 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU 左側 |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU 左側 |
1 | ||
| 72211-52190 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52130 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-52040C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 72991-52080 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90467-07044 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||

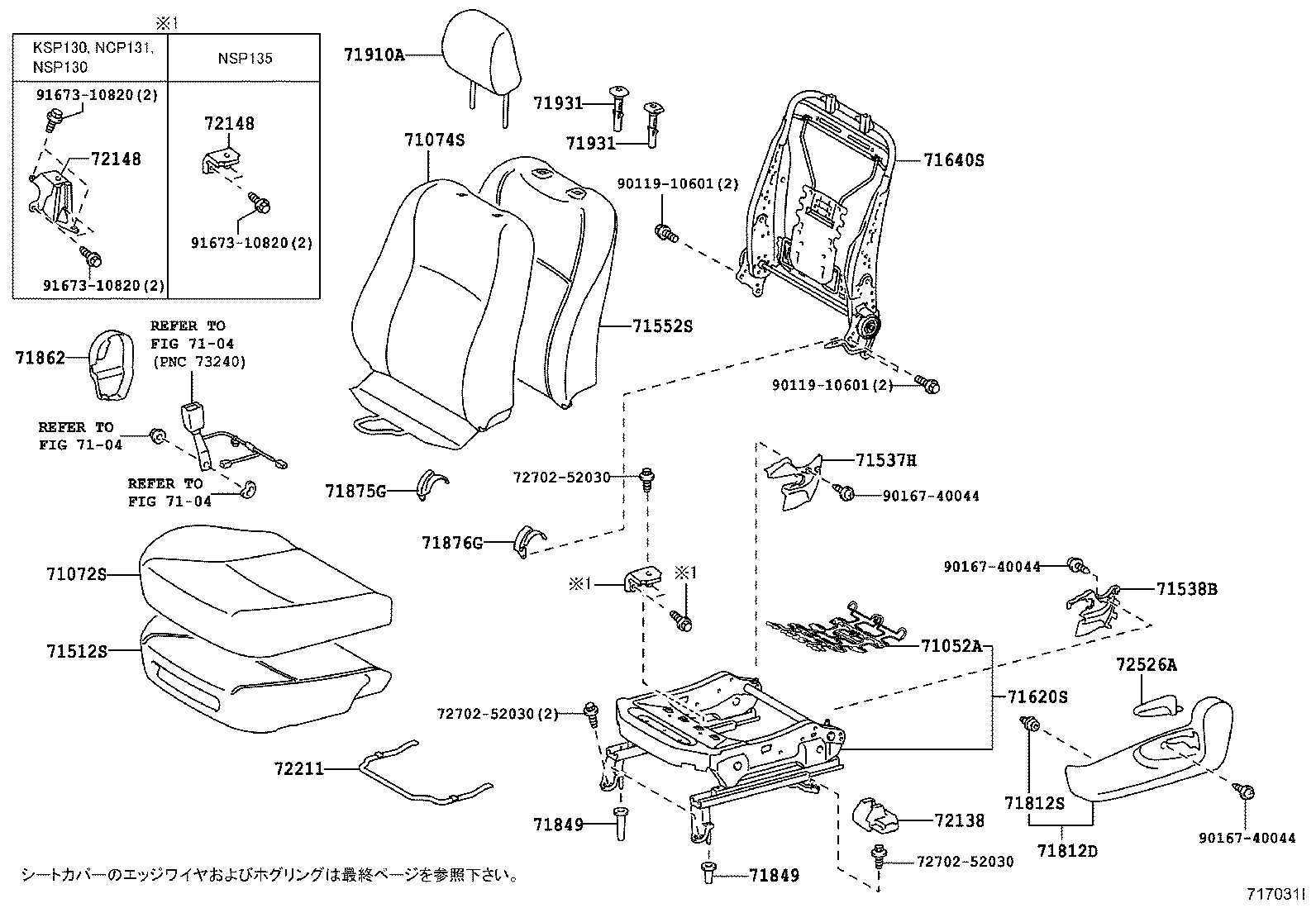

(1012-1404)
ｼﾞｮｼｭｾｷ-ｽﾀﾝﾀﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-52G10B2 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71072-52G30C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71072-52K30C0 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71072-52Q70C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71072-52G11B2 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71072-52K10B1 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71072-52K31C0 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71072-52G31C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71072-52Q80C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71072-52K11B1 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71072-52Q81C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71072-52Q71C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-52D90B2 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71074-52E20C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71074-52N40C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71074-52N30C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71074-52E30C1 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71074-52D80B1 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-52400 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71512-52480 |
NCP131..RS |
1 | ||
| 71502-52150 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71502-52160 |
NCP131..RS |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-52110C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-52060C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-52650 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71552-52680 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71552-52670 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71551-52800 |
NCP131..RS |
1 | ||
| 71552-52650 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-52110 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71620-52050 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71620-52040 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52051 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71620-52270 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52041 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52050 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-52160 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71640-52270 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU |
1 | ||
| 71640-52160 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52330C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71812-52330C0 |
NCP131,NSP13#..(RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71812-52260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 67771-33040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71769-47020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52200C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60270C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52D20B5 |
NCP131..RS DARK GRAY,TRIM1# |
2 | ||
| 71910-52D00B2 |
NCP131,NSP130..U..CBU GRAY,TRIM1# |
2 | ||
| 71910-52D20B2 |
NCP131..CVT..RS DARK GRAY,TRIM1# |
2 | ||
| 71910-52D00B3 |
NCP131,NSP130..U..CBU GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71931-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71931-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-52070C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
KSP130,NCP131,NSP13#..CBU 右側 |
1 | ||
| 72211-52130 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52140 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU 左側 |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU 左側 |
1 | ||
| 72211-52190 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52130 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||

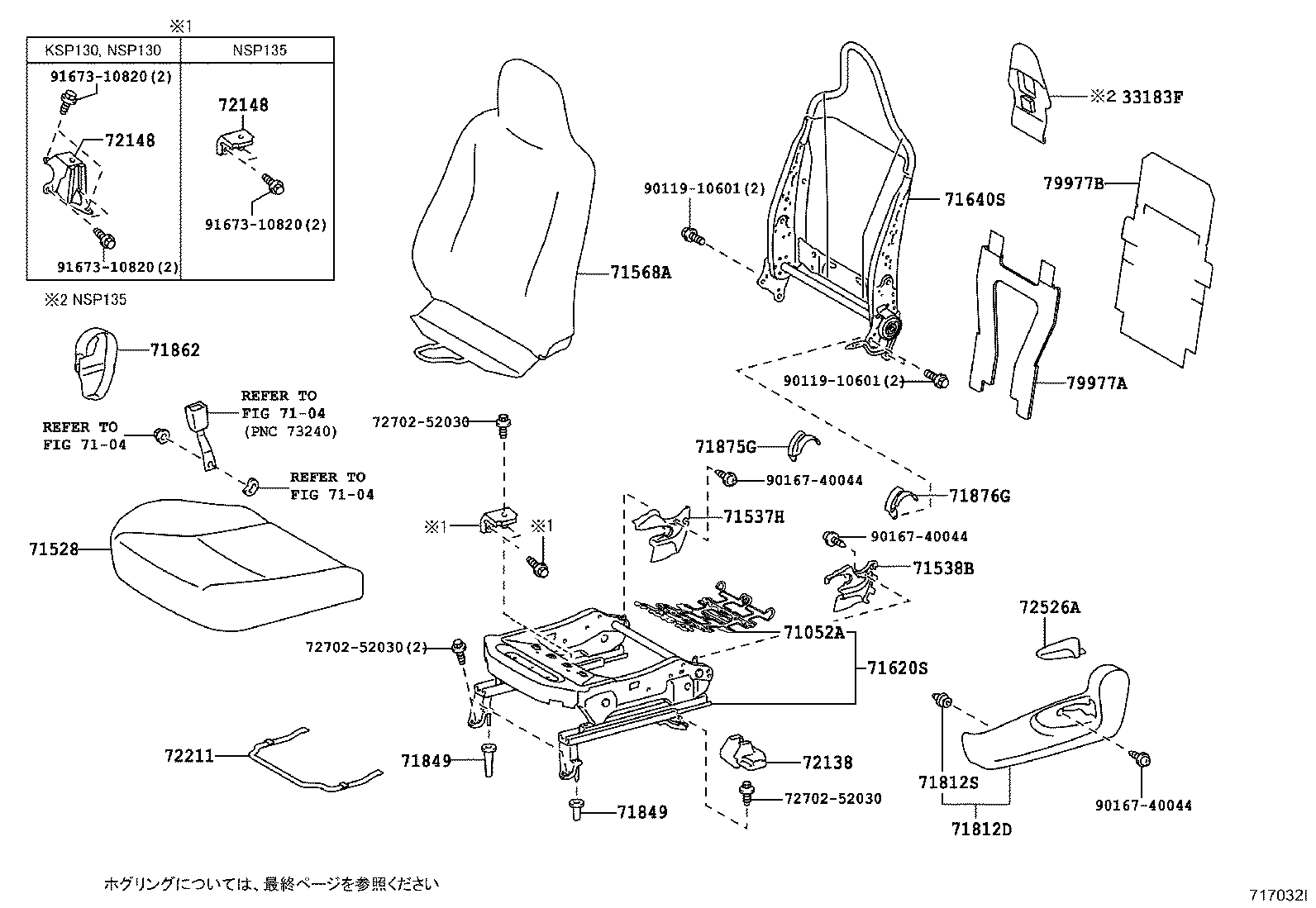

(1012-1404)F
ｼﾞｮｼｭｾｷ-ﾊｲﾊﾞｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-52110C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-52060C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-52110 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71620-52050 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71620-52040 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52051 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71620-52270 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52041 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52050 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-52160 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71640-52270 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU |
1 | ||
| 71640-52160 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52330C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71812-52330C0 |
NCP131,NSP13#..(RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71812-52260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 67771-33040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71769-47020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52200C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60270C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-52070C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
KSP130,NCP131,NSP13#..CBU 右側 |
1 | ||
| 72211-52130 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52140 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU 左側 |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU 左側 |
1 | ||
| 72211-52190 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52130 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 91673-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1012-1404)F,JEWL,U
ｼﾞｮｼｭｾｷ,ｱﾘ(ｶｲﾓﾉｱｼｽﾄｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-52G10B2 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71072-52G30C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71072-52K30C0 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71072-52Q70C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71072-52G11B2 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71072-52K10B1 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71072-52K31C0 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71072-52G31C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71072-52Q80C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71072-52K11B1 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71072-52Q81C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71072-52Q71C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-52D90B2 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71074-52E20C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71074-52N40C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71074-52N30C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71074-52E30C1 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71074-52D80B1 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-52400 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71512-52480 |
NCP131..RS |
1 | ||
| 71502-52150 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71502-52160 |
NCP131..RS |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-52110C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-52060C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-52650 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71552-52680 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71552-52670 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71551-52800 |
NCP131..RS |
1 | ||
| 71552-52650 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-52110 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71620-52050 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71620-52040 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52051 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71620-52270 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52041 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52050 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-52160 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71640-52270 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU |
1 | ||
| 71640-52160 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-52060C0 |
NCP131,NSP13#..U..CBU BLACK,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52330C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71812-52330C0 |
NCP131,NSP13#..(RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71812-52260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 67771-33040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71769-47020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52200C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60270C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52D20B5 |
NCP131..RS DARK GRAY,TRIM1# |
2 | ||
| 71910-52D00B2 |
NCP131,NSP130..U..CBU GRAY,TRIM1# |
2 | ||
| 71910-52D20B2 |
NCP131..CVT..RS DARK GRAY,TRIM1# |
2 | ||
| 71910-52D00B3 |
NCP131,NSP130..U..CBU GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71931-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71931-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-52070C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
KSP130,NCP131,NSP13#..CBU 右側 |
1 | ||
| 72211-52130 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52140 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU 左側 |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU 左側 |
1 | ||
| 72211-52190 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52130 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 74820G - PROTECTOR ASSY, FRONT LH | ||||
| 74820-52020C0 |
NCP131,NSP13#..U..CBU BLACK,TRIM1# |
1 | ||
| 74820-52010C0 |
NCP131,NSP13#..U..CBU BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 91673-10820 | ||||
| 94170-60800 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1012-1404)
ｼﾞｮｼｭｾｷ-ｽﾀﾝﾀﾞｰﾄﾞ,ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-52G10B2 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71072-52G30C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71072-52K30C0 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71072-52Q70C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71072-52G11B2 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71072-52K10B1 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71072-52K31C0 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71072-52G31C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71072-52Q80C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71072-52K11B1 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71072-52Q81C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71072-52Q71C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-52D90B2 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71074-52E20C0 |
NCP131..RS BLACK,TRIM1# |
1 | ||
| 71074-52N40C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71074-52N30C0 |
NCP131..RS G’s,BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71074-52E30C1 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71074-52D80B1 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-52F10C4 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71440-52E71B5 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71440-52E70B4 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71440-52F11B0 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71440-52S11B0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-52400 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71512-52480 |
NCP131..RS |
1 | ||
| 71502-52150 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71502-52160 |
NCP131..RS |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-52110C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-52060C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-52650 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71552-52680 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71552-52670 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71551-52800 |
NCP131..RS |
1 | ||
| 71552-52650 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-52110 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71620-52050 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71620-52040 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52051 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71620-52270 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52041 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52050 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-52160 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71640-52270 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU |
1 | ||
| 71640-52160 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52330C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71812-52330C0 |
NCP131,NSP13#..(RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71812-52260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 67771-33040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71769-47020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52200C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60270C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52D20B5 |
NCP131..RS DARK GRAY,TRIM1# |
2 | ||
| 71910-52D00B2 |
NCP131,NSP130..U..CBU GRAY,TRIM1# |
2 | ||
| 71910-52D20B2 |
NCP131..CVT..RS DARK GRAY,TRIM1# |
2 | ||
| 71910-52D00B3 |
NCP131,NSP130..U..CBU GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71931-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71931-47020C0 |
NCP131,NSP13#..(RS,U)..CBU ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-52070C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
KSP130,NCP131,NSP13#..CBU 右側 |
1 | ||
| 72211-52130 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52140 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU 左側 |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU 左側 |
1 | ||
| 72211-52190 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52130 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72992 - COVER, FRONT SEAT CUSHION, LH | ||||
| 72991-52090 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 72991-52090 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 72991-52080 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 72991-52080 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 72991-52080 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90467-07044 | ||||
| 91673-10820 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1012-1404)F
ｼﾞｮｼｭｾｷ-ﾊｲﾊﾞｯｸ,ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-52F10C4 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71440-52E71B5 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71440-52E70B4 |
NCP131,NSP13#..U..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),GRAY,TRIM1# |
1 | ||
| 71440-52F11B0 |
NCP131..RS SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71440-52S11B0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK/DARK GRAY,TRIM1# |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-52110C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-52060C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-52110 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71620-52050 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71620-52040 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52051 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71620-52270 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52041 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 71620-52050 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-52160 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71640-52270 |
KSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU |
1 | ||
| 71640-52160 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52330C0 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71812-52330C0 |
NCP131,NSP13#..(RS,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM1# |
1 | ||
| 71812-52260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 67771-33040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71769-47020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52050 |
KSP130,NCP131,NSP13#..CBU 内側 |
1 | ||
| 71848-52040 |
KSP130,NCP131,NSP13#..CBU 外側 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52200C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60260C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60270C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-52070C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52100 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
KSP130,NCP131,NSP13#..CBU 右側 |
1 | ||
| 72211-52130 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52140 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU 左側 |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU 左側 |
1 | ||
| 72211-52190 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52190 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72211-52130 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 72992 - COVER, FRONT SEAT CUSHION, LH | ||||
| 72991-52090 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 72991-52090 |
KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
1 | ||
| 72991-52080 |
KSP130,NCP131,NSP13#..(F,RS)..CBU SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 72991-52080 |
KSP130,NCP131,NSP13#..(F,RS)..CBU |
1 | ||
| 72991-52080 |
NCP131..RS G’s&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90467-07044 | ||||
| 91673-10820 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1012- )
ｼｰﾄｶﾊﾞｰｴｯｼﾞﾜｲﾔ & ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
