NCP131-AHXVK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )KSP130,NCP131,NHP130,NSP130

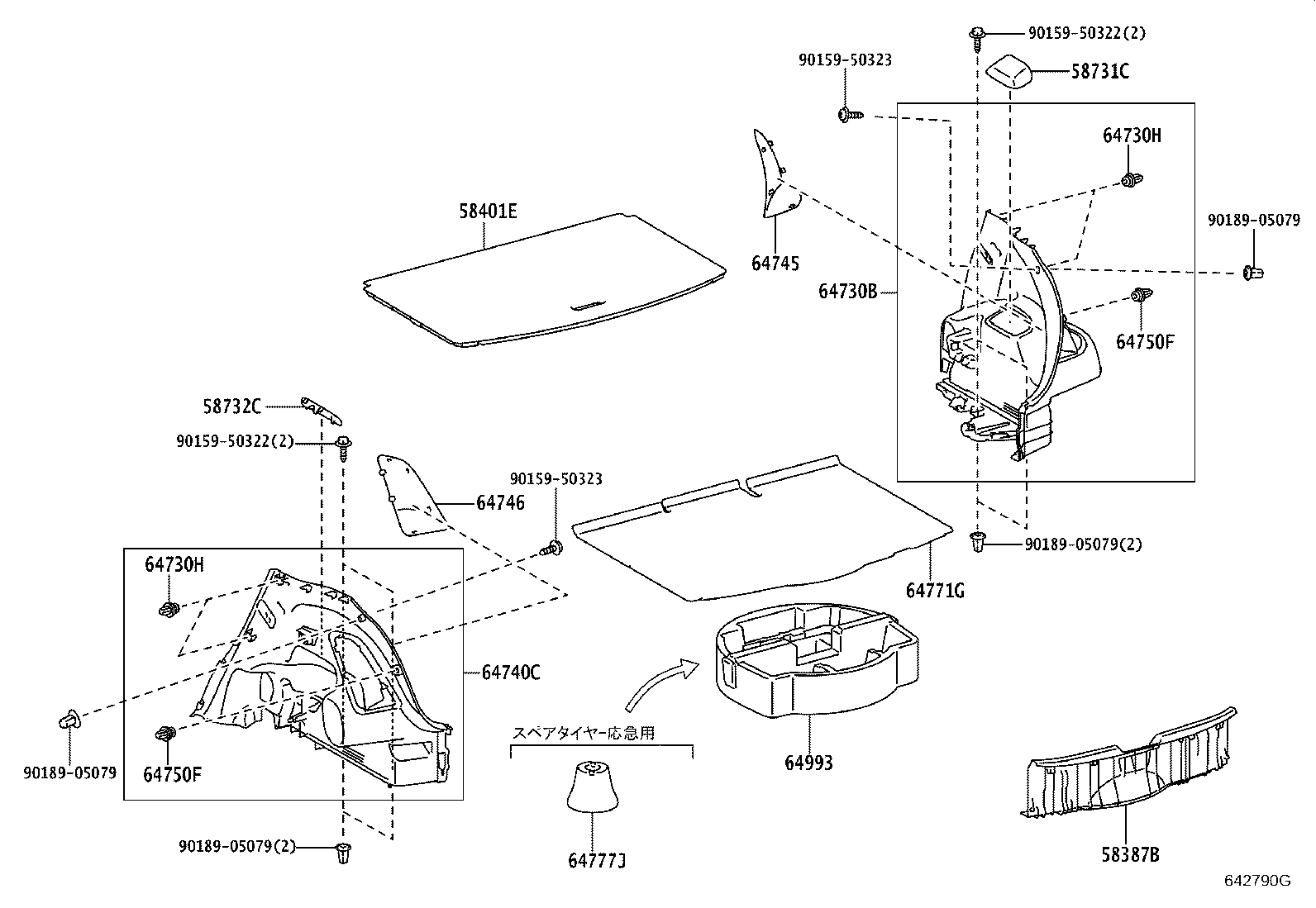

Click highlighted areas on diagram

diagram 58387B 58401E 58731C 58732C 64730B 64730H 64730H 64740C 64745 64746 64750F 64750F 64771G 64777J 64993 9015950322 9015950322 9015950323 9015950323 9018905079 9018905079 9018905079 9018905079
Part # Description Qty Price
58387B - PLATE, REAR FLOOR FINISH
58387-52040C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
58401E - BOARD SUB-ASSY, DECK
58410-52090B0

NCP131,NSP13#..U..CBU

DARK GRAY,TRIM1#

 1
58410-52090B0

NCP131..RS

ﾃﾞｯｷｶ−ﾍﾟｯﾄ & ﾏｯﾄ−有り(ｱｼﾞｬｽﾀﾌﾞﾙﾃﾞｯｷﾎﾞｰﾄﾞ),DARK GRAY,TRIM1#

 1
58731C - CAP, REAR ABSORBER
58731-52050C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
58732C - CAP, REAR ABSORBER
58732-52030C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-52420C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
64730H - CLIP(FOR DECK TRIM SIDE PANEL)
90467-10161

KSP130,NCP131,NSP13#..CBU

 4
90467-09236

KSP130,NCP131,NSP13#..CBU

 4
64730H - CLIP(FOR DECK TRIM SIDE PANEL)
90467-10161

KSP130,NCP131,NSP13#..CBU

 4
90467-09236

KSP130,NCP131,NSP13#..CBU

 4
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-52470C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-52100C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-52150C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-10161

KSP130,NCP131,NSP13#..CBU

 2
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-10161

KSP130,NCP131,NSP13#..CBU

 2
64771G - COVER, SPARE WHEEL
64771-52270B0

NCP131,NSP130..(RS,U)..CBU

DARK GRAY,TRIM1#

 1
64777J - CUSHION, SPARE WHEEL
64777-52040

NCP131..RS

 1
64777-52040

KSP130,NCP131,NSP130..(F,JEWL,U)..CBU

ｽﾍﾟｱﾀｲﾔ−T125/70D15

 1
64993 - BOX, DECK FLOOR, REAR
64993-52120

KSP130,NCP131,NSP130..(F,JEWL,U)..CBU

 1
Common parts
90159-50322
90159-50323
90189-05079
