NCP131-AHXVK (2010)
Toyota Vitz
Production
Dec 2010
-
Apr 2014
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )NCP131,NSP135

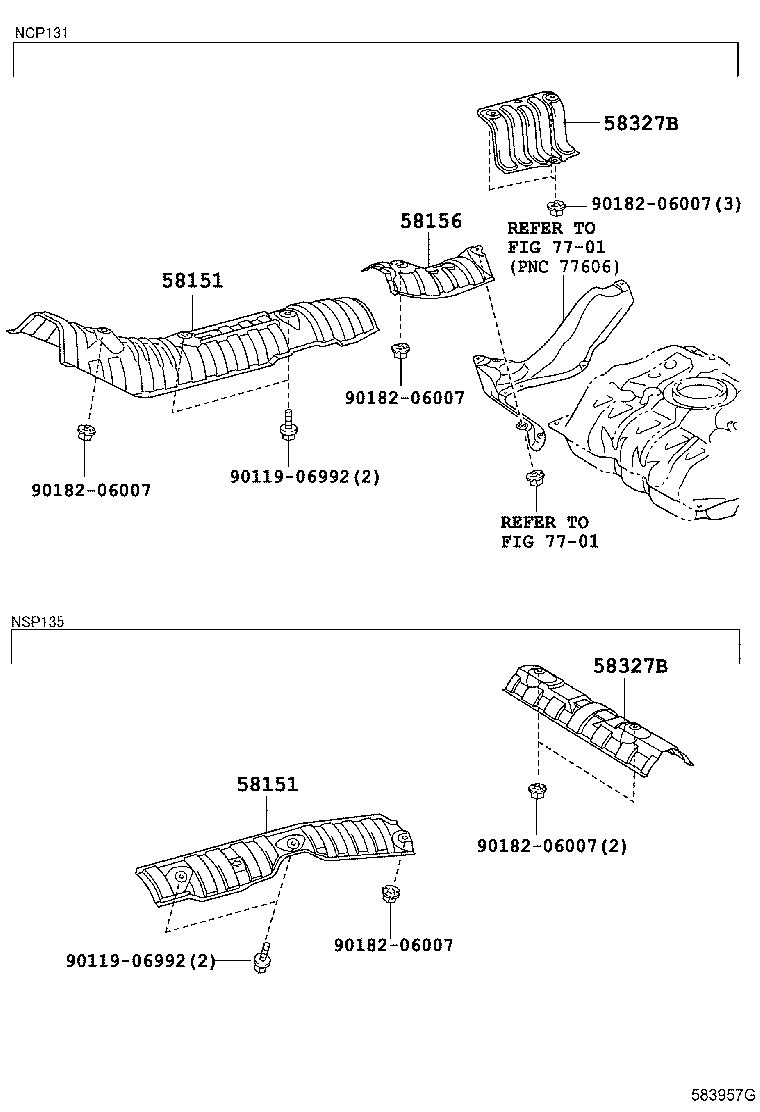

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-52062 |
NCP131 |
1 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-52062 |
NCP131 |
1 | ||
| 58156 - INSULATOR, FRONT FLOOR HEAT, NO.4 | ||||
| 58156-52010 |
KSP130,NCP131,NSP130..CBU |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-52111 |
NCP131 |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-52111 |
NCP131 |
1 | ||
| Common parts | ||||
| 90119-06992 | ||||
| 90182-06007 | ||||
| Linked diagrams | ||||
| 7701 | ||||
