NCP131-AHXVK (2010)
Toyota Vitz

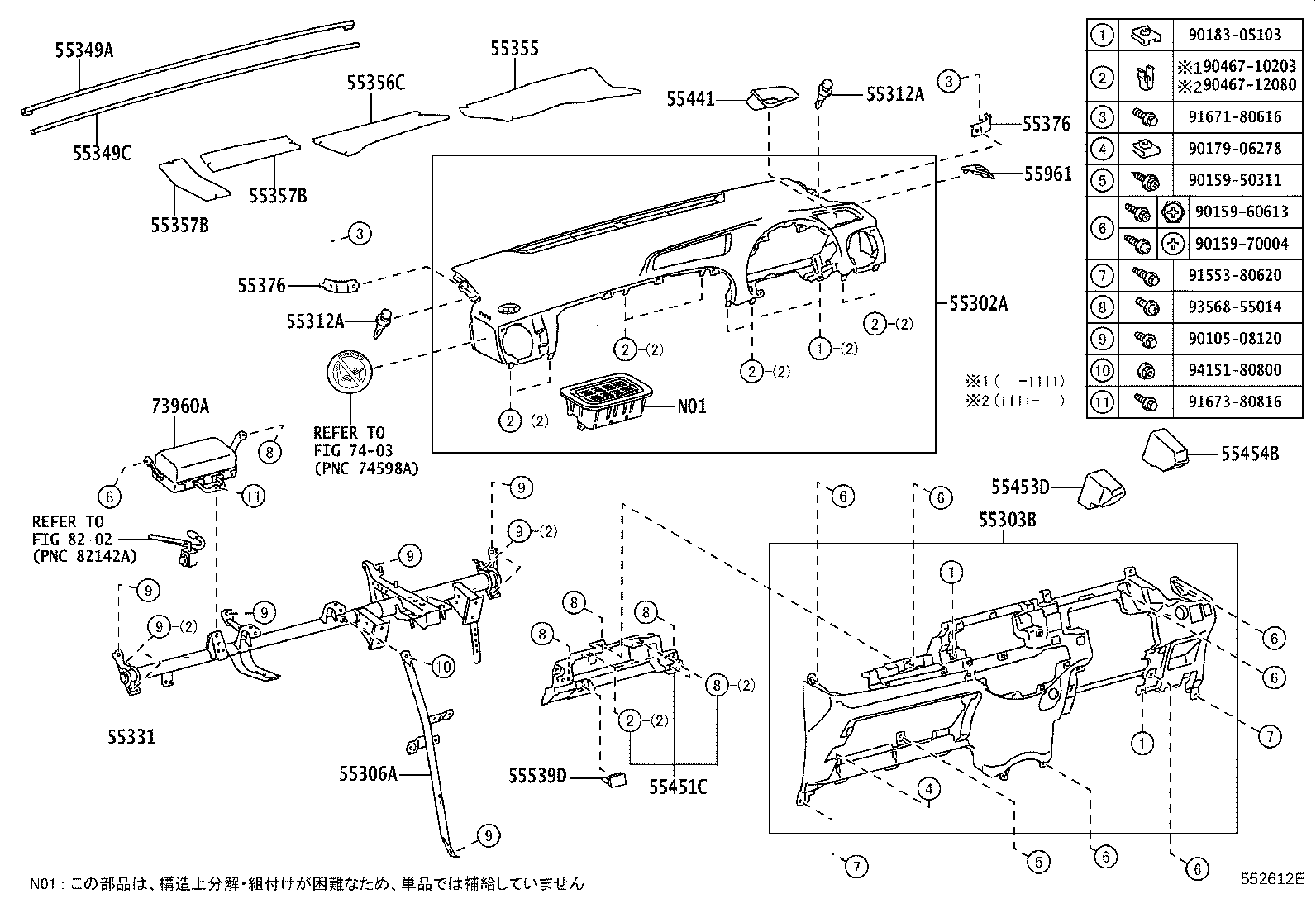

ILLUST NO. 1 OF 2(1012-1404)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-52140C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-52240C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-52180 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-52630 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-52160 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55349-52161 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-52170 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55349-52171 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52180 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55355-52181 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-52191 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55356-52190 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-52161 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 55357-52160 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-52161 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 55357-52160 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-52110 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-52110 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-52170C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-52200C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55453-52120 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55454-52110 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
NCP131,NSP13#..(RS,U)..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ,BLACK,TRIM1# |
1 | ||
| 55539-52070C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 55539-52070C0 |
NCP131,NSP13#..(RS,U)..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ,BLACK,TRIM1# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-52020C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-52150 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 73960-52151 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90159-50311 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91553-80620 | ||||
| 91671-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8202 | ||||

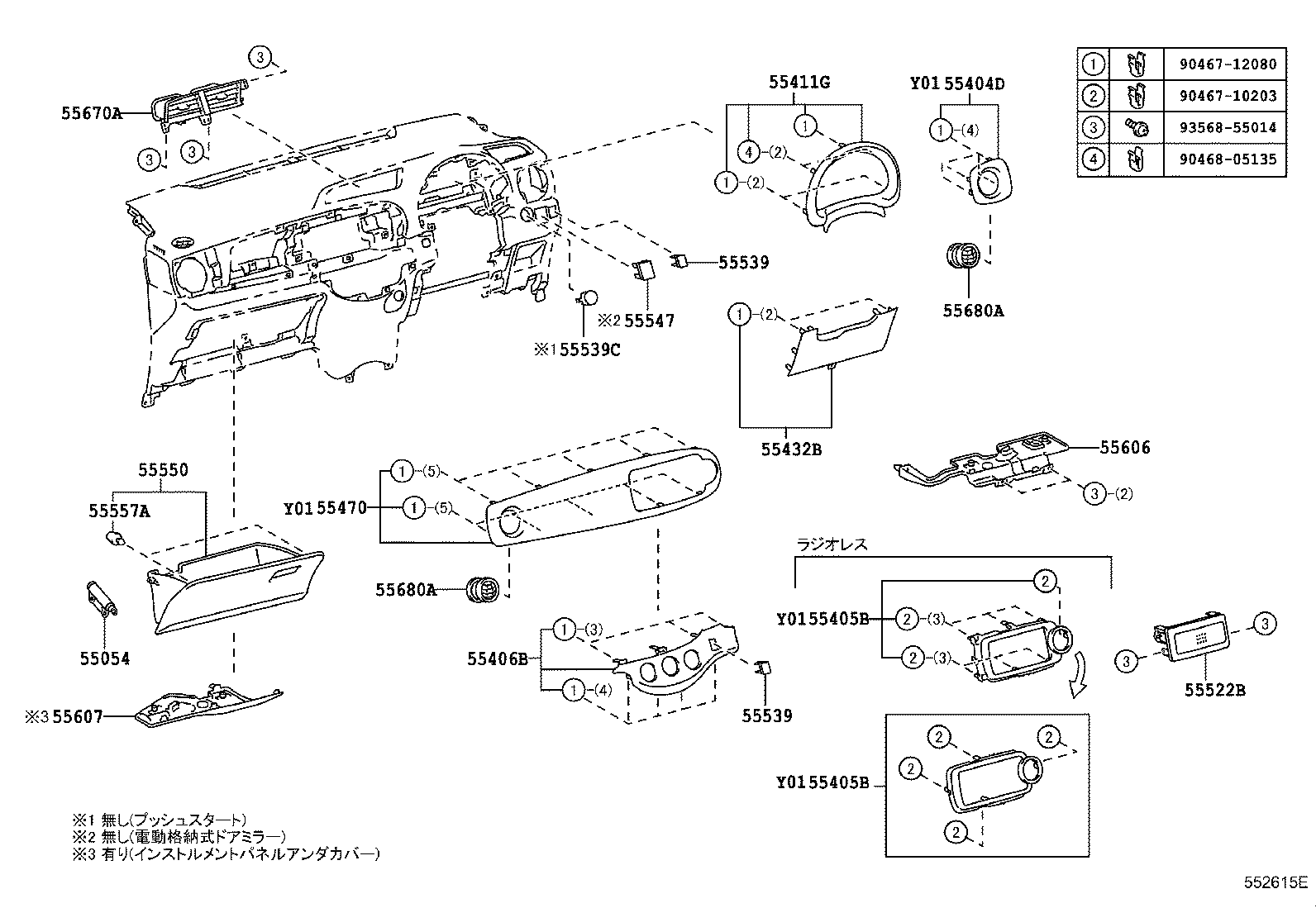

ILLUST NO. 2 OF 2(1012-1404)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-52020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-52100B1 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 55404-52140C0 |
NCP131..RS G’s,BLACK,TRIM1# |
1 | ||
| 55404-52100B0 |
NCP131..CVT..RS MD.GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-52870 |
KSP130,NCP131,NSP13#..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ |
1 | ||
| 55405-52860 |
KSP130,NCP131,NSP13#..JEWL,RS ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ |
1 | ||
| 55405-52860 |
NCP131,NSP13#..U..CBU |
1 | ||
| 86451-52010 |
KSP130,NCP131,NSP13#..(F,JEWL,RS)..CBU |
1 | ||
| 86451-52010 |
NCP131,NSP13#..U..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−CD ﾗｼﾞｵ 4ｽﾋﾟｰｶ |
1 | ||
| 55405-52A60 |
NCP131..RS G’s&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-52870 |
KSP130,NCP131,NSP13#..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ |
1 | ||
| 55405-52860 |
KSP130,NCP131,NSP13#..JEWL,RS ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ |
1 | ||
| 55405-52860 |
NCP131,NSP13#..U..CBU |
1 | ||
| 86451-52010 |
KSP130,NCP131,NSP13#..(F,JEWL,RS)..CBU |
1 | ||
| 86451-52010 |
NCP131,NSP13#..U..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−CD ﾗｼﾞｵ 4ｽﾋﾟｰｶ |
1 | ||
| 55405-52A60 |
NCP131..RS G’s&ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-52340C0 |
NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個)&ﾌﾛﾝﾄｴｱｺﾝ−ﾏﾆｭｱﾙ,BLACK,TRIM1# |
1 | ||
| 55406-52340C0 |
NCP131..CVT..RS G’s&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個)&ﾌﾛﾝﾄｴｱｺﾝ−ﾏﾆｭｱﾙ,BLACK,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-52270C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-52100C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-52120C0 |
NCP131..RS G’s,BLACK,TRIM1# |
1 | ||
| 55470-52080B1 |
NCP131,NSP13#..U..CBU GRAY,TRIM1# |
1 | ||
| 55470-52080B0 |
NCP131..CVT..RS MD.GRAY,TRIM1# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
NCP131,NSP13#..U..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−CD ﾗｼﾞｵ 4ｽﾋﾟｰｶ |
1 | ||
| 55522-52020 |
KSP130,NCP131,NSP13#..JEWL,RS ｵｰﾃﾞｨｵ(日本仕向け用)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ |
1 | ||
| 55522-52020 |
NCP131,NSP13#..U..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−ﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ |
1 | ||
| 55522-52020 |
NCP131,NSP13#..U..CBU |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
NCP131,NSP13#..U..CBU 寒冷地仕様,BLACK,TRIM1# |
1 | ||
| 55539-52070C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 55539-52070C0 |
NCP131..CVT..RS 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯ﾊﾛｹﾞﾝ ｽﾎﾟｰﾂ&ﾌﾛﾝﾄｴｱｺﾝ−ﾏﾆｭｱﾙ,BLACK,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52070C0 |
NCP131,NSP13#..U..CBU 寒冷地仕様,BLACK,TRIM1# |
1 | ||
| 55539-52070C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 55539-52070C0 |
NCP131..CVT..RS 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−2灯ﾊﾛｹﾞﾝ ｽﾎﾟｰﾂ&ﾌﾛﾝﾄｴｱｺﾝ−ﾏﾆｭｱﾙ,BLACK,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52040C0 |
NCP131..CVT..RS Cﾊﾟｯｹｰｼﾞ*(C)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個),BLACK,TRIM1# |
1 | ||
| 55539-52040C0 |
NCP131..CVT..RS G’s&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ﾄﾗﾝｽﾐｯﾀ1個),BLACK,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-52280C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 55550-52281C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-52060 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-52060 |
NCP131,NSP13#..(RS,U)..CBU |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-52091C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 55670-52140C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 55670-52090C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-52020C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
2 | ||
| 55680-52040C0 |
NCP131..RS G’s,BLACK,TRIM1# |
2 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-52020C0 |
NCP131,NSP13#..(RS,U)..CBU BLACK,TRIM1# |
2 | ||
| 55680-52040C0 |
NCP131..RS G’s,BLACK,TRIM1# |
2 | ||
| Common parts | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 93568-55014 | ||||
