NCP131-AHXVK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

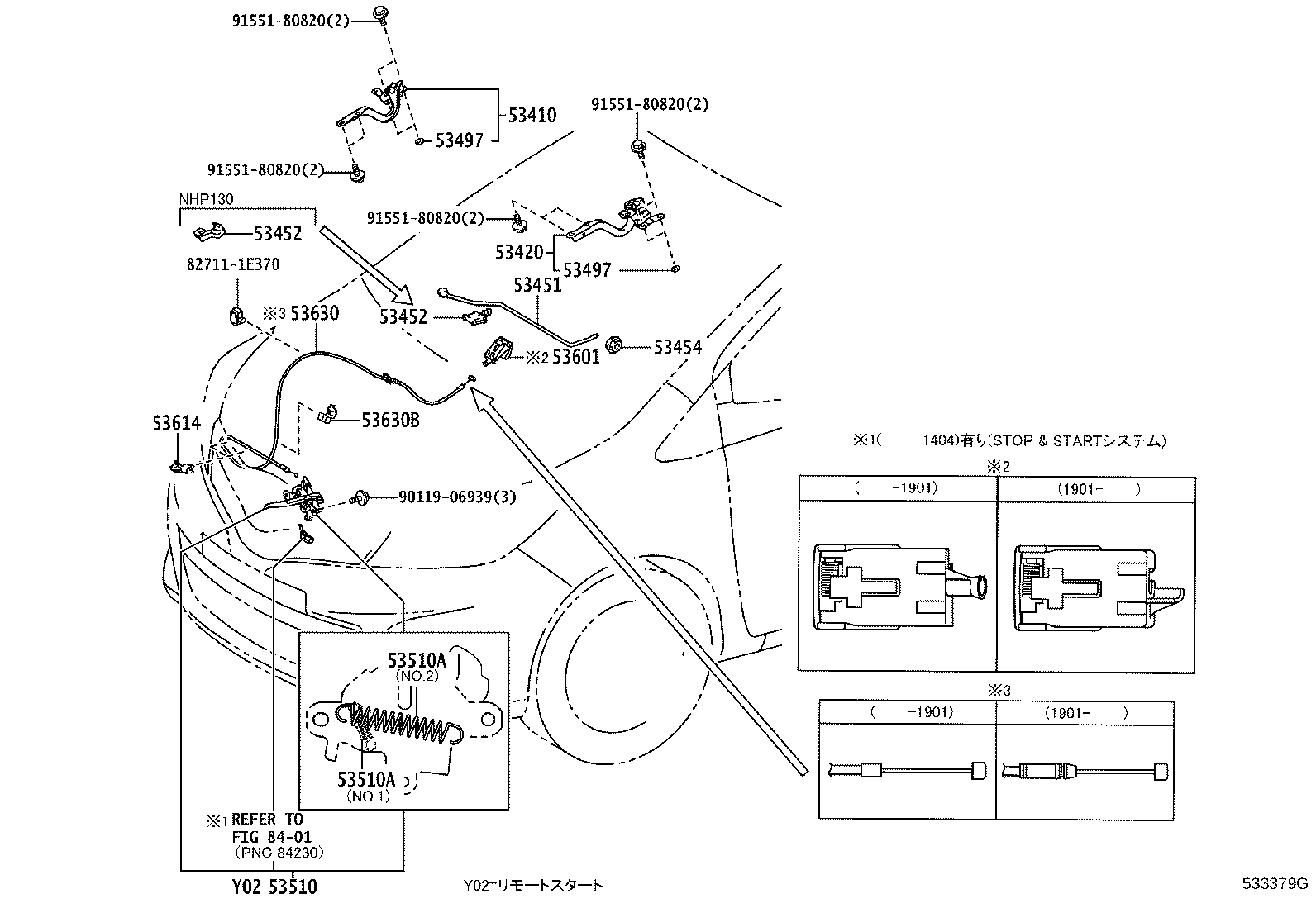

Click highlighted areas on diagram

diagram 53410 53420 53451 53452 53452 53454 53497 53497 53510 53510A 53510A 53601 53614 53630 53630B 827111E370 8401 9011906939 9155180820 9155180820 9155180820 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-52320

KSP130,NCP131,NSP13#..CBU

 1
53420 - HINGE ASSY, HOOD, LH
53420-52330

KSP130,NCP131,NSP13#..CBU

 1
53451 - ROD, HOOD SUPPORT
53440-52190

KSP130,NCP131,NSP13#..CBU

 1
53452 - HOLDER, HOOD STAY
53452-52010

KSP130,NCP131,NSP13#..CBU

 1
53452 - HOLDER, HOOD STAY
53452-52010

KSP130,NCP131,NSP13#..CBU

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-52020

KSP130,NCP131,NSP13#..CBU

 1
53497 - PAD, HOOD HINGE, NO.1
53497-10020

KSP130,NCP131,NSP13#..CBU

厚さ=1.5

 4
53497-42010

KSP130,NCP131,NSP13#..CBU

厚さ=0.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-10020

KSP130,NCP131,NSP13#..CBU

厚さ=1.5

 4
53497-42010

KSP130,NCP131,NSP13#..CBU

厚さ=0.5

 4
53510 - LOCK ASSY, HOOD
53510-52541

KSP130,NCP131,NSP13#..CBU

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-16077

KSP130,NCP131,NSP13#..CBU

線径=1.6,ｺｲﾙ巻数=12,NO.2

 1
90506-10046

KSP130,NCP131,NSP13#..CBU

線径=1.0,ｺｲﾙ巻数=15.5,NO.1

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-16077

KSP130,NCP131,NSP13#..CBU

線径=1.6,ｺｲﾙ巻数=12,NO.2

 1
90506-10046

KSP130,NCP131,NSP13#..CBU

線径=1.0,ｺｲﾙ巻数=15.5,NO.1

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
53614 - CLAMP, HOOD LOCK CONTROL CABLE
53614-52010

KSP130,NCP131,NSP13#..CBU

 3
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-52150

KSP130,NCP131,NSP13#..CBU

 1
Common parts
82711-1E370
90119-06939
91551-80820
Linked diagrams
8401
