Toyota Vitz NCP131 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
JP
VITZ
NCP131-AHXVK (2010)
5201 - FRONT BUMPER & BUMPER STAY

NCP131-AHXVK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014

Engine 1NZFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

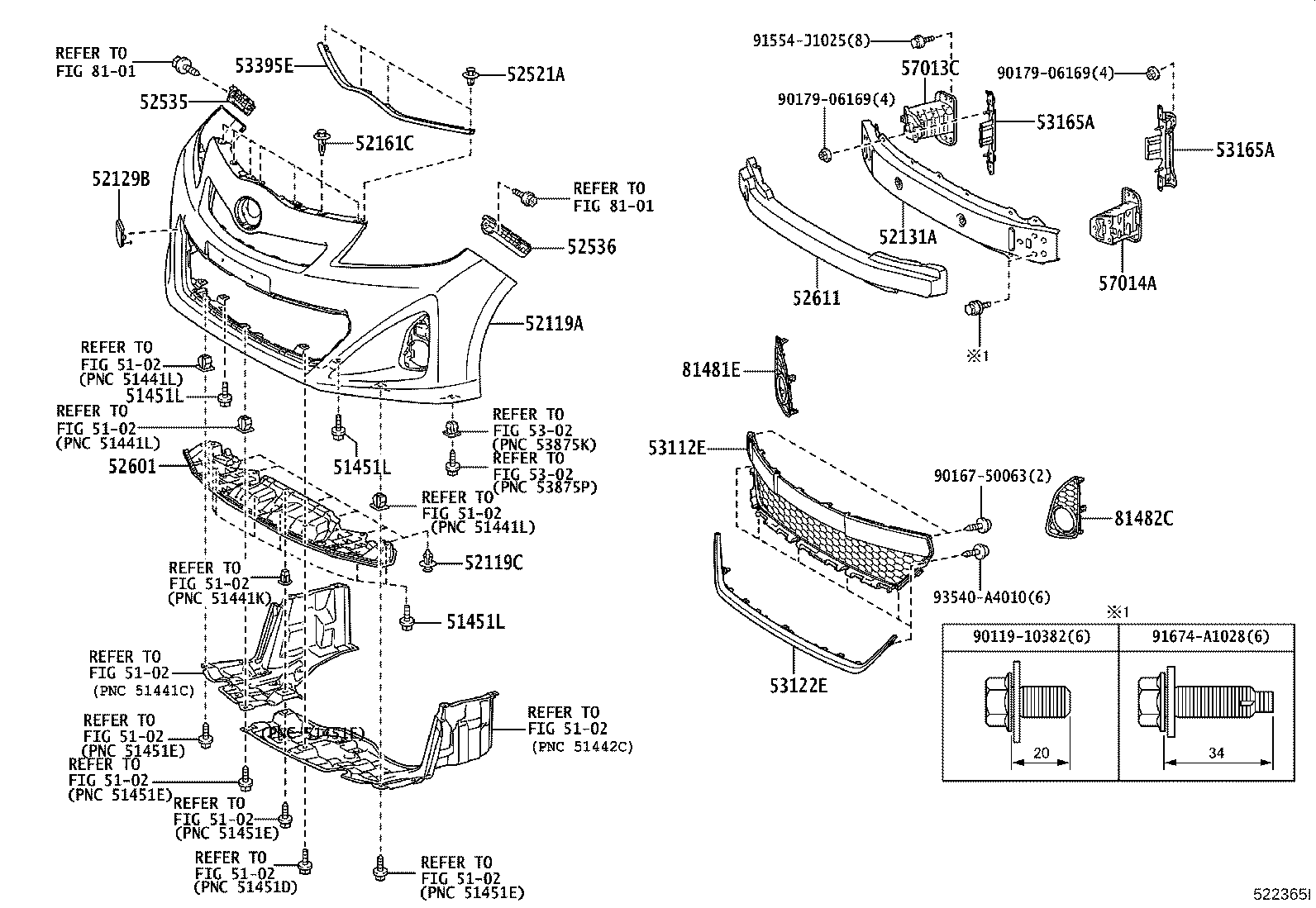

(1012-1404)RS

Click highlighted areas on diagram

Part #	Description	Period	Qty
51451L - BOLT, NO.1
90119-06767	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	8
51451L - BOLT, NO.1
90119-06767	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	8
51451L - BOLT, NO.1
90119-06767	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	8
52119A - COVER, FRONT BUMPER
52119-52710A1	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU WHITE PEARL CS.,070	12/2010 - 04/2014	1
52119-52710B2	KSP130,NCP131,NSP13#..(F,U)..CBU GIN BUCK ME.,1J1	12/2010 - 04/2014	1
52119-52710C0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU BLACK MC.,209	12/2010 - 04/2014	1
52119-52710A0	KSP130,NCP131,NSP13#..(F,U)..CBU SUPER WHITE 2,040	12/2010 - 04/2014	1
52119-52710B0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU SILVER ME.,1F7	12/2010 - 04/2014	1
52119-52710B1	KSP130,NCP131,NSP13#..(F,U)..CBU GRAY ME.,1G3	12/2010 - 04/2014	1
52119-52720B1	NCP131..RS GRAY ME.,1G3	12/2010 - 04/2014	1
52119-52720B0	NCP131..RS SILVER ME.,1F7	12/2010 - 04/2014	1
52119-52710J0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU LT.BLUE M.M.,8S7	12/2010 - 04/2014	1
52119-52710D1	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ROSE ME.OP.,3P3	12/2010 - 12/2012	1
52119-52830B1	NCP131..RS G’s,GRAY ME.,1G3	10/2011 - 04/2014	1
52119-52710D0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU SUPER RED 5,3P0	12/2010 - 04/2014	1
52119-52720A0	NCP131..RS SUPER WHITE 2,040	12/2010 - 04/2014	1
52119-52830B0	NCP131..RS G’s,SILVER ME.,1F7	10/2011 - 04/2014	1
52119-52830H0	NCP131..RS G’s,TURQUOISE M.M.,788	10/2011 - 04/2014	1
52119-52720B2	NCP131..RS GIN BUCK ME.,1J1	12/2010 - 04/2014	1
52119-52720H0	NCP131..RS TURQUOISE M.M.,788	12/2010 - 04/2014	1
52119-52720C0	NCP131..RS BLACK MC.,209	12/2010 - 04/2014	1
52119-52830D0	NCP131..RS G’s,SUPER RED 5,3P0	10/2011 - 04/2014	1
52119-52830A0	NCP131..RS G’s,SUPER WHITE 2,040	10/2011 - 04/2014	1
52119-52720D0	NCP131..RS SUPER RED 5,3P0	12/2010 - 04/2014	1
52119-52830C0	NCP131..RS G’s,BLACK MC.,209	10/2011 - 04/2014	1
52119-52830A1	NCP131..RS G’s,WHITE PEARL CS.,070	10/2011 - 04/2014	1
52119C - CLIP, FRONT BUMPER COVER
90467-10216	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	6
52129B - COVER, FRONT BUMPER, LOWER
52129-52110	NCP131..RS G’s	10/2011 - 04/2014	1
52129-52100	NCP131..RS	12/2010 - 04/2014	1
52129-52090	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU	12/2010 - 04/2014	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52250	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
52161C - PIECE, FRONT BUMPER
52161-16010	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	7
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05063C0	KSP130,NCP131,NSP13#..CBU BLACK	12/2010 - 04/2014	4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-52111	KSP130,NCP131,NSP13#..CBU	02/2012 - 04/2014	1
52535-52110	KSP130,NCP131,NSP13#..CBU	12/2010 - 01/2012	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-52080	KSP130,NCP131,NSP13#..CBU	12/2010 - 01/2012	1
52536-52081	KSP130,NCP131,NSP13#..CBU	02/2012 - 04/2014	1
52601 - ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
52601-52010	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-52090	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-52300	NCP131..RS 塗装不要	12/2010 - 04/2014	1
53112-52260	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU 塗装不要	12/2010 - 04/2014	1
53112-52390	NCP131..RS 塗装不要,G’s	10/2011 - 04/2014	1
53122E - MOULDING, RADIATOR GRILLE, LOWER
53122-52030	NCP131..RS	12/2010 - 04/2014	1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-52060	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	2
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-52060	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	2
53395E - SEAL, HOOD TO FRONT END PANEL
53395-52040	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-52011	KSP130,NCP131,NSP13#..CBU	08/2012 - 04/2014	1
57013-52010	KSP130,NCP131,NSP13#..CBU	12/2010 - 07/2012	1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-52010	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
81481E - COVER, FOG LAMP, RH
81481-52520	NCP131..RS G’s	10/2011 - 04/2014	1
81481-52390	NCP131..RS	12/2010 - 04/2014	1
81481-52380	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り	12/2010 - 04/2014	1
81481-52360	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU	12/2010 - 04/2014	1
81482C - COVER, FOG LAMP, LH
81482-52330	NCP131..RS	12/2010 - 04/2014	1
81482-52430	NCP131..RS G’s	10/2011 - 04/2014	1
81482-52300	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU	12/2010 - 04/2014	1
81482-52320	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り	12/2010 - 04/2014	1
Common parts
90119-10382
90167-50063
90179-06169
91554-J1025
91674-A1028
93540-A4010
Linked diagrams
5102
5302
8101

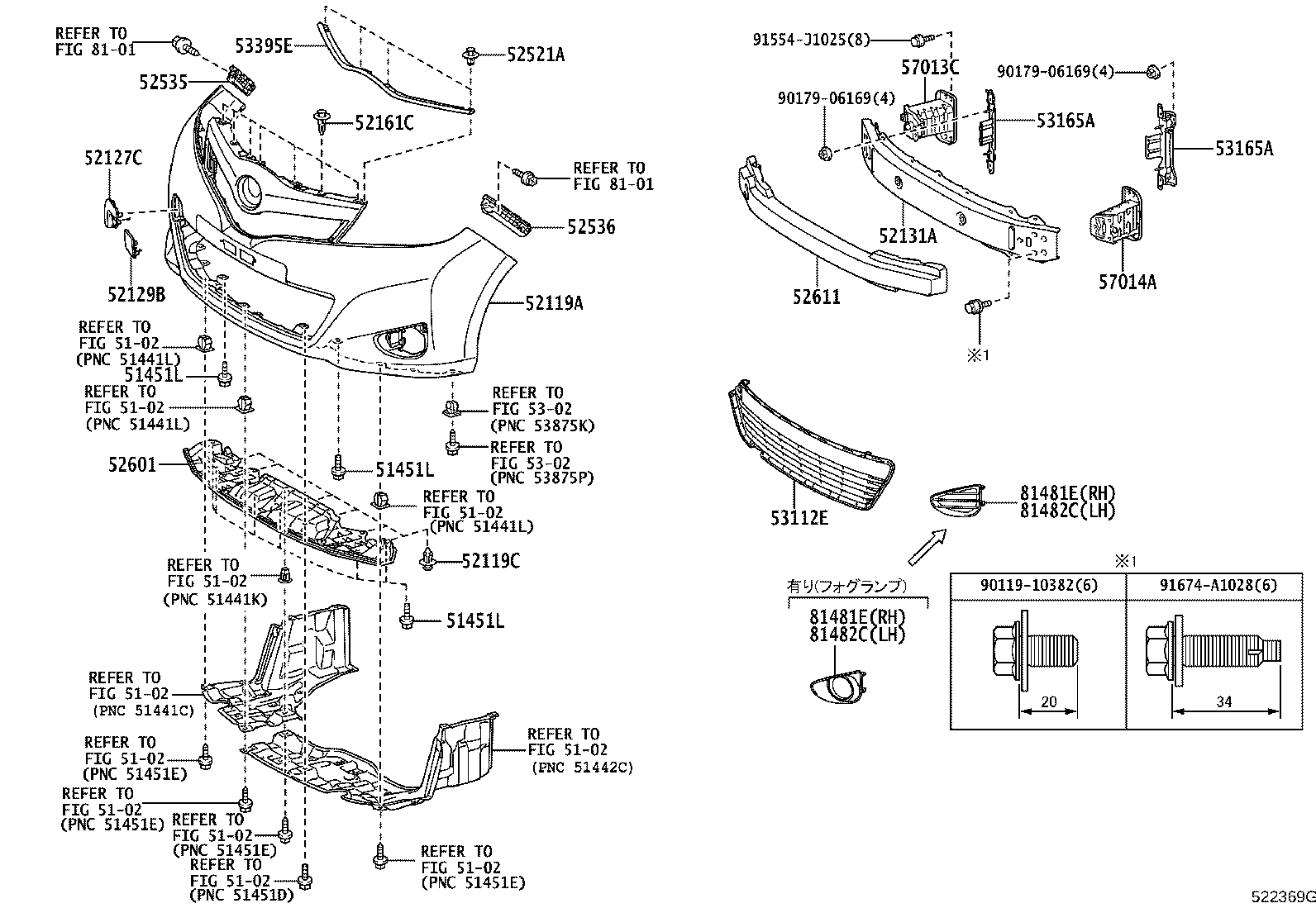

(1012-1404)F,JEWL,U

Click highlighted areas on diagram

Part #	Description	Period	Qty
51451L - BOLT, NO.1
90119-06767	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	8
51451L - BOLT, NO.1
90119-06767	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	8
51451L - BOLT, NO.1
90119-06767	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	8
52119A - COVER, FRONT BUMPER
52119-52710A1	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU WHITE PEARL CS.,070	12/2010 - 04/2014	1
52119-52710B2	KSP130,NCP131,NSP13#..(F,U)..CBU GIN BUCK ME.,1J1	12/2010 - 04/2014	1
52119-52710C0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU BLACK MC.,209	12/2010 - 04/2014	1
52119-52710A0	KSP130,NCP131,NSP13#..(F,U)..CBU SUPER WHITE 2,040	12/2010 - 04/2014	1
52119-52710B0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU SILVER ME.,1F7	12/2010 - 04/2014	1
52119-52710B1	KSP130,NCP131,NSP13#..(F,U)..CBU GRAY ME.,1G3	12/2010 - 04/2014	1
52119-52720B1	NCP131..RS GRAY ME.,1G3	12/2010 - 04/2014	1
52119-52720B0	NCP131..RS SILVER ME.,1F7	12/2010 - 04/2014	1
52119-52710J0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU LT.BLUE M.M.,8S7	12/2010 - 04/2014	1
52119-52710D1	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ROSE ME.OP.,3P3	12/2010 - 12/2012	1
52119-52830B1	NCP131..RS G’s,GRAY ME.,1G3	10/2011 - 04/2014	1
52119-52710D0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU SUPER RED 5,3P0	12/2010 - 04/2014	1
52119-52720A0	NCP131..RS SUPER WHITE 2,040	12/2010 - 04/2014	1
52119-52830B0	NCP131..RS G’s,SILVER ME.,1F7	10/2011 - 04/2014	1
52119-52830H0	NCP131..RS G’s,TURQUOISE M.M.,788	10/2011 - 04/2014	1
52119-52720B2	NCP131..RS GIN BUCK ME.,1J1	12/2010 - 04/2014	1
52119-52720H0	NCP131..RS TURQUOISE M.M.,788	12/2010 - 04/2014	1
52119-52720C0	NCP131..RS BLACK MC.,209	12/2010 - 04/2014	1
52119-52830D0	NCP131..RS G’s,SUPER RED 5,3P0	10/2011 - 04/2014	1
52119-52830A0	NCP131..RS G’s,SUPER WHITE 2,040	10/2011 - 04/2014	1
52119-52720D0	NCP131..RS SUPER RED 5,3P0	12/2010 - 04/2014	1
52119-52830C0	NCP131..RS G’s,BLACK MC.,209	10/2011 - 04/2014	1
52119-52830A1	NCP131..RS G’s,WHITE PEARL CS.,070	10/2011 - 04/2014	1
52119C - CLIP, FRONT BUMPER COVER
90467-10216	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	6
52127C - COVER, FRONT BUMPER HOLE
52127-52510A0	KSP130,NCP131,NSP13#..(F,U)..CBU SUPER WHITE 2,040	12/2010 - 04/2014	1
52127-52510A1	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU WHITE PEARL CS.,070	12/2010 - 04/2014	1
52127-52510D1	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ROSE ME.OP.,3P3	12/2010 - 12/2012	1
52127-52510C0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU BLACK MC.,209	12/2010 - 04/2014	1
52127-52570A0	NCP131..RS G’s,SUPER WHITE 2,040	10/2011 - 04/2014	1
52127-52510B1	KSP130,NCP131,NSP13#..(F,U)..CBU GRAY ME.,1G3	12/2010 - 04/2014	1
52127-52570B0	NCP131..RS G’s,SILVER ME.,1F7	10/2011 - 04/2014	1
52127-52510J0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU LT.BLUE M.M.,8S7	12/2010 - 04/2014	1
52127-52570A1	NCP131..RS G’s,WHITE PEARL CS.,070	10/2011 - 04/2014	1
52127-52510B2	KSP130,NCP131,NSP13#..(F,U)..CBU GIN BUCK ME.,1J1	12/2010 - 04/2014	1
52127-52510B0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU SILVER ME.,1F7	12/2010 - 04/2014	1
52127-52570H0	NCP131..RS G’s,TURQUOISE M.M.,788	10/2011 - 04/2014	1
52127-52510D0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU SUPER RED 5,3P0	12/2010 - 04/2014	1
52127-52570D0	NCP131..RS G’s,SUPER RED 5,3P0	10/2011 - 04/2014	1
52127-52570C0	NCP131..RS G’s,BLACK MC.,209	10/2011 - 04/2014	1
52127-52570B1	NCP131..RS G’s,GRAY ME.,1G3	10/2011 - 04/2014	1
52129B - COVER, FRONT BUMPER, LOWER
52129-52110	NCP131..RS G’s	10/2011 - 04/2014	1
52129-52100	NCP131..RS	12/2010 - 04/2014	1
52129-52090	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU	12/2010 - 04/2014	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52250	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
52161C - PIECE, FRONT BUMPER
52161-16010	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	7
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05063C0	KSP130,NCP131,NSP13#..CBU BLACK	12/2010 - 04/2014	4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-52111	KSP130,NCP131,NSP13#..CBU	02/2012 - 04/2014	1
52535-52110	KSP130,NCP131,NSP13#..CBU	12/2010 - 01/2012	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-52080	KSP130,NCP131,NSP13#..CBU	12/2010 - 01/2012	1
52536-52081	KSP130,NCP131,NSP13#..CBU	02/2012 - 04/2014	1
52601 - ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
52601-52010	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-52090	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-52300	NCP131..RS 塗装不要	12/2010 - 04/2014	1
53112-52260	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU 塗装不要	12/2010 - 04/2014	1
53112-52390	NCP131..RS 塗装不要,G’s	10/2011 - 04/2014	1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-52060	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	2
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-52060	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	2
53395E - SEAL, HOOD TO FRONT END PANEL
53395-52040	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-52011	KSP130,NCP131,NSP13#..CBU	08/2012 - 04/2014	1
57013-52010	KSP130,NCP131,NSP13#..CBU	12/2010 - 07/2012	1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-52010	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
81481E - COVER, FOG LAMP, RH
81481-52520	NCP131..RS G’s	10/2011 - 04/2014	1
81481-52390	NCP131..RS	12/2010 - 04/2014	1
81481-52380	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り	12/2010 - 04/2014	1
81481-52360	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU	12/2010 - 04/2014	1
81481E - COVER, FOG LAMP, RH
81481-52520	NCP131..RS G’s	10/2011 - 04/2014	1
81481-52390	NCP131..RS	12/2010 - 04/2014	1
81481-52380	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り	12/2010 - 04/2014	1
81481-52360	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU	12/2010 - 04/2014	1
81482C - COVER, FOG LAMP, LH
81482-52330	NCP131..RS	12/2010 - 04/2014	1
81482-52430	NCP131..RS G’s	10/2011 - 04/2014	1
81482-52300	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU	12/2010 - 04/2014	1
81482-52320	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り	12/2010 - 04/2014	1
81482C - COVER, FOG LAMP, LH
81482-52330	NCP131..RS	12/2010 - 04/2014	1
81482-52430	NCP131..RS G’s	10/2011 - 04/2014	1
81482-52300	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU	12/2010 - 04/2014	1
81482-52320	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り	12/2010 - 04/2014	1
Common parts
90119-10382
90179-06169
91554-J1025
91674-A1028
Linked diagrams
5102
5302
8101

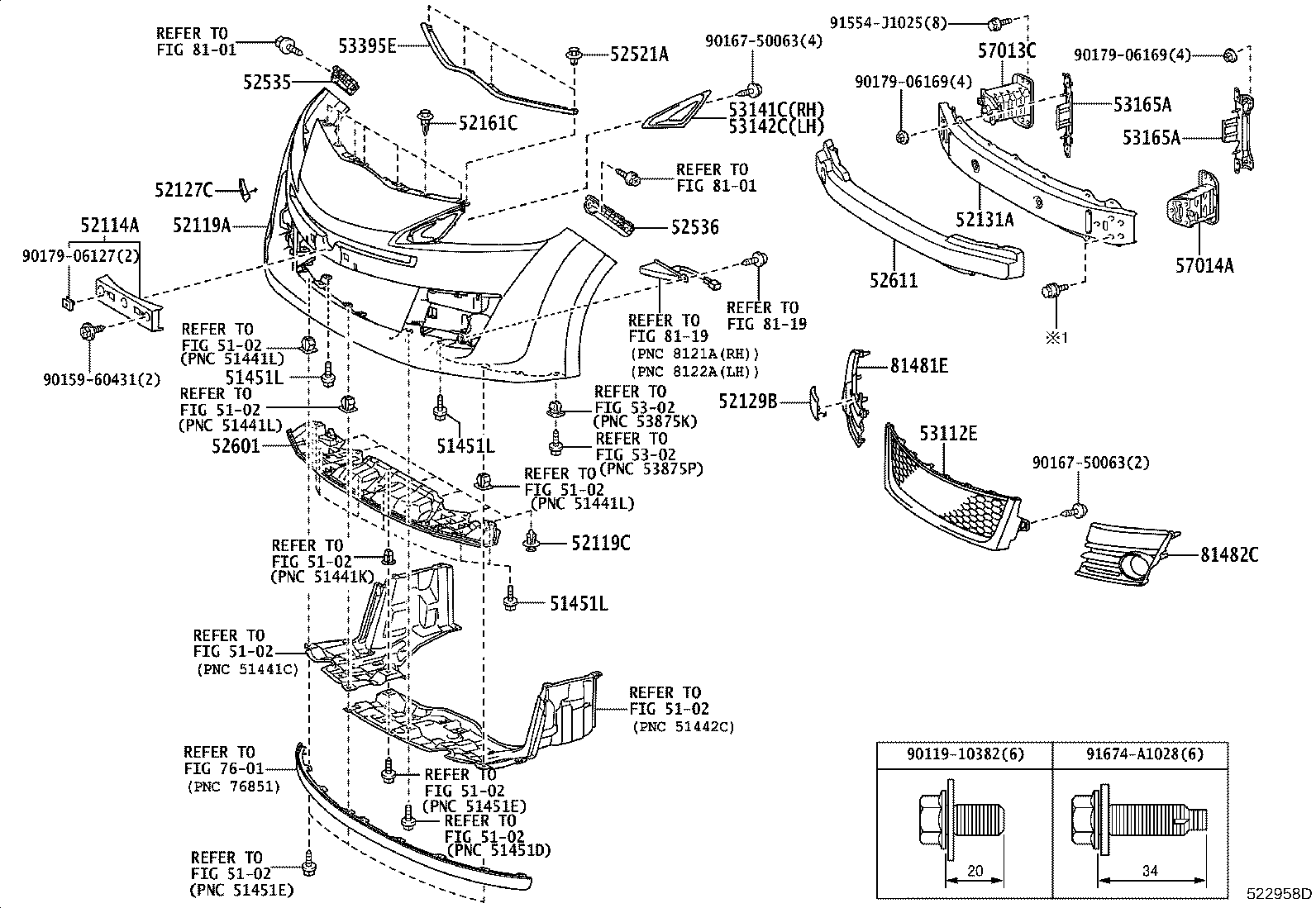

(1012-1404)RS

Click highlighted areas on diagram

G'S

Part #	Description	Period	Qty
51451L - BOLT, NO.1
90119-06767	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	8
51451L - BOLT, NO.1
90119-06767	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	8
51451L - BOLT, NO.1
90119-06767	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	8
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-52050B0	NCP131..RS G’s,SILVER ME.,1F7	10/2011 - 04/2014	1
52114-52050B1	NCP131..RS G’s,GRAY ME.,1G3	10/2011 - 04/2014	1
52114-52050A1	NCP131..RS G’s,WHITE PEARL CS.,070	10/2011 - 04/2014	1
52114-52050A0	NCP131..RS G’s,SUPER WHITE 2,040	10/2011 - 04/2014	1
52114-52050C0	NCP131..RS G’s,BLACK MC.,209	10/2011 - 04/2014	1
52114-52050H0	NCP131..RS G’s,TURQUOISE M.M.,788	10/2011 - 04/2014	1
52114-52050D0	NCP131..RS G’s,SUPER RED 5,3P0	10/2011 - 04/2014	1
52119A - COVER, FRONT BUMPER
52119-52710A1	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU WHITE PEARL CS.,070	12/2010 - 04/2014	1
52119-52710B2	KSP130,NCP131,NSP13#..(F,U)..CBU GIN BUCK ME.,1J1	12/2010 - 04/2014	1
52119-52710C0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU BLACK MC.,209	12/2010 - 04/2014	1
52119-52710A0	KSP130,NCP131,NSP13#..(F,U)..CBU SUPER WHITE 2,040	12/2010 - 04/2014	1
52119-52710B0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU SILVER ME.,1F7	12/2010 - 04/2014	1
52119-52710B1	KSP130,NCP131,NSP13#..(F,U)..CBU GRAY ME.,1G3	12/2010 - 04/2014	1
52119-52720B1	NCP131..RS GRAY ME.,1G3	12/2010 - 04/2014	1
52119-52720B0	NCP131..RS SILVER ME.,1F7	12/2010 - 04/2014	1
52119-52710J0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU LT.BLUE M.M.,8S7	12/2010 - 04/2014	1
52119-52710D1	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ROSE ME.OP.,3P3	12/2010 - 12/2012	1
52119-52830B1	NCP131..RS G’s,GRAY ME.,1G3	10/2011 - 04/2014	1
52119-52710D0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU SUPER RED 5,3P0	12/2010 - 04/2014	1
52119-52720A0	NCP131..RS SUPER WHITE 2,040	12/2010 - 04/2014	1
52119-52830B0	NCP131..RS G’s,SILVER ME.,1F7	10/2011 - 04/2014	1
52119-52830H0	NCP131..RS G’s,TURQUOISE M.M.,788	10/2011 - 04/2014	1
52119-52720B2	NCP131..RS GIN BUCK ME.,1J1	12/2010 - 04/2014	1
52119-52720H0	NCP131..RS TURQUOISE M.M.,788	12/2010 - 04/2014	1
52119-52720C0	NCP131..RS BLACK MC.,209	12/2010 - 04/2014	1
52119-52830D0	NCP131..RS G’s,SUPER RED 5,3P0	10/2011 - 04/2014	1
52119-52830A0	NCP131..RS G’s,SUPER WHITE 2,040	10/2011 - 04/2014	1
52119-52720D0	NCP131..RS SUPER RED 5,3P0	12/2010 - 04/2014	1
52119-52830C0	NCP131..RS G’s,BLACK MC.,209	10/2011 - 04/2014	1
52119-52830A1	NCP131..RS G’s,WHITE PEARL CS.,070	10/2011 - 04/2014	1
52119C - CLIP, FRONT BUMPER COVER
90467-10216	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	6
52127C - COVER, FRONT BUMPER HOLE
52127-52510A0	KSP130,NCP131,NSP13#..(F,U)..CBU SUPER WHITE 2,040	12/2010 - 04/2014	1
52127-52510A1	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU WHITE PEARL CS.,070	12/2010 - 04/2014	1
52127-52510D1	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ROSE ME.OP.,3P3	12/2010 - 12/2012	1
52127-52510C0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU BLACK MC.,209	12/2010 - 04/2014	1
52127-52570A0	NCP131..RS G’s,SUPER WHITE 2,040	10/2011 - 04/2014	1
52127-52510B1	KSP130,NCP131,NSP13#..(F,U)..CBU GRAY ME.,1G3	12/2010 - 04/2014	1
52127-52570B0	NCP131..RS G’s,SILVER ME.,1F7	10/2011 - 04/2014	1
52127-52510J0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU LT.BLUE M.M.,8S7	12/2010 - 04/2014	1
52127-52570A1	NCP131..RS G’s,WHITE PEARL CS.,070	10/2011 - 04/2014	1
52127-52510B2	KSP130,NCP131,NSP13#..(F,U)..CBU GIN BUCK ME.,1J1	12/2010 - 04/2014	1
52127-52510B0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU SILVER ME.,1F7	12/2010 - 04/2014	1
52127-52570H0	NCP131..RS G’s,TURQUOISE M.M.,788	10/2011 - 04/2014	1
52127-52510D0	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU SUPER RED 5,3P0	12/2010 - 04/2014	1
52127-52570D0	NCP131..RS G’s,SUPER RED 5,3P0	10/2011 - 04/2014	1
52127-52570C0	NCP131..RS G’s,BLACK MC.,209	10/2011 - 04/2014	1
52127-52570B1	NCP131..RS G’s,GRAY ME.,1G3	10/2011 - 04/2014	1
52129B - COVER, FRONT BUMPER, LOWER
52129-52110	NCP131..RS G’s	10/2011 - 04/2014	1
52129-52100	NCP131..RS	12/2010 - 04/2014	1
52129-52090	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU	12/2010 - 04/2014	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52250	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
52161C - PIECE, FRONT BUMPER
52161-16010	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	7
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05063C0	KSP130,NCP131,NSP13#..CBU BLACK	12/2010 - 04/2014	4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-52111	KSP130,NCP131,NSP13#..CBU	02/2012 - 04/2014	1
52535-52110	KSP130,NCP131,NSP13#..CBU	12/2010 - 01/2012	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-52080	KSP130,NCP131,NSP13#..CBU	12/2010 - 01/2012	1
52536-52081	KSP130,NCP131,NSP13#..CBU	02/2012 - 04/2014	1
52601 - ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
52601-52010	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-52090	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-52300	NCP131..RS 塗装不要	12/2010 - 04/2014	1
53112-52260	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU 塗装不要	12/2010 - 04/2014	1
53112-52390	NCP131..RS 塗装不要,G’s	10/2011 - 04/2014	1
53141C - GARNISH, RADIATOR GRILLE
53141-52020	NCP131..RS G’s	10/2011 - 04/2014	1
53142C - GARNISH, RADIATOR GRILLE, NO.2
53142-52010	NCP131..RS G’s	10/2011 - 04/2014	1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-52060	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	2
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53164-52060	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	2
53395E - SEAL, HOOD TO FRONT END PANEL
53395-52040	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-52011	KSP130,NCP131,NSP13#..CBU	08/2012 - 04/2014	1
57013-52010	KSP130,NCP131,NSP13#..CBU	12/2010 - 07/2012	1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-52010	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	1
81481E - COVER, FOG LAMP, RH
81481-52520	NCP131..RS G’s	10/2011 - 04/2014	1
81481-52390	NCP131..RS	12/2010 - 04/2014	1
81481-52380	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り	12/2010 - 04/2014	1
81481-52360	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU	12/2010 - 04/2014	1
81482C - COVER, FOG LAMP, LH
81482-52330	NCP131..RS	12/2010 - 04/2014	1
81482-52430	NCP131..RS G’s	10/2011 - 04/2014	1
81482-52300	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU	12/2010 - 04/2014	1
81482-52320	KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り	12/2010 - 04/2014	1
Common parts
90119-10382
90159-60431
90167-50063
90179-06127
90179-06169
91554-J1025
91674-A1028
Linked diagrams
5102
5302
7601
8101
8119

NCP131-AHXVK (2010)

(1012-1404)RS

(1012-1404)F,JEWL,U

(1012-1404)RS

Part Price Details
