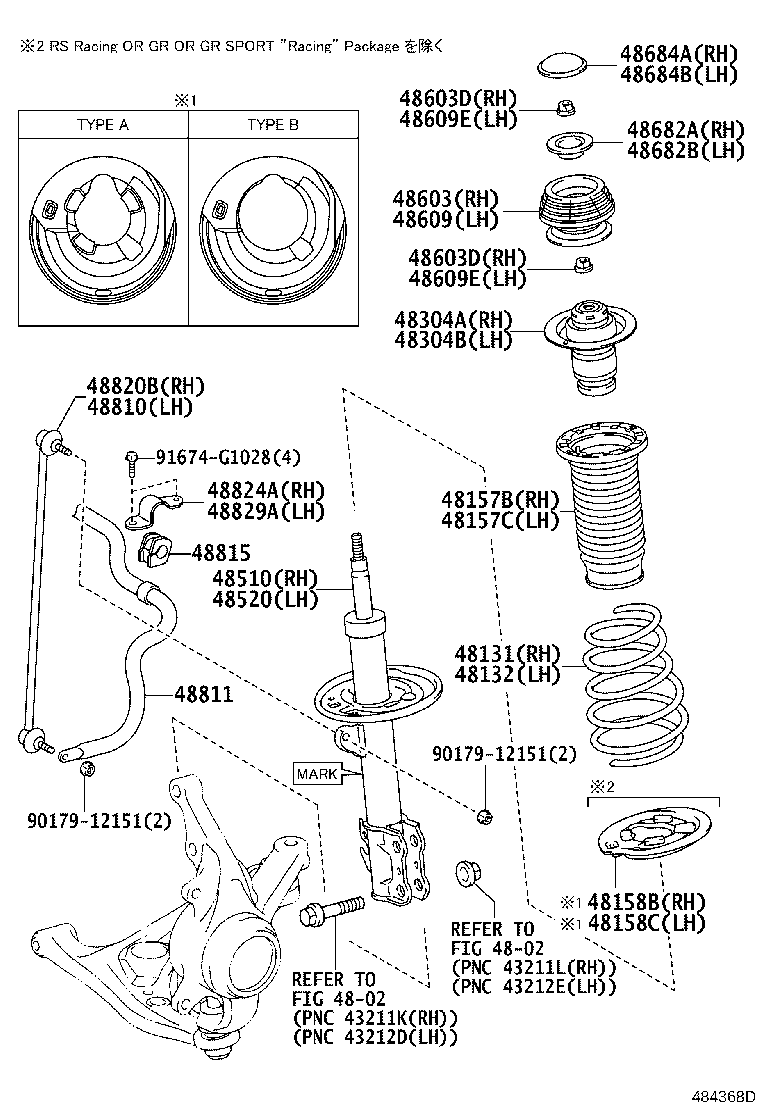

NCP131-AHXVK (2010)
Toyota Vitz
(1402- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-52G70 |
NCP131..RS |
1 | ||
| 48131-WY040 |
NCP131..RS G’s |
1 | ||
| 48131-52F90 |
NSP130..U..CBU;KSP130,NCP131..(F,JEWL,U)..CBU |
1 | ||
| 48131-52G71 |
NCP131..RS |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-52G70 |
NCP131..RS |
1 | ||
| 48131-WY040 |
NCP131..RS G’s |
1 | ||
| 48131-52G71 |
NCP131..RS |
1 | ||
| 48131-52F90 |
NSP130..U..CBU;KSP130,NCP131..(F,JEWL,U)..CBU |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-52030 |
NCP131..RS G’s |
1 | ||
| 48157-52030 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48157-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-52030 |
NCP131..RS G’s |
1 | ||
| 48157-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48157-52030 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-52010 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-52010 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48304A - SEAT SUB-ASSY, BUMPER, RH | ||||
| 48304-52050 |
NCP131,NSP130..(RS,U)..CBU |
1 | ||
| 48304-52051 |
NCP131,NSP130..(RS,U)..CBU |
1 | ||
| 48304-WY010 |
NCP131..RS G’s |
1 | ||
| 48304B - SEAT SUB-ASSY, BUMPER, LH | ||||
| 48304-WY010 |
NCP131..RS G’s |
1 | ||
| 48304-52050 |
NCP131,NSP130..(RS,U)..CBU |
1 | ||
| 48304-52051 |
NCP131,NSP130..(RS,U)..CBU |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-52F90 |
NCP131..RS ﾏｰｸ 48510−52F90 |
1 | ||
| 48510-52F81 |
NCP131,NSP130..U..CBU ﾏｰｸ 48510−52F81 |
1 | ||
| 48510-WY060 |
NCP131..RS ﾏｰｸ 48510−WY060,G’s |
1 | ||
| 48510-52F82 |
NCP131,NSP130..U..CBU ﾏｰｸ 48510−52F82 |
1 | ||
| 48510-52F80 |
NCP131,NSP130..U..CBU ﾏｰｸ 48510−52F80 |
1 | ||
| 48510-52F92 |
NCP131..RS ﾏｰｸ 48510−52F92 |
1 | ||
| 48510-52F83 |
NCP131,NSP130..U..CBU ﾏｰｸ 48510−52F83 |
1 | ||
| 48510-WY061 |
NCP131..RS ﾏｰｸ 48510−WY061,G’s |
1 | ||
| 48510-52F91 |
NCP131..RS ﾏｰｸ 48510−52F91 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-52490 |
NCP131..RS ﾏｰｸ 48520−52490 |
1 | ||
| 48520-52480 |
NCP131,NSP130..U..CBU ﾏｰｸ 48520−52480 |
1 | ||
| 48520-52491 |
NCP131..RS ﾏｰｸ 48520−52491 |
1 | ||
| 48520-WY050 |
NCP131..RS ﾏｰｸ 48520−WY050,G’s |
1 | ||
| 48520-52481 |
NCP131,NSP130..U..CBU ﾏｰｸ 48520−52481 |
1 | ||
| 48520-WY051 |
NCP131..RS ﾏｰｸ 48520−WY051,G’s |
1 | ||
| 48520-52483 |
NCP131,NSP130..U..CBU ﾏｰｸ 48520−52483 |
1 | ||
| 48520-52482 |
NCP131,NSP130..U..CBU ﾏｰｸ 48520−52482 |
1 | ||
| 48520-52492 |
NCP131..RS ﾏｰｸ 48520−52492 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-52100 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12145 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12145 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-52100 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12145 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12145 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH | ||||
| 48682-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH | ||||
| 48682-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-52030 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-52240 |
NCP131,NSP130..(RS,U)..CBU |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-52090 |
NCP131,NSP130..(RS,U)..CBU |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-52030 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-52060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-52060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 90179-12151 | ||||
| 91674-G1028 | ||||
| Linked diagrams | ||||
| 4802 | ||||

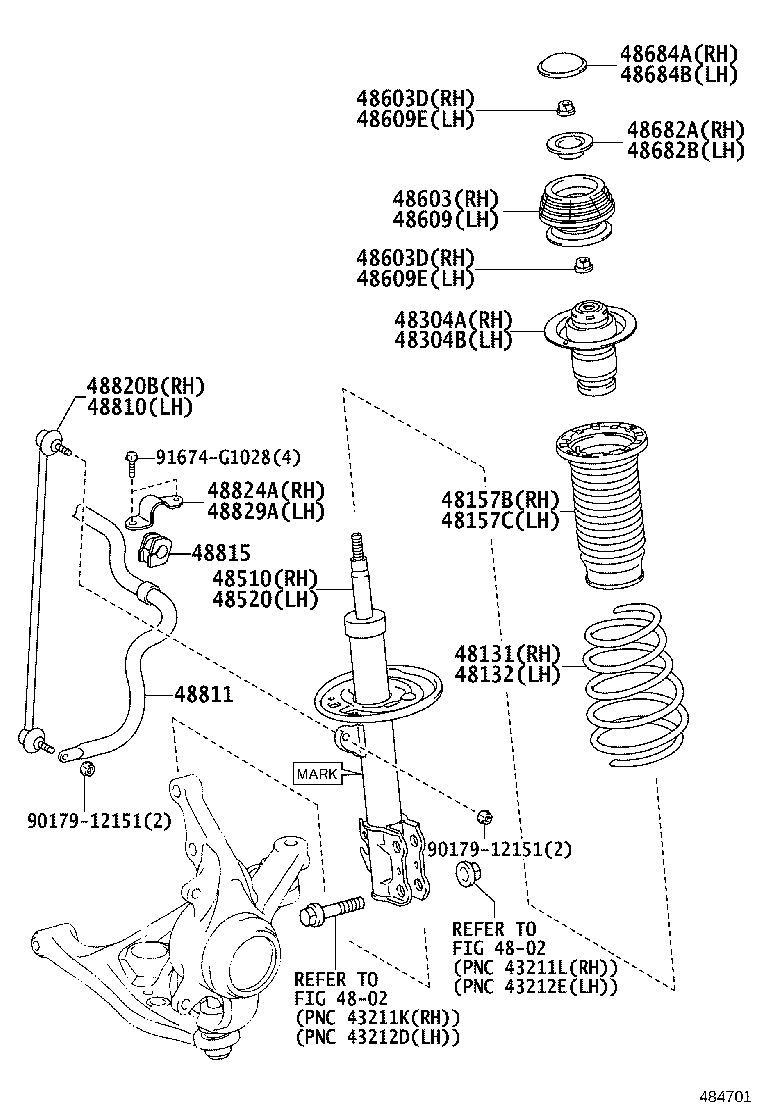

(1012-1402)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-52G70 |
NCP131..RS |
1 | ||
| 48131-WY040 |
NCP131..RS G’s |
1 | ||
| 48131-52F90 |
NSP130..U..CBU;KSP130,NCP131..(F,JEWL,U)..CBU |
1 | ||
| 48131-52G71 |
NCP131..RS |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-52G70 |
NCP131..RS |
1 | ||
| 48131-WY040 |
NCP131..RS G’s |
1 | ||
| 48131-52G71 |
NCP131..RS |
1 | ||
| 48131-52F90 |
NSP130..U..CBU;KSP130,NCP131..(F,JEWL,U)..CBU |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-52030 |
NCP131..RS G’s |
1 | ||
| 48157-52030 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48157-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-52030 |
NCP131..RS G’s |
1 | ||
| 48157-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48157-52030 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48304A - SEAT SUB-ASSY, BUMPER, RH | ||||
| 48304-52050 |
NCP131,NSP130..(RS,U)..CBU |
1 | ||
| 48304-52051 |
NCP131,NSP130..(RS,U)..CBU |
1 | ||
| 48304-WY010 |
NCP131..RS G’s |
1 | ||
| 48304B - SEAT SUB-ASSY, BUMPER, LH | ||||
| 48304-WY010 |
NCP131..RS G’s |
1 | ||
| 48304-52050 |
NCP131,NSP130..(RS,U)..CBU |
1 | ||
| 48304-52051 |
NCP131,NSP130..(RS,U)..CBU |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-52F90 |
NCP131..RS ﾏｰｸ 48510−52F90 |
1 | ||
| 48510-52F81 |
NCP131,NSP130..U..CBU ﾏｰｸ 48510−52F81 |
1 | ||
| 48510-WY060 |
NCP131..RS ﾏｰｸ 48510−WY060,G’s |
1 | ||
| 48510-52F82 |
NCP131,NSP130..U..CBU ﾏｰｸ 48510−52F82 |
1 | ||
| 48510-52F80 |
NCP131,NSP130..U..CBU ﾏｰｸ 48510−52F80 |
1 | ||
| 48510-52F92 |
NCP131..RS ﾏｰｸ 48510−52F92 |
1 | ||
| 48510-52F83 |
NCP131,NSP130..U..CBU ﾏｰｸ 48510−52F83 |
1 | ||
| 48510-WY061 |
NCP131..RS ﾏｰｸ 48510−WY061,G’s |
1 | ||
| 48510-52F91 |
NCP131..RS ﾏｰｸ 48510−52F91 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-52490 |
NCP131..RS ﾏｰｸ 48520−52490 |
1 | ||
| 48520-52480 |
NCP131,NSP130..U..CBU ﾏｰｸ 48520−52480 |
1 | ||
| 48520-52491 |
NCP131..RS ﾏｰｸ 48520−52491 |
1 | ||
| 48520-WY050 |
NCP131..RS ﾏｰｸ 48520−WY050,G’s |
1 | ||
| 48520-52481 |
NCP131,NSP130..U..CBU ﾏｰｸ 48520−52481 |
1 | ||
| 48520-WY051 |
NCP131..RS ﾏｰｸ 48520−WY051,G’s |
1 | ||
| 48520-52483 |
NCP131,NSP130..U..CBU ﾏｰｸ 48520−52483 |
1 | ||
| 48520-52482 |
NCP131,NSP130..U..CBU ﾏｰｸ 48520−52482 |
1 | ||
| 48520-52492 |
NCP131..RS ﾏｰｸ 48520−52492 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-52100 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12145 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12145 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-52100 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12145 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12145 |
KSP130,NCP131,NSP13#..CBU |
2 | ||
| 48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH | ||||
| 48682-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH | ||||
| 48682-52040 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52020 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-52030 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-52240 |
NCP131,NSP130..(RS,U)..CBU |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-52090 |
NCP131,NSP130..(RS,U)..CBU |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-52030 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-52060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-52060 |
KSP130,NCP131,NSP13#..CBU |
1 | ||
| Common parts | ||||
| 90179-12151 | ||||
| 91674-G1028 | ||||
| Linked diagrams | ||||
| 4802 | ||||
