NCP131-AHXVK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

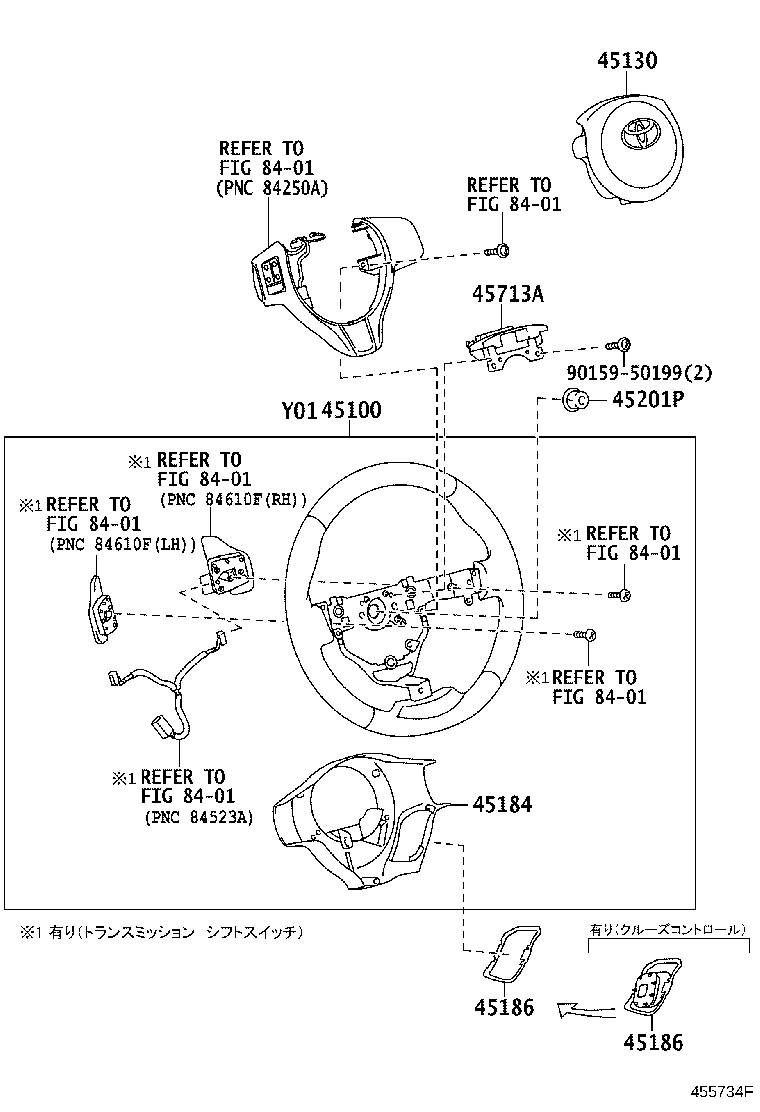

Click highlighted areas on diagram

3ﾎﾝｽﾎﾟｰｸ,ｱﾘ(ｽﾃｱﾘﾝｸﾞ ｵｰﾃﾞｨｵ ｽｲｯﾁ)

diagram 45100 45130 45184 45186 45186 45201P 45713A 8401 8401 8401 8401 8401 8401 8401 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-52510C1

NCP131..CVT..RS

3本ｽﾎﾟｰｸ, ﾚｻﾞｰ,BLACK,TRIM1#

 1
45100-52490C1

NCP131,NSP13#..U..CBU

3本ｽﾎﾟｰｸ, ﾚｻﾞｰ,BLACK,TRIM1#

 1
45100-WY040C0

NCP131..CVT..RS

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,G’s,BLACK/RED,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-52640C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-52150C0

NCP131..5F;NCP131,NSP13#..U..CBU

BLACK,TRIM1#

 1
45184-52160C0

NCP131..CVT..RS

BLACK,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-52020C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-52020C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

KSP130,NCP131,NSP13#..CBU

 1
Common parts
90159-50199
Linked diagrams
8401

(1012- )

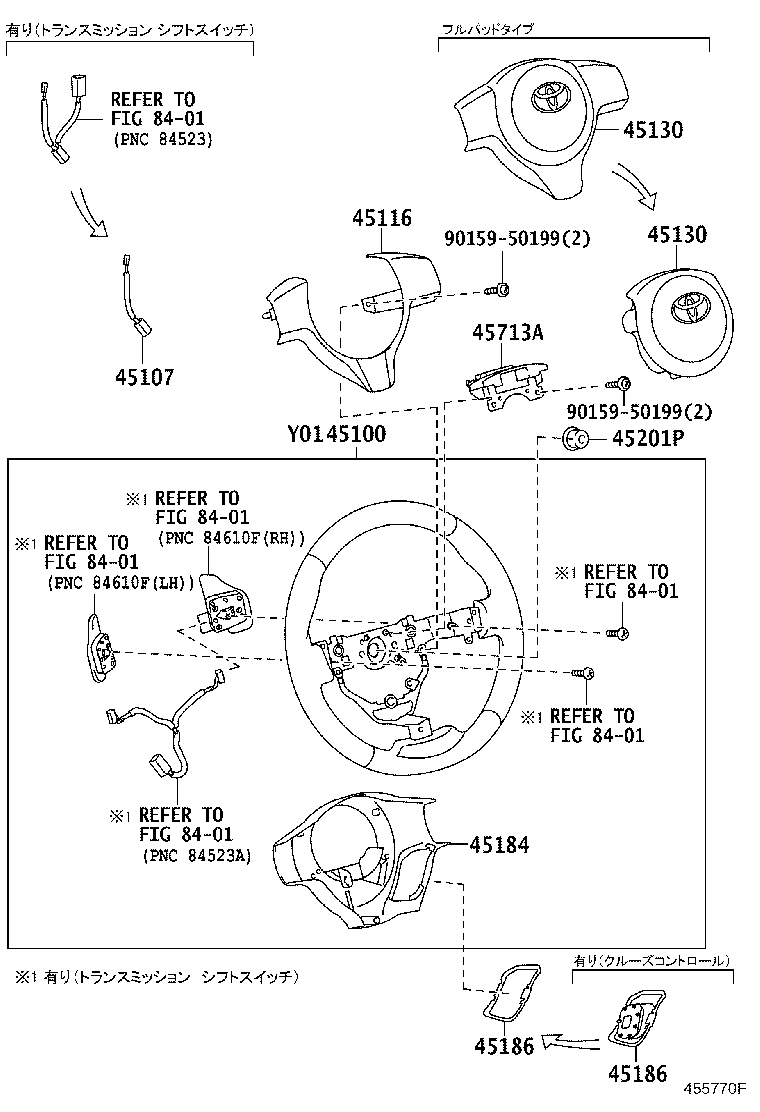

Click highlighted areas on diagram

3ﾎﾝｽﾎﾟｰｸ,ﾅｼ(ｽﾃｱﾘﾝｸﾞ ｵｰﾃﾞｨｵ ｽｲｯﾁ)

diagram 45100 45107 45116 45130 45130 45184 45186 45186 45201P 45713A 8401 8401 8401 8401 8401 8401 9015950199 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-52510C1

NCP131..CVT..RS

3本ｽﾎﾟｰｸ, ﾚｻﾞｰ,BLACK,TRIM1#

 1
45100-52490C1

NCP131,NSP13#..U..CBU

3本ｽﾎﾟｰｸ, ﾚｻﾞｰ,BLACK,TRIM1#

 1
45100-WY040C0

NCP131..CVT..RS

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,G’s,BLACK/RED,TRIM1#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-48010

NCP131..5F;KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-52080C0

NCP131..RS

G’s,BLACK,TRIM1#

 1
45116-WY020C0

NCP131..RS

G’s,BLACK,TRIM1#

 1
45116-52090C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-52640C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-52640C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-52150C0

NCP131..5F;NCP131,NSP13#..U..CBU

BLACK,TRIM1#

 1
45184-52160C0

NCP131..CVT..RS

BLACK,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-52020C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-52020C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

KSP130,NCP131,NSP13#..CBU

 1
Common parts
90159-50199
Linked diagrams
8401
