Toyota Vitz NCP131 DISC WHEEL & WHEEL CAP

Manufacturers Home
Toyota
JP
VITZ
NCP131-AHXVK (2010)
4103 - DISC WHEEL & WHEEL CAP

NCP131-AHXVK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014

Engine 1NZFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

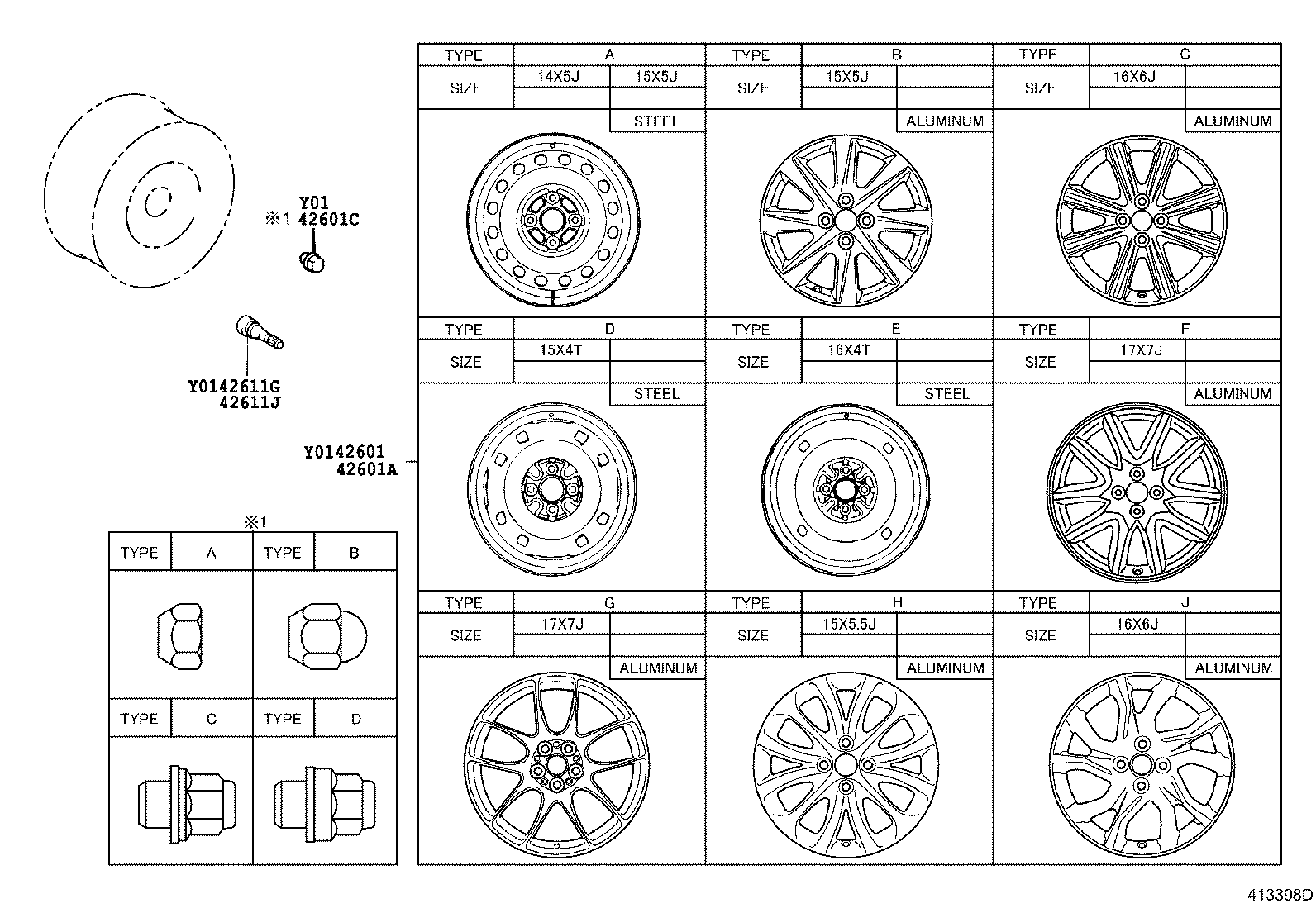

ILLUST NO. 1 OF 5(1012- )

Click highlighted areas on diagram

ﾃﾞｨｽｸﾎｲｰﾙ

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-52770	NCP131,NSP130..U..CBU 15X5J,#,TYPE A:ｲﾗｽﾄ参照	12/2010 - 05/2012	4
42611-WY130	NCP131..RS 17X7J,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/45R17 7J ｱﾙﾐ G’S,TYPE F:ｲﾗｽﾄ参照	10/2011 - 09/2012	4
42611-WY140	NCP131..RS 17X7J,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/45R17 7J ｱﾙﾐ有り(激bﾄﾞﾗｲﾝﾘﾑ) G’S,TYPE F:ｲﾗｽﾄ参照	10/2011 - 09/2012	4
42611-52790	KSP130,NCP131,NSP130..(F,JEWL,U)..CBU 15X5J,#,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,TYPE B:ｲﾗｽﾄ参照	12/2010 - 05/2012	4
42611-52810	KSP130,NCP131,NSP130..(F,JEWL,U)..CBU 15X5.5J,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ,TYPE B:ｲﾗｽﾄ参照	05/2012 - 04/2014	4
42611-52780	NCP131,NSP130..U..CBU 15X5.5J,#,TYPE A:ｲﾗｽﾄ参照	05/2012 - 04/2014	4
42611-WY130	NCP131..RS 17X7J,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/45R17 7J ｱﾙﾐ G’S,TYPE F:ｲﾗｽﾄ参照	09/2012 - 04/2014	4
42611-52830	NCP131..RS 16X6J,#,TYPE C:ｲﾗｽﾄ参照	12/2010 - 04/2014	4
42611-WY140	NCP131..RS 17X7J,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/45R17 7J ｱﾙﾐ有り(激bﾄﾞﾗｲﾝﾘﾑ) G’S,TYPE F:ｲﾗｽﾄ参照	09/2012 - 04/2014	4
42601A - WHEEL, DISC (FOR SPARE)
42611-1A010	KSP130,NCP131,NSP130..(F,JEWL,U)..CBU 15X4T,ｽﾍﾟｱﾀｲﾔ−T125/70D15,TYPE D:ｲﾗｽﾄ参照	12/2010 - 04/2014	1
42611-1A240	NCP131..RS 16X4T,TYPE E:ｲﾗｽﾄ参照	12/2010 - 04/2014	1
42601C - NUT, HUB (FOR AXLE)
90942-01033	NCP131..RS TYPE C:ｲﾗｽﾄ参照	12/2010 - 04/2014	16
90942-01021	NCP131,NSP13#..U..CBU TYPE B:ｲﾗｽﾄ参照	12/2010 - 04/2014	16
90942-01033	KSP130,NCP131,NSP130..(F,JEWL,U)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ,TYPE C:ｲﾗXﾄ参照	05/2012 - 04/2014	16
90942-01033	KSP130,NCP131,NSP130..(F,JEWL,U)..CBU ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,TYPE C:ｲﾗXﾄ参照	12/2010 - 05/2012	16
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	NCP131..RS ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/45R17 7J ｱﾙﾐ G’S	10/2011 - 09/2012	4
90942-05009	KSP130,NCP131,NSP13#..CBU	12/2010 - 04/2014	4
90942-05009	NCP131..RS ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/45R17 7J ｱﾙﾐ有り(ﾚｯﾄﾞﾗｲﾝﾘﾑ) G’S	10/2011 - 09/2012	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	NCP131..RS	12/2010 - 04/2014	1
90942-05009	KSP130,NCP131,NSP130..(F,JEWL,U)..CBU ｽﾍﾟｱﾀｲﾔ−T125/70D15	12/2010 - 04/2014	1

ILLUST NO. 4 OF 5(1012- )

Click highlighted areas on diagram

ﾊﾞﾗﾝｽｳｪｲﾄ

Part #	Description	Period	Qty	Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273

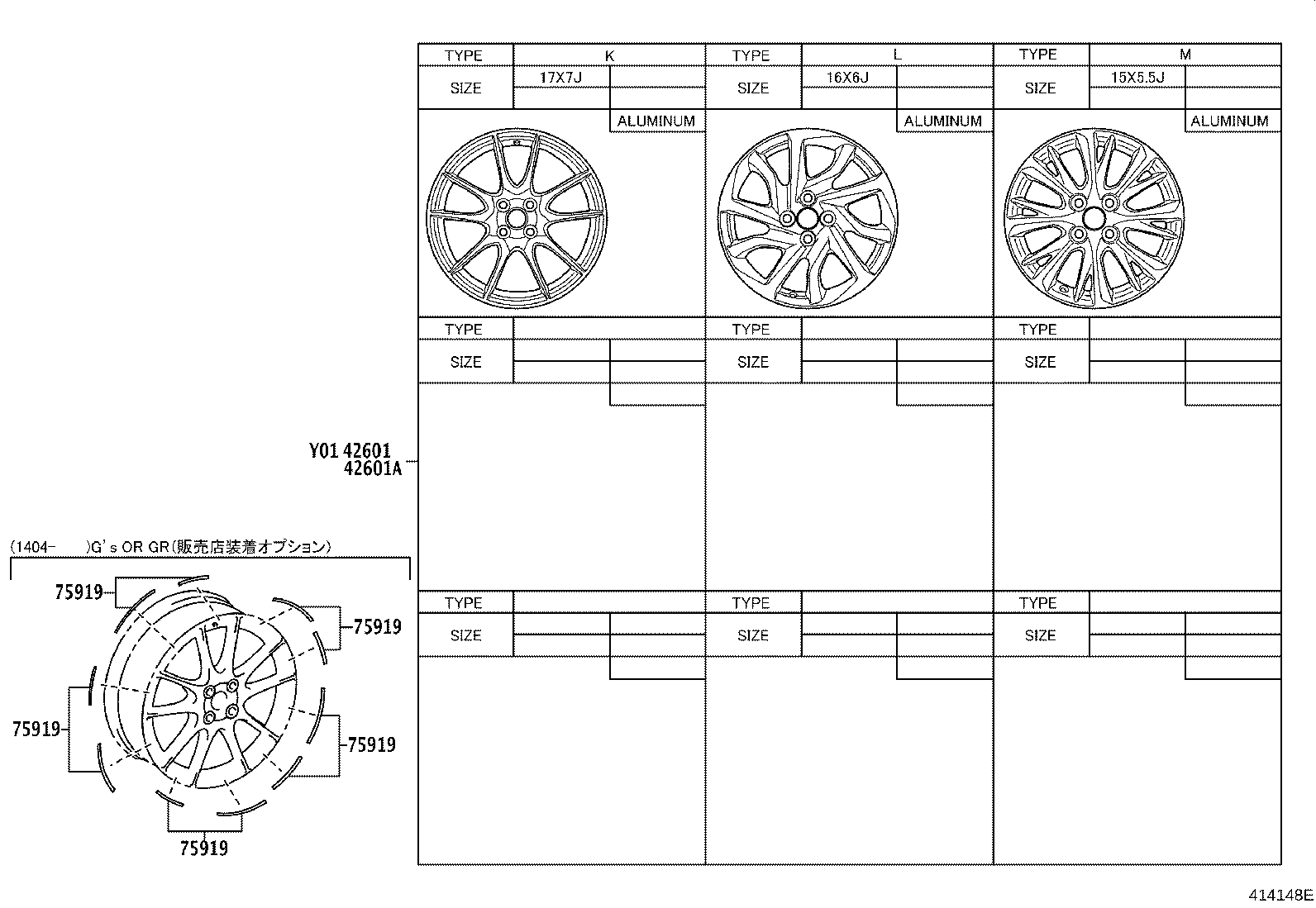

ILLUST NO. 2 OF 5(1012- )

Click highlighted areas on diagram

ﾃﾞｨｽｸﾎｲｰﾙ

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-52780	NCP131,NSP130..U..CBU 15X5.5J,#,TYPE A:ｲﾗｽﾄ参照	05/2012 - 04/2014	4
42611-52770	NCP131,NSP130..U..CBU 15X5J,#,TYPE A:ｲﾗｽﾄ参照	12/2010 - 05/2012	4
42611-WY130	NCP131..RS 17X7J,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/45R17 7J ｱﾙﾐ G’S,TYPE F:ｲﾗｽﾄ参照	10/2011 - 09/2012	4
42611-WY140	NCP131..RS 17X7J,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/45R17 7J ｱﾙﾐ有り(激bﾄﾞﾗｲﾝﾘﾑ) G’S,TYPE F:ｲﾗｽﾄ参照	10/2011 - 09/2012	4
42611-52790	KSP130,NCP131,NSP130..(F,JEWL,U)..CBU 15X5J,#,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,TYPE B:ｲﾗｽﾄ参照	12/2010 - 05/2012	4
42611-52810	KSP130,NCP131,NSP130..(F,JEWL,U)..CBU 15X5.5J,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ,TYPE B:ｲﾗｽﾄ参照	05/2012 - 04/2014	4
42611-WY130	NCP131..RS 17X7J,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/45R17 7J ｱﾙﾐ G’S,TYPE F:ｲﾗｽﾄ参照	09/2012 - 04/2014	4
42611-52830	NCP131..RS 16X6J,#,TYPE C:ｲﾗｽﾄ参照	12/2010 - 04/2014	4
42611-WY140	NCP131..RS 17X7J,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/45R17 7J ｱﾙﾐ有り(激bﾄﾞﾗｲﾝﾘﾑ) G’S,TYPE F:ｲﾗｽﾄ参照	09/2012 - 04/2014	4
42601A - WHEEL, DISC (FOR SPARE)
42611-1A010	KSP130,NCP131,NSP130..(F,JEWL,U)..CBU 15X4T,ｽﾍﾟｱﾀｲﾔ−T125/70D15,TYPE D:ｲﾗｽﾄ参照	12/2010 - 04/2014	1
42611-1A240	NCP131..RS 16X4T,TYPE E:ｲﾗｽﾄ参照	12/2010 - 04/2014	1

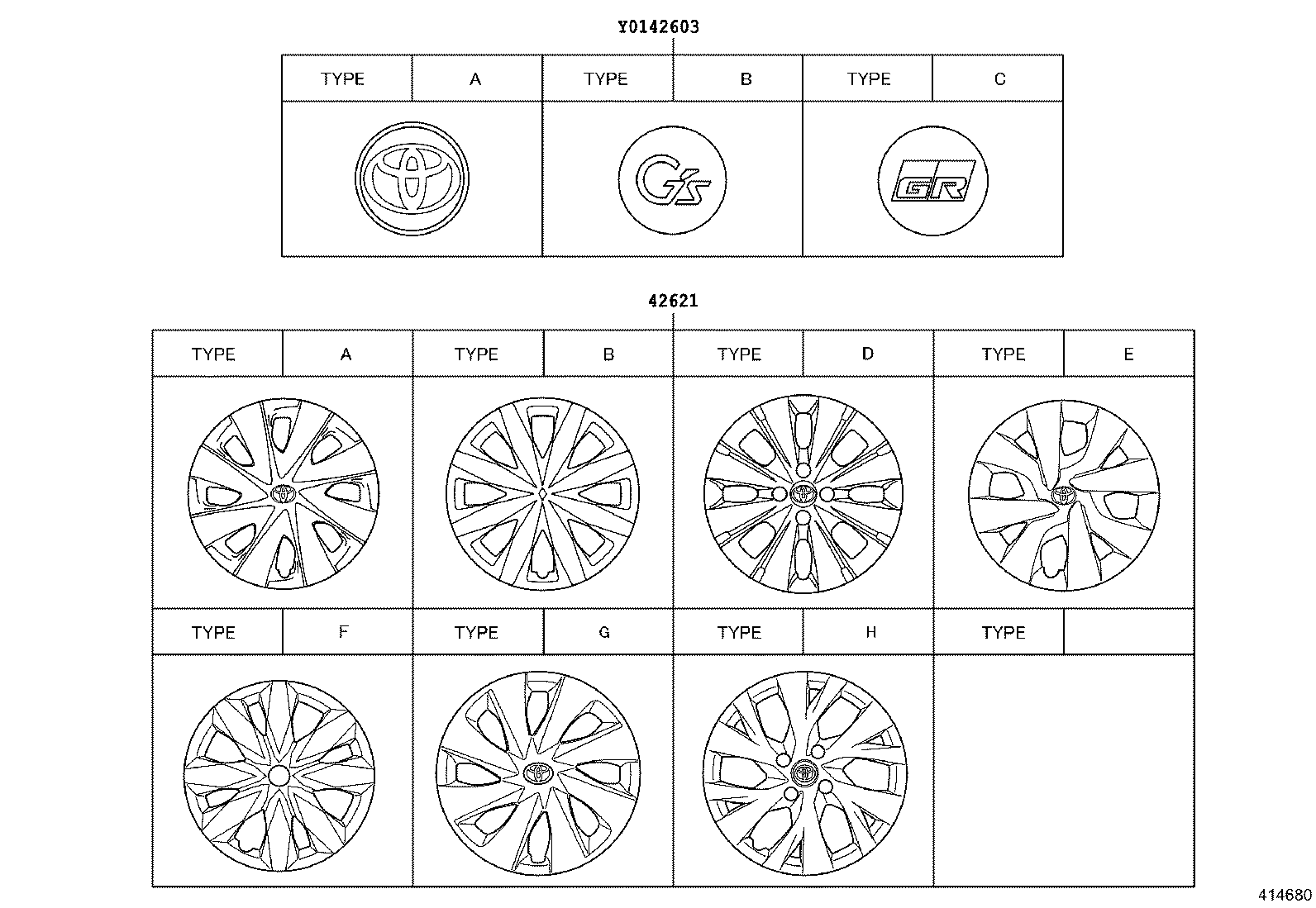

ILLUST NO. 3 OF 5(1012- )

Click highlighted areas on diagram

ﾎｲｰﾙﾊﾌﾞｵｰﾅﾒﾝﾄ & ﾎｲｰﾙｲｷｬｯﾌﾟ

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-52150	KSP130,NCP131,NSP130..(F,JEWL,U)..CBU *ALU,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5J ｱﾙﾐ,TYPEA:ｲﾗｽﾄ参照	12/2010 - 05/2012	4
42603-52110	NCP131..RS CHR OR ALU,TYPE A:ｲﾗｽﾄ参照	12/2010 - 04/2014	4
42603-52150	KSP130,NCP131,NSP130..(F,JEWL,U)..CBU *ALU,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−175/65R15 5.5J ｱﾙﾐ,TYPEA:ｲﾗｽﾄ参照	05/2012 - 04/2014	4
42603-WY020	NCP131..RS *ALU,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/45R17 7J ｱﾙﾐ G’S,TYPE B:ｲﾗｽﾄ参照	10/2011 - 04/2014	4
42603-WY020	NCP131..RS *ALU,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/45R17 7J ｱﾙﾐ有り(ﾚｯﾄﾞ宴Cﾝﾘﾑ) G’S,TYPE B:ｲﾗｽﾄ参照	10/2011 - 04/2014	4
42621 - CAP, WHEEL
42602-52520	NCP131,NSP13#..U..CBU TYPE D:ｲﾗｽﾄ参照	12/2010 - 04/2014	4

ILLUST NO. 5 OF 5(1012- )

Click highlighted areas on diagram

ﾀｲﾔｻｲｽﾞ

Part #	Description	Period	Qty	Price
