NCP131-AHXVK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )NCP131..CVT

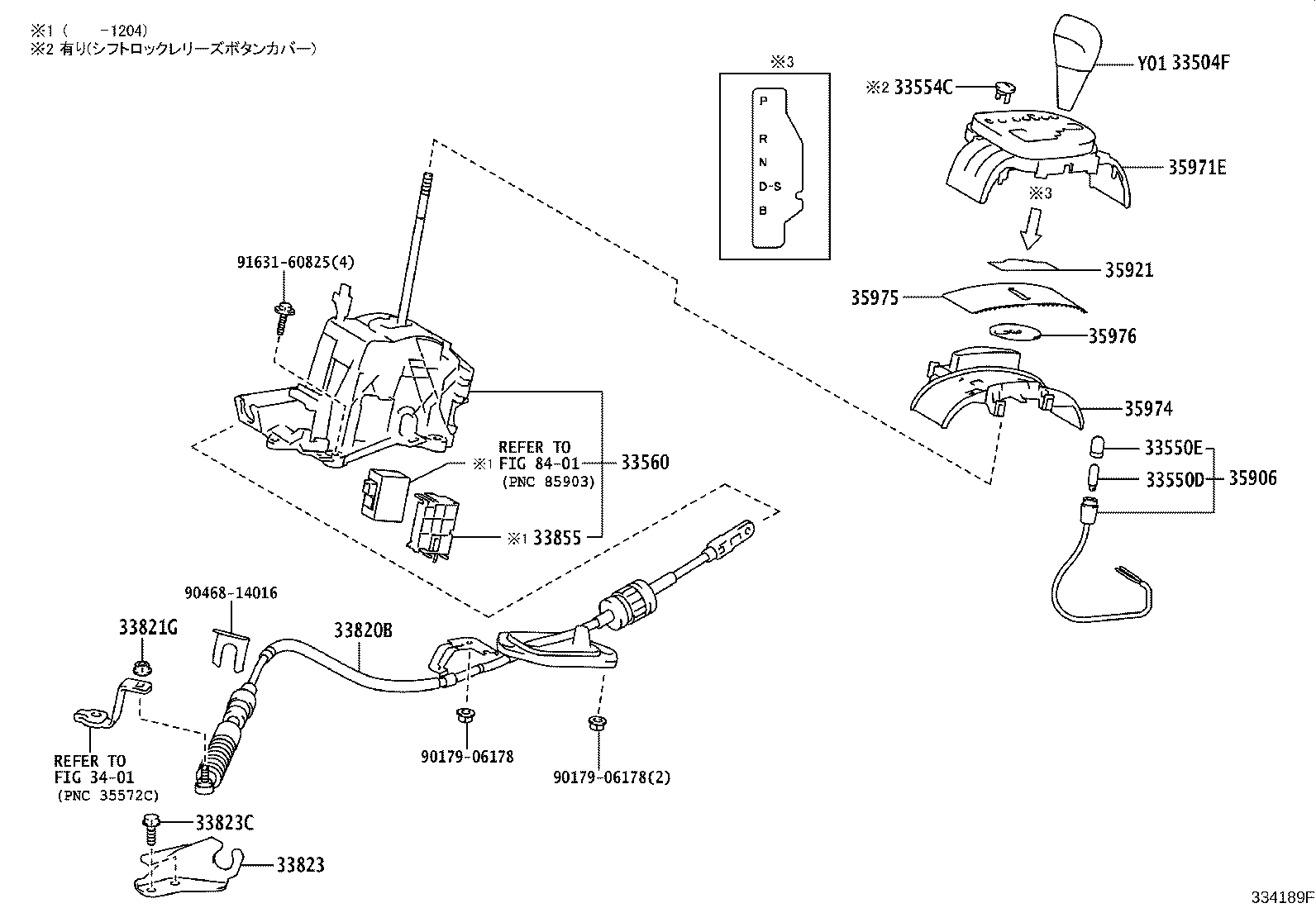

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33554C 33560 33820B 33821G 33823 33823C 33855 3401 35906 35921 35971E 35974 35975 35976 8401 9017906178 9017906178 9046814016 9163160825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-52160C0

NCP131,NSP13#..U..CBU

BLACK,TRIM1#

 1
33504-WY030C0

NCP131..CVT..RS

G’s,BLACK,TRIM1#

 1
33504-52170C0

NCP131..CVT..RS

BLACK,TRIM1#

 1
33550D - BULB, POSITION INDICATOR LAMP
35955-74010

KSP130,NCP131,NSP13#..CVT..CBU

12V 1.4W

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-52010

KSP130,NCP131,NSP13#..CVT..CBU

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-52420

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 1
33560-52430

NCP131..CVT..RS

 1
33560-52431

NCP131..CVT..RS

 1
33560-52430

NCP131..CVT..RS

G’s

 1
33560-52421

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-52760

NCP131..CVT

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

KSP130,NCP131,NSP13#..CVT..CBU

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-52120

NCP131..CVT

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-B0816

KSP130,NCP131,NSP13#..CVT..CBU

 2
33855 - COVER, SHIFT LOCK UNIT
33855-52020

KSP130,NCP131,NSP13#..CVT..CBU

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-52150

KSP130,NCP131,NSP13#..CVT..CBU

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-52130

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 1
35921-52140

NCP131..CVT..RS

 1
35971E - HOUSING, POSITION INDICATOR
35971-WY010

NCP131..CVT..RS

G’s

 1
35971-52480

NCP131..CVT..RS

 1
35971-52470

KSP130,NCP131,NSP13#..(JEWL,U)..CBU

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-52050

KSP130,NCP131,NSP13#..CVT..CBU

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-52140

KSP130,NCP131,NSP13#..CVT..CBU

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-52140

KSP130,NCP131,NSP13#..CVT..CBU

 1
Common parts
90179-06178
90468-14016
91631-60825
Linked diagrams
3401
8401
