NCP131-AHXVK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )1NZFE

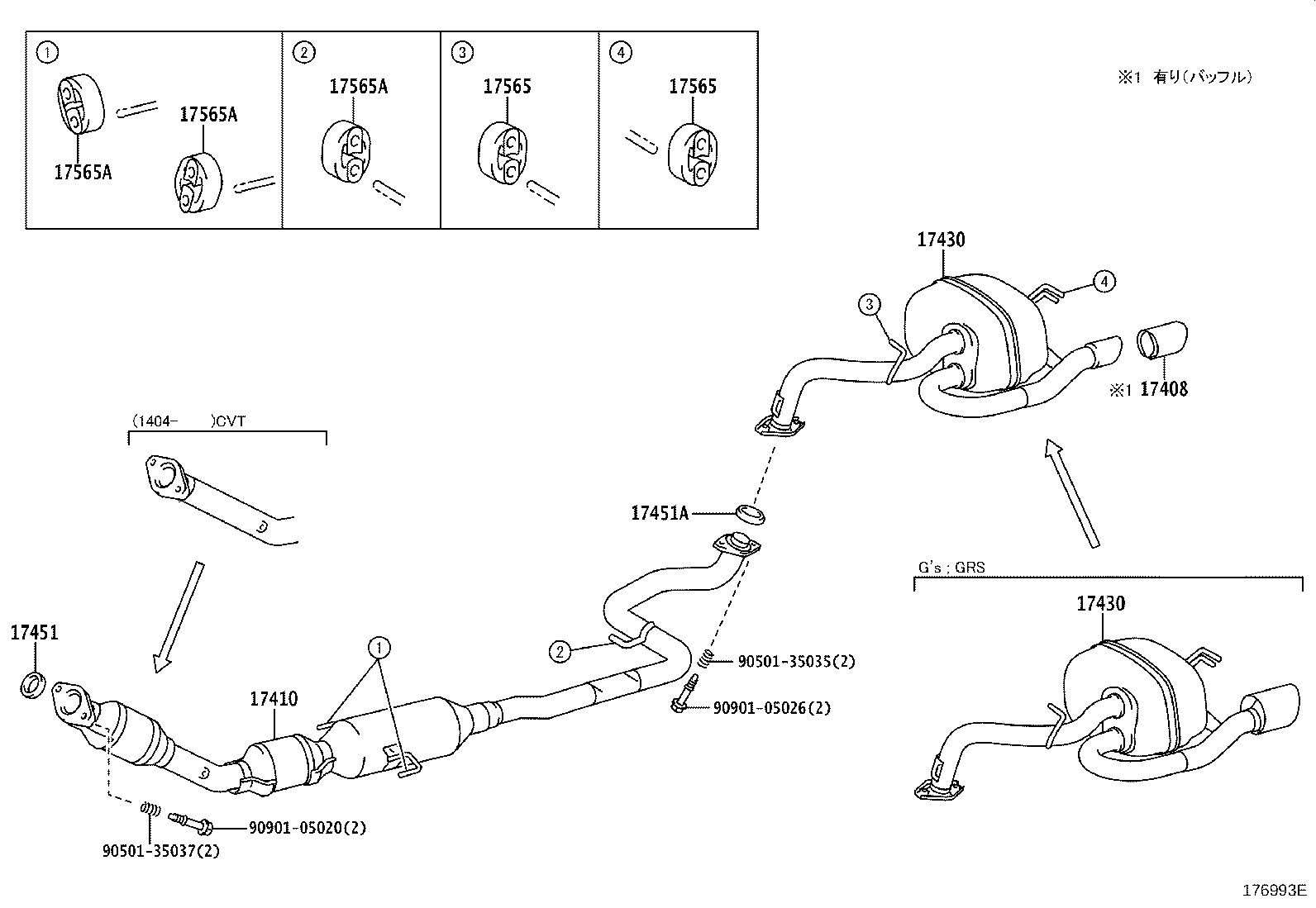

Click highlighted areas on diagram

diagram 17408 17410 17430 17430 17451 17451A 17565 17565 17565A 17565A 17565A 9050135035 9050135037 9090105020 9090105026
Part # Description Qty Price
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
00000-00000

1NZFE..NCP131..RS

G’s,該当品番なし

 1
17408-21030

1NZFE..NCP131..RS

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-21A90

1NZFE..NCP131

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-21790

1NZFE..NCP131..RS

 1
17430-21830

1NZFE..NCP131..U

 1
17430-WY022

1NZFE..NCP131..RS

G’s

 1
17430-21791

1NZFE..NCP131..RS

 1
17430-WY021

1NZFE..NCP131..RS

G’s

 1
17430-21831

1NZFE..NCP131..U

 1
17430-WY020

1NZFE..NCP131..RS

G’s

 1
17430-21792

1NZFE..NCP131..RS

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-21790

1NZFE..NCP131..RS

 1
17430-21830

1NZFE..NCP131..U

 1
17430-WY022

1NZFE..NCP131..RS

G’s

 1
17430-21791

1NZFE..NCP131..RS

 1
17430-WY021

1NZFE..NCP131..RS

G’s

 1
17430-21831

1NZFE..NCP131..U

 1
17430-WY020

1NZFE..NCP131..RS

G’s

 1
17430-21792

1NZFE..NCP131..RS

 1
17451 - GASKET, EXHAUST PIPE
17451-21070

1N#..NCP131,NSP13#..CBU

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-23042

1NZFE..NCP131

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-47010

1NZFE..NCP131

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-47010

1NZFE..NCP131

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1NZFE..NCP131

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1NZFE..NCP131

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1NZFE..NCP131

 3
Common parts
90501-35035
90501-35037
90901-05020
90901-05026
