NCP131-AHXVK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

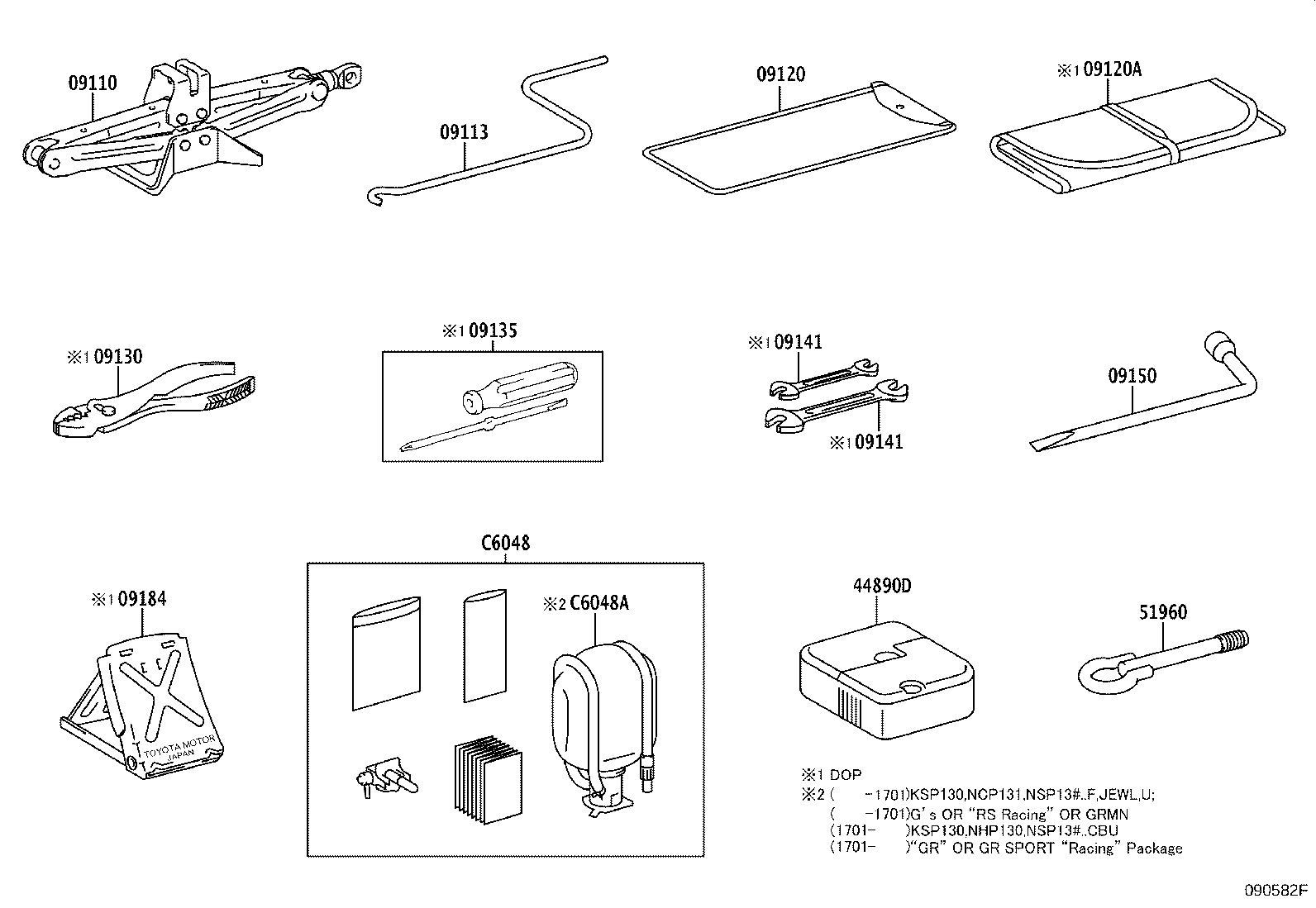

Click highlighted areas on diagram

diagram 09110 09113 09120 09120A 09130 09135 09141 09141 09150 09184 44890D 51960 C6048 C6048A
Part # Description Qty Price
09110 - JACK ASSY
09111-52060

KSP130,NCP131,NSP13#..CBU

 1
09113 - HANDLE, JACK
09113-52040

KSP130,NCP131,NSP13#..CBU

 1
09113-20050

KSP130,NCP131,NSP13#..CBU

 1
09120 - BAG, TOOL
09120-37030

NCP131..RS

 1
09120-37030

KSP130,NCP131,NSP130..(F,JEWL,U)..CBU

ｽﾍﾟｱﾀｲﾔ−T125/70D15

 1
09120A - CASE, TOOL
09120-16030

KSP130,NCP131,NSP13#..CBU

ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ,輪止め

 1
09130 - PLIERS
99913-11500

KSP130,NCP131,NSP13#..CBU

ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ,輪止め

 1
09135 - DRIVER, SCREW
99915-10700

KSP130,NCP131,NSP13#..CBU

ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ,輪止め

 1
09141 - SPANNER
99914-11214

KSP130,NCP131,NSP13#..CBU

12 X 14,ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ,輪止め

 1
99914-10810

KSP130,NCP131,NSP13#..CBU

8 X 10,ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ,輪止め

 1
09141 - SPANNER
99914-11214

KSP130,NCP131,NSP13#..CBU

12 X 14,ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ,輪止め

 1
99914-10810

KSP130,NCP131,NSP13#..CBU

8 X 10,ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ,輪止め

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

KSP130,NCP131,NSP13#..CBU

 1
09184 - STOPPER, WHEEL
09184-00010

KSP130,NCP131,NSP13#..CBU

ﾂｰﾙ(DOP)−ﾄﾞﾗｲﾊﾞ,ｽﾊﾟﾅX2,ﾌﾟﾗｲﾔ,輪止め

 1
44890D - COMPRESSOR ASSY, AIR
44890-52021

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 1
44890-52020

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 1
51960 - HOOK ASSY, FRONT
51960-47020

KSP130,NCP131,NSP13#..CBU

 1
C6048 - REPAIR SET, TIRE
42683-52020

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 1
42683-52021

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 1
42683-52021

KSP130,NCP131,NSP130..(F,JEWL,U)..CBU

ｽﾍﾟｱﾀｲﾔ−T125/70D15

 1
42683-52020

KSP130,NCP131,NSP130..(F,JEWL,U)..CBU

ｽﾍﾟｱﾀｲﾔ−T125/70D15

 1
C6048A - SEALANT, REPAIR TIRE
C6048-52021

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 1
C6048-52020

KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU

 1
