NCP131-AHXEK (2010)

Toyota Vitz

Production Dec 2010 - Apr 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

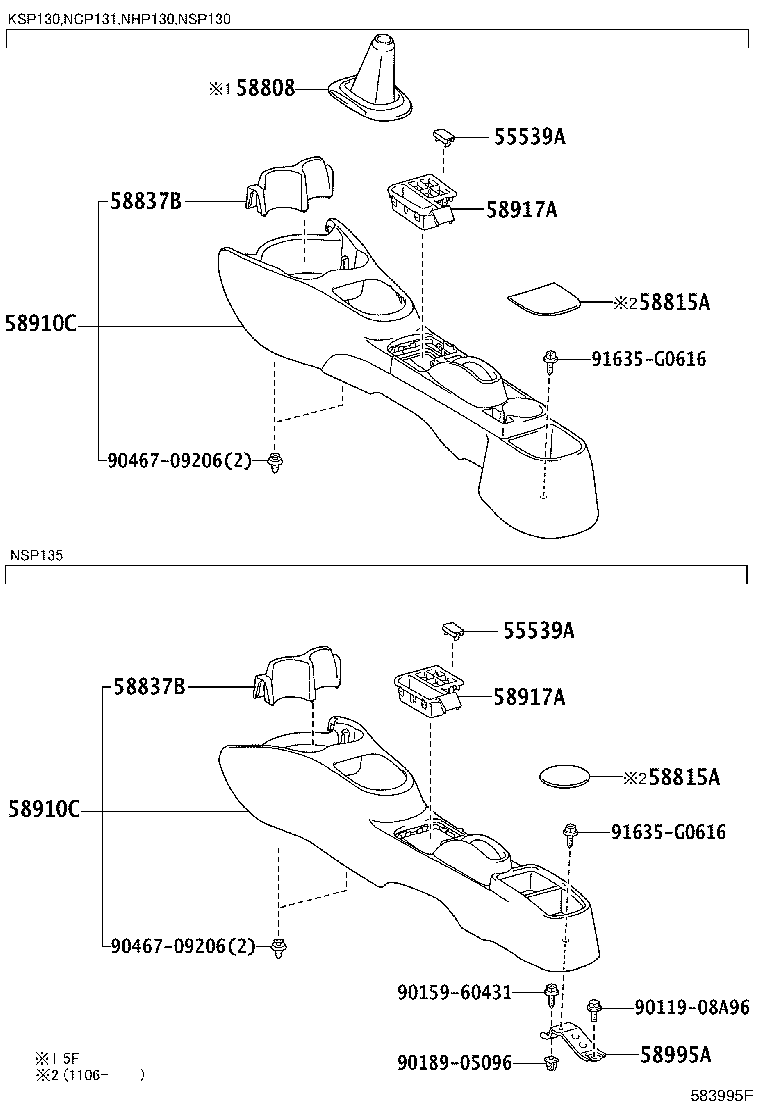

Click highlighted areas on diagram

diagram 55539A 55539A 58808 58815A 58815A 58837B 58837B 58910C 58910C 58917A 58917A 58995A 9011908A96 9015960431 9018905096 9046709206 9046709206 91635G0616 91635G0616
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-52070C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
55539A - COVER, SPARE SWITCH HOLE
55539-52070C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
58815A - CARPET, CONSOLE BOX
58815-52100

KSP130,NCP131,NSP130..CBU

 1
58815A - CARPET, CONSOLE BOX
58815-52100

KSP130,NCP131,NSP130..CBU

 1
58837B - BOX, CONSOLE CUP HOLDER
58837-52020C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
58837B - BOX, CONSOLE CUP HOLDER
58837-52020C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-52120C0

NCP131,NSP130..(RS,U)..CBU

BLACK,TRIM1#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-52120C0

NCP131,NSP130..(RS,U)..CBU

BLACK,TRIM1#

 1
58917A - COVER, CONSOLE BOX, REAR
58917-52110C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
58917A - COVER, CONSOLE BOX, REAR
58917-52110C0

NCP131,NSP13#..(RS,U)..CBU

BLACK,TRIM1#

 1
Common parts
90119-08A96
90159-60431
90189-05096
90467-09206
91635-G0616
