Toyota Vitz NCP13 FRONT STEERING GEAR & LINK

Part #	Description	Period	Qty
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-52020	NCP10,13,SCP10	12/2001 - 12/2002	1
04445-52050	NCP10,13,SCP10	11/2003 - 12/2999	1
04445-52020	NCP10,13,SCP10	08/2003 - 11/2003	1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-52010	NCP10,13,SCP10	01/1999 - 12/2001	1
04455-52010	NCP10,13,SCP10	08/2003 - 12/2999	1
04455-52010	NCP10,13,SCP10	12/2001 - 12/2002	1
40120 - GEAR ASSY,POWER STEERING,REBUILT
40120-52080	NCP13	10/2000 - 12/2001	1
40120-52080	NCP13	12/2001 - 12/2002	1
40120-52080	NCP13	12/2002 - 01/2005	1
44200 - LINK ASSY, POWER STEERING
44200-52110	NCP13	10/2000 - 12/2001	1
44200-52110	NCP13	12/2001 - 12/2002	1
44200-52110	NCP13	12/2002 - 12/2999	1
44243 - INSULATOR, POWER STEERING RACK HOUSING HEAT
44243-52032	NCP10,13	12/2002 - 12/2999	1
44243-52032	NCP10,13	07/2002 - 12/2002	1
44243-52031	NCP10,13	09/2001 - 12/2001	1
44243-52031	NCP10,13	12/2001 - 07/2002	1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-52080	NCP13	10/2000 - 12/2001	1
44250-52080	NCP13	12/2001 - 09/2002	1
45046 - END SUB-ASSY, TIE ROD, RH
45046-19175	NCP13	10/2000 - 12/2001	1
45046-19175	NCP13	12/2001 - 12/2002	1
45046-19175	NCP13	12/2002 - 01/2005	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	NCP1#,SCP10	01/1999 - 12/2001	2
90171-12028	NCP1#,SCP10	12/2001 - 12/2002	2
90171-12028	NCP1#,SCP1#	12/2002 - 12/2999	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	NCP1#,SCP10	01/1999 - 12/2001	2
90171-12028	NCP1#,SCP10	12/2001 - 12/2002	2
90171-12028	NCP1#,SCP1#	12/2002 - 12/2999	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	NCP1#,SCP10	01/1999 - 12/2001	2
90171-12028	NCP1#,SCP10	12/2001 - 12/2002	2
90171-12028	NCP1#,SCP1#	12/2002 - 12/2999	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	NCP1#,SCP10	01/1999 - 12/2001	2
90171-12028	NCP1#,SCP10	12/2001 - 12/2002	2
90171-12028	NCP1#,SCP1#	12/2002 - 12/2999	2
45047 - END SUB-ASSY, TIE ROD, LH
45046-19175	NCP13	10/2000 - 12/2001	1
45046-19175	NCP13	12/2002 - 01/2005	1
45046-19175	NCP13	12/2001 - 12/2002	1
45503 - END SUB-ASSY, STEERING RACK
45503-59045	NCP1#,SCP10 ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ),L=256:ｲﾗｽﾄｻﾝｼｮｳ	01/1999 - 11/1999	2
45503-59055	NCP13 ｲﾗｽﾄｻﾝｼﾖｳ,長さ=356	12/2002 - 01/2005	2
45503-59055	NCP13 ｲﾗｽﾄｻﾝｼﾖｳ,長さ=356	10/2000 - 12/2001	2
45503-59055	NCP13 ｲﾗｽﾄｻﾝｼﾖｳ,長さ=356	12/2001 - 12/2002	2
45503 - END SUB-ASSY, STEERING RACK
45503-59045	NCP1#,SCP10 ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ),L=256:ｲﾗｽﾄｻﾝｼｮｳ	01/1999 - 11/1999	2
45503-59055	NCP13 ｲﾗｽﾄｻﾝｼﾖｳ,長さ=356	12/2002 - 01/2005	2
45503-59055	NCP13 ｲﾗｽﾄｻﾝｼﾖｳ,長さ=356	10/2000 - 12/2001	2
45503-59055	NCP13 ｲﾗｽﾄｻﾝｼﾖｳ,長さ=356	12/2001 - 12/2002	2
45503 - END SUB-ASSY, STEERING RACK
45503-59045	NCP1#,SCP10 ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ),L=256:ｲﾗｽﾄｻﾝｼｮｳ	01/1999 - 11/1999	2
45503-59055	NCP13 ｲﾗｽﾄｻﾝｼﾖｳ,長さ=356	12/2002 - 01/2005	2
45503-59055	NCP13 ｲﾗｽﾄｻﾝｼﾖｳ,長さ=356	10/2000 - 12/2001	2
45503-59055	NCP13 ｲﾗｽﾄｻﾝｼﾖｳ,長さ=356	12/2001 - 12/2002	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14010	NCP10,13,SCP10 外径=34	12/2001 - 12/2002	2
90214-14010	NCP10,13,SCP10 外径=34	12/2002 - 12/2999	2
90214-14010	NCP10,13,SCP10 外径=34	01/1999 - 12/2001	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14010	NCP10,13,SCP10 外径=34	12/2001 - 12/2002	2
90214-14010	NCP10,13,SCP10 外径=34	12/2002 - 12/2999	2
90214-14010	NCP10,13,SCP10 外径=34	01/1999 - 12/2001	2
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-52010	NCP10,13,SCP10	01/1999 - 12/2001	1
45515-52010	NCP10,13,SCP10	12/2001 - 12/2002	1
45515-52010	NCP10,13,SCP1#	12/2002 - 12/2999	1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-52010	NCP10,13	12/2001 - 12/2002	1
45517-52010	SCP10..4HC;NCP10,13,SCP13	12/2002 - 12/2999	1
45535 - BOOT, STEERING RACK, NO.1
45535-52050	NCP13	10/2000 - 09/2001	1
45535-13010	NCP13	09/2001 - 12/2001	1
45535-13010	NCP13	12/2001 - 12/2002	1
45535-13010	NCP13	12/2002 - 12/2999	1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	NCP13	10/2000 - 12/2001	2
90467-19019	NCP13	12/2002 - 12/2999	2
90467-19019	NCP13	12/2001 - 12/2002	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	NCP13	10/2000 - 12/2001	2
90467-19019	NCP13	12/2002 - 12/2999	2
90467-19019	NCP13	12/2001 - 12/2002	2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-55016	NCP10,13,SCP10	01/1999 - 12/2001	1
90460-55016	NCP10,13,SCP10	12/2002 - 01/2005	1
90460-55016	NCP10,13,SCP10	12/2001 - 12/2002	1
45536 - BOOT, STEERING RACK, NO.2
45535-52050	NCP13	10/2000 - 09/2001	1
45535-13010	NCP13	09/2001 - 12/2001	1
45535-13010	NCP13	12/2001 - 12/2002	1
45535-13010	NCP13	12/2002 - 12/2999	1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-55016	NCP10,13,SCP10	01/1999 - 12/2001	1
90460-55016	NCP10,13,SCP10	12/2001 - 12/2002	1
90460-55016	NCP10,13,SCP10	12/2002 - 01/2005	1
Common parts
90119-12340
90119-12341
90170-12018
90170-14012
90178-12009
91651-B0610
95381-03020

NCP13-AHPVK (2000)

(0112- )NCP10,13

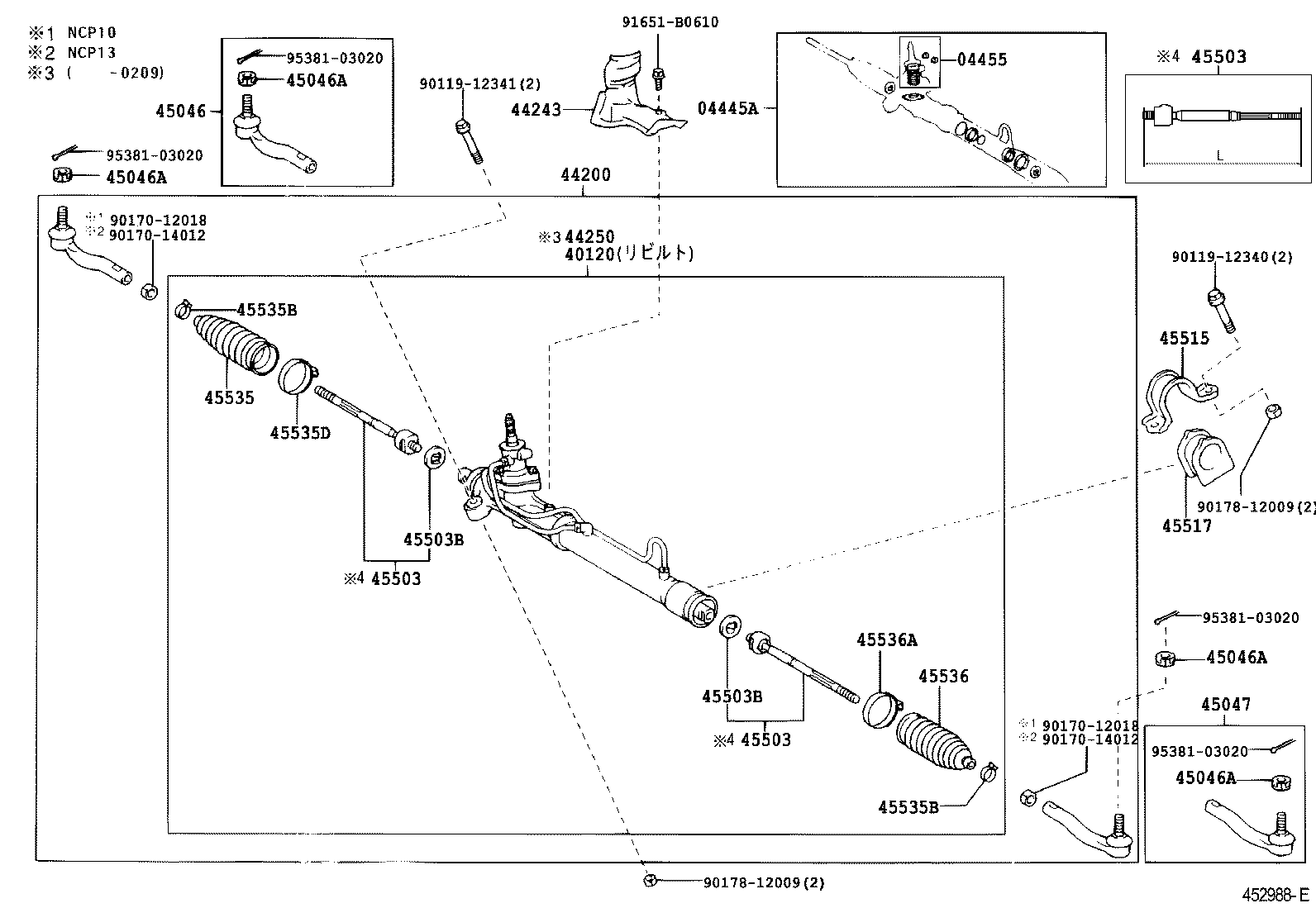

ILLUST NO. 1 OF 3(9901-0112)
