NCP13-AGPVK (2000)
Toyota Vitz

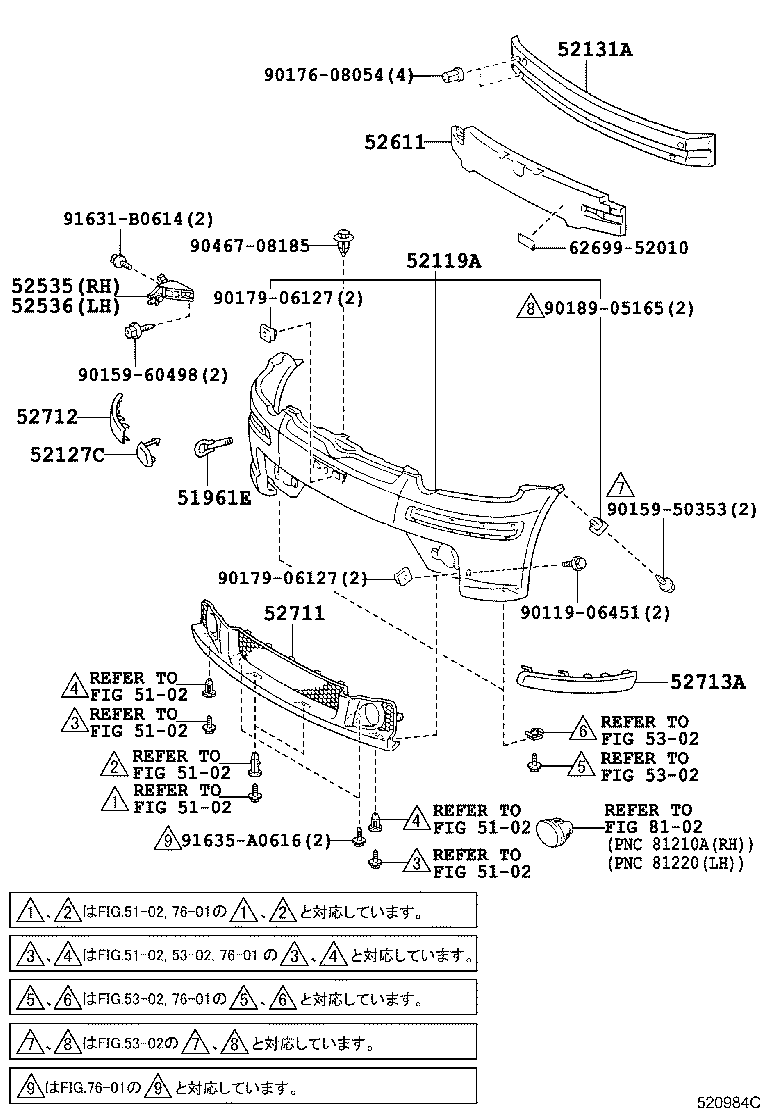

(9901-0112)B,F,U
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51961E - HOOK, FRONT | ||||
| 51960-52040 |
NCP1#,SCP10 |
1 | ||
| 51960-52040 |
NCP1#,SCP1# |
1 | ||
| 51960-52010 |
NCP1#,SCP10 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-52140C0 |
NCP10,13..RS BLACK MC.,209 |
1 | ||
| 52119-52140D0 |
NCP10,13..RS SUPER RED 5,3P0 |
1 | ||
| 52119-52140B0 |
NCP10,13..RS GRAY ME.,1D2 |
1 | ||
| 52119-52140F0 |
NCP10,13..RS YELLOW M.M.,580 |
1 | ||
| 52119-52140J0 |
NCP10,13..RS STRONG BLUE M,8B6 |
1 | ||
| 52119-52140A0 |
NCP10,13..RS WHITE,068 |
1 | ||
| 52119-52140B0 |
NCP10,13..RS GRAY ME.,1D2 |
1 | ||
| 52119-52140C0 |
NCP10,13..RS BLACK MC.,209 |
1 | ||
| 52119-52140J0 |
NCP10,13..RS STRONG BLUE M,8B6 |
1 | ||
| 52119-52140D0 |
NCP10,13..RS SUPER RED 5,3P0 |
1 | ||
| 52119-52140A0 |
NCP10,13..RS WHITE,068 |
1 | ||
| 52119-52320J0 |
NCP10,13 BLUE ME.,8P1 |
1 | ||
| 52119-52320A0 |
NCP10,13 WHITE,068 |
1 | ||
| 52119-52320D0 |
NCP10,13 SUPER RED 5,3P0 |
1 | ||
| 52119-52320C0 |
NCP10,13 BLACK MC.,209 |
1 | ||
| 52119-52320B0 |
NCP10,13 GRAY ME.,1D2 |
1 | ||
| 52119-52918 |
NCP10,13 ﾄｿｳ ﾅｼ |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-52090J0 |
NCP10,13..RS STRONG BLUE M,8B6 |
1 | ||
| 52127-52090C0 |
NCP10,13..RS BLACK MC.,209 |
1 | ||
| 52127-52090F0 |
NCP10,13..RS YELLOW M.M.,580 |
1 | ||
| 52127-52090D0 |
NCP10,13..RS SUPER RED 5,3P0 |
1 | ||
| 52127-52090A0 |
NCP10,13..RS WHITE,068 |
1 | ||
| 52127-52090B0 |
NCP10,13..RS GRAY ME.,1D2 |
1 | ||
| 52127-52090A0 |
NCP10,13..RS WHITE,068 |
1 | ||
| 52127-52090D0 |
NCP10,13..RS SUPER RED 5,3P0 |
1 | ||
| 52127-52090C0 |
NCP10,13..RS BLACK MC.,209 |
1 | ||
| 52127-52090J0 |
NCP10,13..RS STRONG BLUE M,8B6 |
1 | ||
| 52127-52090B0 |
NCP10,13..RS GRAY ME.,1D2 |
1 | ||
| 52721-52060C0 |
NCP10,13 BLACK MC.,209 |
1 | ||
| 52721-52060B0 |
NCP10,13 GRAY ME.,1D2 |
1 | ||
| 52721-52060A0 |
NCP10,13 WHITE,068 |
1 | ||
| 52721-52060D0 |
NCP10,13 SUPER RED 5,3P0 |
1 | ||
| 52721-52060J0 |
NCP10,13 BLUE ME.,8P1 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-52070 |
NCP1#,SCP1# |
1 | ||
| 52131-52070 |
NCP1#,SCP10 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-52012 |
NCP1#,SCP10 |
1 | ||
| 52535-52011 |
NCP1#,SCP10 |
1 | ||
| 52535-52012 |
NCP1#,SCP1# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-52012 |
NCP1#,SCP10 |
1 | ||
| 52536-52011 |
NCP1#,SCP10 |
1 | ||
| 52536-52012 |
NCP1#,SCP1# |
1 | ||
| Common parts | ||||
| 90119-06451 | ||||
| 90159-50353 | ||||
| 90159-60498 | ||||
| 90176-08054 | ||||
| 90179-06127 | ||||
| 90189-05165 | ||||
| 90467-08185 | ||||
| 91635-A0616 | ||||
| 91635-B0618 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||

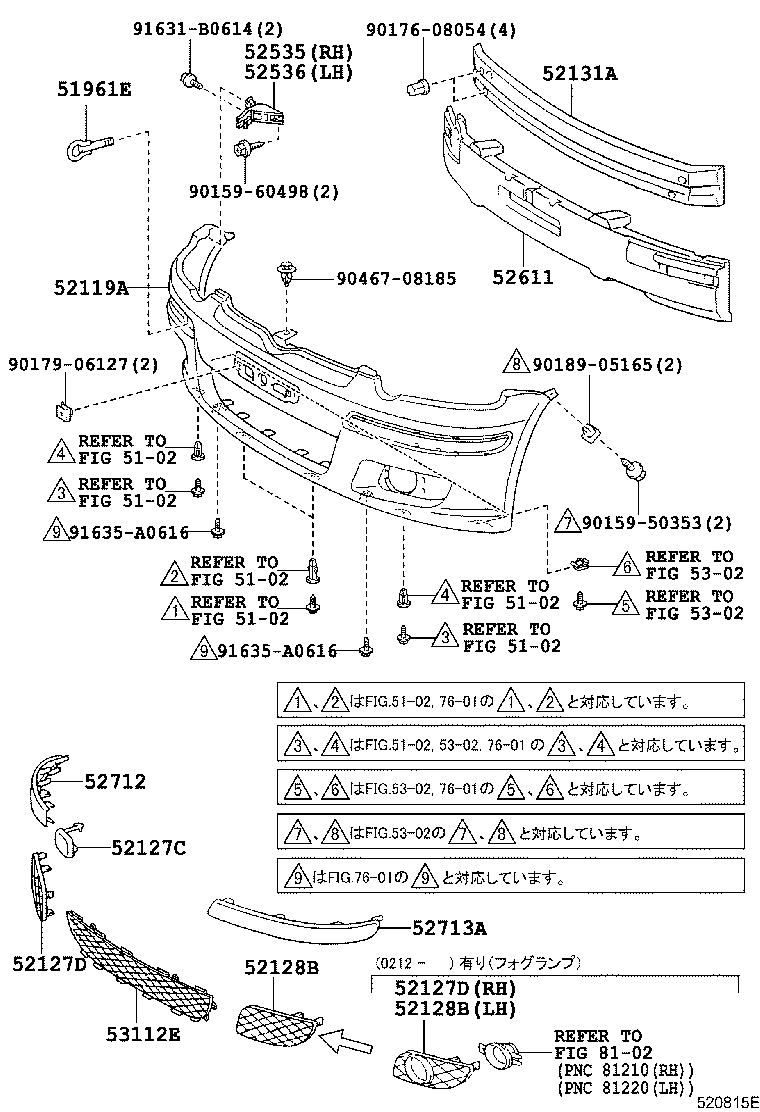

(0112-0212)B,F,U ; (0212- )NCP15,SCP1#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51961E - HOOK, FRONT | ||||
| 51960-52040 |
NCP1#,SCP10 |
1 | ||
| 51960-52040 |
NCP1#,SCP1# |
1 | ||
| 51960-52010 |
NCP1#,SCP10 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-52140C0 |
NCP10,13..RS BLACK MC.,209 |
1 | ||
| 52119-52140D0 |
NCP10,13..RS SUPER RED 5,3P0 |
1 | ||
| 52119-52140B0 |
NCP10,13..RS GRAY ME.,1D2 |
1 | ||
| 52119-52140F0 |
NCP10,13..RS YELLOW M.M.,580 |
1 | ||
| 52119-52140J0 |
NCP10,13..RS STRONG BLUE M,8B6 |
1 | ||
| 52119-52140A0 |
NCP10,13..RS WHITE,068 |
1 | ||
| 52119-52140B0 |
NCP10,13..RS GRAY ME.,1D2 |
1 | ||
| 52119-52140C0 |
NCP10,13..RS BLACK MC.,209 |
1 | ||
| 52119-52140J0 |
NCP10,13..RS STRONG BLUE M,8B6 |
1 | ||
| 52119-52140D0 |
NCP10,13..RS SUPER RED 5,3P0 |
1 | ||
| 52119-52140A0 |
NCP10,13..RS WHITE,068 |
1 | ||
| 52119-52320J0 |
NCP10,13 BLUE ME.,8P1 |
1 | ||
| 52119-52320A0 |
NCP10,13 WHITE,068 |
1 | ||
| 52119-52320D0 |
NCP10,13 SUPER RED 5,3P0 |
1 | ||
| 52119-52320C0 |
NCP10,13 BLACK MC.,209 |
1 | ||
| 52119-52320B0 |
NCP10,13 GRAY ME.,1D2 |
1 | ||
| 52119-52918 |
NCP10,13 ﾄｿｳ ﾅｼ |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-52090J0 |
NCP10,13..RS STRONG BLUE M,8B6 |
1 | ||
| 52127-52090C0 |
NCP10,13..RS BLACK MC.,209 |
1 | ||
| 52127-52090F0 |
NCP10,13..RS YELLOW M.M.,580 |
1 | ||
| 52127-52090D0 |
NCP10,13..RS SUPER RED 5,3P0 |
1 | ||
| 52127-52090A0 |
NCP10,13..RS WHITE,068 |
1 | ||
| 52127-52090B0 |
NCP10,13..RS GRAY ME.,1D2 |
1 | ||
| 52127-52090A0 |
NCP10,13..RS WHITE,068 |
1 | ||
| 52127-52090D0 |
NCP10,13..RS SUPER RED 5,3P0 |
1 | ||
| 52127-52090C0 |
NCP10,13..RS BLACK MC.,209 |
1 | ||
| 52127-52090J0 |
NCP10,13..RS STRONG BLUE M,8B6 |
1 | ||
| 52127-52090B0 |
NCP10,13..RS GRAY ME.,1D2 |
1 | ||
| 52721-52060C0 |
NCP10,13 BLACK MC.,209 |
1 | ||
| 52721-52060B0 |
NCP10,13 GRAY ME.,1D2 |
1 | ||
| 52721-52060A0 |
NCP10,13 WHITE,068 |
1 | ||
| 52721-52060D0 |
NCP10,13 SUPER RED 5,3P0 |
1 | ||
| 52721-52060J0 |
NCP10,13 BLUE ME.,8P1 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-52070 |
NCP1#,SCP1# |
1 | ||
| 52131-52070 |
NCP1#,SCP10 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-52012 |
NCP1#,SCP10 |
1 | ||
| 52535-52011 |
NCP1#,SCP10 |
1 | ||
| 52535-52012 |
NCP1#,SCP1# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-52012 |
NCP1#,SCP10 |
1 | ||
| 52536-52011 |
NCP1#,SCP10 |
1 | ||
| 52536-52012 |
NCP1#,SCP1# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-52060 |
NCP10,13 |
1 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-52100A0 |
NCP10,13 WHITE,068 |
1 | ||
| 52712-52100B0 |
NCP10,13 GRAY ME.,1D2 |
1 | ||
| 52712-52100A0 |
NCP10,13 WHITE,068 |
1 | ||
| 52712-52100C0 |
NCP10,13 BLACK MC.,209 |
1 | ||
| 52712-52100D0 |
NCP10,13 SUPER RED 5,3P0 |
1 | ||
| 52712-52100J0 |
NCP10,13 BLUE ME.,8P1 |
1 | ||
| 52713A - MOULDING, FRONT BUMPER SIDE, LH | ||||
| 52713-52100A0 |
NCP10,13 WHITE,068 |
1 | ||
| 52713-52100B0 |
NCP10,13 GRAY ME.,1D2 |
1 | ||
| 52713-52100D0 |
NCP10,13 SUPER RED 5,3P0 |
1 | ||
| 52713-52100J0 |
NCP10,13 BLUE ME.,8P1 |
1 | ||
| 52713-52100C0 |
NCP10,13 BLACK MC.,209 |
1 | ||
| 52713-52100A0 |
NCP10,13 WHITE,068 |
1 | ||
| Common parts | ||||
| 90159-50353 | ||||
| 90159-60498 | ||||
| 90176-08054 | ||||
| 90179-06127 | ||||
| 90189-05165 | ||||
| 90467-08185 | ||||
| 91631-B0614 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8102 | ||||

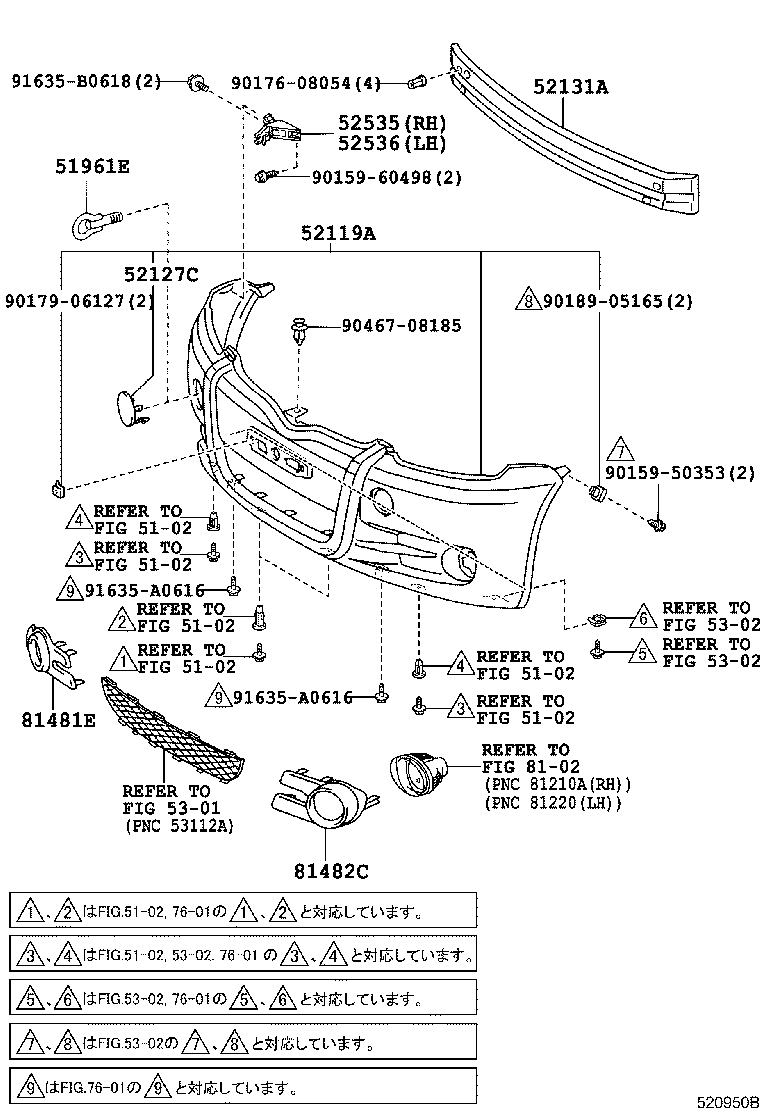

(0010-0212)RS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51961E - HOOK, FRONT | ||||
| 51960-52040 |
NCP1#,SCP10 |
1 | ||
| 51960-52040 |
NCP1#,SCP1# |
1 | ||
| 51960-52010 |
NCP1#,SCP10 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-52140C0 |
NCP10,13..RS BLACK MC.,209 |
1 | ||
| 52119-52140D0 |
NCP10,13..RS SUPER RED 5,3P0 |
1 | ||
| 52119-52140B0 |
NCP10,13..RS GRAY ME.,1D2 |
1 | ||
| 52119-52140F0 |
NCP10,13..RS YELLOW M.M.,580 |
1 | ||
| 52119-52140J0 |
NCP10,13..RS STRONG BLUE M,8B6 |
1 | ||
| 52119-52140A0 |
NCP10,13..RS WHITE,068 |
1 | ||
| 52119-52140B0 |
NCP10,13..RS GRAY ME.,1D2 |
1 | ||
| 52119-52140C0 |
NCP10,13..RS BLACK MC.,209 |
1 | ||
| 52119-52140J0 |
NCP10,13..RS STRONG BLUE M,8B6 |
1 | ||
| 52119-52140D0 |
NCP10,13..RS SUPER RED 5,3P0 |
1 | ||
| 52119-52140A0 |
NCP10,13..RS WHITE,068 |
1 | ||
| 52119-52320J0 |
NCP10,13 BLUE ME.,8P1 |
1 | ||
| 52119-52320A0 |
NCP10,13 WHITE,068 |
1 | ||
| 52119-52320D0 |
NCP10,13 SUPER RED 5,3P0 |
1 | ||
| 52119-52320C0 |
NCP10,13 BLACK MC.,209 |
1 | ||
| 52119-52320B0 |
NCP10,13 GRAY ME.,1D2 |
1 | ||
| 52119-52918 |
NCP10,13 ﾄｿｳ ﾅｼ |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-52090J0 |
NCP10,13..RS STRONG BLUE M,8B6 |
1 | ||
| 52127-52090C0 |
NCP10,13..RS BLACK MC.,209 |
1 | ||
| 52127-52090F0 |
NCP10,13..RS YELLOW M.M.,580 |
1 | ||
| 52127-52090D0 |
NCP10,13..RS SUPER RED 5,3P0 |
1 | ||
| 52127-52090A0 |
NCP10,13..RS WHITE,068 |
1 | ||
| 52127-52090B0 |
NCP10,13..RS GRAY ME.,1D2 |
1 | ||
| 52127-52090A0 |
NCP10,13..RS WHITE,068 |
1 | ||
| 52127-52090D0 |
NCP10,13..RS SUPER RED 5,3P0 |
1 | ||
| 52127-52090C0 |
NCP10,13..RS BLACK MC.,209 |
1 | ||
| 52127-52090J0 |
NCP10,13..RS STRONG BLUE M,8B6 |
1 | ||
| 52127-52090B0 |
NCP10,13..RS GRAY ME.,1D2 |
1 | ||
| 52721-52060C0 |
NCP10,13 BLACK MC.,209 |
1 | ||
| 52721-52060B0 |
NCP10,13 GRAY ME.,1D2 |
1 | ||
| 52721-52060A0 |
NCP10,13 WHITE,068 |
1 | ||
| 52721-52060D0 |
NCP10,13 SUPER RED 5,3P0 |
1 | ||
| 52721-52060J0 |
NCP10,13 BLUE ME.,8P1 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-52070 |
NCP1#,SCP1# |
1 | ||
| 52131-52070 |
NCP1#,SCP10 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-52012 |
NCP1#,SCP10 |
1 | ||
| 52535-52011 |
NCP1#,SCP10 |
1 | ||
| 52535-52012 |
NCP1#,SCP1# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-52012 |
NCP1#,SCP10 |
1 | ||
| 52536-52011 |
NCP1#,SCP10 |
1 | ||
| 52536-52012 |
NCP1#,SCP1# |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-52010 |
NCP10,13..RS |
1 | ||
| 81481-52010 |
NCP10,13..RS |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-52010 |
NCP10,13..RS |
1 | ||
| 81482-52010 |
NCP10,13..RS |
1 | ||
| Common parts | ||||
| 90159-50353 | ||||
| 90159-60498 | ||||
| 90176-08054 | ||||
| 90179-06127 | ||||
| 90189-05165 | ||||
| 90467-08185 | ||||
| 91635-A0616 | ||||
| 91635-B0618 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
| 5302 | ||||
| 8102 | ||||
(0212- )NCP10,13
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51961E - HOOK, FRONT | ||||
| 51960-52040 |
NCP1#,SCP10 |
1 | ||
| 51960-52040 |
NCP1#,SCP1# |
1 | ||
| 51960-52010 |
NCP1#,SCP10 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-52140C0 |
NCP10,13..RS BLACK MC.,209 |
1 | ||
| 52119-52140D0 |
NCP10,13..RS SUPER RED 5,3P0 |
1 | ||
| 52119-52140B0 |
NCP10,13..RS GRAY ME.,1D2 |
1 | ||
| 52119-52140F0 |
NCP10,13..RS YELLOW M.M.,580 |
1 | ||
| 52119-52140J0 |
NCP10,13..RS STRONG BLUE M,8B6 |
1 | ||
| 52119-52140A0 |
NCP10,13..RS WHITE,068 |
1 | ||
| 52119-52140B0 |
NCP10,13..RS GRAY ME.,1D2 |
1 | ||
| 52119-52140C0 |
NCP10,13..RS BLACK MC.,209 |
1 | ||
| 52119-52140J0 |
NCP10,13..RS STRONG BLUE M,8B6 |
1 | ||
| 52119-52140D0 |
NCP10,13..RS SUPER RED 5,3P0 |
1 | ||
| 52119-52140A0 |
NCP10,13..RS WHITE,068 |
1 | ||
| 52119-52320J0 |
NCP10,13 BLUE ME.,8P1 |
1 | ||
| 52119-52320A0 |
NCP10,13 WHITE,068 |
1 | ||
| 52119-52320D0 |
NCP10,13 SUPER RED 5,3P0 |
1 | ||
| 52119-52320C0 |
NCP10,13 BLACK MC.,209 |
1 | ||
| 52119-52320B0 |
NCP10,13 GRAY ME.,1D2 |
1 | ||
| 52119-52918 |
NCP10,13 ﾄｿｳ ﾅｼ |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-52090J0 |
NCP10,13..RS STRONG BLUE M,8B6 |
1 | ||
| 52127-52090C0 |
NCP10,13..RS BLACK MC.,209 |
1 | ||
| 52127-52090F0 |
NCP10,13..RS YELLOW M.M.,580 |
1 | ||
| 52127-52090D0 |
NCP10,13..RS SUPER RED 5,3P0 |
1 | ||
| 52127-52090A0 |
NCP10,13..RS WHITE,068 |
1 | ||
| 52127-52090B0 |
NCP10,13..RS GRAY ME.,1D2 |
1 | ||
| 52127-52090A0 |
NCP10,13..RS WHITE,068 |
1 | ||
| 52127-52090D0 |
NCP10,13..RS SUPER RED 5,3P0 |
1 | ||
| 52127-52090C0 |
NCP10,13..RS BLACK MC.,209 |
1 | ||
| 52127-52090J0 |
NCP10,13..RS STRONG BLUE M,8B6 |
1 | ||
| 52127-52090B0 |
NCP10,13..RS GRAY ME.,1D2 |
1 | ||
| 52721-52060C0 |
NCP10,13 BLACK MC.,209 |
1 | ||
| 52721-52060B0 |
NCP10,13 GRAY ME.,1D2 |
1 | ||
| 52721-52060A0 |
NCP10,13 WHITE,068 |
1 | ||
| 52721-52060D0 |
NCP10,13 SUPER RED 5,3P0 |
1 | ||
| 52721-52060J0 |
NCP10,13 BLUE ME.,8P1 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-52070 |
NCP1#,SCP1# |
1 | ||
| 52131-52070 |
NCP1#,SCP10 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-52012 |
NCP1#,SCP10 |
1 | ||
| 52535-52011 |
NCP1#,SCP10 |
1 | ||
| 52535-52012 |
NCP1#,SCP1# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-52012 |
NCP1#,SCP10 |
1 | ||
| 52536-52011 |
NCP1#,SCP10 |
1 | ||
| 52536-52012 |
NCP1#,SCP1# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-52060 |
NCP10,13 |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-52040 |
NCP10,13 |
1 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-52100A0 |
NCP10,13 WHITE,068 |
1 | ||
| 52712-52100B0 |
NCP10,13 GRAY ME.,1D2 |
1 | ||
| 52712-52100A0 |
NCP10,13 WHITE,068 |
1 | ||
| 52712-52100C0 |
NCP10,13 BLACK MC.,209 |
1 | ||
| 52712-52100D0 |
NCP10,13 SUPER RED 5,3P0 |
1 | ||
| 52712-52100J0 |
NCP10,13 BLUE ME.,8P1 |
1 | ||
| 52713A - MOULDING, FRONT BUMPER SIDE, LH | ||||
| 52713-52100A0 |
NCP10,13 WHITE,068 |
1 | ||
| 52713-52100B0 |
NCP10,13 GRAY ME.,1D2 |
1 | ||
| 52713-52100D0 |
NCP10,13 SUPER RED 5,3P0 |
1 | ||
| 52713-52100J0 |
NCP10,13 BLUE ME.,8P1 |
1 | ||
| 52713-52100C0 |
NCP10,13 BLACK MC.,209 |
1 | ||
| 52713-52100A0 |
NCP10,13 WHITE,068 |
1 | ||
| Common parts | ||||
| 62699-52010 | ||||
| 90119-06451 | ||||
| 90159-50353 | ||||
| 90159-60498 | ||||
| 90176-08054 | ||||
| 90179-06127 | ||||
| 90189-05165 | ||||
| 90467-08185 | ||||
| 91631-B0614 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
