NCP13-AGPVK (2000)

Toyota Vitz

Production Oct 2000 - Jan 2005
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )RS

Click highlighted areas on diagram

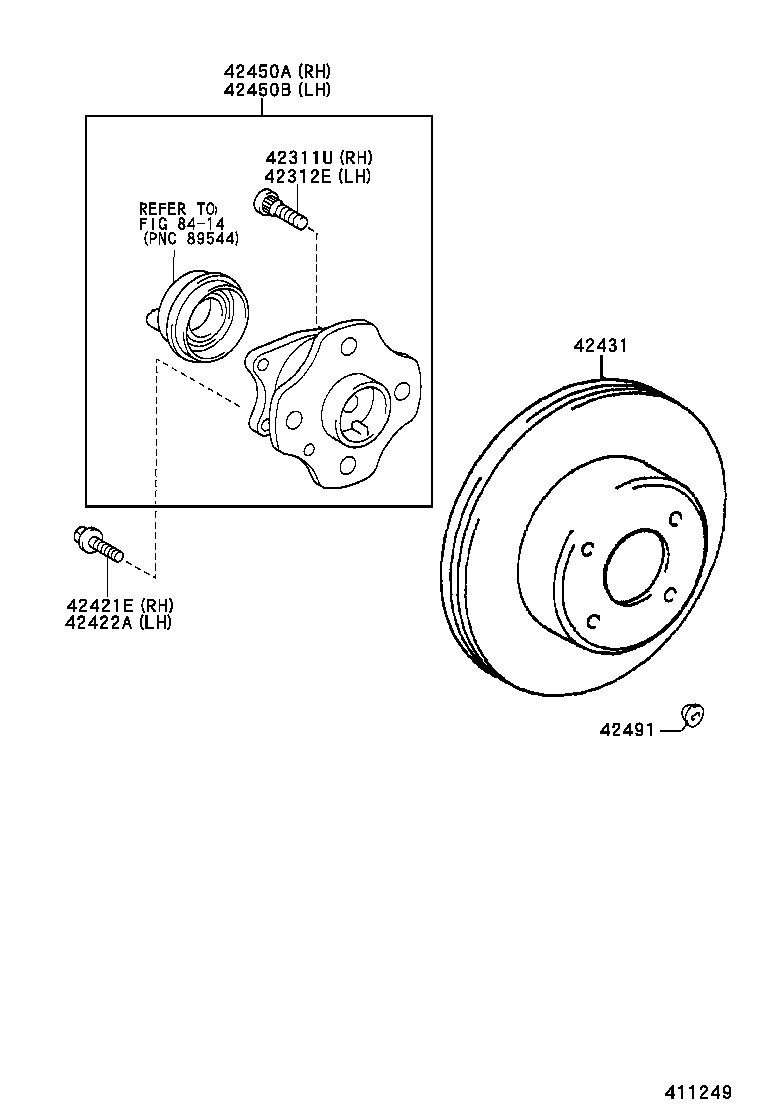

REAR DISK

diagram 42311U 42312E 42421E 42422A 42431 42450A 42450B 42491 8414
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02047

NCP10,13,SCP10

 4
90942-02047

NCP10,13,SCP1#

 4
90942-02047

NCP10,13,SCP10

 4
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02047

NCP10,13,SCP10

 4
90942-02047

NCP10,13,SCP10

 4
90942-02047

NCP10,13,SCP1#

 4
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-10507

NCP10,13,SCP10

 4
90105-10507

NCP10,13,SCP10

 4
90105-10507

NCP10,13,SCP1#

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-10507

NCP10,13,SCP10

 4
90105-10507

NCP10,13,SCP10

 4
90105-10507

NCP10,13,SCP1#

 4
42431 - DISC, REAR
42431-52050

NCP10,13..RS

 2
42431-52050

NCP10,13

 2
42431-52050

NCP10,13..RS

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-52020

NCP10,13..RS,U

 1
42450-52021

NCP10,13,SCP1#

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42450-52021

NCP10,13,SCP1#

 1
42450-52020

NCP10,13..RS,U

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-22020

NCP10,13..RS

 2
47491-22020

NCP10,13

 2
47491-22020

NCP10,13..RS

 2
Linked diagrams
8414
