NCP13-AGMVK (2000)

Toyota Vitz

Production Oct 2000 - Jan 2005
Engine 1NZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901-0212)

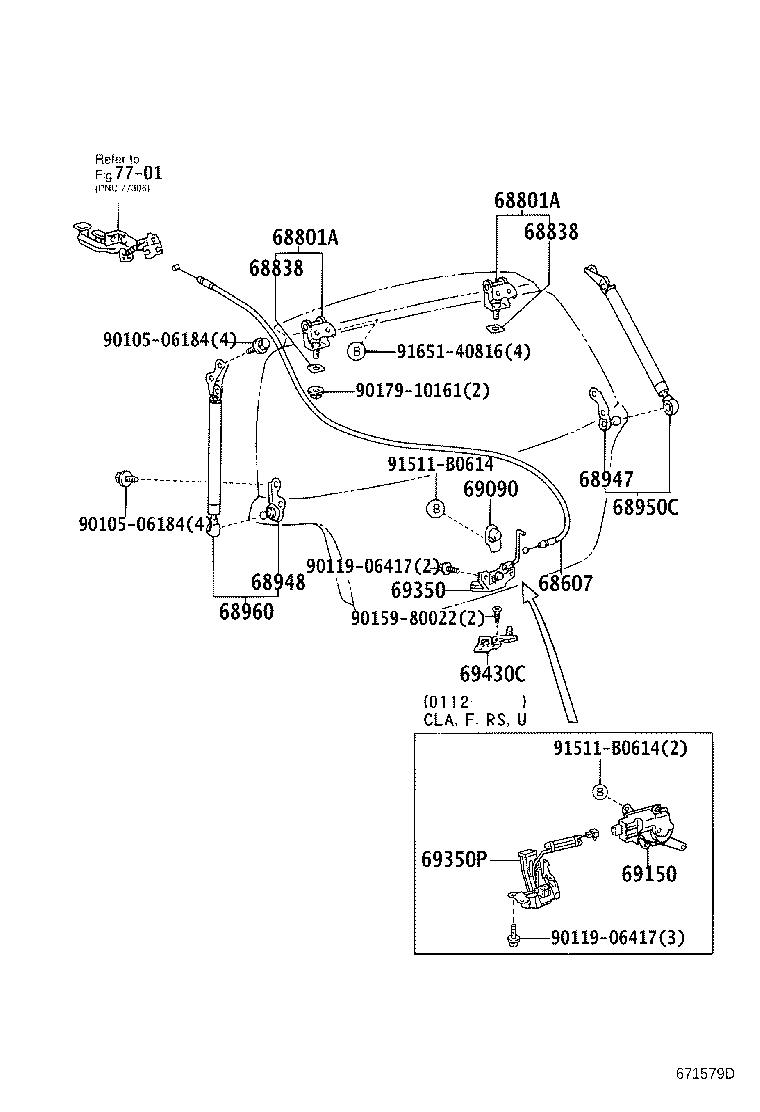

Click highlighted areas on diagram

diagram 68607 68801A 68801A 68838 68838 68947 68948 68950C 68960 69090 69150 69350 69350P 69430C 7701 9010506184 9010506184 9011906417 9011906417 9015980022 9017910161 91511B0614 91511B0614 9165140816
Part # Description Qty Price
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-52010

NCP1#,SCP10

 1
68801A - HINGE SUB-ASSY, BACK DOOR, UPPER
68801-52010

NCP1#,SCP1#

 2
68801-52010

NCP1#,SCP10

 2
68801-52010

NCP1#,SCP10

 2
68801A - HINGE SUB-ASSY, BACK DOOR, UPPER
68801-52010

NCP1#,SCP1#

 2
68801-52010

NCP1#,SCP10

 2
68801-52010

NCP1#,SCP10

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-10020

NCP1#,SCP10

厚さ=1.0

 2
68838-52010

NCP1#,SCP10

厚さ=0.5

 2
68838-10020

NCP1#,SCP1#

厚さ=1.0

 2
68838-52010

NCP1#,SCP1#

厚さ=0.5

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-10020

NCP1#,SCP10

厚さ=1.0

 2
68838-52010

NCP1#,SCP10

厚さ=0.5

 2
68838-10020

NCP1#,SCP1#

厚さ=1.0

 2
68838-52010

NCP1#,SCP1#

厚さ=0.5

 2
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-52010

NCP1#,SCP10

 1
68947-52010

NCP1#,SCP10

 1
68947-52010

NCP1#,SCP1#

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-52010

NCP1#,SCP10

 1
68948-52010

NCP1#,SCP1#

 1
68948-52010

NCP1#,SCP10

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-59065

SCP10..F,U;NCP10,13..RS

 1
68950-59066

NCP1#

 1
68950-59066

NCP1#,SCP1#..CLA,F,RS,U

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-59025

NCP1#

 1
68960-59026

NCP1#,SCP1#..CLA,F,RS,U

 1
68960-59026

NCP1#

 1
69090 - HANDLE ASSY, BACK DOOR, OUTSIDE
69090-52010

NCP1#,SCP10

 1
69090-52080

NCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
69090-52040

NCP1#,SCP10

 1
69150 - ACTUATOR ASSY, BACK DOOR LOCK
69150-52011

NCP1#,SCP10..CLA,F,RS,U

 1
69350 - LOCK ASSY, BACK DOOR
69350-52010

NCP1#,SCP10

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-52170

NCP1#,SCP10..CLA,F,RS,U

 1
69350-52270

SCP10..4HC;NCP1#,SCP13..CLA,RS,U

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-52020

NCP1#,SCP10..CLA,F,RS,U

 1
69430-52010

NCP1#,SCP10

 1
69430-52020

NCP1#,SCP1#..CLA,F,RS,U

 1
Common parts
90105-06184
90119-06417
90159-80022
90179-10161
91511-B0614
91651-40816
Linked diagrams
7701

(0212- )CLA,F,RS,U

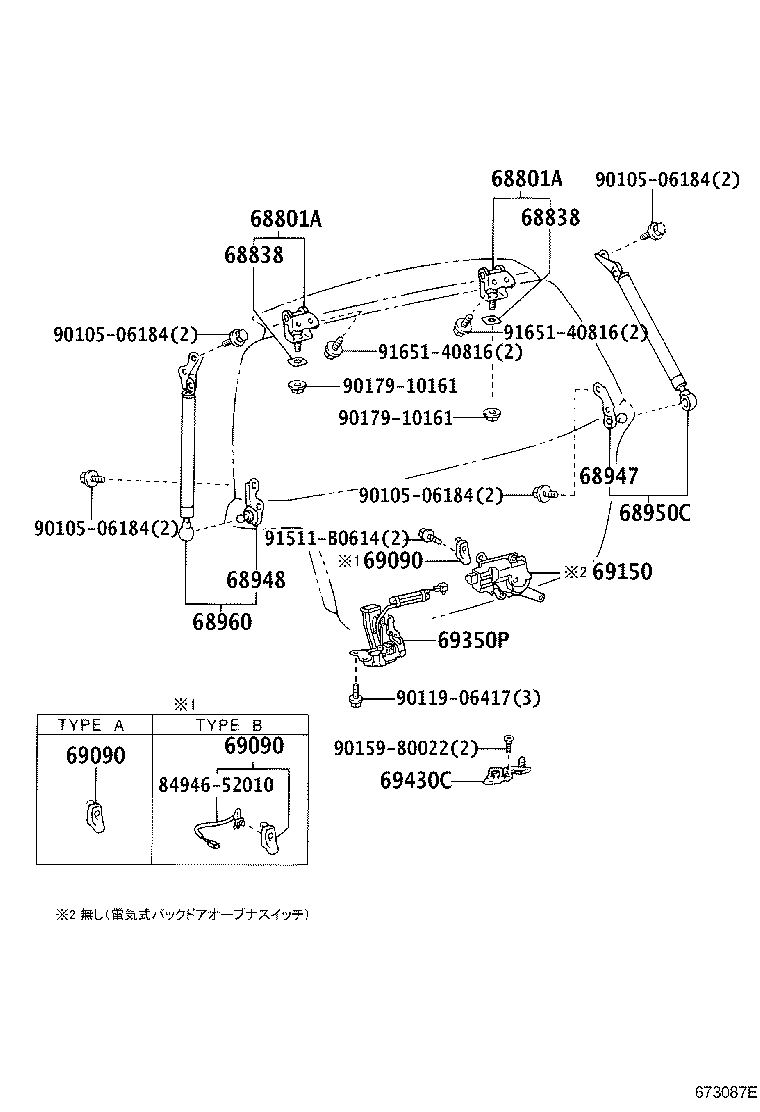

Click highlighted areas on diagram

diagram 68801A 68801A 68838 68838 68947 68948 68950C 68960 69090 69090 69090 69150 69350P 69430C 8494652010 9010506184 9010506184 9010506184 9010506184 9011906417 9015980022 9017910161 9017910161 91511B0614 9165140816 9165140816
Part # Description Qty Price
68801A - HINGE SUB-ASSY, BACK DOOR, UPPER
68801-52010

NCP1#,SCP1#

 2
68801-52010

NCP1#,SCP10

 2
68801-52010

NCP1#,SCP10

 2
68801A - HINGE SUB-ASSY, BACK DOOR, UPPER
68801-52010

NCP1#,SCP1#

 2
68801-52010

NCP1#,SCP10

 2
68801-52010

NCP1#,SCP10

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-10020

NCP1#,SCP10

厚さ=1.0

 2
68838-52010

NCP1#,SCP10

厚さ=0.5

 2
68838-10020

NCP1#,SCP1#

厚さ=1.0

 2
68838-52010

NCP1#,SCP1#

厚さ=0.5

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-10020

NCP1#,SCP10

厚さ=1.0

 2
68838-52010

NCP1#,SCP10

厚さ=0.5

 2
68838-10020

NCP1#,SCP1#

厚さ=1.0

 2
68838-52010

NCP1#,SCP1#

厚さ=0.5

 2
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-52010

NCP1#,SCP10

 1
68947-52010

NCP1#,SCP10

 1
68947-52010

NCP1#,SCP1#

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-52010

NCP1#,SCP10

 1
68948-52010

NCP1#,SCP1#

 1
68948-52010

NCP1#,SCP10

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-59065

SCP10..F,U;NCP10,13..RS

 1
68950-59066

NCP1#

 1
68950-59066

NCP1#,SCP1#..CLA,F,RS,U

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-59025

NCP1#

 1
68960-59026

NCP1#,SCP1#..CLA,F,RS,U

 1
68960-59026

NCP1#

 1
69090 - HANDLE ASSY, BACK DOOR, OUTSIDE
69090-52010

NCP1#,SCP10

 1
69090-52080

NCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
69090-52040

NCP1#,SCP10

 1
69090 - HANDLE ASSY, BACK DOOR, OUTSIDE
69090-52010

NCP1#,SCP10

 1
69090-52080

NCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
69090-52040

NCP1#,SCP10

 1
69090 - HANDLE ASSY, BACK DOOR, OUTSIDE
69090-52010

NCP1#,SCP10

 1
69090-52080

NCP10,13,SCP13;NCP15,SCP10..5D..(CLA,F,U)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
69090-52040

NCP1#,SCP10

 1
69150 - ACTUATOR ASSY, BACK DOOR LOCK
69150-52011

NCP1#,SCP10..CLA,F,RS,U

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-52170

NCP1#,SCP10..CLA,F,RS,U

 1
69350-52270

SCP10..4HC;NCP1#,SCP13..CLA,RS,U

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-52020

NCP1#,SCP10..CLA,F,RS,U

 1
69430-52010

NCP1#,SCP10

 1
69430-52020

NCP1#,SCP1#..CLA,F,RS,U

 1
Common parts
84946-52010
90105-06184
90119-06417
90159-80022
90179-10161
91511-B0614
91651-40816
