NCP13-AGMVK (2000)
Toyota Vitz
(9901-0112)1SZFE ; (0010-0112)1NZFE,2NZFE..NCP10,13..RS
12V 80A,90A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

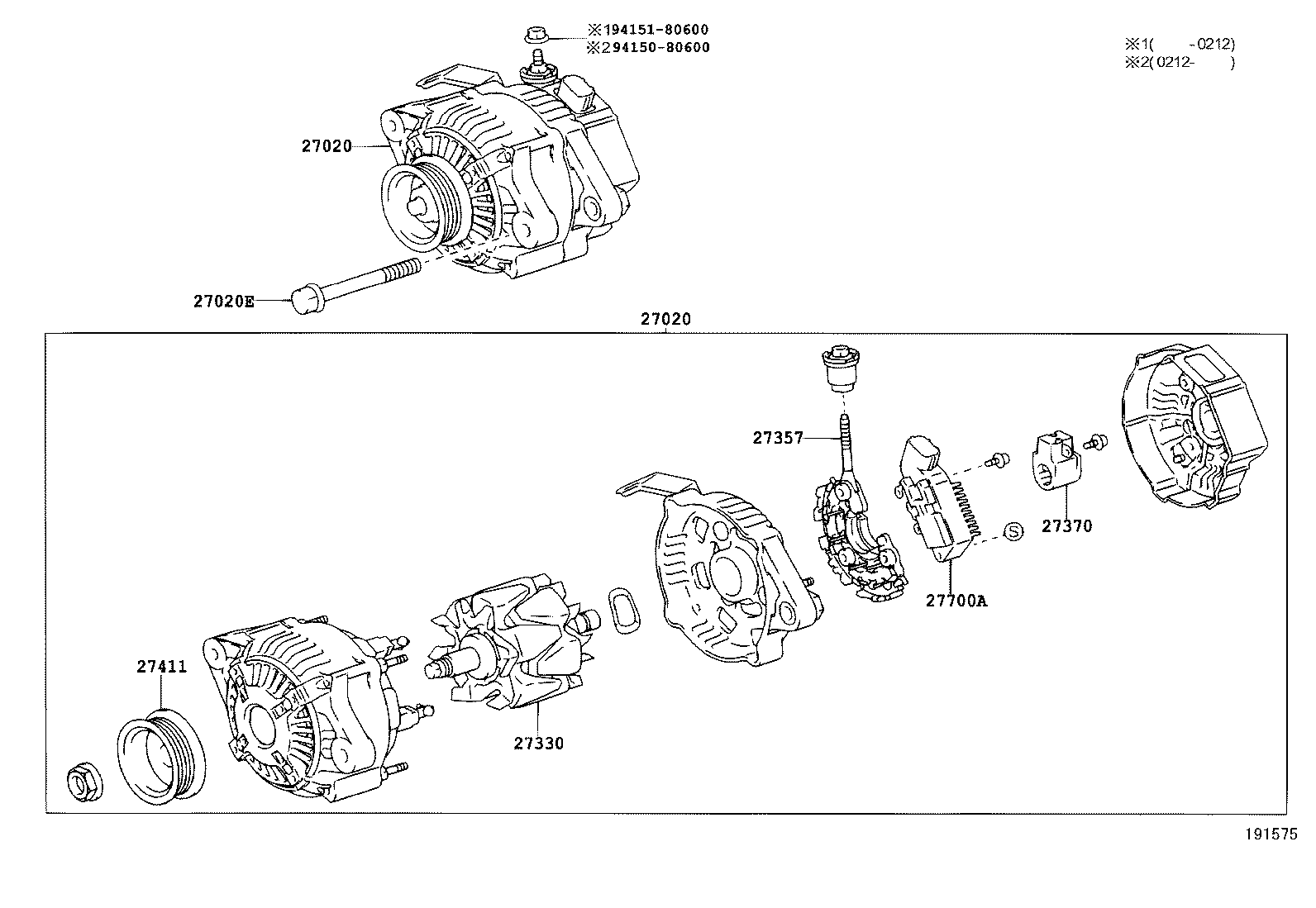

| 27020 - ALTERNATOR ASSY | ||||
| 27060-21030 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27060-21030 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27060-21030 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27060-21031 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 90105-10075 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-22050 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A,90A |
1 | ||
| 27039-46190 |
1NZFE,2NZFE..NCP10,13..RS |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1SZFE..SCP10;1NZFE,2NZFE..NCP10,13..RS |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-21030 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10219 |
1SZFE..SCP10;1NZFE,2NZFE..NCP10,13..RS 12V 80A,90A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
1SZFE..SCP10;1NZFE,2NZFE..NCP10,13..RS 12V 80A,90A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-16390 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27330-16390 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27330-16390 |
1SZFE..SCP10..5F;1NZFE,2NZFE..NCP10,13 12V 80A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1SZFE..SCP10;1NZFE,2NZFE..NCP10,13..RS 12V 80A,90A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-22050 |
1SZFE..SCP10..5F..(B,F);1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27357-23040 |
1SZFE..SCP10..5F;1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27357-23040 |
1SZFE..SCP10..5F;1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27357-22050 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27357-22050 |
1SZFE..SCP10..ATM..F;1NZFE,2NZFE..NCP1#..F,RS;2NZFE..NCP15..5D..(CLA,U) ｱﾘ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ & ﾄﾞﾗｲﾋﾞﾝｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-21030 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A,90A |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
1SZFE..SCP10;1NZFE,2NZFE..NCP10,13..RS |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A,90A |
1 | ||
| 27370-75060 |
1NZFE,2NZFE,1SZFE..NCP10,13,SCP10..4FC,5F 12V 80A,90A |
1 | ||
| 27370-75060 |
1SZFE..SCP10;1NZFE,2NZFE..NCP10,13..RS 12V 80A,90A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1SZFE..SCP10;1NZFE,2NZFE..NCP10,13..RS 12V 80A,90A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
1SZFE..SCP10;1NZFE,2NZFE..NCP10,13..RS 12V 80A,90A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1SZFE..SCP10;1NZFE,2NZFE..NCP10,13..RS |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
1SZFE..SCP10;1NZFE,2NZFE..NCP10,13..RS |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-11060 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27411-11060 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27411-11060 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27411-21030 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1NZFE,2NZFE,1SZFE..NCP1#,SCP10 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-21010 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27700-21010 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27700-21010 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-10181 | ||||
| 93319-14025 | ||||
| 94150-80600 | ||||
(0112- )1NZFE,2NZFE..NCP10,13..RS
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-21030 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27060-21030 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27060-21030 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27060-21031 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-21030 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27060-21030 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27060-21030 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27060-21031 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 90105-10075 |
1NZFE,2NZFE..NCP1# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-16390 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27330-16390 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27330-16390 |
1SZFE..SCP10..5F;1NZFE,2NZFE..NCP10,13 12V 80A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-22050 |
1SZFE..SCP10..5F..(B,F);1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27357-23040 |
1SZFE..SCP10..5F;1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27357-23040 |
1SZFE..SCP10..5F;1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27357-22050 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27357-22050 |
1SZFE..SCP10..ATM..F;1NZFE,2NZFE..NCP1#..F,RS;2NZFE..NCP15..5D..(CLA,U) ｱﾘ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ & ﾄﾞﾗｲﾋﾞﾝｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A,90A |
1 | ||
| 27370-75060 |
1NZFE,2NZFE,1SZFE..NCP10,13,SCP10..4FC,5F 12V 80A,90A |
1 | ||
| 27370-75060 |
1SZFE..SCP10;1NZFE,2NZFE..NCP10,13..RS 12V 80A,90A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-11060 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27411-11060 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27411-11060 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27411-21030 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-21010 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| 27700-21010 |
1NZFE,2NZFE..NCP1# 12V 80A |
1 | ||
| 27700-21010 |
1NZFE,2NZFE..NCP10,13..RS 12V 80A |
1 | ||
| Common parts | ||||
| 94150-80600 | ||||
| 94151-80600 | ||||
