NCP10-AHMGK (1999)
Toyota Vitz
Production
Sep 1999
-
Dec 2002
Engine
2NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0112- )NCP1#

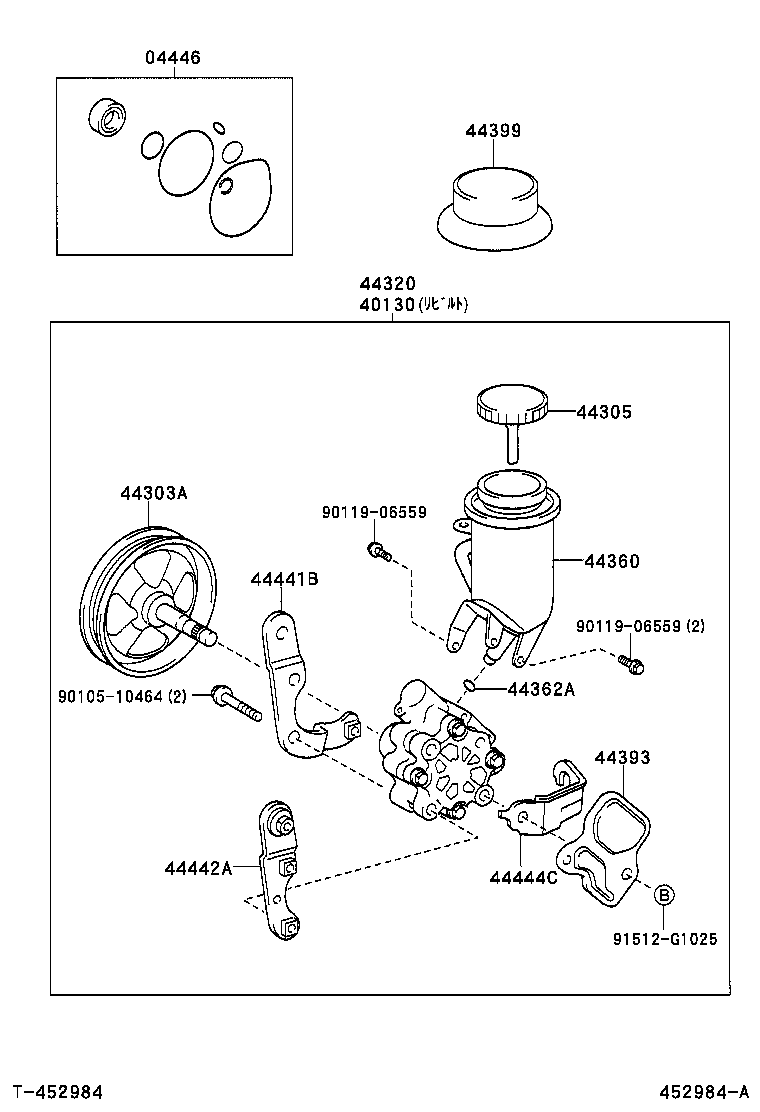

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-32050 |
NCP1#,SCP10 |
1 | ||
| 04446-32050 |
NCP1#,SCP10 |
1 | ||
| 40130 - PUMP ASSY,VANE REBUILT | ||||
| 40130-52020 |
NCP10,13 TOYODA KOKI |
1 | ||
| 40130-52020 |
NCP10,13 TOYODA KOKI |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-52020 |
NCP1# |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-50010 |
NCP1# |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-52020 |
NCP10,13 |
1 | ||
| 44310-52020 |
NCP10,13 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44306-52020 |
NCP1# |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90301-11020 |
NCP1#,SCP10 |
1 | ||
| 90301-11020 |
NCP1#,SCP10 |
1 | ||
| 44393 - INSULATOR, POWER STEERING PUMP HEAT | ||||
| 44393-52010 |
NCP1# |
1 | ||
| 44399 - COVER, VANE PUMP OIL RESERVOIR | ||||
| 44399-52010 |
NCP1# |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-52010 |
NCP1# |
1 | ||
| 44442A - BRACKET, VANE PUMP, REAR | ||||
| 44442-52020 |
NCP1# |
1 | ||
| 44444C - STAY, VANE PUMP, REAR | ||||
| 44444-52010 |
NCP10,13 |
1 | ||
| 44444-52010 |
NCP10,13 |
1 | ||
| Common parts | ||||
| 90105-10464 | ||||
| 90119-06559 | ||||
| 91512-G1025 | ||||
