NCP10-AGPGK (1999)

Toyota Vitz

Production Sep 1999 - Dec 2002
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9909- )1NZFE,2NZFE..NCP10,13

Click highlighted areas on diagram

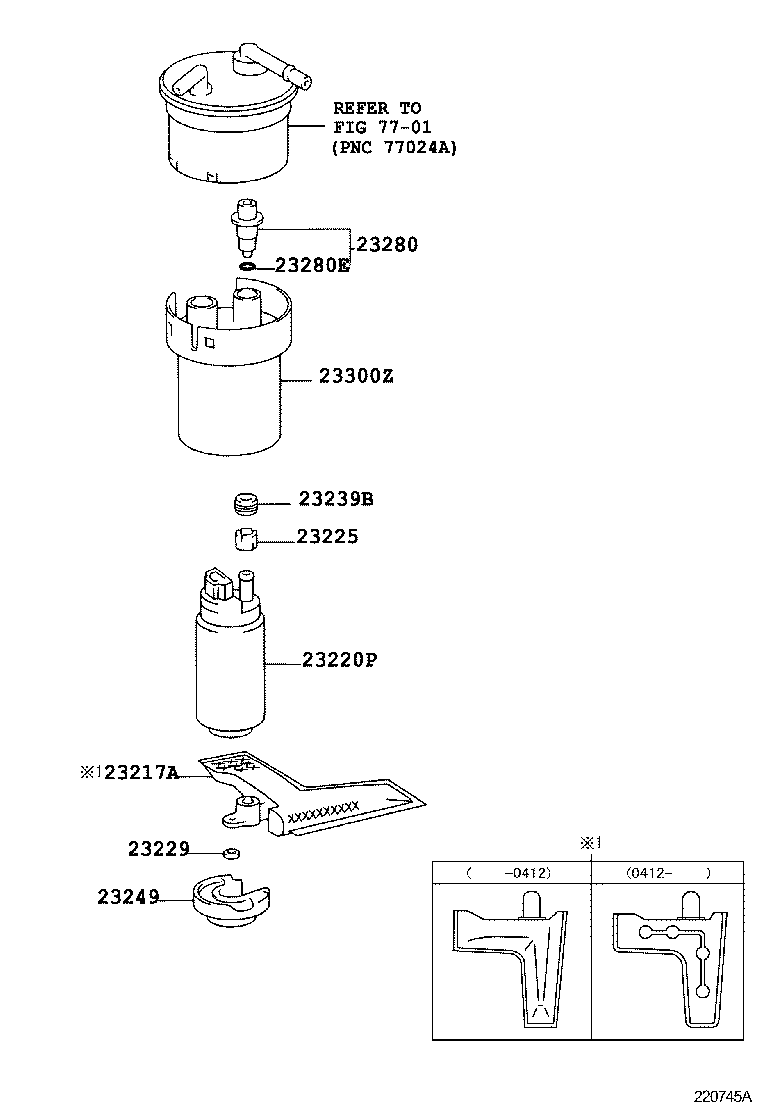

diagram 23217A 23220P 23225 23229 23239B 23249 23280 23280E 23300Z 7701
Part # Description Qty Price
23217A - FILTER, FUEL PUMP
23217-23010

1NZFE,2NZFE..NCP10,13

 1
23217-23010

1NZFE,2NZFE..NCP10,13

 1
23220P - PUMP ASSY, FUEL
23221-22030

1NZFE,2NZFE..NCP10,13

 1
23221-23010

1NZFE,2NZFE..NCP10,13

 1
23221-23010

1NZFE,2NZFE..NCP10,13

 1
23225 - SPACER, FUEL PUMP
23225-21010

1NZFE,2NZFE..NCP10,13

 1
23225-21010

1NZFE,2NZFE..NCP10,13

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1NZFE,2NZFE..NCP1#

 1
23239B - SEAL, FUEL PUMP FILTER
23239-21010

1NZFE,2NZFE..NCP10,13

 1
23239-21010

1NZFE,2NZFE..NCP10,13

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

1NZFE,2NZFE..NCP10,13

 1
23249-74610

1NZFE,2NZFE..NCP10,13

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-22010

1NZFE,2NZFE..NCP10,13

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07020

1NZFE,2NZFE..NCP10,13

 1
23300Z - FILTER, FUEL(FOR FUEL TANK)
23300-23030

1NZFE,2NZFE..NCP10,13

 1
23300-23040

1NZFE,2NZFE..NCP10,13

 1
