NCP10-AGPEK (1999)
Toyota Vitz
ILLUST NO. 2 OF 2(9901-0112)CLA,F,RS,U
ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-52010 |
NCP1#,SCP10..CLA,F,RS,U *TEM,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 63201-52010 |
NCP1#,SCP10..CLA,F,RS,U *TEM,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-52020 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63260-52020 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-12060 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-52010 |
NCP1#,SCP10..CLA,F,RS,U |
2 | ||
| 63249-52010 |
NCP1#,SCP10..CLA,F,RS,U |
2 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
NCP1#,SCP10..CLA,F,RS,U |
2 | ||
| 63239-12030 |
NCP1#,SCP10..CLA,F,RS,U |
2 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63241-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63241-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63243-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63243-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63243-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-52020 |
NCP1#,SCP10..CLA,F,RS,U |
2 | ||
| 63249-52020 |
NCP1#,SCP10..CLA,F,RS,U |
2 | ||
| 63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF | ||||
| 63251-12160 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63251-12160 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63260L - HANDLE ASSY, SLIDING ROOF REGULATOR | ||||
| 63260-52010B0 |
NCP10,15,SCP10..F,U LT.GRAY,TRIM1#,7# |
1 | ||
| 63260-52010B0 |
NCP10,15,SCP10..CLA,F,U LT.GRAY,TRIM1# |
1 | ||
| 63271B - BEZEL, SLIDING ROOF | ||||
| 63271-52010B0 |
NCP10,15,SCP10..F,U LT.GRAY,TRIM1#,7# |
1 | ||
| 63271-52010B0 |
NCP10,15,SCP10..CLA,F,U LT.GRAY,TRIM1# |
1 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-12040 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-12040 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| Common parts | ||||
| 90148-60021 | ||||
| 90148-60024 | ||||
| 90149-40031 | ||||
| 90154-30003 | ||||
| 90154-40031 | ||||
| 90155-40001 | ||||
| 90155-40002 | ||||
| 90159-50336 | ||||
| 90168-40027 | ||||
| 90179-06069 | ||||
| 90467-10076 | ||||
| 90467-14001 | ||||
| 90480-26026 | ||||
| 93560-54008 | ||||
ILLUST NO. 2 OF 2(0112-0212)CLA,F,RS,U
ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-52010 |
NCP1#,SCP10..CLA,F,RS,U *TEM,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 63201-52010 |
NCP1#,SCP10..CLA,F,RS,U *TEM,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63200-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63200-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-52020 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63260-52020 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-52010 |
NCP1#,SCP10..CLA,F,RS,U |
2 | ||
| 63249-52010 |
NCP1#,SCP10..CLA,F,RS,U |
2 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
NCP1#,SCP10..CLA,F,RS,U |
2 | ||
| 63239-12030 |
NCP1#,SCP10..CLA,F,RS,U |
2 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63241-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63241-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63243-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63243-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63243-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-52020 |
NCP1#,SCP10..CLA,F,RS,U |
2 | ||
| 63249-52020 |
NCP1#,SCP10..CLA,F,RS,U |
2 | ||
| 63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF | ||||
| 63251-12160 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63251-12160 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63260L - HANDLE ASSY, SLIDING ROOF REGULATOR | ||||
| 63260-52010B0 |
NCP10,15,SCP10..F,U LT.GRAY,TRIM1#,7# |
1 | ||
| 63260-52010B0 |
NCP10,15,SCP10..CLA,F,U LT.GRAY,TRIM1# |
1 | ||
| 63271B - BEZEL, SLIDING ROOF | ||||
| 63271-52010B0 |
NCP10,15,SCP10..F,U LT.GRAY,TRIM1#,7# |
1 | ||
| 63271-52010B0 |
NCP10,15,SCP10..CLA,F,U LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90148-60021 | ||||
| 90148-60024 | ||||
| 90154-30003 | ||||
| 90154-40031 | ||||
| 90159-50336 | ||||
| 90168-40027 | ||||
| 90179-06274 | ||||
| 90467-10076 | ||||
| 90467-14001 | ||||
| 90480-26026 | ||||
| 93560-54008 | ||||

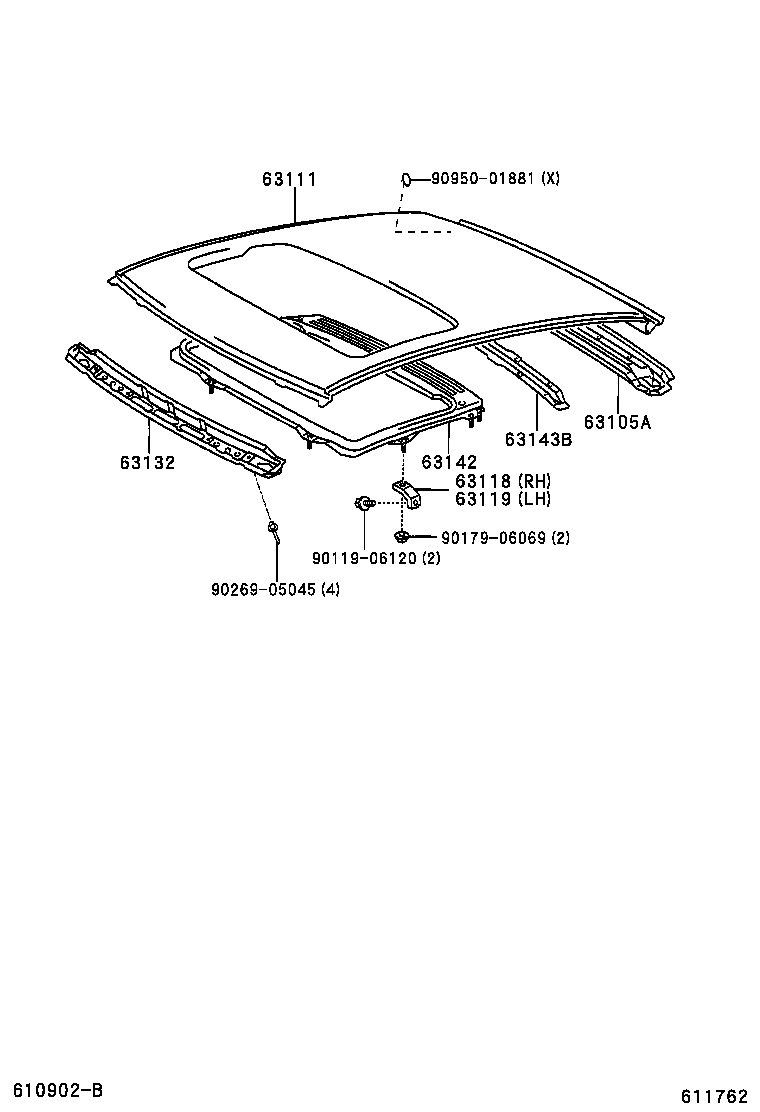

ILLUST NO. 1 OF 2(9901-0212)CLA,F,RS,U
ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-52010 |
NCP1#,SCP10 |
1 | ||
| 63105-52011 |
NCP1#,SCP10 |
1 | ||
| 63105-52010 |
NCP1#,SCP10 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-52010 |
NCP1#,SCP10 |
1 | ||
| 63111-52010 |
NCP1#,SCP10 |
1 | ||
| 63111-52020 |
NCP1#,SCP10..CLA,F,RS,U ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-52020 |
NCP1#,SCP10..CLA,F,RS,U ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63118-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63118-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-52010 |
NCP1#,SCP10 |
1 | ||
| 63132-52011 |
NCP1#,SCP10 |
1 | ||
| 63132-52011 |
NCP1#,SCP10 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63142-52010 |
NCP1#,SCP10..CLA,F,RS,U |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-52010 |
NCP1#,SCP10 |
1 | ||
| 63143-52010 |
NCP1#,SCP10 |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90179-06069 | ||||
| 90269-05045 | ||||
| 90950-01881 | ||||
