NCP10-AGMGK (1999)
Toyota Vitz

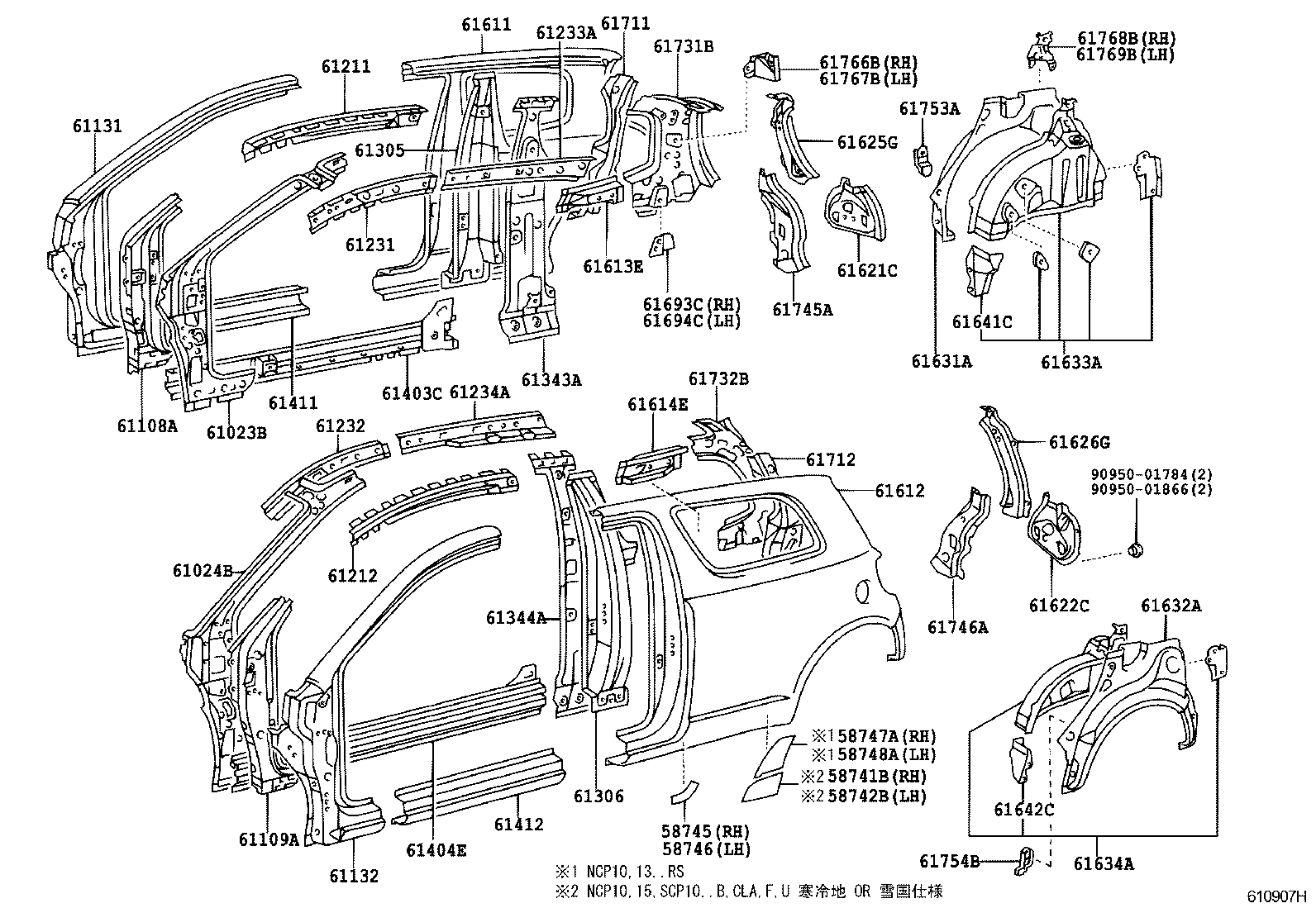

ILLUST NO. 1 OF 2(9901-0212)3D
ｻｲﾄﾞ ﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-52022 |
NCP10,15,SCP10..3D..(B,CLA,F,U) |
1 | ||
| 58741-52021 |
NCP1#,SCP10..3D |
1 | ||
| 58741-52020 |
NCP1#,SCP10..3D |
1 | ||
| 58741-52022 |
NCP10,15,SCP10..3D..(B,CLA,F,U) |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-52021 |
NCP1#,SCP10..3D |
1 | ||
| 58742-52022 |
NCP10,15,SCP10..3D..(B,CLA,F,U) |
1 | ||
| 58742-52022 |
NCP10,15,SCP10..3D..(B,CLA,F,U) |
1 | ||
| 58742-52020 |
NCP1#,SCP10..3D |
1 | ||
| 58745 - PROTECTOR, QUARTER PANEL, FRONT RH | ||||
| 58745-52010 |
NCP10,15,SCP10..3D..(B,CLA,F,U) |
1 | ||
| 58745-52010 |
NCP10,15,SCP10..3D..(B,CLA,F,U) |
1 | ||
| 58746 - PROTECTOR, QUARTER PANEL, FRONT LH | ||||
| 58746-52010 |
NCP10,15,SCP10..3D..(B,CLA,F,U) |
1 | ||
| 58746-52010 |
NCP10,15,SCP10..3D..(B,CLA,F,U) |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-52011 |
NCP1#,SCP10 |
1 | ||
| 61023-52011 |
NCP1#,SCP10 |
1 | ||
| 61023-52010 |
NCP1#,SCP10 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-52011 |
NCP1#,SCP10 |
1 | ||
| 61024-52010 |
NCP1#,SCP10 |
1 | ||
| 61024-52011 |
NCP1#,SCP10 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-52010 |
NCP1#,SCP10 |
1 | ||
| 61108-52090 |
NCP1#,SCP10 |
1 | ||
| 61108-52011 |
NCP1#,SCP10 |
1 | ||
| 61108-52011 |
NCP1#,SCP10 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-52010 |
NCP1#,SCP10 |
1 | ||
| 61109-52011 |
NCP1#,SCP10 |
1 | ||
| 61109-52011 |
NCP1#,SCP10 |
1 | ||
| 61109-52090 |
NCP1#,SCP10 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-52010 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 61131-52010 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-52010 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 61132-52010 |
NCP10,15,SCP10..B,CLA,F,U |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-52021 |
NCP1#,SCP10..3D |
1 | ||
| 61211-52021 |
NCP1#,SCP10..3D |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-52021 |
NCP1#,SCP10..3D |
1 | ||
| 61212-52021 |
NCP1#,SCP10..3D |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-52031 |
NCP1#,SCP10..3D |
1 | ||
| 61231-52041 |
NCP1#,SCP10..3D..(CLA,F,RS,U) ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 61231-52041 |
NCP1#,SCP10..3D |
1 | ||
| 61231-52040 |
NCP1#,SCP10..3D |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-52041 |
NCP1#,SCP10..3D..(CLA,F,RS,U) ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 61232-52031 |
NCP1#,SCP10..3D |
1 | ||
| 61232-52040 |
NCP1#,SCP10..3D |
1 | ||
| 61232-52041 |
NCP1#,SCP10..3D |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-52021 |
NCP1#,SCP10..3D |
1 | ||
| 61233-52020 |
NCP1#,SCP10..3D |
1 | ||
| 61233-52021 |
NCP1#,SCP10..3D |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-52021 |
NCP1#,SCP10..3D |
1 | ||
| 61234-52020 |
NCP1#,SCP10..3D |
1 | ||
| 61234-52021 |
NCP1#,SCP10..3D |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-52021 |
NCP1#,SCP10..3D |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-52021 |
NCP1#,SCP10..3D |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-52901 |
NCP1#,SCP10..3D |
1 | ||
| 61343-52901 |
NCP1#,SCP10..3D |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-52901 |
NCP1#,SCP10..3D |
1 | ||
| 61344-52901 |
NCP1#,SCP10..3D |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-52020 |
NCP1#,SCP10..3D |
1 | ||
| 61403-52020 |
NCP1#,SCP10..3D |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-52020 |
NCP1#,SCP10..3D |
1 | ||
| 61404-52020 |
NCP1#,SCP10..3D |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-52020 |
NCP10,15,SCP10..3D..(B,CLA,F,U) |
1 | ||
| 61411-52020 |
NCP10,15,SCP10..3D..(B,CLA,F,U) |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-52020 |
NCP10,15,SCP10..3D..(B,CLA,F,U) |
1 | ||
| 61412-52020 |
NCP10,15,SCP10..3D..(B,CLA,F,U) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-52020 |
NCP10,15,SCP10..3D..(B,CLA,F,U) |
1 | ||
| 61611-52020 |
NCP10,15,SCP10..3D..(B,CLA,F,U) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-52020 |
NCP10,15,SCP10..3D..(B,CLA,F,U) |
1 | ||
| 61602-52020 |
NCP10,15,SCP10..3D..(B,CLA,F,U) |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-52010 |
NCP1#,SCP10..3D |
1 | ||
| 61613-52010 |
NCP1#,SCP10..3D |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-52010 |
NCP1#,SCP10..3D |
1 | ||
| 61614-52010 |
NCP1#,SCP10..3D |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-52010 |
NCP1#,SCP10 |
1 | ||
| 61621-52010 |
NCP1#,SCP10 |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-52010 |
NCP1#,SCP10 |
1 | ||
| 61622-52010 |
NCP1#,SCP10 |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-52010 |
NCP1#,SCP10 |
1 | ||
| 61625-52010 |
NCP1#,SCP10 |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-52010 |
NCP1#,SCP10 |
1 | ||
| 61626-52010 |
NCP1#,SCP10 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-52010 |
NCP1#,SCP10 |
1 | ||
| 61631-52010 |
NCP1#,SCP10 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-52010 |
NCP1#,SCP10 |
1 | ||
| 61632-52010 |
NCP1#,SCP10 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-52912 |
NCP10,13,SCP10..B,CLA,RS,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ & ABS) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-52912 |
NCP10,13,SCP10..B,CLA,RS,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ & ABS) |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-52010 |
NCP10,13,SCP10 |
1 | ||
| 61641-52010 |
NCP10,13,SCP10 |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-52010 |
NCP10,13,SCP10 |
1 | ||
| 61642-52010 |
NCP10,13,SCP10 |
1 | ||
| 61693C - RETAINER, REAR SEAT BACK SET, RH | ||||
| 61693-52010 |
NCP15;NCP10,SCP10..B,F,RS |
1 | ||
| 61694C - RETAINER, REAR SEAT BACK SET, LH | ||||
| 61694-52010 |
NCP15;NCP10,SCP10..B,F,RS |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-52020 |
NCP1#,SCP10..3D |
1 | ||
| 61711-52020 |
NCP1#,SCP10..3D |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-52020 |
NCP1#,SCP10..3D |
1 | ||
| 61712-52020 |
NCP1#,SCP10..3D |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-52020 |
NCP1#,SCP10..3D |
1 | ||
| 61731-52020 |
NCP1#,SCP10..3D |
1 | ||
| 61731-52021 |
NCP1#,SCP10..3D |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-52020 |
NCP1#,SCP10..3D |
1 | ||
| 61732-52021 |
NCP1#,SCP10..3D |
1 | ||
| 61732-52020 |
NCP1#,SCP10..3D |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-52010 |
NCP1#,SCP10 |
1 | ||
| 61745-52010 |
NCP1#,SCP10 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-52010 |
NCP1#,SCP10 |
1 | ||
| 61746-52010 |
NCP1#,SCP10 |
1 | ||
| 61753A - RETAINER, QUARTER TRIM, LOWER | ||||
| 61753-10050 |
NCP1#,SCP10..3D |
1 | ||
| 61754B - RETAINER, QUARTER TRIM, LOWER LH | ||||
| 61754-10040 |
NCP1#,SCP10..3D |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-52010 |
NCP1#,SCP10 |
1 | ||
| 61766-52010 |
NCP1#,SCP10 |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-52010 |
NCP1#,SCP10 |
1 | ||
| 61767-52010 |
NCP1#,SCP10 |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-52010 |
NCP10,13,SCP10 |
1 | ||
| 61768-52010 |
NCP10,13,SCP10 |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-52010 |
NCP10,13,SCP10 |
1 | ||
| 61769-52010 |
NCP10,13,SCP10 |
1 | ||
| Common parts | ||||
| 90950-01784 | ||||
| 90950-01866 | ||||
