NCP10-AGMEK (1999)
Toyota Vitz
(9901-0112)NCP10,SCP10..B,CLA,F,U ; (9909-0112)NCP15..CLA ; (0010-0112)RS
ｽﾗｲﾄﾞ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52020 |
NCP10,SCP10..CLA,U |
1 | ||
| 71017-52190 |
NCP10,13,SCP10..B,RS,U ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 71017-52270 |
SCP10..F;NCP10..RS,U |
1 | ||
| 71017-52270 |
NCP10,SCP10..F,RS |
1 | ||
| 71017-52280 |
NCP10..U;SCP10..F ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52140 |
NCP10,SCP10..F,RS |
1 | ||
| 71018-52120 |
NCP10,13,SCP10..B,RS,U ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 71018-52020 |
NCP10,SCP10..CLA,U |
1 | ||
| 71018-52140 |
SCP10..F;NCP10..RS,U |
1 | ||
| 71018-52150 |
NCP10..U;SCP10..F ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ) |
1 | ||

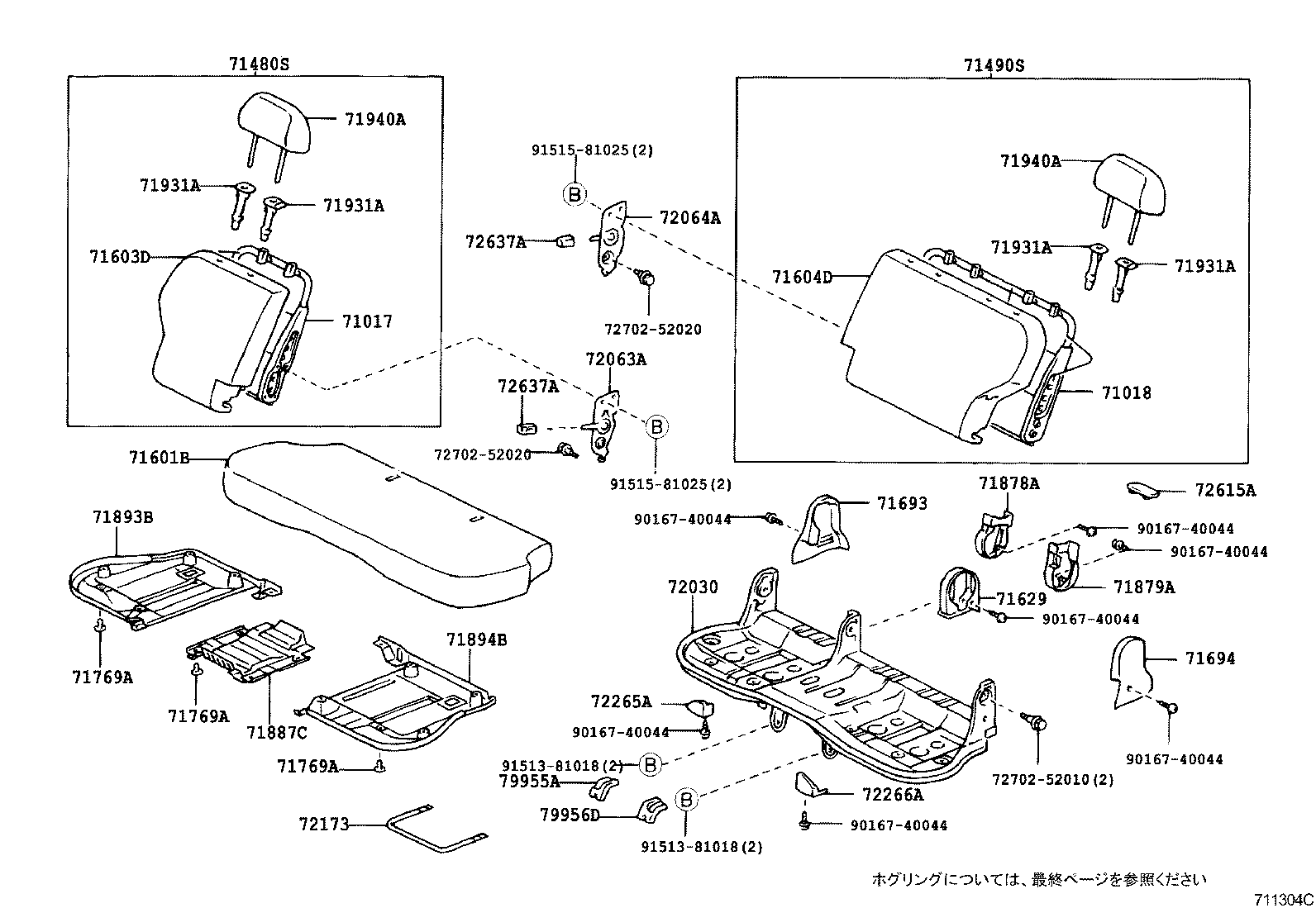

| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-52710H1 |
NCP10,SCP10..U ***,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71480-52710B1 |
NCP10,SCP10..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-52400H0 |
NCP10,SCP10..U ***,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71490-52400B0 |
NCP10,SCP10..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52780B0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71601-52780H0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71601-5C170B1 |
NCP10..3D..U;SCP10..3D..F SHADOW GRAY,TRIM12,ARACO |
1 | ||
| 71601-5C160 |
NCP10..3D..U;SCP10..3D..F TNK |
1 | ||
| 71601-52780B0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-5C140B1 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71603-5C110H1 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71603-5C110B1 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71603-5C140H1 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-5C390B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71603-5C380B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71603-5C400B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71603-5C141B1 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-52580B0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52580H0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71604-52570B0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71604-52570H0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71604-52670B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104,SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71604-52690B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104 & ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71604-52580B0 |
NCP10,SCP10..U SHADOW GRAY,TRIM1# |
1 | ||
| 71604-52680B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52700B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104 & ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71629-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71629-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71629-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-52010H0 |
NCP10,SCP10..B,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71693-52010B0 |
NCP10,SCP10..B,CLA,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71693-52010B1 |
NCP10,SCP10..B,CLA,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71693-52010B0 |
NCP10,SCP10..B,CLA,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-52010H0 |
NCP10,SCP10..B,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71694-52010B0 |
NCP10,SCP10..B,CLA,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71694-52010B1 |
NCP10,SCP10..B,CLA,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71694-52010B0 |
NCP10,SCP10..B,CLA,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10018 |
NCP10,13,SCP10..B,CLA,RS,U |
18 | ||
| 90467-10018 |
NCP10,13,SCP10..B,CLA,RS,U |
18 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10018 |
NCP10,13,SCP10..B,CLA,RS,U |
18 | ||
| 90467-10018 |
NCP10,13,SCP10..B,CLA,RS,U |
18 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10018 |
NCP10,13,SCP10..B,CLA,RS,U |
18 | ||
| 90467-10018 |
NCP10,13,SCP10..B,CLA,RS,U |
18 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71878-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71878-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 71878-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71879-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71879-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 71879-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71887C - CARPET, REAR SEAT CUSHION | ||||
| 71887-52010B0 |
NCP10,SCP10..B,U SHADOW GRAY,TRIM1#,7# |
1 | ||
| 71887-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71887-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 71893B - CARPET, REAR SEAT CUSHION, UNDER RH | ||||
| 71893-52010B0 |
NCP10,SCP10..B,U SHADOW GRAY,TRIM1#,7# |
1 | ||
| 71893-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71893-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 71894B - CARPET, REAR SEAT CUSHION, UNDER LH | ||||
| 71894-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 71894-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71894-52010B0 |
NCP10,SCP10..B,U SHADOW GRAY,TRIM1#,7# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ無,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ付,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ無,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ付,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ無,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ付,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ無,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ付,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52030B0 |
NCP10,15,SCP10..3D..U ｼ-ﾄ = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52030H0 |
NCP10,15,SCP10..3D..U ｼ-ﾄ = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,15,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52170B0 |
NCP10..U;NCP15,SCP10..F ｼ-ﾄ = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52030B0 |
NCP10,15,SCP10..3D..U ｼ-ﾄ = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52030H0 |
NCP10,15,SCP10..3D..U ｼ-ﾄ = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,15,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52170B0 |
NCP10..U;NCP15,SCP10..F ｼ-ﾄ = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 72030 - ADJUSTER ASSY, REAR NO.1 SEAT | ||||
| 72030-52010 |
NCP10,13,SCP10..B,CLA,RS,U |
1 | ||
| 72063A - ARM SUB-ASSY, REAR SEAT BACK LOCK, RH | ||||
| 72063-52010 |
NCP10,13,SCP10..B,CLA,RS,U |
1 | ||
| 72063-52010 |
NCP10,13,SCP10..B,CLA,RS,U |
1 | ||
| 72064A - ARM SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72064-52010 |
NCP10,13,SCP10..B,CLA,RS,U |
1 | ||
| 72064-52010 |
NCP10,13,SCP10..B,CLA,RS,U |
1 | ||
| 72173 - HANDLE, REAR SEAT TRACK ADJUSTING | ||||
| 72173-52010 |
NCP10,13,SCP10..B,CLA,RS,U |
1 | ||
| 72173-52010 |
NCP10,13,SCP10..B,CLA,RS,U |
1 | ||
| 72265A - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-52011B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 72265-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 72265-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72265-52011H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72265-52011B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 72265-52011B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 72266A - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-52011B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 72266-52011H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72266-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72266-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 72266-52011B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 72266-52011B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52010H0 |
NCP10,SCP10..3D..(B,U) FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72615-52010B0 |
NCP10,SCP10..3D..(B,CLA,U) SHADOW GRAY,TRIM1# |
2 | ||
| 72615-52010B0 |
NCP10,SCP10..3D..(B,CLA,U) SHADOW GRAY,TRIM1# |
2 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-52010H0 |
NCP10,SCP10..U FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
2 | ||
| 72637-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
2 | ||
| 72637-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
2 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-52010H0 |
NCP10,SCP10..U FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
2 | ||
| 72637-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
2 | ||
| 72637-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
2 | ||
| 79955A - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79955-52010B0 |

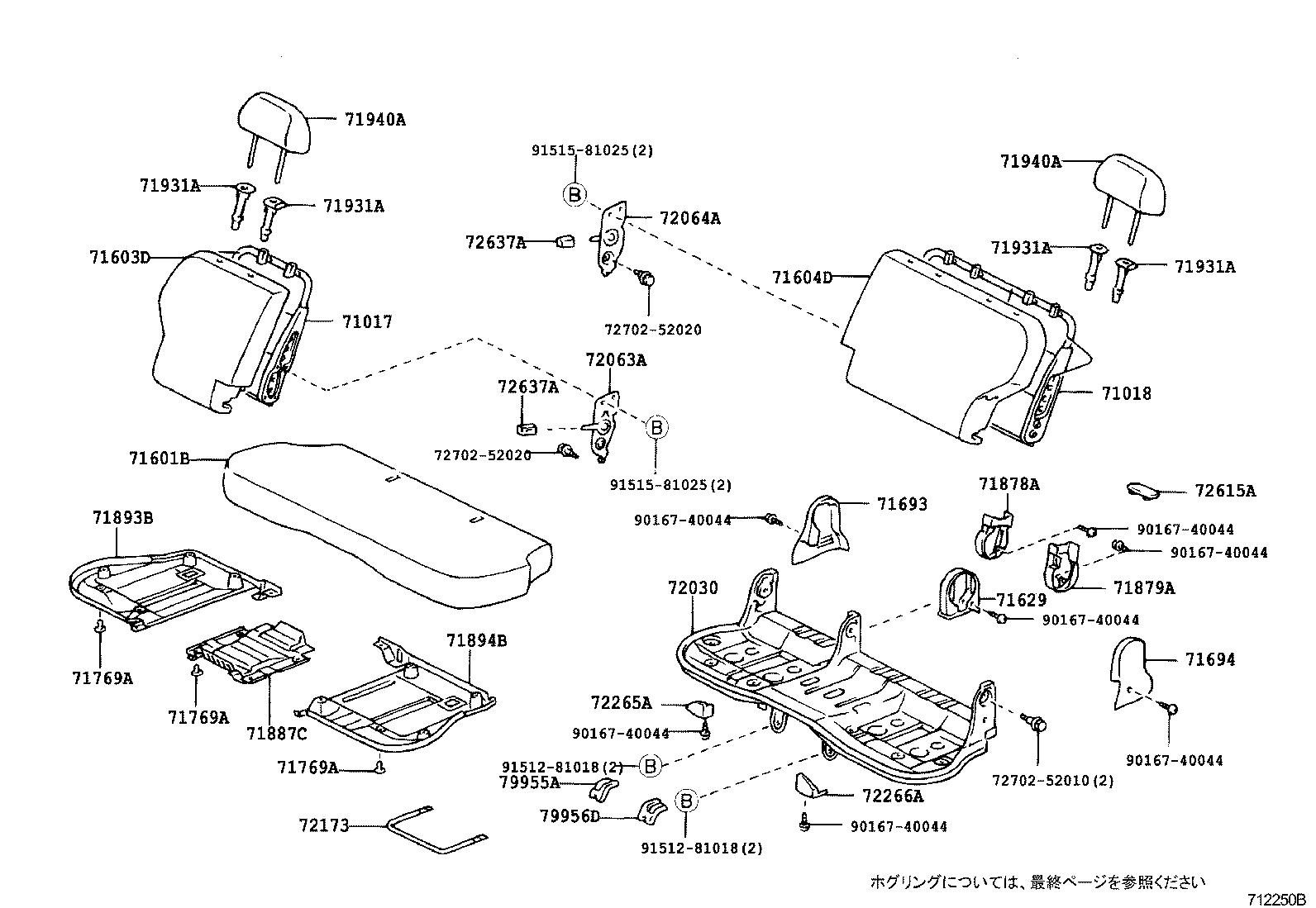

NCP10,SCP10..B,U SHADOW GRAY,TRIM1#,7# |
1 | ||
| 79955-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 79955-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 79956D - COVER, REAR SEAT FRONT BRACKET, LH | ||||
| 79956-52010B0 |
NCP10,SCP10..B,U SHADOW GRAY,TRIM1#,7# |
1 | ||
| 79956-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 79956-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52010 | ||||
| 72702-52020 | ||||
| 90167-40044 | ||||
| 91513-81018 | ||||
| 91515-81025 | ||||

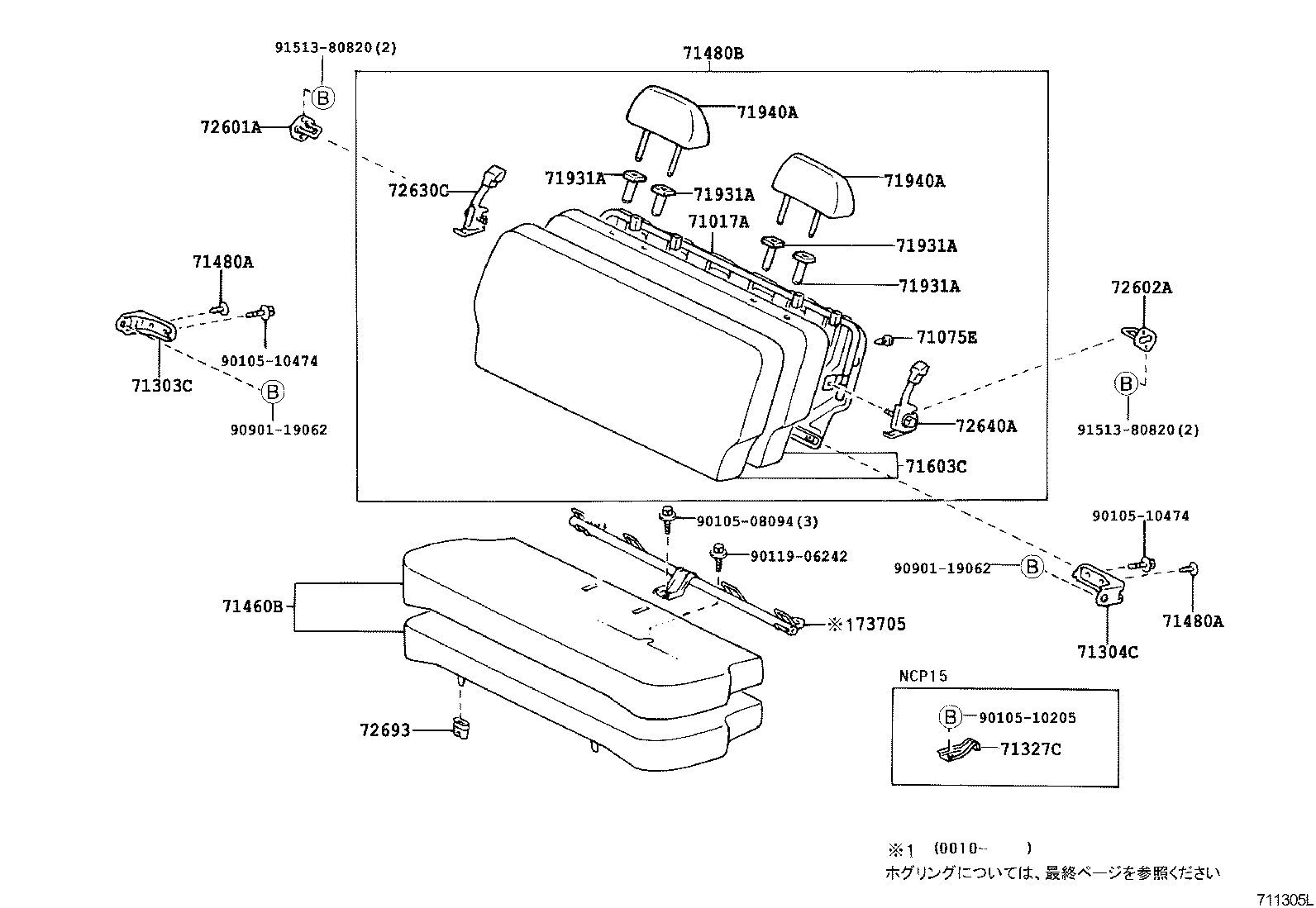

(9901-0112)
ｲｯﾀｲ ｶﾄｳ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-52030 |
NCP10,SCP10..B,F,RS |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-1102101 |
NCP10..U;SCP10..F BLACK,TRIM1# |
8 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71345-52010 |
NCP15;NCP10,SCP10..B,F,RS |
1 | ||
| 71345-52010 |
NCP10,15,SCP10..B,F,RS;NCP15..5D..4FC..(CLA,U) |
1 | ||
| 71345-52010 |
NCP15;SCP10..B,F;NCP10..RS,U |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71345-52010 |
NCP10,15,SCP10..B,F,RS;NCP15..5D..4FC..(CLA,U) |
1 | ||
| 71345-52010 |
NCP15;SCP10..B,F;NCP10..RS,U |
1 | ||
| 71345-52010 |
NCP15;NCP10,SCP10..B,F,RS |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ無,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ付,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ無,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ付,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ無,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ付,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ無,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ付,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52030B0 |
NCP10,15,SCP10..3D..U ｼ-ﾄ = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52030H0 |
NCP10,15,SCP10..3D..U ｼ-ﾄ = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,15,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52170B0 |
NCP10..U;NCP15,SCP10..F ｼ-ﾄ = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52030B0 |
NCP10,15,SCP10..3D..U ｼ-ﾄ = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52030H0 |
NCP10,15,SCP10..3D..U ｼ-ﾄ = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,15,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52170B0 |
NCP10..U;NCP15,SCP10..F ｼ-ﾄ = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-52120 |
NCP10,15,SCP10..B,F,RS;NCP15..5D..4FC..(CLA,U) |
1 | ||
| 72601-52010 |
NCP15;NCP10,SCP10..B,F,RS |
1 | ||
| 72601-52120 |
NCP15;SCP10..B,F;NCP10..RS,U |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-52120 |
NCP15;SCP10..B,F;NCP10..RS,U |
1 | ||
| 72601-52010 |
NCP15;NCP10,SCP10..B,F,RS |
1 | ||
| 72601-52120 |
NCP10,15,SCP10..B,F,RS;NCP15..5D..4FC..(CLA,U) |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-52010 |
NCP10,SCP10..B,F,RS |
1 | ||
| 72630-52090 |
NCP15;SCP10..F;NCP10..RS,U |
1 | ||
| 72630-52090 |
NCP10,15,SCP10..F,RS;NCP15..5D..4FC..(CLA,U) |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-52010 |
NCP10,SCP10..B,F,RS |
1 | ||
| 72640-52080 |
NCP10,15,SCP10..F,RS;NCP15..5D..4FC..(CLA,U) |
1 | ||
| 72640-52080 |
NCP15;SCP10..F;NCP10..RS,U |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
SCP10..B,F;NCP10..RS,U |
2 | ||
| 72693-10040 |
NCP10,SCP10..B,F,RS |
2 | ||
| 72693-10040 |
NCP10,SCP10..B,F,RS |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-52030 |
NCP10,SCP10..F,RS |
1 | ||
| 73705-52030 |
SCP10..F;NCP10..RS,U |
1 | ||
| 73705-52010 |
NCP10,SCP10..B,F,RS |
1 | ||
| Common parts | ||||
| 90105-08094 | ||||
| 90105-10205 | ||||
| 90105-10474 | ||||
| 90119-06242 | ||||
| 90901-19062 | ||||
| 91513-80820 | ||||

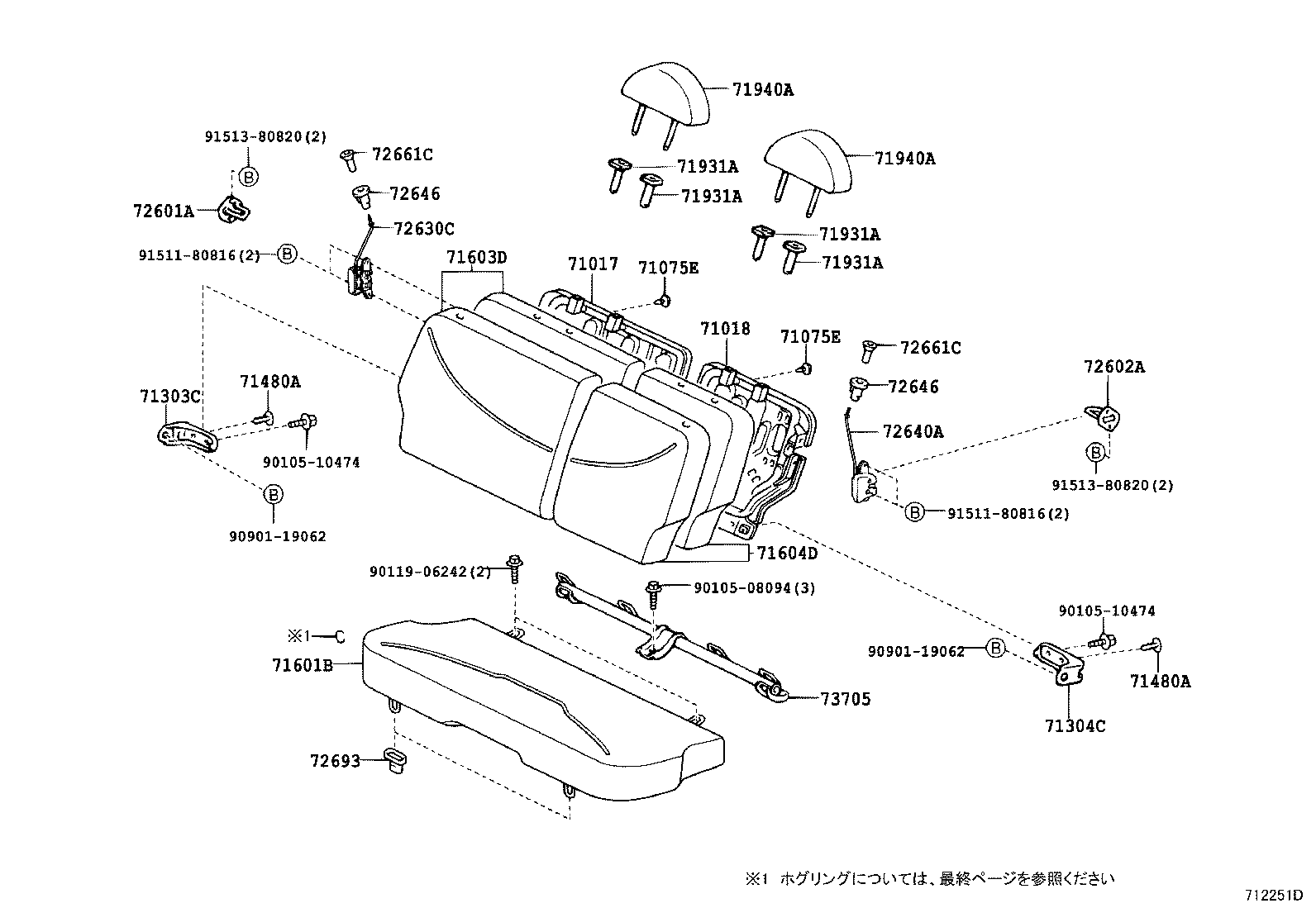

(0112- )NCP10,13,SCP1#..B,CLA,RS,U ; (0202-)SCP10..5D..4FC..F
ｽﾗｲﾄﾞ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52020 |
NCP10,SCP10..CLA,U |
1 | ||
| 71017-52190 |
NCP10,13,SCP10..B,RS,U ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 71017-52270 |
SCP10..F;NCP10..RS,U |
1 | ||
| 71017-52270 |
NCP10,SCP10..F,RS |
1 | ||
| 71017-52280 |
NCP10..U;SCP10..F ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52140 |
NCP10,SCP10..F,RS |
1 | ||
| 71018-52120 |
NCP10,13,SCP10..B,RS,U ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 71018-52020 |
NCP10,SCP10..CLA,U |
1 | ||
| 71018-52140 |
SCP10..F;NCP10..RS,U |
1 | ||
| 71018-52150 |
NCP10..U;SCP10..F ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ) |
1 | ||
| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52780B0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71601-52780H0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71601-5C170B1 |
NCP10..3D..U;SCP10..3D..F SHADOW GRAY,TRIM12,ARACO |
1 | ||
| 71601-5C160 |
NCP10..3D..U;SCP10..3D..F TNK |
1 | ||
| 71601-52780B0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-5C140B1 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71603-5C110H1 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71603-5C110B1 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71603-5C140H1 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-5C390B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71603-5C380B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71603-5C400B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71603-5C141B1 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-52580B0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52580H0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71604-52570B0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71604-52570H0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71604-52670B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104,SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71604-52690B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104 & ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71604-52580B0 |
NCP10,SCP10..U SHADOW GRAY,TRIM1# |
1 | ||
| 71604-52680B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52700B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104 & ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71629-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71629-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71629-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-52010H0 |
NCP10,SCP10..B,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71693-52010B0 |
NCP10,SCP10..B,CLA,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71693-52010B1 |
NCP10,SCP10..B,CLA,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71693-52010B0 |
NCP10,SCP10..B,CLA,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-52010H0 |
NCP10,SCP10..B,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71694-52010B0 |
NCP10,SCP10..B,CLA,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71694-52010B1 |
NCP10,SCP10..B,CLA,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71694-52010B0 |
NCP10,SCP10..B,CLA,U ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10018 |
NCP10,13,SCP10..B,CLA,RS,U |
18 | ||
| 90467-10018 |
NCP10,13,SCP10..B,CLA,RS,U |
18 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10018 |
NCP10,13,SCP10..B,CLA,RS,U |
18 | ||
| 90467-10018 |
NCP10,13,SCP10..B,CLA,RS,U |
18 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 90467-10018 |
NCP10,13,SCP10..B,CLA,RS,U |
18 | ||
| 90467-10018 |
NCP10,13,SCP10..B,CLA,RS,U |
18 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71878-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71878-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 71878-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71879-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71879-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 71879-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71887C - CARPET, REAR SEAT CUSHION | ||||
| 71887-52010B0 |
NCP10,SCP10..B,U SHADOW GRAY,TRIM1#,7# |
1 | ||
| 71887-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71887-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 71893B - CARPET, REAR SEAT CUSHION, UNDER RH | ||||
| 71893-52010B0 |
NCP10,SCP10..B,U SHADOW GRAY,TRIM1#,7# |
1 | ||
| 71893-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71893-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 71894B - CARPET, REAR SEAT CUSHION, UNDER LH | ||||
| 71894-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 71894-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 71894-52010B0 |
NCP10,SCP10..B,U SHADOW GRAY,TRIM1#,7# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ無,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ付,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ無,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ付,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ無,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ付,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ無,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ付,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52030B0 |
NCP10,15,SCP10..3D..U ｼ-ﾄ = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52030H0 |
NCP10,15,SCP10..3D..U ｼ-ﾄ = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,15,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52170B0 |
NCP10..U;NCP15,SCP10..F ｼ-ﾄ = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52030B0 |
NCP10,15,SCP10..3D..U ｼ-ﾄ = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52030H0 |
NCP10,15,SCP10..3D..U ｼ-ﾄ = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,15,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52170B0 |
NCP10..U;NCP15,SCP10..F ｼ-ﾄ = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 72030 - ADJUSTER ASSY, REAR NO.1 SEAT | ||||
| 72030-52010 |
NCP10,13,SCP10..B,CLA,RS,U |
1 | ||
| 72063A - ARM SUB-ASSY, REAR SEAT BACK LOCK, RH | ||||
| 72063-52010 |
NCP10,13,SCP10..B,CLA,RS,U |
1 | ||
| 72063-52010 |
NCP10,13,SCP10..B,CLA,RS,U |
1 | ||
| 72064A - ARM SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72064-52010 |
NCP10,13,SCP10..B,CLA,RS,U |
1 | ||
| 72064-52010 |
NCP10,13,SCP10..B,CLA,RS,U |
1 | ||
| 72173 - HANDLE, REAR SEAT TRACK ADJUSTING | ||||
| 72173-52010 |
NCP10,13,SCP10..B,CLA,RS,U |
1 | ||
| 72173-52010 |
NCP10,13,SCP10..B,CLA,RS,U |
1 | ||
| 72265A - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-52011B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 72265-52011B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 72265-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 72265-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72265-52011H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72265-52011B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 72266A - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-52011B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 72266-52011H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72266-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
1 | ||
| 72266-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 72266-52011B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 72266-52011B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52010H0 |
NCP10,SCP10..3D..(B,U) FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72615-52010B0 |
NCP10,SCP10..3D..(B,CLA,U) SHADOW GRAY,TRIM1# |
2 | ||
| 72615-52010B0 |
NCP10,SCP10..3D..(B,CLA,U) SHADOW GRAY,TRIM1# |
2 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-52010H0 |
NCP10,SCP10..U FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
2 | ||
| 72637-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
2 | ||
| 72637-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
2 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-52010H0 |
NCP10,SCP10..U FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
2 | ||
| 72637-52010H0 |
NCP10,SCP10..B,U FRENCH TURQUOISE,TRIM7# |
2 | ||
| 72637-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
2 | ||
| 72637-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
2 | ||
| 79955A - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79955-52010B0 |
NCP10,SCP10..B,U SHADOW GRAY,TRIM1#,7# |
1 | ||
| 79955-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| 79955-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 79956D - COVER, REAR SEAT FRONT BRACKET, LH | ||||
| 79956-52010B0 |
NCP10,SCP10..B,U SHADOW GRAY,TRIM1#,7# |
1 | ||
| 79956-52010B0 |
NCP10,SCP10..B,CLA,U SHADOW GRAY,TRIM1# |
1 | ||
| 79956-52010B1 |
NCP10,SCP10..B,CLA,U DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-52010 | ||||
| 72702-52020 | ||||
| 90167-40044 | ||||
| 91512-81018 | ||||
| 91515-81025 | ||||
(0112- )SCP10..F ; (0112- )NCP10,13,SCP13..RS,U
ｺﾃｲ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52020 |
NCP10,SCP10..CLA,U |
1 | ||
| 71017-52190 |
NCP10,13,SCP10..B,RS,U ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 71017-52270 |
SCP10..F;NCP10..RS,U |
1 | ||
| 71017-52270 |
NCP10,SCP10..F,RS |
1 | ||
| 71017-52280 |
NCP10..U;SCP10..F ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52140 |
NCP10,SCP10..F,RS |
1 | ||
| 71018-52120 |
NCP10,13,SCP10..B,RS,U ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 71018-52020 |
NCP10,SCP10..CLA,U |
1 | ||
| 71018-52140 |
SCP10..F;NCP10..RS,U |
1 | ||
| 71018-52150 |
NCP10..U;SCP10..F ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ) |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-1102101 |
NCP10..U;SCP10..F BLACK,TRIM1# |
8 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-1102101 |
NCP10..U;SCP10..F BLACK,TRIM1# |
8 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71345-52010 |
NCP15;NCP10,SCP10..B,F,RS |
1 | ||
| 71345-52010 |
NCP10,15,SCP10..B,F,RS;NCP15..5D..4FC..(CLA,U) |
1 | ||
| 71345-52010 |
NCP15;SCP10..B,F;NCP10..RS,U |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71345-52010 |
NCP10,15,SCP10..B,F,RS;NCP15..5D..4FC..(CLA,U) |
1 | ||
| 71345-52010 |
NCP15;SCP10..B,F;NCP10..RS,U |
1 | ||
| 71345-52010 |
NCP15;NCP10,SCP10..B,F,RS |
1 | ||
| 71601B - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER | ||||
| 71601-52780B0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71601-52780H0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,FRENCH TURQUOISE,TRIM7# |
1 | ||
| 71601-5C170B1 |
NCP10..3D..U;SCP10..3D..F SHADOW GRAY,TRIM12,ARACO |
1 | ||
| 71601-5C160 |
NCP10..3D..U;SCP10..3D..F TNK |
1 | ||
| 71601-52780B0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-5C140B1 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71603-5C110H1 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71603-5C110B1 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71603-5C140H1 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71603-5C390B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71603-5C380B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71603-5C400B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104 & ｱﾘ(ﾘﾔ ﾍﾂﾄﾞﾚｽﾄ),SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71603-5C141B1 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-52580B0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52580H0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,FRENCH TURQUOISE,TRIM7#,ARACO |
1 | ||
| 71604-52570B0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71604-52570H0 |
NCP10,SCP10..U ｼ-ﾄ = TYPE H-*104,FRENCH TURQUOISE,TRIM7#,TNK |
1 | ||
| 71604-52670B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104,SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71604-52690B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104 & ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),SHADOW GRAY,TRIM1#,TNK |
1 | ||
| 71604-52580B0 |
NCP10,SCP10..U SHADOW GRAY,TRIM1# |
1 | ||
| 71604-52680B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104,SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71604-52700B1 |
NCP10..U;SCP10..F ｼ-ﾄ = TYPE G-*104 & ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),SHADOW GRAY,TRIM1#,ARACO |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ無,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ付,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ無,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ付,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ無,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ付,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ無,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NCP10..U;NCP15,SCP10..B,F ﾛｯｸ付,ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ),DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52030B0 |
NCP10,15,SCP10..3D..U ｼ-ﾄ = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52030H0 |
NCP10,15,SCP10..3D..U ｼ-ﾄ = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,15,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52170B0 |
NCP10..U;NCP15,SCP10..F ｼ-ﾄ = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-52030B0 |
NCP10,15,SCP10..3D..U ｼ-ﾄ = TYPE C-*104,GRAY,TRIM1# |
2 | ||
| 71910-52030H0 |
NCP10,15,SCP10..3D..U ｼ-ﾄ = TYPE C-*104,TORQUOISE,TRIM7# |
2 | ||
| 71910-52190B0 |
NCP10,15,SCP10..U ｼ-ﾄ = TYPE H-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-52170B0 |
NCP10..U;NCP15,SCP10..F ｼ-ﾄ = TYPE G-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-52120 |
NCP10,15,SCP10..B,F,RS;NCP15..5D..4FC..(CLA,U) |
1 | ||
| 72601-52010 |
NCP15;NCP10,SCP10..B,F,RS |
1 | ||
| 72601-52120 |
NCP15;SCP10..B,F;NCP10..RS,U |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-52120 |
NCP15;SCP10..B,F;NCP10..RS,U |
1 | ||
| 72601-52010 |
NCP15;NCP10,SCP10..B,F,RS |
1 | ||
| 72601-52120 |
NCP10,15,SCP10..B,F,RS;NCP15..5D..4FC..(CLA,U) |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-52010 |
NCP10,SCP10..B,F,RS |
1 | ||
| 72630-52090 |
NCP15;SCP10..F;NCP10..RS,U |
1 | ||
| 72630-52090 |
NCP10,15,SCP10..F,RS;NCP15..5D..4FC..(CLA,U) |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-52010 |
NCP10,SCP10..B,F,RS |
1 | ||
| 72640-52080 |
NCP10,15,SCP10..F,RS;NCP15..5D..4FC..(CLA,U) |
1 | ||
| 72640-52080 |
NCP15;SCP10..F;NCP10..RS,U |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010B1 |
NCP15;NCP10..U;SCP10..F SHADOW GRAY,TRIM1# |
1 | ||
| 72646-33010B4 |
NCP15;NCP10..U;SCP10..F DK.GRAY,TRIM1# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33010B1 |
NCP15;NCP10..U;SCP10..F SHADOW GRAY,TRIM1# |
1 | ||
| 72646-33010B4 |
NCP15;NCP10..U;SCP10..F DK.GRAY,TRIM1# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030B3 |
NCP15;NCP10..U;SCP10..F DK.GRAY,TRIM1# |
2 | ||
| 72661-32030B0 |
NCP15;NCP10..U;SCP10..F SHADOW GRAY,TRIM1# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-32030B3 |
NCP15;NCP10..U;SCP10..F DK.GRAY,TRIM1# |
2 | ||
| 72661-32030B0 |
NCP15;NCP10..U;SCP10..F SHADOW GRAY,TRIM1# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10040 |
SCP10..B,F;NCP10..RS,U |
2 | ||
| 72693-10040 |
NCP10,SCP10..B,F,RS |
2 | ||
| 72693-10040 |
NCP10,SCP10..B,F,RS |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-52030 |
NCP10,SCP10..F,RS |
1 | ||
| 73705-52030 |
SCP10..F;NCP10..RS,U |
1 | ||
| 73705-52010 |
NCP10,SCP10..B,F,RS |
1 | ||
| Common parts | ||||
| 90105-08094 | ||||
| 90105-10474 | ||||
| 90119-06242 | ||||
| 90901-19062 | ||||
| 91511-80816 | ||||
| 91513-80820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
