KSP90-AHXNK (2005)

Toyota Vitz

Production Jan 2005 - Aug 2007
Engine 1KRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )

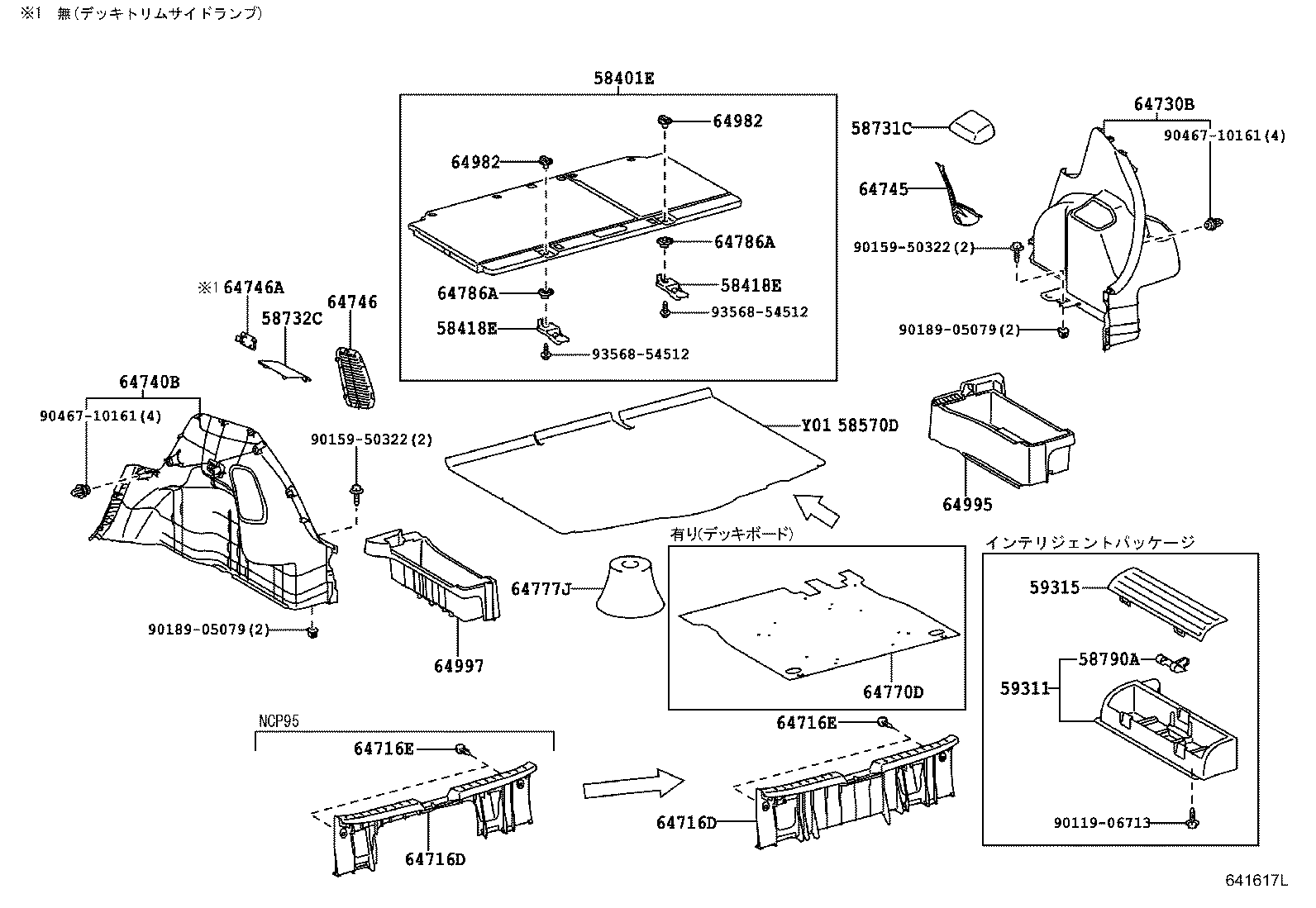

Click highlighted areas on diagram

diagram 58401E 58418E 58418E 58570D 58731C 58732C 58790A 59311 59315 64716D 64716D 64716E 64716E 64730B 64740B 64745 64746 64746A 64770D 64777J 64786A 64786A 64982 64982 64995 64997 9011906713 9015950322 9015950322 9018905079 9018905079 9046710161 9046710161 9356854512 9356854512
Part # Description Qty Price
58570D - CARPET ASSY, REAR FLOOR
58570-52230B0

KSP90..F

Lﾊﾟｯｹｰｼﾞ,DARK GRAY,TRIM1#,4#

 1
58570-52230B0

KSP90..B,F

DARK GRAY,TRIM1#,4#

 1
58570-52250B0

KSP90..B,F

ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｯｹｰｼﾞ,DARK GRAY,TRIM1#,4#

 1
58731C - CAP, REAR ABSORBER
58731-52050B0

KSP90,NCP9#,SCP90..B,F,U,X

DK.GRAY,TRIM1#,4#

 1
58732C - CAP, REAR ABSORBER
58732-52030B0

KSP90,NCP9#,SCP90..B,F,U,X

DK.GRAY,TRIM1#,4#

 1
58790A - CARRIER ASSY, JACK
58790-52020

KSP90..B,F

ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｯｹｰｼﾞ

 1
59311 - PANEL, REAR FLOOR BOX
59311-52030

KSP90..B,F

ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｯｹｰｼﾞ

 1
59315 - COVER, REAR FLOOR BOX
59315-52020

KSP90..B,F

ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｯｹｰｼﾞ

 1
64716D - COVER, DECK TRIM, REAR
64716-52120B0

KSP90,NCP91,SCP90..B,F,U,X

DK.GRAY,TRIM1#,4#

 1
64716D - COVER, DECK TRIM, REAR
64716-52120B0

KSP90,NCP91,SCP90..B,F,U,X

DK.GRAY,TRIM1#,4#

 1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-08186B4

KSP90,NCP9#,SCP90..B,F,U,X

DK.GRAY,TRIM1#,4#

 2
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-08186B4

KSP90,NCP9#,SCP90..B,F,U,X

DK.GRAY,TRIM1#,4#

 2
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-52290B0

KSP90,NCP9#,SCP90..B,F,X

DK.GRAY,TRIM1#,4#

 1
64740B - BOARD, DECK TRIM SIDE, LH
64740-52350B0

KSP90,NCP9#,SCP90..B,F,X

DK.GRAY,TRIM1#,4#

 1
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-52070B0

KSP90,NCP9#,SCP90..B,F,U,X

DK.GRAY,TRIM1#,4#

 1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-52100B0

KSP90,NCP9#,SCP90..B,F,U,X

DK.GRAY,TRIM1#,4#

 1
64777J - CUSHION, SPARE WHEEL
64777-52020

KSP90,NCP91,SCP90

 1
64777-52020

KSP90,NCP91,SCP90..F,RS

Lﾊﾟｯｹｰｼﾞ

 1
Common parts
90119-06713
90159-50322
90189-05079
90467-10161
93568-54512
