KSP90-AHXNK (2005)
Toyota Vitz
(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63301-52010B0 |
KSP90,NCP9#,SCP90..B,F,X GRAY,TRIM1# |
1 | ||
| 63301-52020B0 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GRAY,TRIM1# |
1 | ||
| 63301-52010E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X GREGE,TRIM4# |
1 | ||
| 63301-52020E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164E2 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X GREGE,TRIM4# |
2 | ||
| 90467-05164B6 |
KSP90,NCP9#,SCP90..B,F,U,X GRAY,TRIM1# |
2 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 63339-52030B1 |
KSP90,NCP9#,SCP90..B,F,X GRAY,TRIM1# |
6 | ||
| 63339-52030E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X GREGE,TRIM4# |
6 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52150 |
KSP90,NCP9#,SCP90 |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52150 |
KSP90,NCP9#,SCP90 |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52150 |
KSP90,NCP9#,SCP90 |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52150 |
KSP90,NCP9#,SCP90 |
4 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63343-52040 |
KSP90,NCP9#,SCP90 |
2 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63343-52040 |
KSP90,NCP9#,SCP90 |
2 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-52030 |
KSP90,NCP9#,SCP90 |
2 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-52030 |
KSP90,NCP9#,SCP90 |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-52160 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 66413-52180 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-52190 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 66414-52210 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-52180 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 66423-52170 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-52180 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 66424-52200 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||

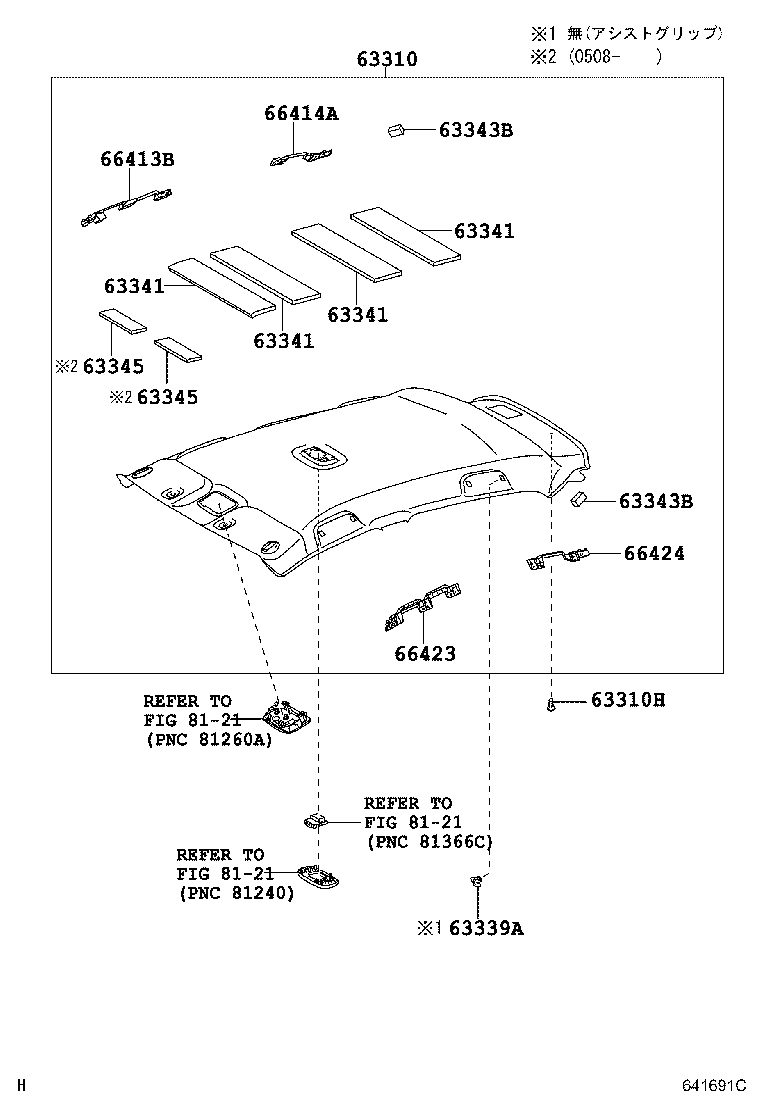

| Linked diagrams | ||||
| 8121 | ||||
(0501- )
ｱﾘ(SRS ｶｰﾃﾝ ｼｰﾙﾄﾞ ｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63301-52010B0 |
KSP90,NCP9#,SCP90..B,F,X GRAY,TRIM1# |
1 | ||
| 63301-52020B0 |
KSP90,NCP9#,SCP90..B,F,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GRAY,TRIM1# |
1 | ||
| 63301-52010E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X GREGE,TRIM4# |
1 | ||
| 63301-52020E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164E2 |
KSP90,NCP9#,SCP90..B,F,ILL,U,X GREGE,TRIM4# |
2 | ||
| 90467-05164B6 |
KSP90,NCP9#,SCP90..B,F,U,X GRAY,TRIM1# |
2 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 63339-52030B1 |
KSP90,NCP9#,SCP90..B,F,X GRAY,TRIM1# |
6 | ||
| 63339-52030E0 |
KSP90,NCP9#,SCP90..B,F,ILL,X GREGE,TRIM4# |
6 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52150 |
KSP90,NCP9#,SCP90 |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52150 |
KSP90,NCP9#,SCP90 |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52150 |
KSP90,NCP9#,SCP90 |
4 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52150 |
KSP90,NCP9#,SCP90 |
4 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63343-52040 |
KSP90,NCP9#,SCP90 |
2 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63343-52040 |
KSP90,NCP9#,SCP90 |
2 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-52030 |
KSP90,NCP9#,SCP90 |
2 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-52030 |
KSP90,NCP9#,SCP90 |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-52160 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 66413-52180 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-52190 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 66414-52210 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-52180 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 66423-52170 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-52180 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X |
1 | ||
| 66424-52200 |
KSP90,NCP9#,SCP90..B,F,ILL,RS,X SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ |
1 | ||

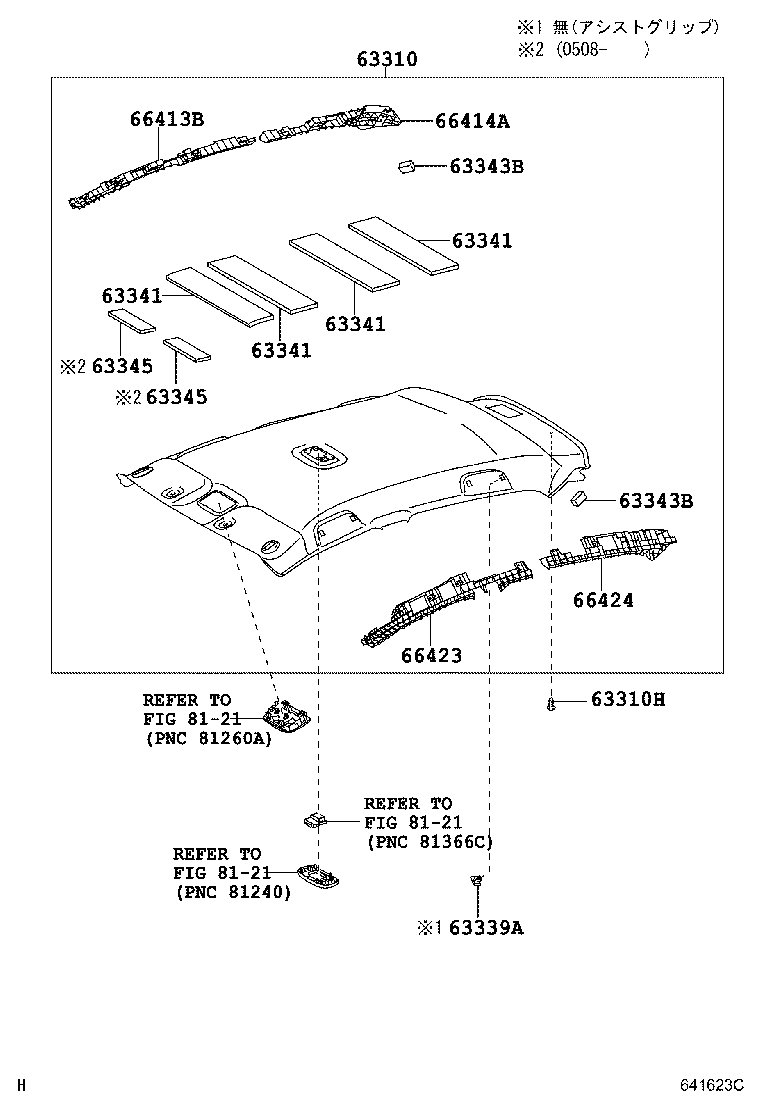

| Linked diagrams | ||||
| 8121 | ||||
