KSP90-AHXEK (2007)
Toyota Vitz
(0708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

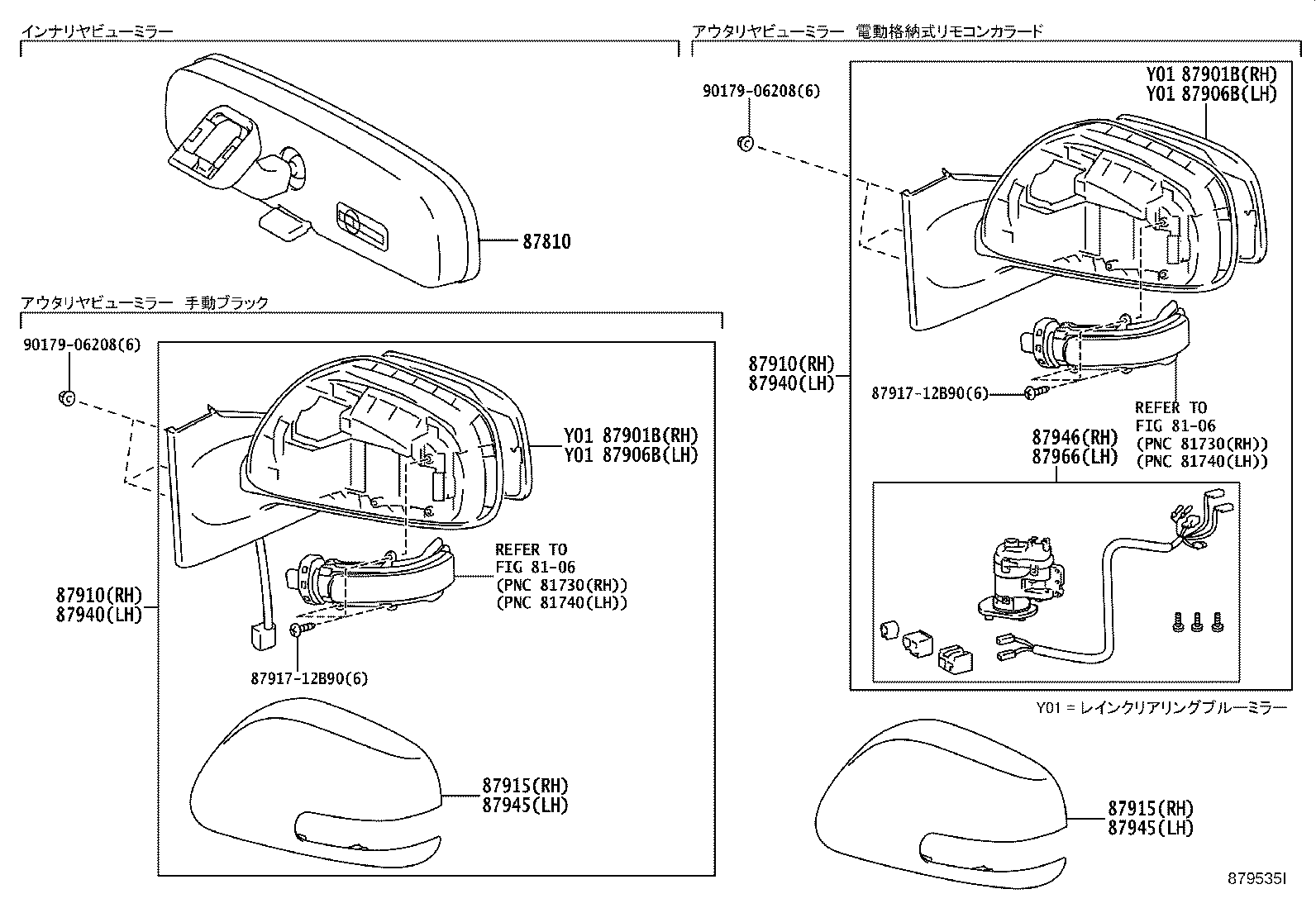

| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52040 |
KSP90,NCP9#,SCP90 |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-52640 |
KSP90,NCP9#,SCP90 |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-52640 |
KSP90,NCP9#,SCP90 |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-52620 |
KSP90,NCP9#,SCP90 |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-52620 |
KSP90,NCP9#,SCP90 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-52630 |
KSP90,NCP9#,SCP90..F,ILL,RS,U,X 塗装不要 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-52630 |
KSP90,NCP9#,SCP90..F,ILL,RS,U,X 塗装不要 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-52060E0 |
KSP90,NCP9#,SCP90..F,U,X PALE ORANGE MICA METALLIC,4S3 |
1 | ||
| 87915-52060B0 |
KSP90,NCP9#,SCP90..F,U,X SILVER M.M.,1E7 |
1 | ||
| 87915-52060A0 |
KSP90,NCP9#,SCP90..F,RS,U,X WHITE,068 |
1 | ||
| 87915-52060E1 |
KSP90,NCP9#,SCP90..F,ILL,U,X BEIGE PM.,4S8 |
1 | ||
| 87915-52060G1 |
KSP90,NCP9#,SCP90..F,RS,U,X GREEN M.M.,6U1 |
1 | ||
| 87915-52060B1 |
KSP90,NCP9#,SCP90..F,ILL,RS,U,X MEDIUM SILVER ME.,1F8 |
1 | ||
| 87915-52060D0 |
KSP90,NCP9#,SCP90..F,RS,U,X SUPER RED 5,3P0 |
1 | ||
| 87915-52060J1 |
KSP90,NCP9#,SCP90..F,U,X LT. BLUE M.M.,8S9 |
1 | ||
| 87915-52060J0 |
KSP90,NCP9#,SCP90..F,U,X DK.BLUE M.M.,8P4 |
1 | ||
| 87915-52060C0 |
KSP90,NCP9#,SCP90..F,RS,U,X BLACK MC.,209 |
1 | ||
| 87915-52060K0 |
KSP90,NCP9#,SCP90..F,ILL,U,X REDDISH PURPLE M.M.,9AC |
1 | ||
| 87915-12070J2 |
KSP90,NCP9#,SCP90..F,U DK.BLUE M.M.,8P4 |
1 | ||
| 87915-12090K0 |
KSP90,NCP9#,SCP90..F,U LT.PURPLE M.M.,9AE |
1 | ||
| 87915-12070B3 |
KSP90,NCP9#,SCP90..F,U SILVER M.M.,1E7 |
1 | ||
| 87915-12090A1 |
KSP90,NCP9#,SCP90..F,ILL,U WHITE PEARL CS.,070 |
1 | ||
| 87915-12070E1 |
KSP90,NCP9#,SCP90..F,U COPPER ME.,4T4 |
1 | ||
| 87915-12070H1 |
KSP90,NCP9#,SCP90..F,U TURQUOISE ME.,777 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-52060E0 |
KSP90,NCP9#,SCP90..F,U,X PALE ORANGE MICA METALLIC,4S3 |
1 | ||
| 87915-52060B0 |
KSP90,NCP9#,SCP90..F,U,X SILVER M.M.,1E7 |
1 | ||
| 87915-52060A0 |
KSP90,NCP9#,SCP90..F,RS,U,X WHITE,068 |
1 | ||
| 87915-52060E1 |
KSP90,NCP9#,SCP90..F,ILL,U,X BEIGE PM.,4S8 |
1 | ||
| 87915-52060G1 |
KSP90,NCP9#,SCP90..F,RS,U,X GREEN M.M.,6U1 |
1 | ||
| 87915-52060B1 |
KSP90,NCP9#,SCP90..F,ILL,RS,U,X MEDIUM SILVER ME.,1F8 |
1 | ||
| 87915-52060D0 |
KSP90,NCP9#,SCP90..F,RS,U,X SUPER RED 5,3P0 |
1 | ||
| 87915-52060J1 |
KSP90,NCP9#,SCP90..F,U,X LT. BLUE M.M.,8S9 |
1 | ||
| 87915-52060J0 |
KSP90,NCP9#,SCP90..F,U,X DK.BLUE M.M.,8P4 |
1 | ||
| 87915-52060C0 |
KSP90,NCP9#,SCP90..F,RS,U,X BLACK MC.,209 |
1 | ||
| 87915-52060K0 |
KSP90,NCP9#,SCP90..F,ILL,U,X REDDISH PURPLE M.M.,9AC |
1 | ||
| 87915-12070J2 |
KSP90,NCP9#,SCP90..F,U DK.BLUE M.M.,8P4 |
1 | ||
| 87915-12090K0 |
KSP90,NCP9#,SCP90..F,U LT.PURPLE M.M.,9AE |
1 | ||
| 87915-12070B3 |
KSP90,NCP9#,SCP90..F,U SILVER M.M.,1E7 |
1 | ||
| 87915-12090A1 |
KSP90,NCP9#,SCP90..F,ILL,U WHITE PEARL CS.,070 |
1 | ||
| 87915-12070E1 |
KSP90,NCP9#,SCP90..F,U COPPER ME.,4T4 |
1 | ||
| 87915-12070H1 |
KSP90,NCP9#,SCP90..F,U TURQUOISE ME.,777 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-52610 |
KSP90,NCP9#,SCP90..F,ILL,RS,U,X 塗装不要 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-52610 |
KSP90,NCP9#,SCP90..F,ILL,RS,U,X 塗装不要 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-52060E0 |
KSP90,NCP9#,SCP90..F,U,X PALE ORANGE MICA METALLIC,4S3 |
1 | ||
| 87945-52060G1 |
KSP90,NCP9#,SCP90..F,RS,U,X GREEN M.M.,6U1 |
1 | ||
| 87945-52060B0 |
KSP90,NCP9#,SCP90..F,U,X SILVER M.M.,1E7 |
1 | ||
| 87945-52060J1 |
KSP90,NCP9#,SCP90..F,U,X LT. BLUE M.M.,8S9 |
1 | ||
| 87945-52060K0 |
KSP90,NCP9#,SCP90..F,ILL,U,X REDDISH PURPLE M.M.,9AC |
1 | ||
| 87945-52060A0 |
KSP90,NCP9#,SCP90..F,RS,U,X WHITE,068 |
1 | ||
| 87945-52060E1 |
KSP90,NCP9#,SCP90..F,ILL,U,X BEIGE PM.,4S8 |
1 | ||
| 87945-52060D0 |
KSP90,NCP9#,SCP90..F,RS,U,X SUPER RED 5,3P0 |
1 | ||
| 87945-52060J0 |
KSP90,NCP9#,SCP90..F,U,X DK.BLUE M.M.,8P4 |
1 | ||
| 87945-52060C0 |
KSP90,NCP9#,SCP90..F,RS,U,X BLACK MC.,209 |
1 | ||
| 87945-52060B1 |
KSP90,NCP9#,SCP90..F,ILL,RS,U,X MEDIUM SILVER ME.,1F8 |
1 | ||
| 87945-12070E1 |
KSP90,NCP9#,SCP90..F,U COPPER ME.,4T4 |
1 | ||
| 87945-12070H1 |
KSP90,NCP9#,SCP90..F,U TURQUOISE ME.,777 |
1 | ||
| 87945-12090K0 |
KSP90,NCP9#,SCP90..F,U LT.PURPLE M.M.,9AE |
1 | ||
| 87945-12090A1 |
KSP90,NCP9#,SCP90..F,ILL,U WHITE PEARL CS.,070 |
1 | ||
| 87945-12070J2 |
KSP90,NCP9#,SCP90..F,U DK.BLUE M.M.,8P4 |
1 | ||
| 87945-12070B3 |
KSP90,NCP9#,SCP90..F,U SILVER M.M.,1E7 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-52060E0 |
KSP90,NCP9#,SCP90..F,U,X PALE ORANGE MICA METALLIC,4S3 |
1 | ||
| 87945-52060G1 |
KSP90,NCP9#,SCP90..F,RS,U,X GREEN M.M.,6U1 |
1 | ||
| 87945-52060B0 |
KSP90,NCP9#,SCP90..F,U,X SILVER M.M.,1E7 |
1 | ||
| 87945-52060J1 |
KSP90,NCP9#,SCP90..F,U,X LT. BLUE M.M.,8S9 |
1 | ||
| 87945-52060K0 |
KSP90,NCP9#,SCP90..F,ILL,U,X REDDISH PURPLE M.M.,9AC |
1 | ||
| 87945-52060A0 |
KSP90,NCP9#,SCP90..F,RS,U,X WHITE,068 |
1 | ||
| 87945-52060E1 |
KSP90,NCP9#,SCP90..F,ILL,U,X BEIGE PM.,4S8 |
1 | ||
| 87945-52060D0 |
KSP90,NCP9#,SCP90..F,RS,U,X SUPER RED 5,3P0 |
1 | ||
| 87945-52060J0 |
KSP90,NCP9#,SCP90..F,U,X DK.BLUE M.M.,8P4 |
1 | ||
| 87945-52060C0 |
KSP90,NCP9#,SCP90..F,RS,U,X BLACK MC.,209 |
1 | ||
| 87945-52060B1 |
KSP90,NCP9#,SCP90..F,ILL,RS,U,X MEDIUM SILVER ME.,1F8 |
1 | ||
| 87945-12070E1 |
KSP90,NCP9#,SCP90..F,U COPPER ME.,4T4 |
1 | ||
| 87945-12070H1 |
KSP90,NCP9#,SCP90..F,U TURQUOISE ME.,777 |
1 | ||
| 87945-12090K0 |
KSP90,NCP9#,SCP90..F,U LT.PURPLE M.M.,9AE |
1 | ||
| 87945-12090A1 |
KSP90,NCP9#,SCP90..F,ILL,U WHITE PEARL CS.,070 |
1 | ||
| 87945-12070J2 |
KSP90,NCP9#,SCP90..F,U DK.BLUE M.M.,8P4 |
1 | ||
| 87945-12070B3 |
KSP90,NCP9#,SCP90..F,U SILVER M.M.,1E7 |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-52630 |
KSP90,NCP9#,SCP90..F,ILL,RS,U,X |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-52610 |
KSP90,NCP9#,SCP90..F,ILL,RS,U,X |
1 | ||
| Common parts | ||||
| 87917-12B90 | ||||
| 90179-06208 | ||||
| Linked diagrams | ||||
| 8106 | ||||
