KSP90-AHXEK (2007)

Toyota Vitz

Production Aug 2007 - Aug 2008
Engine 1KRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501-0808)KSP90,SCP90

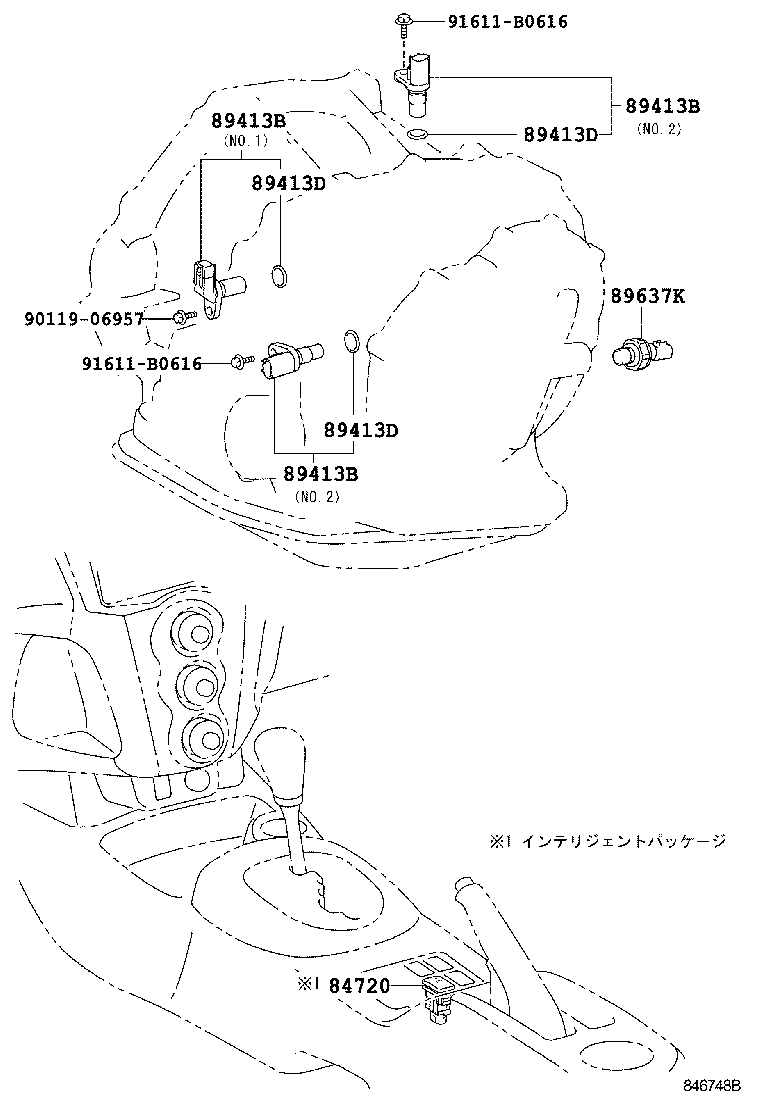

Click highlighted areas on diagram

diagram 84720 89413B 89413B 89413B 89413D 89413D 89413D 89637K 9011906957 91611B0616 91611B0616
Part # Description Qty Price
84720 - SWITCH ASSY, PATTERN SELECT
84720-52090

KSP90..B,F

ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｯｹｰｼﾞ

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-60020

KSP90,SCP90

NO.2

 2
89413-32010

KSP90,SCP90

NO.1

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-60020

KSP90,SCP90

NO.2

 2
89413-32010

KSP90,SCP90

NO.1

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-60020

KSP90,SCP90

NO.2

 2
89413-32010

KSP90,SCP90

NO.1

 1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

KSP90,NCP91,SCP90..CVFC

 3
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

KSP90,NCP91,SCP90..CVFC

 3
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

KSP90,NCP91,SCP90..CVFC

 3
89637K - SENSOR, OIL PRESSURE
89637-63010

KSP90,NCP91,SCP90..CVFC

 1
Common parts
90119-06957
91611-B0616
