KSP90-AHXEK (2007)

Toyota Vitz

Production Aug 2007 - Aug 2008
Engine 1KRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 7(0501-0808)B,F,ILL,U,X ; (0501-0809)RS

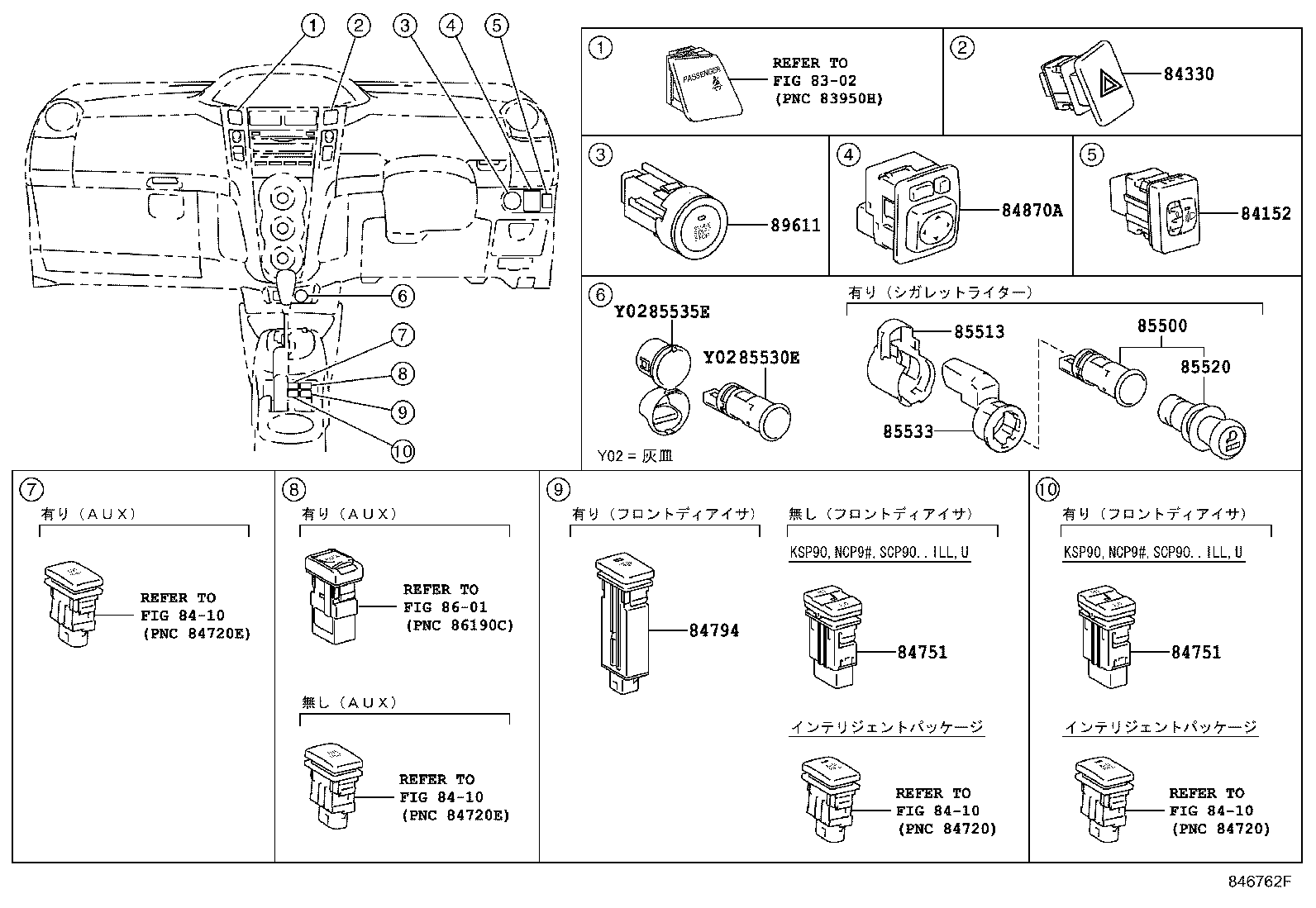

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

diagram 8302 8410 8410 8410 8410 84152 84330 84751 84751 84794 84870A 85500 85513 85520 85530E 85533 85535E 8601 89611
Part # Description Qty Price
84152 - SWITCH, HEADLAMP LEVELING
84152-52080

KSP90,NCP9#,SCP90..B,F,ILL,U

 1
84152-52080

KSP90,NCP9#,SCP90..F,ILL,U

ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-52020

KSP90,NCP9#,SCP90..B,F,ILL,U

 1
84332-52020

KSP90,NCP9#,SCP90

 1
84751 - SWITCH, SEAT HEATER
84751-52050

KSP90,NCP9#,SCP90..ILL,U

 1
84751 - SWITCH, SEAT HEATER
84751-52050

KSP90,NCP9#,SCP90..ILL,U

 1
84794 - SWITCH, FR WIPER DEICER
84794-52010

KSP90..B,F

寒冷地仕様(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｯｹｰｼﾞ)

 1
84794-52010

KSP90,NCP9#,SCP90..B,F,U,X

寒冷地仕様

 1
84794-52020

KSP90,NCP9#,SCP90..B,F,ILL,U

寒冷地仕様

 1
84794-52020

KSP90..B,F

寒冷地仕様(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｯｹｰｼﾞ)

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-28020

KSP90,NCP9#,SCP90..F,ILL,RS,U,X

 1
84870-28020

KSP90,NCP9#,SCP90..F,ILL,U

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-26040

KSP90,NCP9#,SCP90

ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し)

 1
85513 - COVER, CIGARETTE LIGHTER
85513-28010

KSP90,NCP9#,SCP90

ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し)

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010

KSP90,NCP9#,SCP90

ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し)

 1
85520-28010

KSP90,NCP9#,SCP90..B,F,ILL,U

ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し)

 1
85530E - SOCKET ASSY, POWER OUTLET, NO.3
85530-42010

KSP90,NCP9#,SCP90

 1
85530-42010

KSP90,NCP9#,SCP90..B,F,ILL,U

 1
85530-42010

KSP90,NCP9#,SCP90

ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し)

 1
85530-42010

KSP90,NCP9#,SCP90..B,F,ILL,U

ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し)

 1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-30060

KSP90,NCP9#,SCP90

ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し)

 1
85535E - COVER, POWER OUTLET SOCKET, NO.2
85535-52051

KSP90,NCP9#,SCP90..B,F,ILL,U

 1
85535-52050

KSP90,NCP9#,SCP90

ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し)

 1
85535-52051

KSP90,NCP9#,SCP90..B,F,ILL,U

ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し)

 1
85535-52050

KSP90,NCP9#,SCP90

 1
85535-52050

KSP90,NCP9#,SCP90

ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り(照明無し)

 1
85535-52050

KSP90,NCP9#,SCP90

 1
89611 - SWITCH, PUSH START
89611-52010

KSP90,NCP9#,SCP90..F,X

ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ

 1
89611-52021

KSP90,NCP95,SCP90..F

ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｽﾏｰﾄ:ﾌﾛﾝﾄ+ﾊﾞｯｸ(有り ﾌﾟｯｼｭｽﾀｰﾄ)

 1
89611-52020

KSP90,NCP9#,SCP90..F,RS

ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｽﾏｰﾄ:ﾌﾛﾝﾄ+ﾊﾞｯｸ(有り ﾌﾟｯｼｭｽﾀｰﾄ)

 1
89611-52021

KSP90,NCP9#,SCP90..ILL,U

 1
89611-52020

KSP90,NCP9#,SCP90..ILL,U

 1
